Peanut Butter Processing Line
2.The product quotation is for reference only, It is based on the actual purchased model and configuration.
Product Introduction:
The Peanut Butter Processing Line is a machine that is used in the production of peanut butter. The machine has several advantages compared to the manual process of making peanut butter. Some of the benefits of using an Peanut Butter Processing Line include:
1. Efficiency: The Peanut Butter Processing Line is faster and more efficient in processing peanuts into peanut butter. It takes less time to process a larger quantity of peanuts compared to the manual process.
2. Labor Cost: The Peanut Butter Processing Line requires less labor compared to the manual process. This reduces the labor cost and increases profits for the peanut butter manufacturer.
3. Consistent quality: The Peanut Butter Processing Line ensures that the peanut butter produced is of consistent quality, texture, and taste. This improves the customer experience and increases the customer base.
Hygiene: The Peanut Butter Processing Line is designed in such a way that it ensures hygiene in the peanut butter production process, reducing the risk of contamination and foodborne illness.
The peanut butter filling machine is an automatic machine that is used to fill peanut butter into jars or other containers. The machine works based on the principle of volumetric measurement. The machine has a hopper where the peanut butter is held, and a nozzle that dispenses the peanut butter into the jars.
Peanut Butter Processing Line is a fast-growing industry globally. The use of peanut butter production machines has revolutionized the industry, making the peanut butter production process faster, more efficient, and cost-effective. The automatic peanut butter making machine has many advantages, including efficiency, consistency, quality control, and cost-effectiveness. The Peanut Butter Processing Line is a system that integrates various machines and processes in the production of peanut butter. The Peanut Butter Processing Line has many advantages, including efficiency, consistency, quality control, and cost-effectiveness. Operating an industrial peanut butter machine requires expertise and knowledge in the process.
Technical Parameter
|
Machine name |
Technical parameters |
|

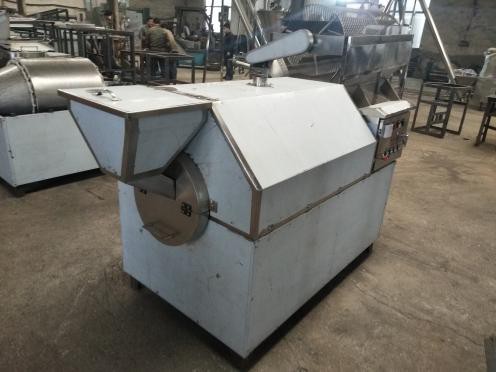

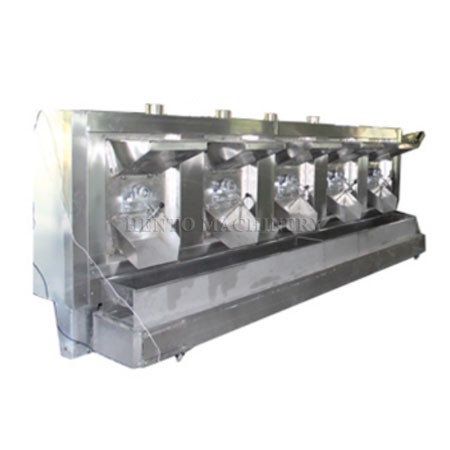

1.Peanut baking machine |
Model:HT-HB50 Capacity: 50kg/time, 100kg/h Motor power:1.1kw Heating power:16kw Voltage:380V, 50hz Dimension:1900*1200*1600mm
Electric heating machine |
|
2.Cooling machine |
Model: HT-LQD600 Size: 6000 * 800 * 500mm Power: 2.95KW Voltage: 380/220V Machine material: frame carbon steel/food contact part 304 stainless steel/outsourcing 201 stainless steel Weight: 420kg Function: cooling and conveying peanuts |
|

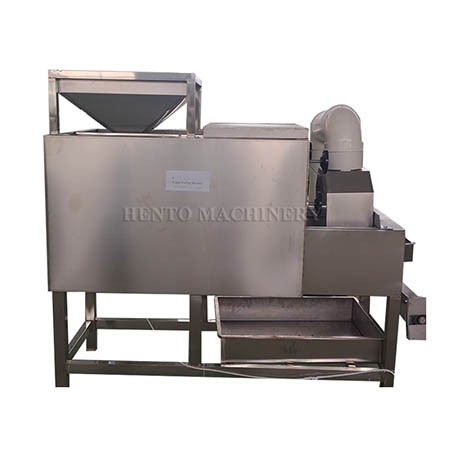

3.Peanut peeler |
Model:HT-GT200 Machine size: 1100 * 400 * 1100mm Power: 0.74KW Output: 200kg/h Peeling rate ≥ 99% Voltage: 380/220V Machine material: frame carbon steel/food contact part 304 stainless steel/outsourcing 201 stainless steel Weight: 98kg Function: large yield ripe peanut peeling |
|
4.Conveyor |
Model: HT-SSD100 Size: 3000 * 600 * 500mm Power: 0.75kw Voltage: 380/220V Material: frame carbon steel/food contact part 304 stainless steel/outsourcing 201 stainless steel Weight: 180kg Function: conveying peanuts |
|
5.Hoister |
Model: HT-TS100 Size: 3000 * 600 * 800mm Power: 0.75KW Voltage: 380/220V Material: frame carbon steel/food contact part 304 stainless steel/outsourcing 201 stainless steel Weight: 130kg Function: lifting and conveying peanuts |
|

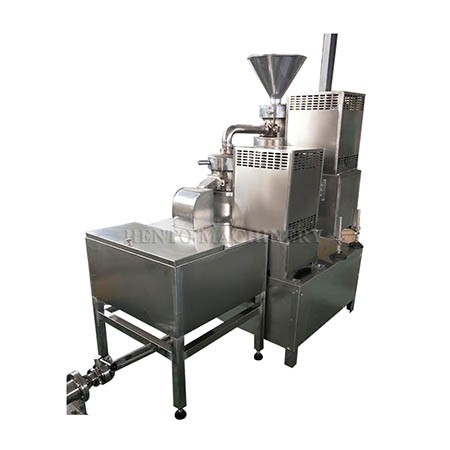

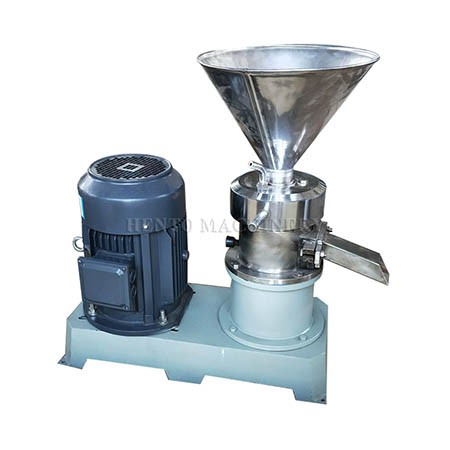

6.Peanut Grinding Machine |
Model: HT-MJ130 Size: 950 * 400 * 980mm Power: 11kw Voltage: 380/220V Grinding core diameter: 130mm No-load speed: 3000 ± 100r/min Equipment material: 304 stainless steel Equipment weight: 220kg Function: peanut butter, sesame paste, almond paste, walnut paste, cashew jam and other sauce processing |
|
7.Receiving Peanut butter tank |
Model: HT-LG1000 Size: φ 600*400mm Material: frame carbon steel/food contact part 304 stainless steel/outsourcing 201 stainless steel Weight: 32kg Function: temporarily store peanut butter |
|
8.Paste pump |
Model:HT-ZMJ200 Power: 1.1kw Weight: 78kg Function: power device for transmitting sesame paste |
|
8.Mixing cooling tank |
Model: WL-JBG800 Size: φ 800*1200mm Package size: 850 * * 850 * 1350mm Motor power: 2.2kw Self-provided water pump: 0.55kw Capacity: 200 litres Material: stainless steel Equipment weight: 160kg Equipment function: stir the cooled sesame paste container to cool the sesame paste and make its texture more uniform |
|
9.Vacuum tank |
Model:HT-ZKG100 Size: φ 800*1200mm Package size: 850 * * 850 * 1350mm Cycloid pinwheel reducer: 2.2kw Capacity: 200 litres Material: stainless steel Equipment weight: 340kg 2.2kw water ring vacuum pump+bucket+check valve+bucket connecting pipe clamp |
|
10.Cooling homogenizer |
Model: HT-LQSS09 Size: φ 300*3000mm Power: 1.1kw Voltage: 380V Weight: 260kg Material: 304 stainless steel Function: cooling and conveying finished peanut butter |
|

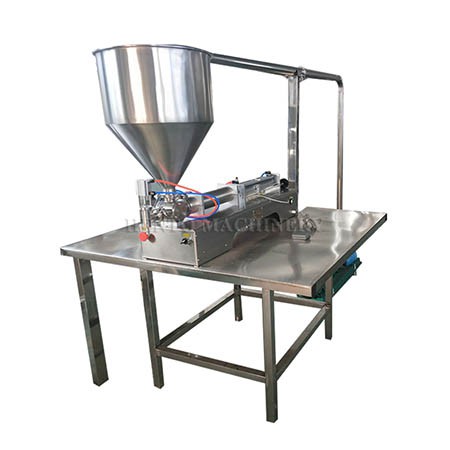

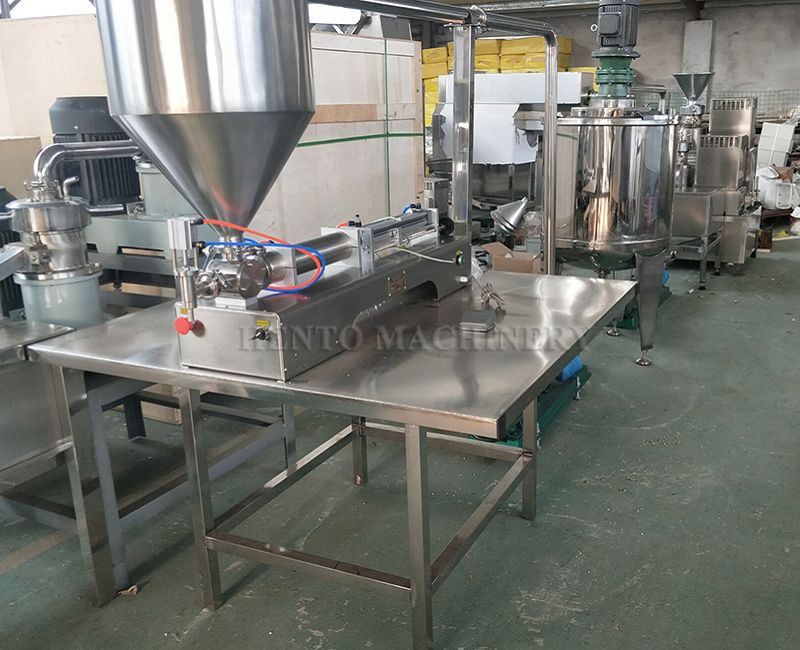

11.Semi-automatic filling machine |
Model: HT-GZ03 Number of filling heads: 1 Output: 100-400 bottles/hour Capacity range: 100ml-1000ml Voltage: 50HZ/220V Quantitative error: ≤± 1.5% FS Power consumption: 0.2kw-2kw Required air source: 0.4-1.0Mp Air consumption: 0.1 m3/min |

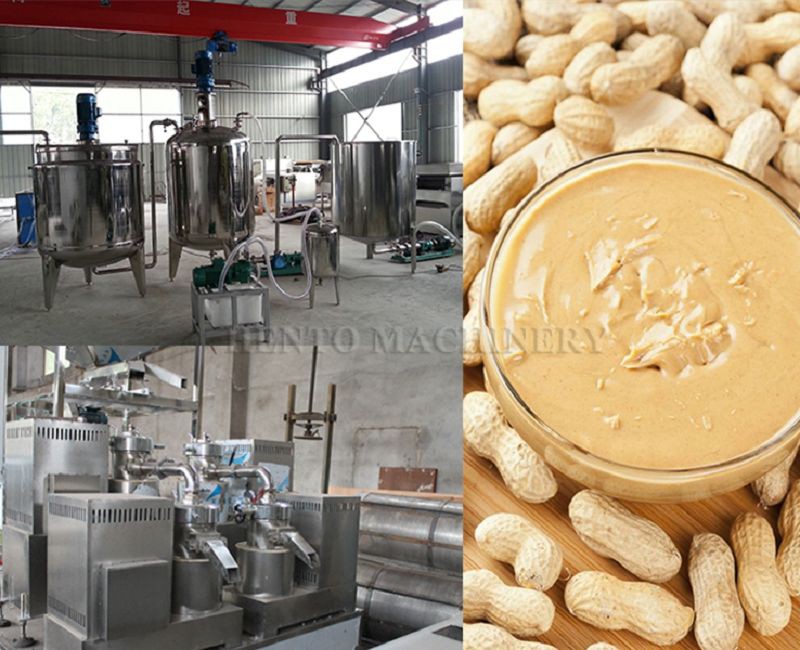

Product Pictures
