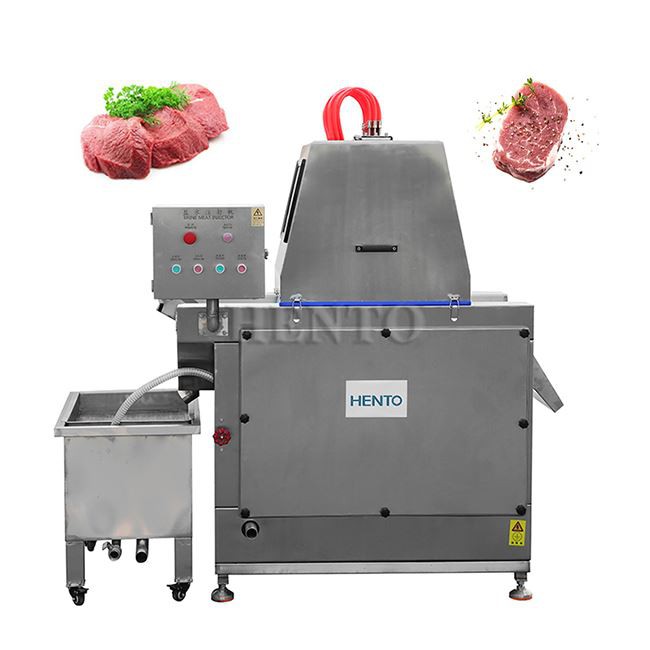

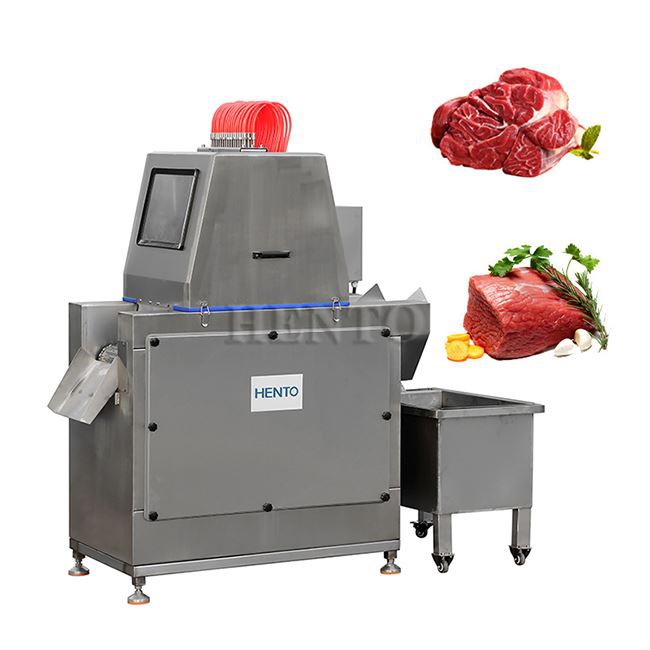

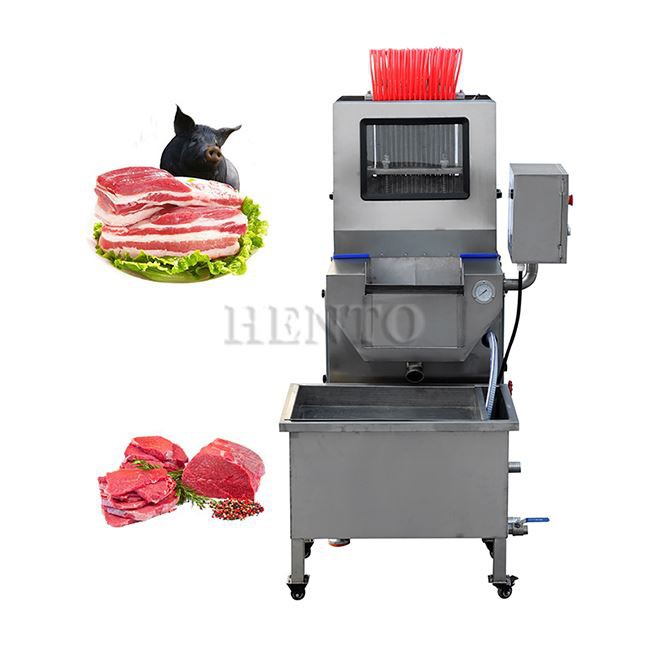

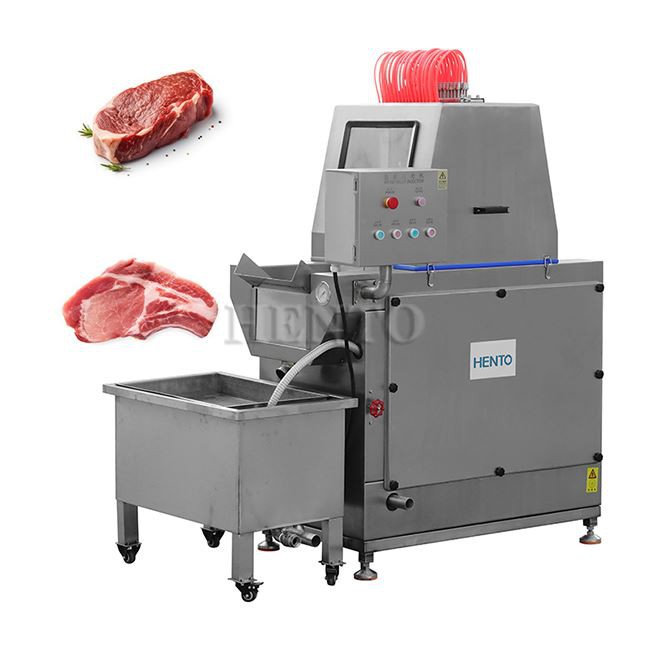

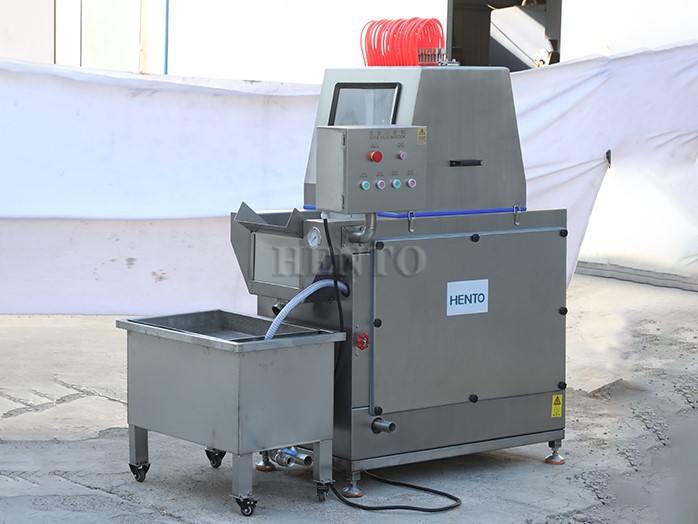

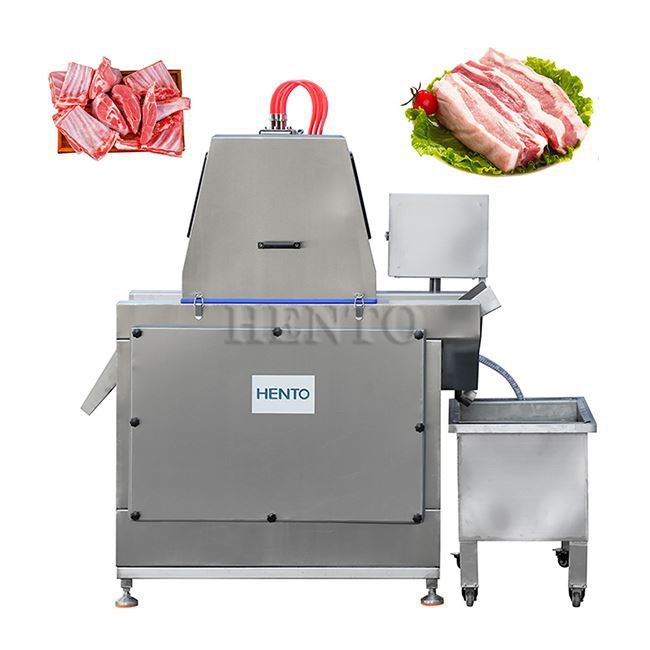

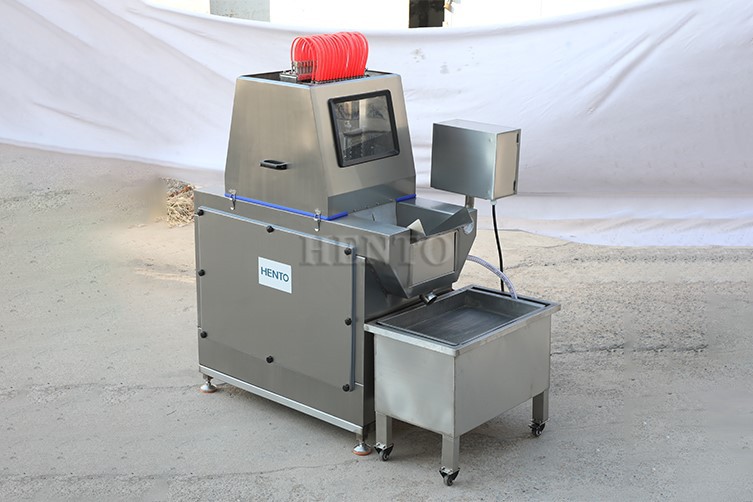

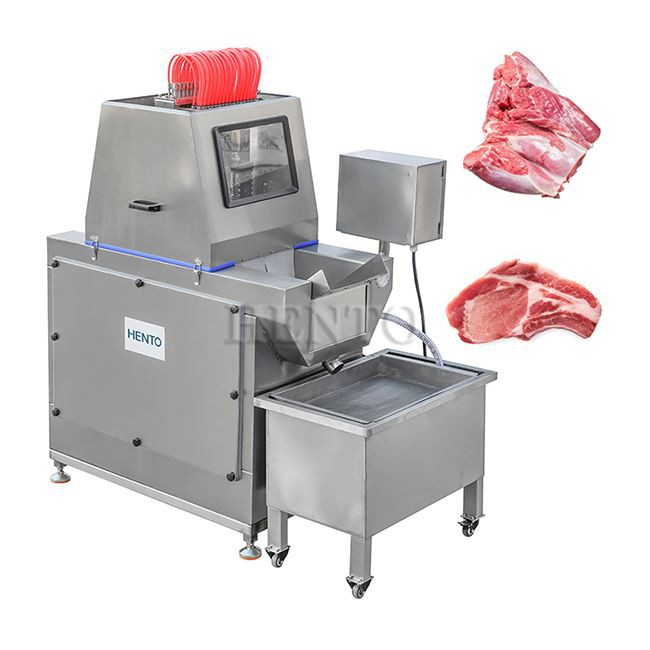

Meat Brine Injector Machine
Product Description
The fully automatic meat brine injector machine is an saline injection machine developed by our company's scientific and technological personnel based on domestic market demand, with a high production rate. Mainly used for ham, grilled meat, fish, chicken, beef, duck, etc., it is a specialized equipment for injecting mixed salt water into meat. Various types of meat are evenly penetrated through the injection of salt water mixture, making it soft and delicious, and increasing the yield.
Machine Advantages
This Automatic meat brine injector machine can evenly inject the brine and auxiliary materials into the meat blocks to reach the optimal effects, which can shorten the pickling time and greatly improve the flavor of the products. According to the technological requirements, the meat brine injector machine can be adjusted stepping rate, stepping distance and injection pressure which widely used to process ham, bacon, poultry and seafood.
01
High Quality
Adopted SUS304 stainless steel.
02
High Safety
Equipped with automatic protective device for injecting chops.
03
High Performance
Installed with filtration system on the upper part of the water tank, can discharge small meat grain from the inject, avoiding to block the brine pump and the hole of injection needles.
04
Easy Cleaning
Detachable transmission plate chain, easy to clean.
Machine Features

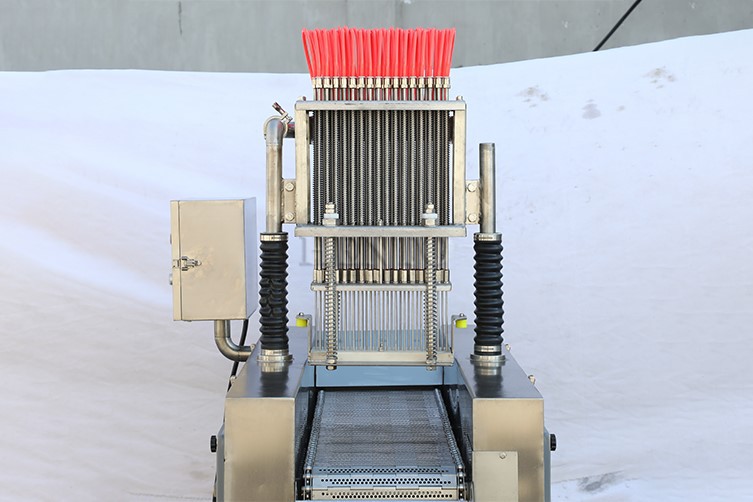

When the needle encountering bones, single needle can automatically lift according to bone hardness to avoid damage; Various types of meat are evenly infused with a saltwater mixture, consistent pressure, increased yield.
The conveyor belt can adjust the speed, and its performance is very reliable. The machine material is 304 stainless steel, the injection needles are arranged neatly and injected evenly. With a detachable conveyor chain system, it can be thoroughly cleaned or high-temperature disinfection.
comparison of product parameters
|
Model |
HT-ZSJ24 |
HT-ZSJ48 |
HT-ZSJ80 |
HT-ZSJ120 |
HT-ZSJ200 |
|
Needle Number |
24 |
48 |
80 |
120 |
200 |
|
Capacity |
400kg/h |
600kg/h |
800kg/h |
1200kg/h |
1500-2000kg/h |
|
Needle Specification |
Φ2,φ3,φ4 |
Φ2,φ3,φ4 |
Φ2,φ3,φ4 |
Φ2,φ3,φ4 |
Φ2,φ3,φ4 |
|
Injecting Speed |
16times/min |
16times/min |
16times/min |
16times/min |
|
|
Injecting Pressure |
0.1-0.9Mpa |
0.1-0.8Mpa |
0.1-0.8Mpa |
0.1-0.8Mpa |
3-6.2Mpa |
|
Injection Rate |
60-90% |
60-90% |
60-90% |
60-90% |
60-90% |
|
Conveyor Speed |
20-80m/min |
20-80m/min |
20-80m/min |
20-120m/min |
20-120m/min |
|
Power |
3.7kw |
3.7kw |
4.5kw |
4.5kw |
4.5kw |
|
Dimension |
1280*820*1650mm |
1300*900*1500mm |
1520*1020*1800mm |
1720*1420*1900mm |
1760*1300*1700mm |
|
Weight |
330kg |
360kg |
420kg |
680kg |
580kg |
|
Model |
HT-ZSJ140 |
HT-ZSJ180 |
HT-ZSJ240 |
|
Type |
frequency conversion |
frequency conversion |
frequency conversion |
|
Needle Number |
140 |
180 |
240 |
|
Power |
5.2kw |
5.2kw |
5.9kw |
|
Capacity |
1200kg/h |
1500kg/h |
2000kg/h |
|
Injecting Pressure |
0.45-0.9Mpa |
0.45-0.9Mpa |
0.45-0.9Mpa |
|
Voltage |
380v |
380v |
380v |
|
Injecting Speed |
40-70m/min |
40-70m/min |
40-70m/min |
|
Machine Dimension |
1300*1400*1700mm |
1300*1500*1700mm |
2000*1380*1700mm |
|
Skip Car Size |
860*460*700mm |
900*460*700mm |
1220*800*600mm |
|
Weight |
360kg |
400kg |
560kg |
FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: 3.What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: 4.How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: 5.Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: 6.How long is the warranty of the machine?
A: Two years warranty.
Q: 7.How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: 8.What about the package?
A: Usually we will use the standard export wooden case.
Q: 9.Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: 10.Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about Pre-sale service?
A: 11.Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: What about After-sales service?
A: 12.Video technical support; Online support ; Field installation, commissioning and training;
