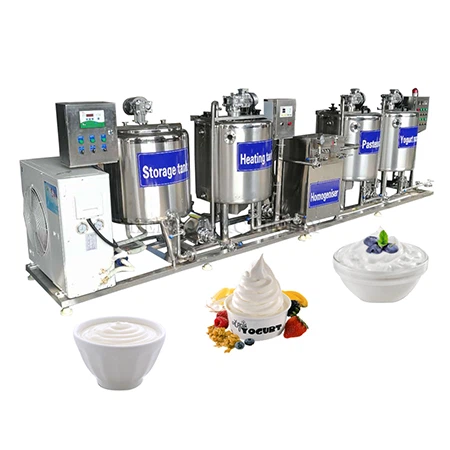

Industrial Yogurt Production Line

1.The Industrial Yogurt Production Line can be designed according to the special requirements of users
2.Multiple products can be produced on the same production line
3.It can produce high quality products and keep nutrients
4.Aromatic substances can be added and mixed precisely
5.Extend the shelf life of products
6.Large output and small loss
Send Inquiry
Product Introduction

Product Introduction



1. Industrial Yogurt Production Line is made of high-quality SUS304 stainless steel (thickness 2mm), and the sterilization temperature and speed can be set according to the process requirements.

2. Good sterilization effect, low noise, adjustable speed, durable, safe and reliable, temperature can be automatically controlled, and easy maintenance.

3. The tank is divided into three layers, the outermost layer is an insulation layer, the middle is a hot water sterilization layer, and the inner layer is milk.

4. There is a stirring device above the milk tank, and the milk is stirred by the stirring device to heat the milk evenly.

5. Pasteurized milk should be stored at a temperature of about 4℃, and can only be stored for 3-7 days.

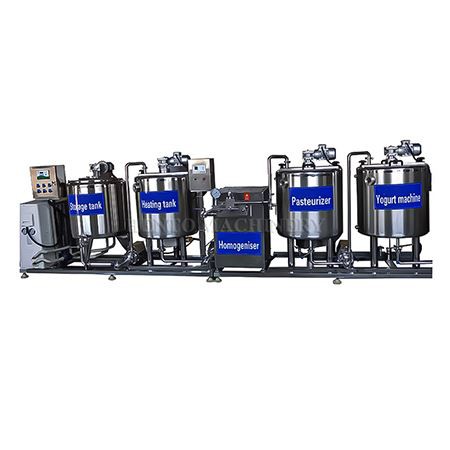

200L capacity process Industrial Yogurt Production Line:



The production processor yogurt: raw material storage tank -filtration -heating -homogenization -sterilization- fermentation-filling

Auxiliary equipment: refrigeration tank-single filter-preheating tank -homogenizer- pasteurization tank- fermentation tank- filling machine.

6.Industrial yogurt production line is a modern and automated production technology adopted in the dairy industry for the production of high-quality yogurt. The production line comprises of milk receiving, pasteurization, homogenization, fermentation, packaging and storage units. The production line is capable of processing different types of milk sources, including cow, goat, sheep, and camel milk.



Application of Industrial Yogurt Production Line



The industrial yogurt production line is widely used in the dairy industry for the production of various types of yogurts such as plain yogurt, flavored yogurt, Greek yogurt and bio-yogurt. The production line is suitable for processing different types of milk, including raw milk, pasteurized milk, and milk powder. Some of the major applications of industrial yogurt production lines include:

1). Production of High Quality Yogurt: The industrial yogurt production line guarantees the production of high-quality yogurt, which is essential for maintaining customer satisfaction and increasing sales.

2). Increased Production Efficiency: The production line is automated and has a high processing capacity, making it possible to process large volumes of milk within a short time, therefore, increasing production efficiency.

3). Reduction of Production Costs: The industrial yogurt production line helps in reducing labor costs, energy costs, and processing costs, enhancing profitability in the dairy industry.

4). Versatility: The production line can process different types of milk and produce various types of yogurt, making it a versatile production technology for the dairy industry.



Technical Parameter



Model:HT-MK200

Machine Name

Capacity

Specification

Refrigeration Tank

200L

Material: SUS304
Power : 2kw
With stirring Speed :36r/min
Insulation layer 5mm
Polyurethane foaming liquid

Preheating Tank

200L

Dimension:1020*870*1530mm
Voltage :380V
Rated Power:6kw
Stirrer Speed:36r/min
Stirring Motor Power (kw):0.55
Material: SUS304
Equipped with power: 0.75 kw
Speed: 36 rpm
12kw heating tube

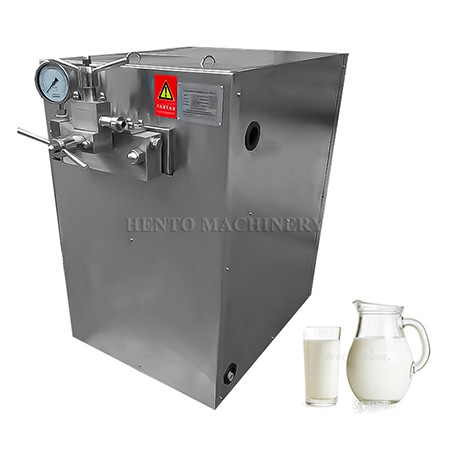

Homogenizer Machine

500L/h

Materials Inlet and Outlet(mm):40
Rated Milk Flow:500kg/h
Maximum pressure :25P (MPa)
Weight :500kg
Dimension :1010*616*975mm
Power: 4kw

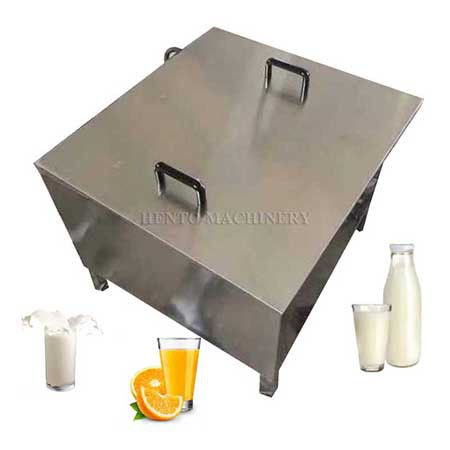

Pasteurization Tank

200L

Dimension :1020*870*1530mm
Heating cycle :25-35 minutes
Sterilization temperature :60-99 adjustable
Material: 304 stainless steel
Equipment Weight: 100kg
Material: SUS 304
Power:0.75 kw
Rotating Speed: 36r/min
12kw electric heating tube
Warm water circulation at room temperature

Disc paper cup filling machine

800 cups/hour

Quantitative:50-1000ml
Dimension :1200*1200*1400(mm)

Fermenter Tank

200L

Dimension :1020*870*1530
Capacity:0-200kg/times
Heating cycle: 25-35 minutes
Sterilization temperature: 0-60 adjustable
Material: 304 stainless steel
Equipment weight: 100kg

Milk pump

3t/h

Material: 304 stainless steel
Size: 400*180*240mm
Material: SUS304
Carbide mechanical seal
Equipped with power: 1.5kw
Import and export Φ38

Single filter

Single

Material: SUS304



Product Pictures



yogurt making machine(003)

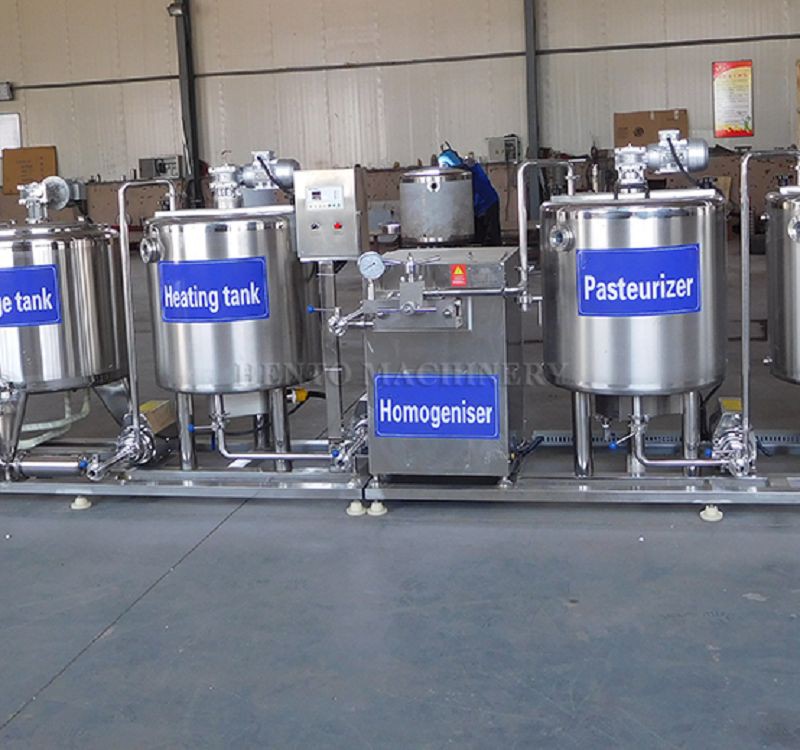

yogurt production line(003)
