Peanut Butter Grinding Machine

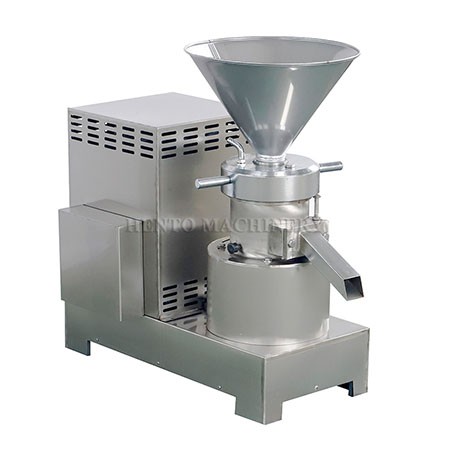

electric peanut butter maker

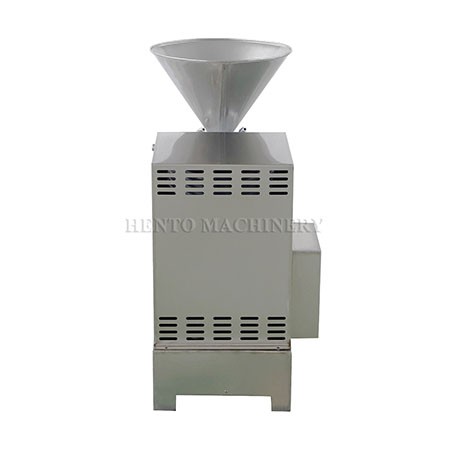

high quality peanut butter making machine

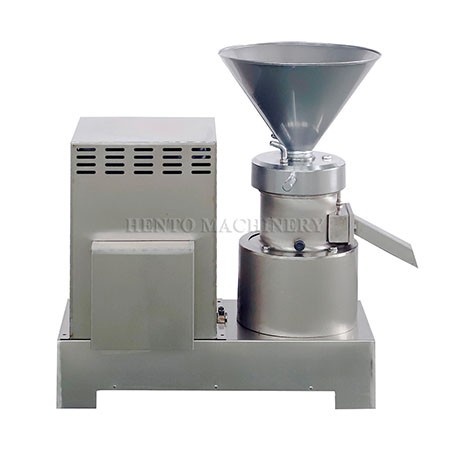

peanut butter butter blender

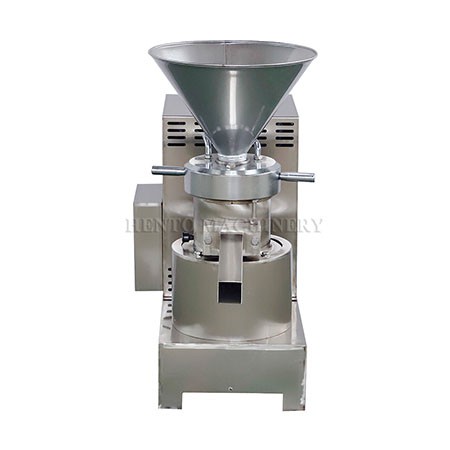

peanut butter making machine

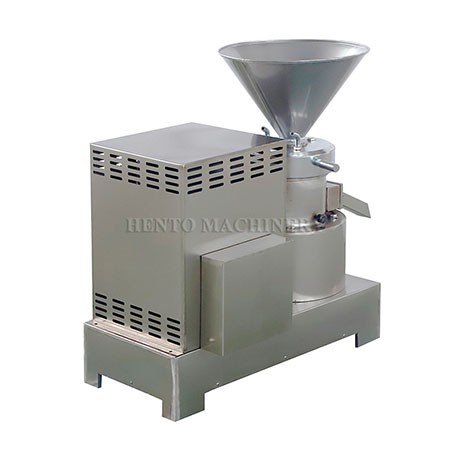

peanut paste making machine

Peanut Butter Grinding Machine

1.Emulsion fineness: 2um.
2.Product contact parts: SUS304.
3.Explosion proof grinding motor.
4.Working capacity of Peanut Butter Grinding Machine can be customized.

Send Inquiry

Product Introduction

Introduction of Peanut Butter Grinding Machine

Peanut Butter Grinding Machine is a machine for fine chemical grinding of fluid and semi-liquid materials. This machine has excellent performance of ultra-fine grinding, dispersion, emulsification, mixing, etc. It combines the multiple performance of homogenizer, ball mill, three-roller machine, mixer and other machinery, and the efficiency is the above several times of machinery.

This machine is designed to make peanut butter, almond paste,tomato ketchup sesame paste, almond paste ,cashew nut paste , Hummus paste,pistachio paste, etc various tastes. Besides, the grinding machine can be used to grind peanut milk, almond ,protein milk, soy milk, dairy products, malted milk, fragrance, drinks, aloe Vera, pollen, pineapple, tea, ice cream, moon cake stuffing, butter, jam, fruit juice etc.

Advantages of Peanut Butter Grinding Machine

Characteristics of the Peanut Butter Grinding Machine: The glue mill mainly uses multifunctional wet treatment fluid ultrafine particle crushing, grinding, emulsification, dispersion, homogenization, stirring, mixing and other functions as the main product, which can replace and surpass stone mills, sand mills, ball mills, milk homogenizers, shear dispersion pumps, homogenizing emulsifying machines, three series machines, tissue crushers, and other work efficiency.

The product fineness can reach 2-40um, and the motor speed is 2800rmp. This machine not only maintains the characteristics of the traditional colloid mill, such as reasonable structure, simple operation, convenient maintenance, small size and light weight. It also has the characteristics of wide adaptability, simple speed change, and the ability to replace different types of motors for different processing objects.

1. The material of the main parts of the equipment is stainless steel.

2. The main working parts of the equipment are stators and rotors. The positioning plate can be used to slightly adjust the gap between the stator and the rotor. It is easy to control with a dial to ensure the processing quality of the product.The machine can grind materials with adjustable fineness, ranging from 20 to 50 meshes.

3. According to different uses, stators and rotors of different materials can be selected, which are easy to disassemble and assemble.

4. The speed of the equipment can be adjusted. Users can order the appropriate speed from our unit according to the material processing conditions.

Contact now

Technical Parameter of Peanut Butter Grinding Machine

Model	HT-JMS50	HT-JMS80	HT-JMS110
Processing fineness(μm)	2-50	2-50	2-50
Production Capacity	5-300kg/h	50-500kg/h	100-1200kg/h
Power	1.5kw	4kw	7.5kw
Voltage	220V, 50hz, single phase power	380V, 50hz, 3phase power	380V, 50hz, 3phase power
Dimension	530260580mm	600410930mm	7004301000mm
Weight	50kg	150kg	175kg

Model	HT-JMS130	HT-JMS160	HT-JMS180
Processing fineness(μm)	2-50	2-50	2-50
Production Capacity	300-2000kg/h	500-3000kg/h	800-6000kg/h
Power	11kw	15kw	17.5kw
Voltage	380V, 50hz, 3phase power	380V, 50hz, 3phase power	380V, 50hz, 3phase power
Dimension	9904401000mm	10004601050mm	10004901100
Weight	300kg	300kg	375kg

FAQ

Q: What's the MOQ?

A: 1 set

Q: Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: How long is the warranty of the machine?

A: Two years warranty.

Q: How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: What about Pre-sale service:

A: 11.Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
