Peanut Butter Production Line
2)No kernel breaking of Peanut Butter Production Line
3)High shelling rate.
4)Easy operating.
5)Stable working.
6)Fast shelling and big capacity.
Product Introduction

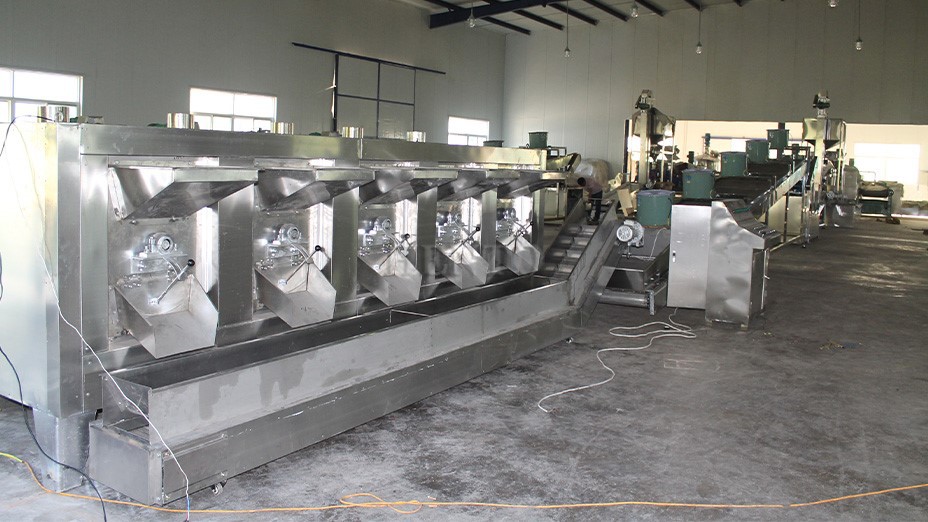

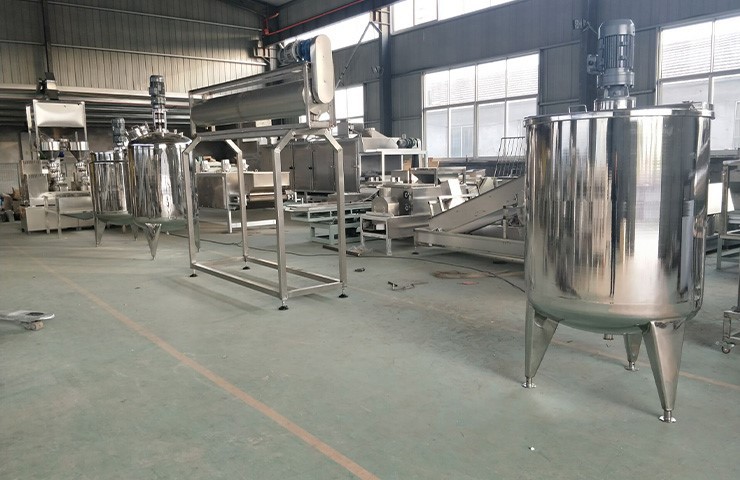

The Peanut Butter Production Line including various machines and it processes in the production of peanut butter.
The line including peanut cleaning and peeling machines, peanut grinding machines, mixing machines, filling machines, and packaging machines. The application of the peanut butter production line has many advantages, including:
Application of Peanut Butter Production Line
This peanut butter production line equipment is particularly suitable for high-concentration medium-sized particles. It can also be filled with other condiments of the same concentration, such as bean paste, peanut butter, sesame paste, jam, beef hot pot base, red oil hot pot base, etc. Viscous seasonings filled with this substance. The fully automatic peanut butter production line is suitable for filling materials with obvious oil separation and uneven particles. It is an ideal equipment for separating sauces. The material of this type of filling equipment in contact with the material is 316 stainless steel and silicone rubber that meet QS specifications.
Production Process
The process flow of sesame peanut butter production line: raw material lifting - destone and impurity removal - baking - cooling - peeling - selection - coarse grinding - fine grinding - blending - cooling - degassing - filling.
Main equipment
Main equipment of sesame peanut butter production line: oven, cooling belt, peeling machine, picking belt, coarse grinder, ultrafine grinder, condenser, degassing tank, filling machine.
advantage
The peanut line has a high degree of mechanization, good performance, and fully enclosed production. It has the characteristics of simple operation, stable operation, low noise, easy maintenance, corrosion resistance, wide application, and a full range of varieties. It is highly popular in the foreign market.
Cost-effective
The peanut butter production line can make high-quality peanut butter, granular peanut butter and ordinary peanut butter. It can also produce stable and ordinary sesame butter.
|
Machine name |
Technical parameters |
|

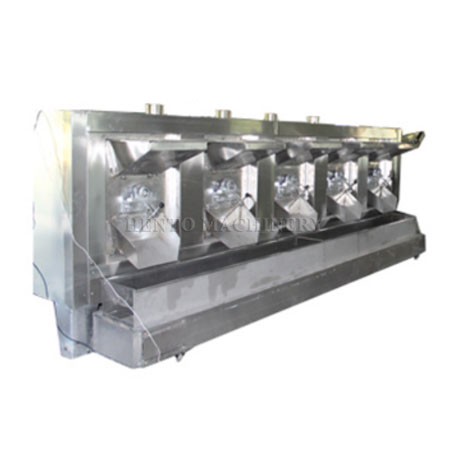

1.Peanut baking machine |
Model:HT-HB50 Capacity: 50kg/time, 100kg/h Motor power:1.1kw Heating power:16kw Voltage:380V, 50hz Dimension:1900*1200*1600mm Electric heating machine |
|
2.Cooling machine |
Model: HT-LQD600 Size: 6000 * 800 * 500mm Power: 2.95KW Voltage: 380/220V Machine material: frame carbon steel/food contact part 304 stainless steel/outsourcing 201 stainless steel Weight: 420kg Function: cooling and conveying peanuts |
|

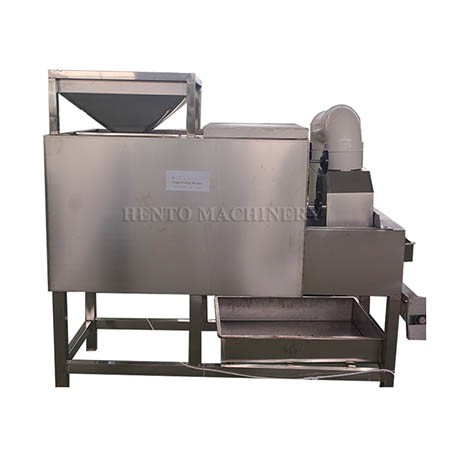

3.Peanut peeler |
Model:HT-GT200 Machine size: 1100 * 400 * 1100mm Power: 0.74KW Output: 200kg/h Peeling rate ≥ 99% Voltage: 380/220V Machine material: frame carbon steel/food contact part 304 stainless steel/outsourcing 201 stainless steel Weight: 98kg Function: large yield ripe peanut peeling |
|
4.Conveyor |
Model: HT-SSD100 Size: 3000 * 600 * 500mm Power: 0.75kw Voltage: 380/220V Material: frame carbon steel/food contact part 304 stainless steel/outsourcing 201 stainless steel Weight: 180kg Function: conveying peanuts |
|
5.Hoister |
Model: HT-TS100 Size: 3000 * 600 * 800mm Power: 0.75KW Voltage: 380/220V Material: frame carbon steel/food contact part 304 stainless steel/outsourcing 201 stainless steel Weight: 130kg Function: lifting and conveying peanuts |
|

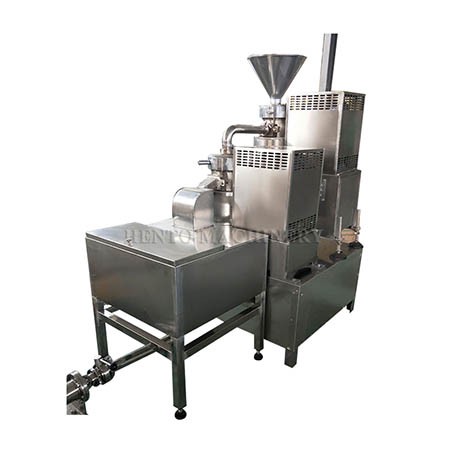

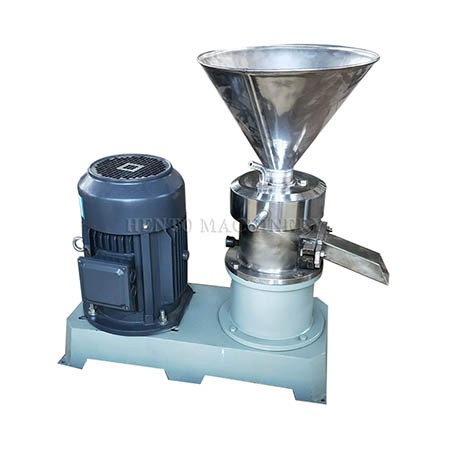

6.Peanut Grinding Machine |
Model: HT-MJ130 Size: 950 * 400 * 980mm Power: 11kw Voltage: 380/220V Grinding core diameter: 130mm No-load speed: 3000 ± 100r/min Equipment material: 304 stainless steel Equipment weight: 220kg Function: peanut butter, sesame paste, almond paste, walnut paste, cashew jam and other sauce processing |
|
7.Receiving Peanut butter tank |
Model: HT-LG1000 Size: φ 600*400mm Material: frame carbon steel/food contact part 304 stainless steel/outsourcing 201 stainless steel Weight: 32kg Function: temporarily store peanut butter |
|
8.Paste pump |
Model:HT-ZMJ200 Power: 1.1kw Weight: 78kg Function: power device for transmitting sesame paste |
|
8.Mixing cooling tank |
Model: WL-JBG800 Size: φ 800*1200mm Package size: 850 * * 850 * 1350mm Motor power: 2.2kw Self-provided water pump: 0.55kw Capacity: 200 litres Material: stainless steel Equipment weight: 160kg Equipment function: stir the cooled sesame paste container to cool the sesame paste and make its texture more uniform |
|
9.Vacuum tank |
Model:HT-ZKG100 Size: φ 800*1200mm Package size: 850 * * 850 * 1350mm Cycloid pinwheel reducer: 2.2kw Capacity: 200 litres Material: stainless steel Equipment weight: 340kg 2.2kw water ring vacuum pump+bucket+check valve+bucket connecting pipe clamp |
|
10.Cooling homogenizer |
Model: HT-LQSS09 Size: φ 300*3000mm Power: 1.1kw Voltage: 380V Weight: 260kg Material: 304 stainless steel Function: cooling and conveying finished peanut butter |
|

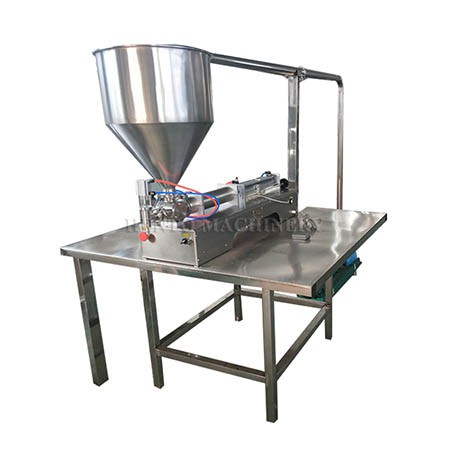

11.Semi-automatic filling machine |
Model: HT-GZ03 Number of filling heads: 1 Output: 100-400 bottles/hour Capacity range: 100ml-1000ml Voltage: 50HZ/220V Quantitative error: ≤± 1.5% FS Power consumption: 0.2kw-2kw Required air source: 0.4-1.0Mp Air consumption: 0.1 m3/min |
FAQ
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: What about the package?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
Q: What about Pre-sale service:
Q: What about After-sales service?
