Bone Breaking Machine
video

Bone Breaking Machine

1.Bone Breaking Machine are suitable for dry bones, fresh beef bones, pork bones, sheep bones, donkey bones, and other animal bones and fish bones.
2.The knife of Bone Breaking Machine is treated with special thermal treatment. After being blunt, it can be grinded multiple times, repeatedly used, and long service life.
Send Inquiry
Product Introduction
Product Introduction



Bone breaking machines are ideal for processing animal bones into various food products. The primary function of these machines is to break down bones into smaller pieces that can easily fit into meat grinders, blenders, and other food processing equipment. The bone-breaking process typically takes a matter of seconds, and the result is a fine powder or small bone fragments that can be used in different food products such as soup, broth, and fertilizer.



Bone breaking machines offer businesses that require bone processing an efficient and effective solution that saves time and increases productivity. These machines are designed to break down animal bones into fine pieces that can easily be used in the production of various food products. Operators need to ensure that the machine is set up correctly and follow the necessary instruction to avoid any accidents or damage to the machine. With proper use and maintenance, bone breaking machines can provide businesses with many years of reliable service.



Working Principle:



The working principle of a bone-breaking machine is relatively simple. The machine is equipped with a set of blades or rollers that crush and break the bones into small pieces.



The bones of the animal are fed into the machine through a hopper. Once inside the machine, they are subjected to pressure from the blades or rollers, which breaks them into small pieces. The pressure required to break the bones varies depending on the size and hardness of the bones.



The blades or rollers used in bone-breaking machines are made of high-quality, durable steel to withstand the stress of breaking bones. They are designed in such a way that they can be easily cleaned to maintain hygiene standards.



Features:



1.Bone Breaking Machine is widely suitable for the crushing of hard material, such as sausages, pork luncheon meat, bone soup raw materials, ham sausage, meatballs, bone powder, instant noodles, puffed foods, composite seasonings, catering ingredients, pet food and frozen meat.

2.Bone Breaking Machine optimize the design of blade, which improves the shear and impact resistance of a single blade. Increase the cutting angle of the blade, improve the cutting efficiency, and smash the particles evenly.



Technical Parameter



Model

Capacity
(kg/h)

Feeding caliber
(mm)

Power
(kw)

Blade (fixed knife/movable knife)

Weight
(kg)

Dimension
(mm)

HT-PG-150

20-60

150*200

2.2

2/9

130

800*500*1000

HT-PG-230

30-100

250*210

4

2/8

280

950*690*1200

HT-PG-300

80-200

300*210

5.5

2/9

340

1000*700*1300

HT-PG-400

150-400

380*250

7.5

2/12

420

1000*850*1400

HT-PG-500

200-600

500*250

11

2/15

600

1200*1000*1500

HT-PG-600

300-900

600*320

15

4/18

800

1650*1200*1700

HT-PG-800

800-2200

800*650

22

4/24

2000

2400*1500*2400

HT-PG-1000

1000-4000

1000*800

37

4/30

3000

2600*1600*2500



Product Pictures

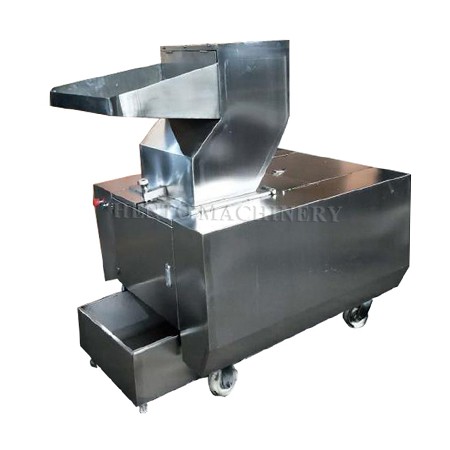

animal bone crusher machine(001)
bone chopping machine(001)
