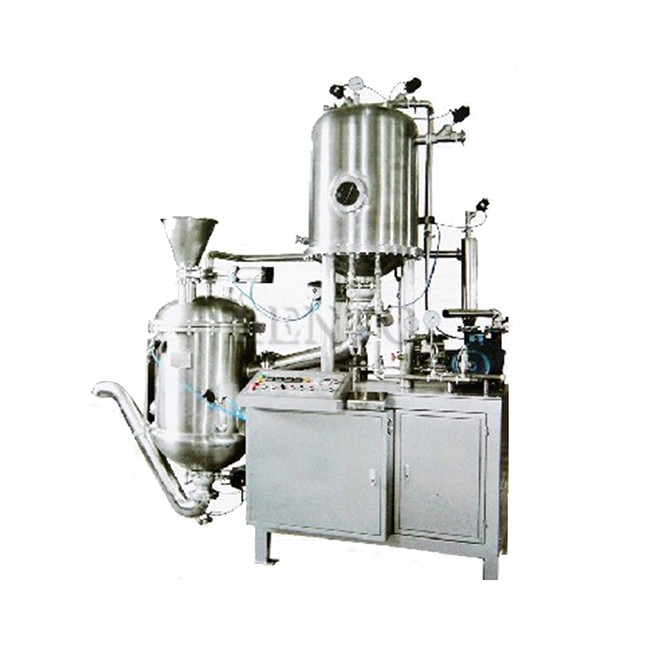

Industrial Nougat Production Line

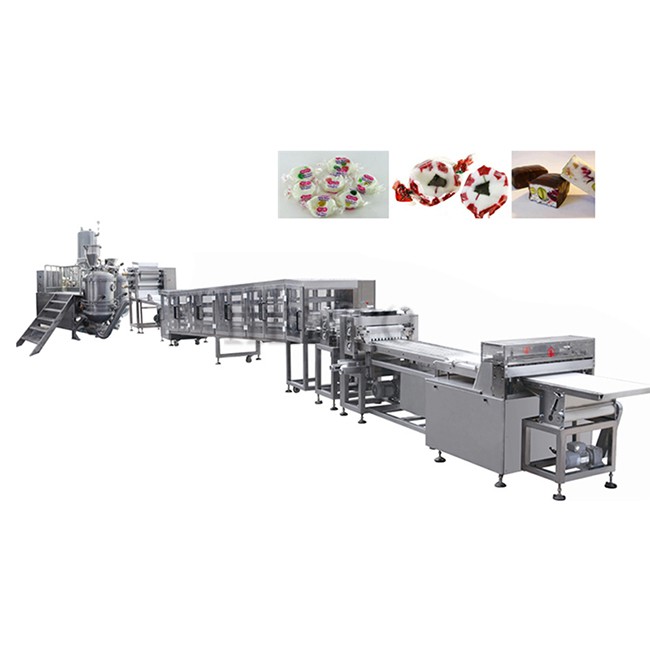

Nougat Forming Cutting Making Line

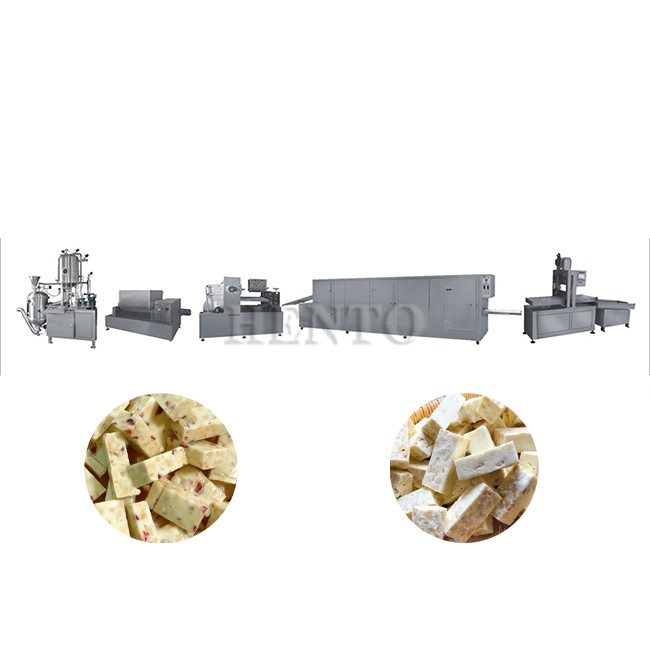

Nougat Making Line
Nougat Processing Line

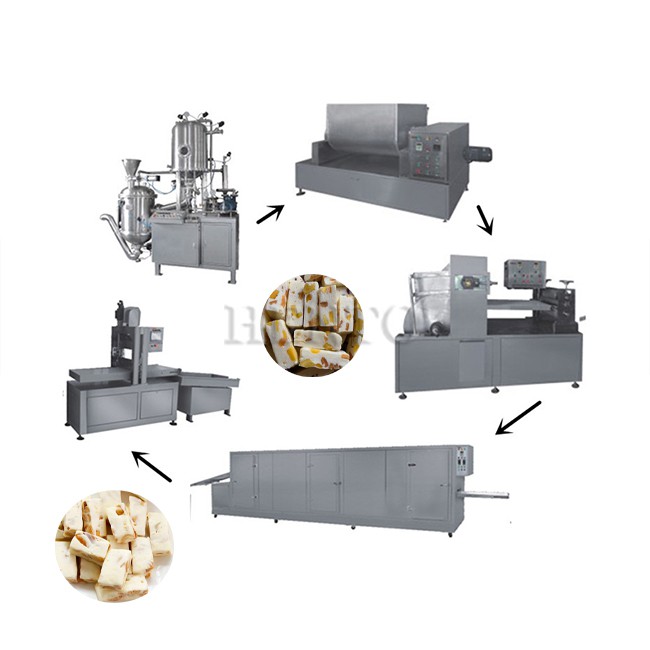

Nougat Production Line

Peanut Bar Forming Machine

1. Peanut Bar Forming Machine is a specialized machine for producing peanut candy. Its main purpose is to prepare peanut candy, cereal bars, etc. for commercial and industrial scale production
2. Nuts commonly used to make peanut sugar include sesame, peanut, almond, walnut, hazelnut, sunflower, etc

Send Inquiry

Product Introduction

Machine Introduction of Peanut Bar Forming Machine

The Peanut Bar Forming Machine is an industrial production line that produces various leisure snacks such as peanut candy crisps, sesame crisps, nut crisps, peanut crisps, cereal bars, etc. The complete set of peanut candy manufacturing machines mainly includes peanut baking machine, peanut peeling machine, caramel (sugar) boiling pot, automatic mixer, peanut candy forming and cutting machine, and peanut candy packaging machine.

The main raw materials for making peanut candy are various nuts, spices, sugar (caramel, brown sugar), etc. Among them, nuts need to be baked by a baking machine before they can be used to process peanut candy, and raw nuts cannot be directly processed into peanut candy. Nuts commonly used to make peanut sugar include sesame, peanut, almond, walnut, hazelnut, sunflower, etc. It should be noted that different nuts have different baking temperatures.

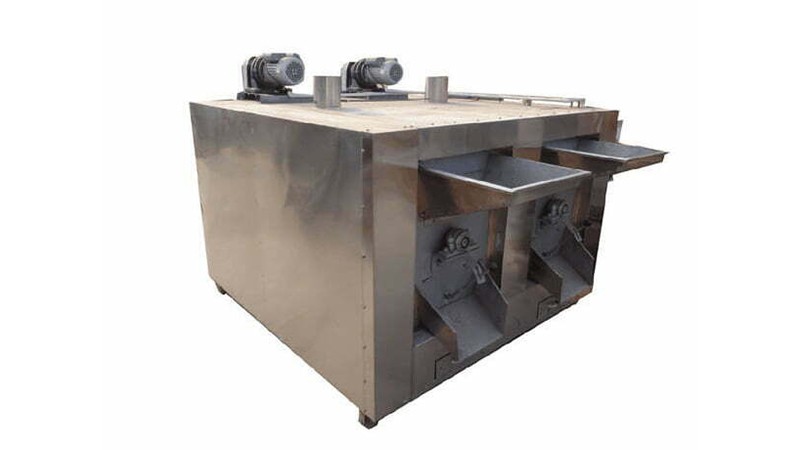

Peanut Roasting Machine

The processing of peanut candy first requires baking the raw materials to ensure they are fully cooked. We can use this rotary drum peanut baking machine to bake peanuts, sesame seeds, almonds, etc. The heat source of this machine can be electric heating or gas heating.

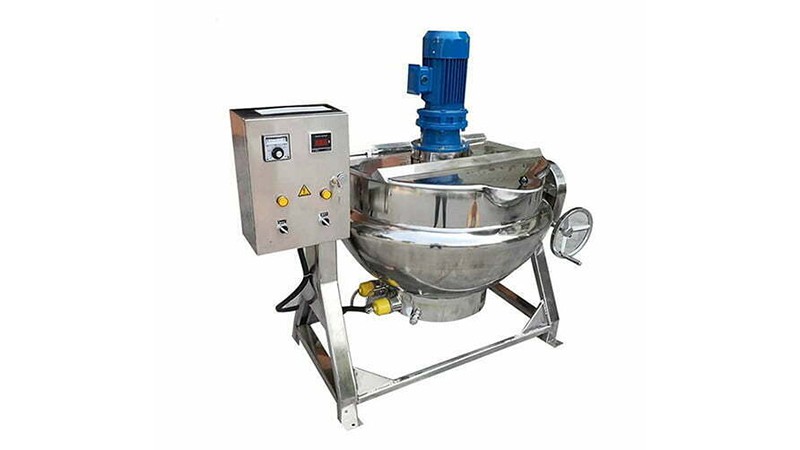

Sugar boiling machine

We usually use this jacketed cooking pot to heat and melt solid granular caramel or white sugar, forming sugar water. When making sugar syrup, we can also add an appropriate amount of honey and spices to mix.

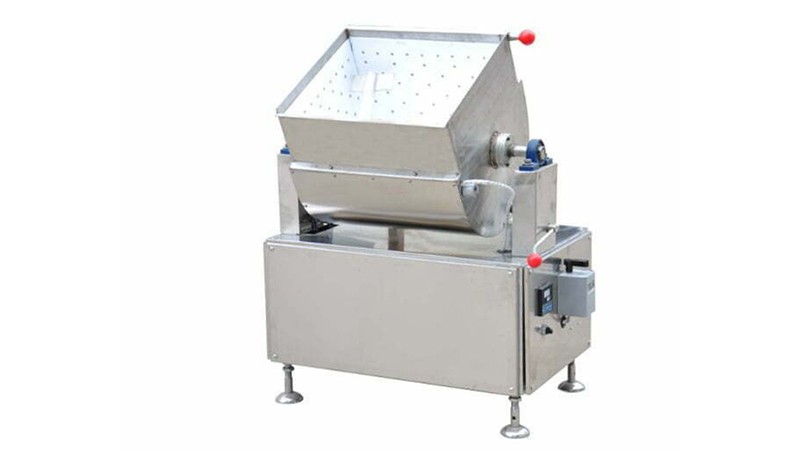

Peanut Mixing Machine

After boiling the sugar water, we need to mix and stir peanuts or other fried nuts in a certain proportion. The mixing drum of the automatic mixer has a layer of food grade PE material inside, which can prevent the material from sticking to the wall of the mixing drum.

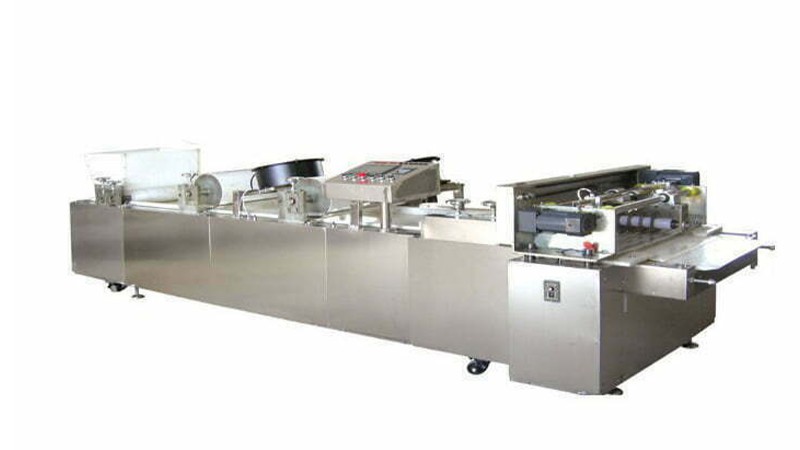

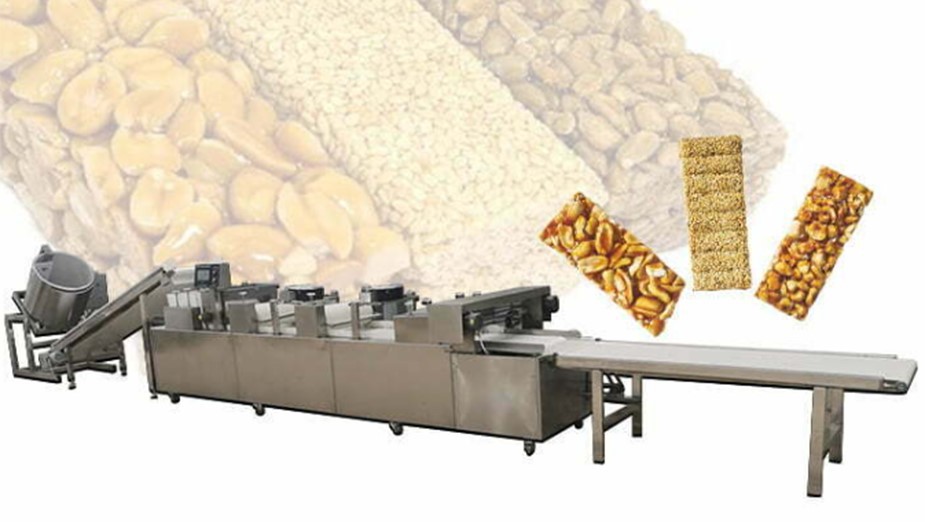

Peanut Bar Forming and Cutting Machine

We can use a peanut candy cutting machine to compact, cool, and cut the evenly mixed peanut candy. Usually, the freshly mixed peanut candy chunks are large and the temperature is also high. In addition, the fan on the peanut candy cutting machine will continuously blow air, gradually cooling the peanut candy. When peanut candy enters the cutting system of the molding machine, it will be quickly cut into uniformly sized strips and blocks.

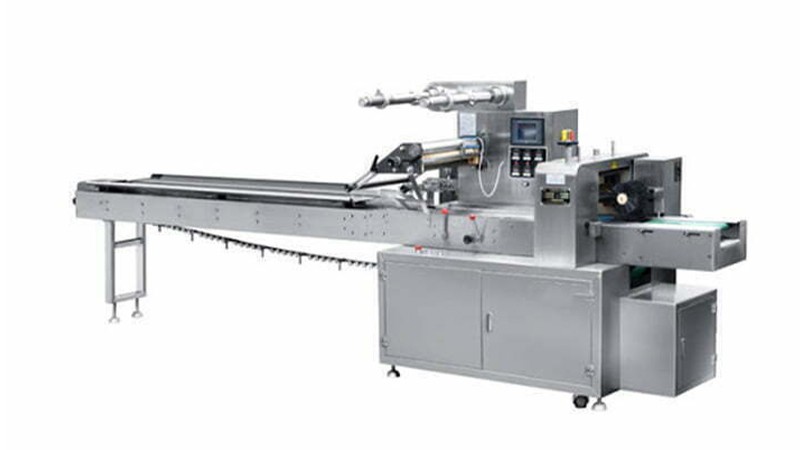

Peanut Bar packaging machine

After processing peanut candy, we can use an automatic packaging machine to package it into various specifications. This peanut candy packaging machine is commonly used for packaging various foods. Peanut candies can be packaged according to different weights, sizes, and styles. Of course, packaging requirements can be customized according to user needs

Contact now

Electric Sugar Cooking Pot 50L

Model	HT-ATG50
Capacity	50 L
Pan inner Diameter	900 mm
Conduct oil	320 #
Mixer power	1.5 kw
Total power	9kw
Mixing speed	30 rpm

Mixer of product parameters

Model	HT-JBJ50
Capacity	15~30 kg/pot
Rotating speed	70-125-190 rpm
Turning speed	224-372-582 rpm
Total power	4 kw
Voltage	380 V
Weight	800 kg
Dimension	1000×600×1500 mm

Water Cycle cooling Table

Model	HT-LQT100
Application	Using water for cooling
Material	Stainless steel
Quantity	Eleven water pipes
Dimension	2200×1200×800 mm

Forming and Cutting machine

Machine	Pressing machine HT-PC200	Cutting machine HT-DC100
Voltage	380V	380V
Power	1.5kw	1.5kw
Output	1-2T/8h	1-2T/8h
Dimension	1500*850mm	1300*600mm
Weight	300kg	300kg
Diameter of cutting knife	/	127mm
Quantity	1set	2sets
