Stainless Steel Nuts Sugar Coating Machine

Stainless Steel Nuts Sugar Coating Machine is widely used in pharmaceutical, chemical, food, research institutes, hospitals for sugar coating, polishing and rolling of tablets and pills, and can also be used in scientific research units to test new drugs.
Send Inquiry
Product Introduction

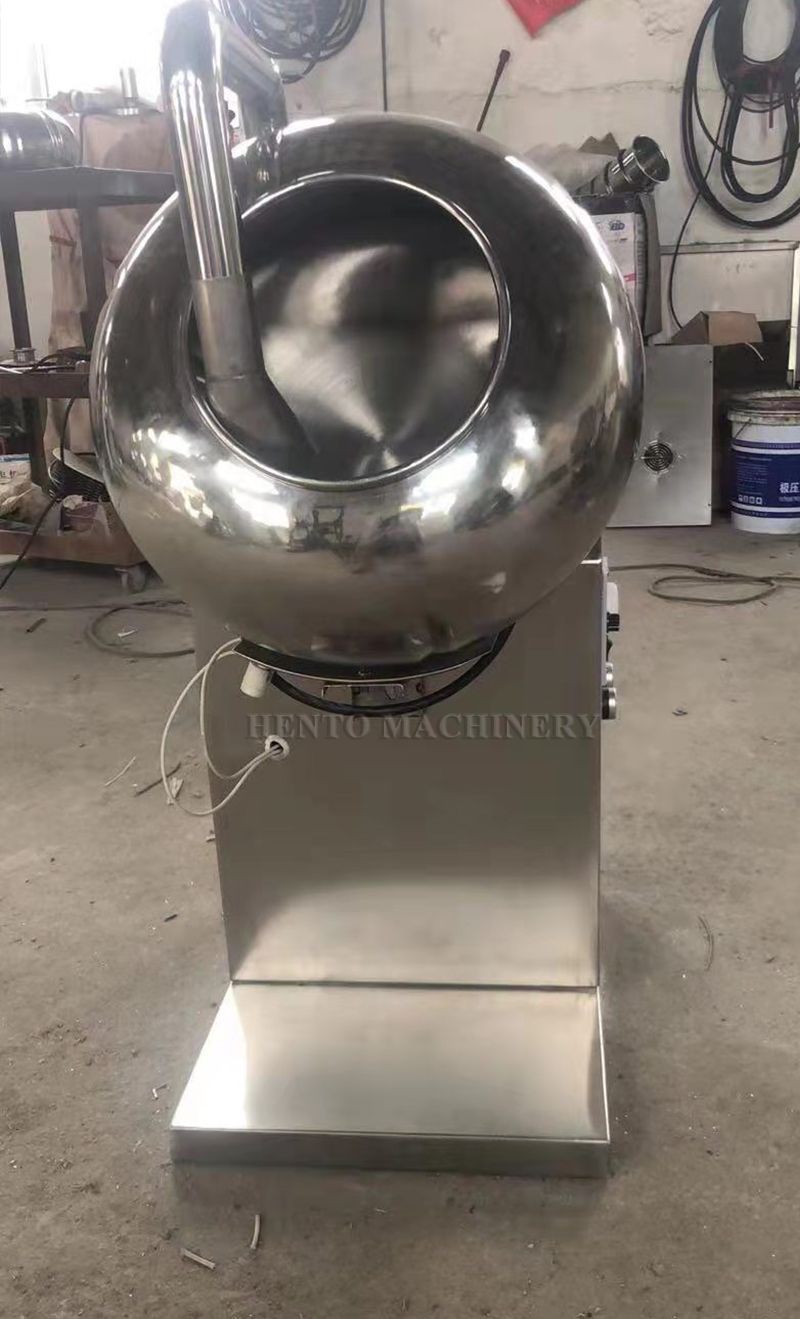

Chocolate Coating Machine


Application: Sugar-coated tablets after coating and polishing have a bright appearance. The complete solidified coating produced by the crystallization of sugar on the surface can not only prevent the chip from oxidation, deterioration, moisture or volatilization, but also cover the unpleasant taste of the chip when taken, so as to achieve the effect of easy identification of the tablet and ease the dissolution in the human stomach.
Working principle:
In order to make the chip evenly coated with coating crystals on its surface as soon as possible and achieve the purpose of polishing, it is necessary to manually spray the chips in the pot with syrup and mixed slurry in batches. The pot body rotates clockwise to make the sugar-coated tablets roll in the pot, and the sliding friction grinding makes it evenly distributed on all the chips. At the same time, hot air is passed into the pot to quickly remove the moisture on the surface of the tablets, and finally obtain qualified sugar-coated tablets and other finished products. This series of machines is the best equipment for sugar coating process. With the best pot body and stable linear speed, the tablets can form the best logistics curve in the pot to meet the process requirements of uniform thickness of sugar coating layer, bright color and no pitting.

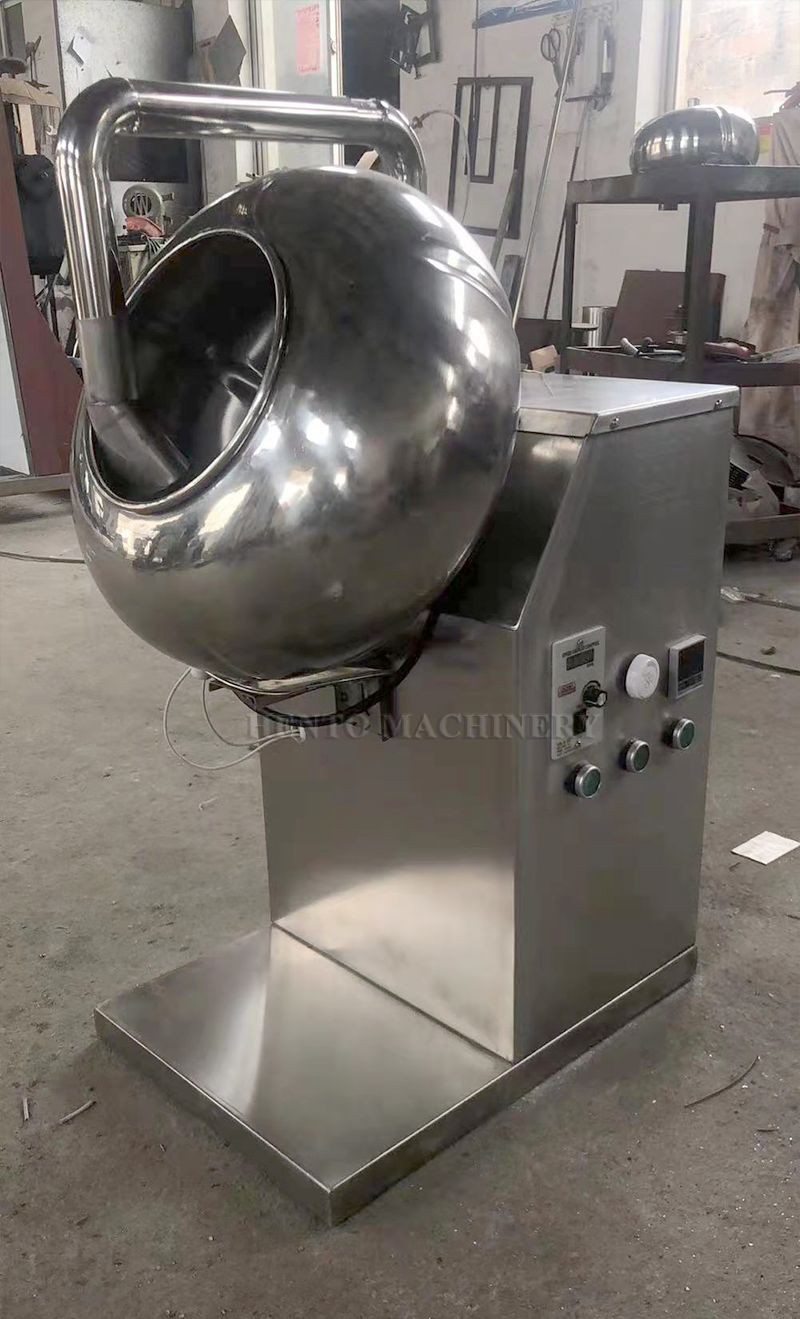

Sugar Coating Machine




Folding structural features of Stainless Steel Nuts Sugar Coating Machine:
⑴ Movement of the machine: This series of machines is a unidirectional, low-speed continuous rotation coating equipment. The main motor drives the pot body to rotate through belt drive-worm gear drive.

⑵ Structural features

a. An adjustment hand wheel is installed in the middle of the machine, which can be used by the user to adjust the inclination angle of the sugar coating pot according to the tablet loading and material exchange performance. (The loading amount on the nameplate of this machine is based on the value when the pot body inclination angle is 30º).

B. The worm gear is used as the terminal output of the movement, which has the characteristics of stable operation and self-locking pot body.

C. The hot air drying device adopts resistance wire heating, and high and low temperature switches are set separately, which is easy to control.






product parameters of Stainless Steel Nuts Sugar Coating Machine

Model

HT-TYJ300

HT-TYJ400

Capacity

2kg/time

5kg/time

Motor Power

0.37kw

0.55kw

Blow power

40w

40w

Heating wire power

500w

500w

External heating power

500w

500w

Sugar pan speed

46r/min

46r/min

Sugar pan diameter

300mm

400mm

Weight

65kg

70kg

Dimension

485*585*766mm

485*585*810mm



Contact now



FAQ

1.Q: What's the MOQ

A: 1 set

2.Q: Can the machine be customized?

A: As a professional manufacture, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

3.Q: What's the payment term?

A: We receive the T/T, Western union or Alibaba Trade Assurance Payment, ect.

4.Q: How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Except sea, air, express, sea to the door is no problem.

5.Q: How to send the goods to customer?

A: The goods will be sent to you by sea, by air or by train. We can send the goods according to your need.

6.Q: Which port do you send the goods from?

A: Shanghai, Qingdao, Shenzhen or other port.

7.Q: How long is the warranty of the machine?

A: two years warranty

8.Q: how to buy this machine?

A: you could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice

9.Q: What about the package?

A: Usually we will use the standard export wooden case.

10.Q: Are you manufacturer or trading company?

A: We are professional manufacturer of this machine,and we have manufactured this machine for more than 10 years

11.Q: Do you need a supplier to provide transportation?

A: If need we ship help you,pls leave your details address include zip code

12.Q: Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc
