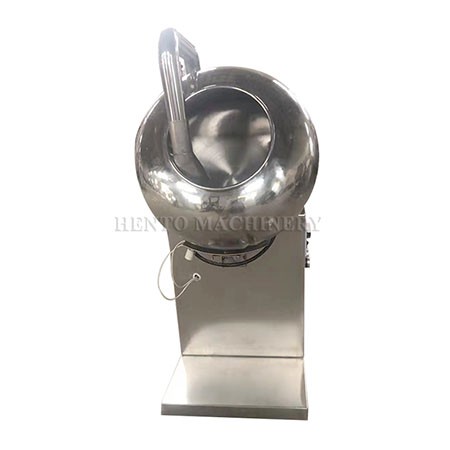

Peanut Sugar Coating Machine
video

Peanut Sugar Coating Machine

Peanut Sugar Coating Machine (also called ball forming machines) are widely used in pharmaceutical, chemical, and food research institutes for sugar coating and polishing of tablets and pills, and are also used in candy pill making or coating in the food industry. The coated and polished sugar-coated tablets have a bright surface.
Send Inquiry
Product Introduction

Chocolate Coating Machine

Introduction of Peanut Sugar Coating Machine:

The complete solidified coating produced by the crystallization of the surface sugar powder can not only prevent the tablet chips from oxidizing, deteriorating, getting damp or volatilizing, but also cover the unpleasant taste of the tablet chips, making the tablets easy to identify and easing the dissolution in the human stomach. Working principle and machine features of sugar coating machine 1. Working principle In order to make the chips evenly coated with coating crystals on their surfaces as soon as possible and achieve the purpose of polishing, the chips in the pot must be sprayed with syrup in batches, and then the pot body is rotated clockwise to make the sugar-coated tablets roll, rub, and grind in the pot to make the sugar coating uniform. At the same time, hot air is introduced into the pot to quickly remove the moisture on the surface of the tablet sugar coating to obtain evenly coated and smooth sugar-coated tablets. This machine is a common equipment for sugar coating process. It rotates at a stable pot body linear speed, so that the tablets form a parabolic curve in the pot, achieving the process requirements of uniform thickness of sugar coating layer, bright color and no pitting.

Sugar Coating Machine


Machine Features:

(1) This machine is a unidirectional low-low continuous rotating packaging equipment. The main motor drives the pot body to rotate through a belt drive and a worm gear. (2) The machine is equipped with an eccentric wheel, which can be used by the user to adjust the inclination angle of the sugar coating pot according to the characteristics of the tablets. (The pot body loading amount of this machine is based on the pot body inclination angle of 30° as a reference) (3) The worm gear is used as the terminal output of the movement, and the operation is stable. The hot air drying device adopts resistance wire heating. Sugar coating machine lubrication The bearings, worms and worm gears in the reducer are splashed lubricated. The upper bearing is supplemented with an oil cup for lubrication, and the oil cup should be refilled regularly. The reducer oil is changed every six months. The reducer oil pool uses HJ-10 and the rolling bearing uses ZG-2 calcium-based grease.






comparison of product parameters

Model

HT-TYJ300

HT-TYJ400

Capacity

2kg/time

5kg/time

Motor Power

0.37kw

0.55kw

Blow power

40w

40w

External heating power

500w

500w

External heating power

500w

500w

Sugar pan speed

46r/min

46r/min

Weight

65kg

70kg

Dimension

485*585*766mm

485*585*810mm

Contact now



FAQ

Q: What is Foreign Trade-Express?

A: Foreign Trade Express is a one-stop intelligent foreign trade network marketing SaaS system platform.

Q: Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q:What's the payment term?

A:We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q:How to ship?

A:We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: 6.Q:How long is the warranty of the machine?

A:Two years warranty.
