Milk Defatting Centrifugal Separator
video

Milk Defatting Centrifugal Separator

1. Milk Defatting Centrifugal Separator has the characteristics of high heat recovery, energy saving and consumption reduction, compact structure, simple operation and convenient maintenance.
2. Control mode: semi-automatic control, full-automatic control (PLC control, touch screen display)
3. Main equipment configuration: material pump, balance bucket, hot water system, temperature control and recorder, electrical control system, etc.
Send Inquiry
Product Introduction

Product Introduction



1) Milk Defatting Centrifugal Separator and purifier mainly used skim milk, whey separation, butter, wheat shock shower, casein, cheese production, such as anhydrous butter production process of centrifuge enrichment. And the material contact parts are made of stainless steel, in line with food hygiene requirements.

2) Milk Defatting Centrifugal Separator can also be used to liquid-solid twophase separation of similar materials in the industry of juice, beverage and Chinese traditional medicine, etc.

3)Milk Defatting Centrifugal Separator adopts automatic control, and has the advantages such as high efficiency, low material consumption, convenient operation and economic maintenance cost.

4)The clear liquid is pumped out by centripetal pump, the sludge is discharged automatically and partly.

5)Milk Defatting Centrifugal Separator is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.

6)Milk is considered as a complete food, it contains many important nutrients like fat-soluble vitamins, protein, minerals, and fats which are important for our health. However, the fat content in milk can be variable depending on the animal from which it is obtained and the processing and storage conditions. Milk defatting is a technique that helps to remove excess fat from milk. Milk defatting is important because excess fat can cause many health problems such as obesity, heart diseases, and high cholesterol levels. The Milk Defatting Centrifugal Separator is the most commonly used device for milk defatting. This device is efficient, easy to operate, and provides high-quality results.

7)Working Principle of Milk Degreasing Separator

Milk degreasing separator works by separating milk into components using centrifugal force. Centrifugal force is the force that is generated when an object rotates at high speed. Milk separator works on this principle by rotating the milk at high speed, which forces the milk components to separate due to their different densities. The denser components such as cream and fat move towards the outer part of the milk separator, while the lighter components such as skimmed milk move towards the center of the separator. The different components of milk are collected separately, and they can be used to produce different dairy products.



Technical Parameter



Model

HT-TZJ5B

HT-TZJ10B

HT-TZJ30B

HT-TZJ50B

Bowl inner

200mm

300mm

400mm

475mm

Bowl speed

7546r/min

7320r/min

6500r/min

6022r/min

Product

500L/H

1000L/H

2000-3000L/H

5000L/H

Separate factor

8120

8985

9120

9250

Fat output

Centripetal pump

Centripetal pump

Centripetal pump

Centripetal pump

Skim milk output

Centripetal pump

Centripetal pump

Centripetal pump

Centripetal pump

Sludge

PLC

PLC

PLC

PLC

Power

380v/1.5kw

380V/4kw

380v/7.5kw

380v/7.5kw

Temperature

35-55 ℃

35-55 ℃

35-55 ℃

35-55 ℃

Fat in skim milk

0.03-0.08%

0.015-0.05%

0.015-0.04%

0.015-0.04%

Weight

120kg

500kg

680kg

1100kg

Dimension

700*550*800mm

850*850*1200mm

1100*650*1550mm

1100*700*1600mm



Product Pictures

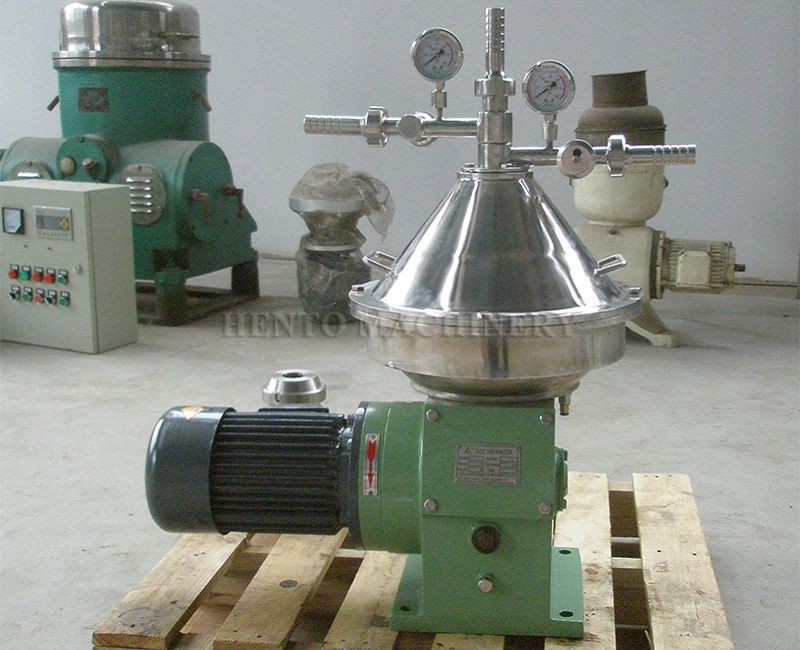

milk fat centrifuge separator(002)

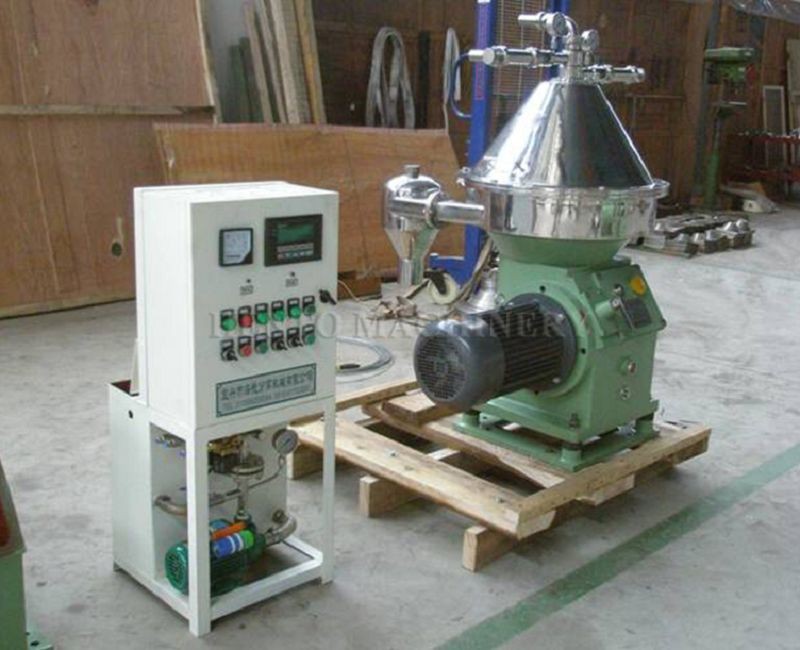

milk fat separator(002)
