Centrifugal Separator For Milk
Product Description
Centrifugal separator for milk is the most important equipment in dairy industry. Mainly used in the skim milk, butter, casein, cheese production, anhydrous butter production process, removing cream and foreign impurities in the milk. Similar materials can also be used for clarification and purification, such as coconut milk, fish oil, lemon oil.
Machine features
The centrifugal separator for milk absorbs the advantage of the same kind foreign product in Germany and Russia. All the parts that may contact the feedstock are made of stainless steel. Availably reduce the chemical effect of the feedstock at the machine spare parts.
Power drive adopts the triction clutch, start reliably, prevent overland. The bearings are SKF grade in Sweden., guarantee working precision of the machine.
Compared with similar products, which is characterized by:
1.Shorter, small size, ease of operation workers, less workshop space.
2.Power is smaller, low power consumption.
3.With the double-Centripetal pump function ,can adjust fat content variationally.
4.With milk standardization device.
5.Good separation effect. (cream in skim milk is under 0.05%).
Machine Advantages
A milk separator is a device used to separate milk into different components (such as cream and skimmed milk), and is widely used in the dairy processing industry. Here are its main advantages:
Efficient separation
It quickly separates full-fat milk into skimmed milk and cream, improving production efficiency. It is suitable for both household, farm, or industrial production, meeting the needs of different scales.
Enhances dairy product quality
By separating, it can precisely control the fat content, used for making butter, cheese, yogurt, etc., ensuring taste and quality. Removing impurities (such as a small amount of solid particles), making dairy products purer.
Economical and energy-saving
It reduces labor costs and has a high degree of automation. Some models have low energy consumption and are suitable for long-term use.

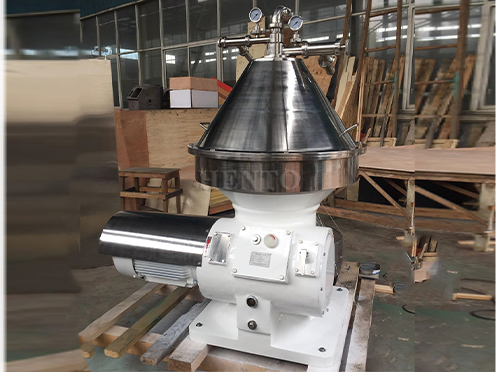

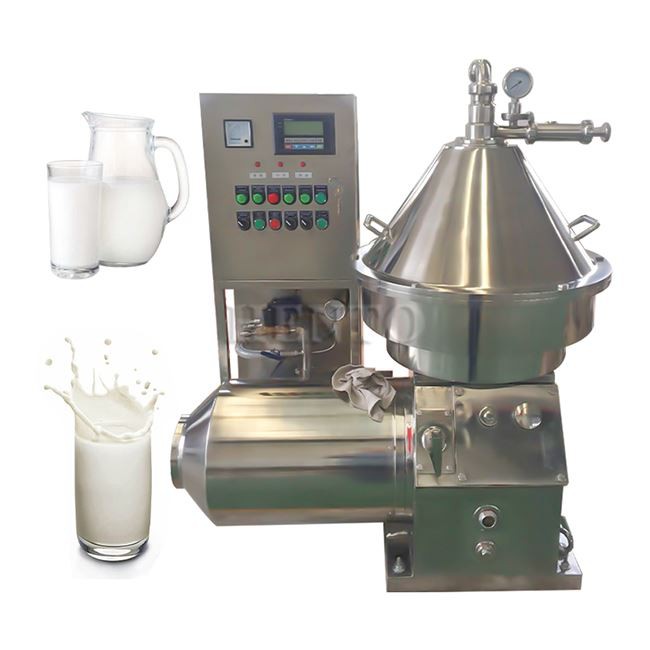

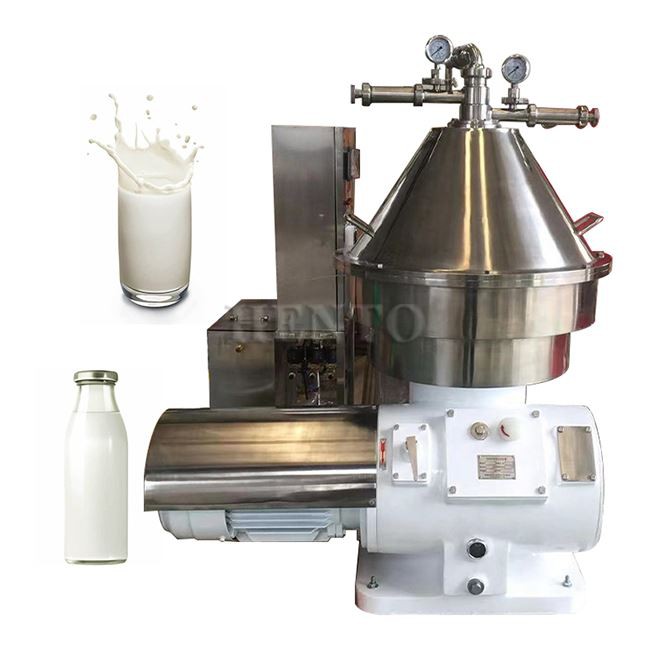

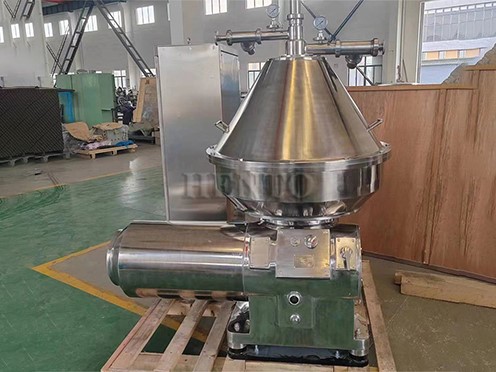

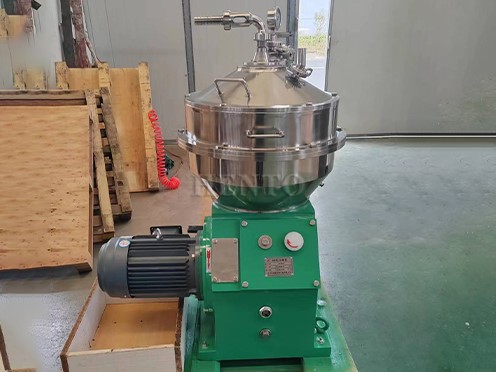

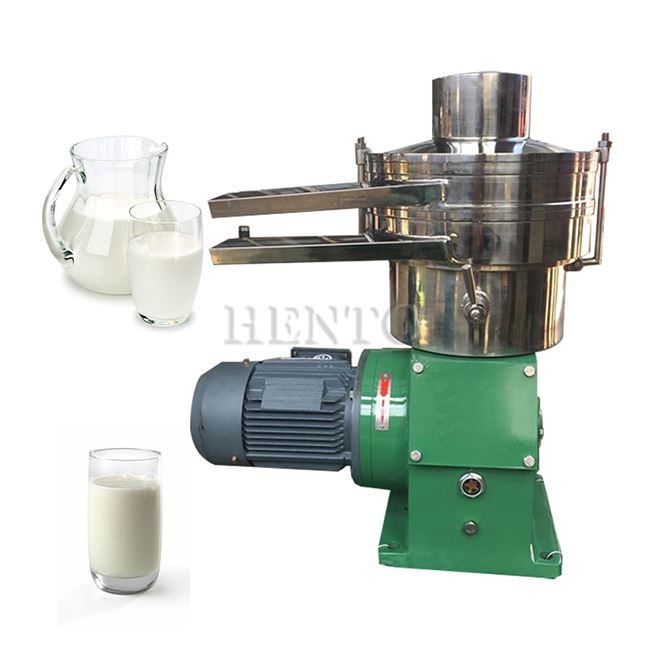

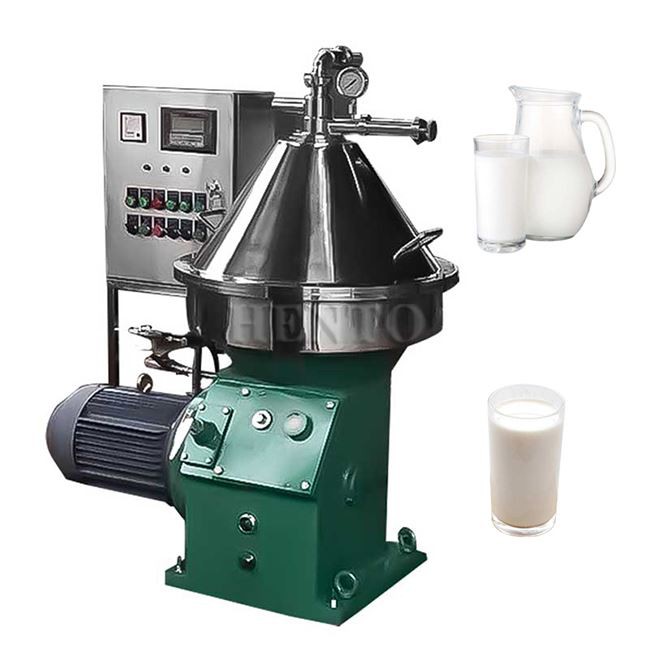

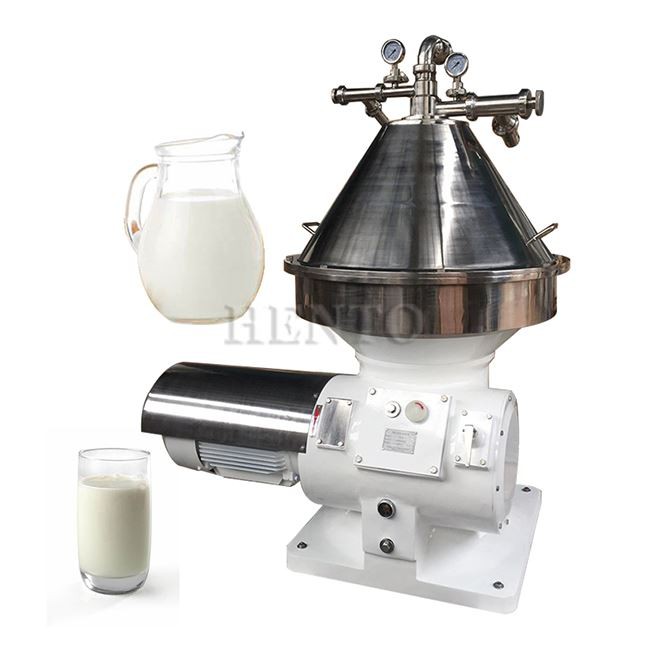

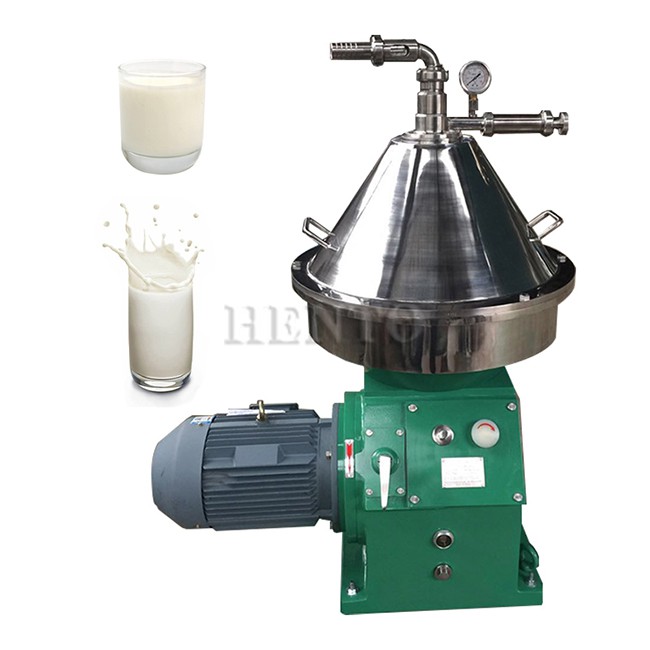

Machine Pictures

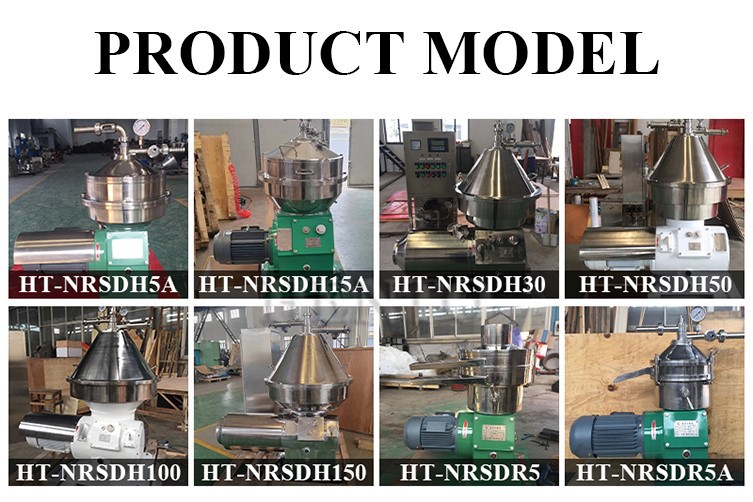

comparison of product parameters
|
Model |
HT-NRSDH5A |
HT-NRSDH15A |
HT-NRSDH30 |
|
Capacity |
500L/h |
1500L/h |
3000L/h |
|
Drum Diameter |
230mm |
300mm |
400mm |
|
Drum Rotational Speed |
7546-8300rpm |
7320-8052rpm |
6500-7188rpm |
|
Motor Power |
1.5kw |
4kw |
7.5kw |
|
Slag Discharge Method |
PLC Automatic Control |
||
|
Output Pressure |
0.2Mpa |
0.25Mpa |
0.3Mpa |
|
Working Condition |
Semi-closed |
||
|
Separating Temperature |
30-40℃ |
||
|
Dimension |
700*550*800mm |
800*600*1250mm |
1100*650*1550mm |
|
Weight |
120kg |
450kg |
680kg |
|
Model |
HT-NRSDH50 |
HT-NRSDH100 |
HT-NRSDH150 |
|
Capacity |
5000L/h |
10000L/h |
15000L/h |
|
Drum Diameter |
475mm |
540mm |
620mm |
|
Drum Rotational Speed |
6022-6626rpm |
6034-6637rpm |
5635rpm |
|
Motor Power |
11kw |
15kw |
22kw |
|
Slag Discharge Method |
PLC Control |
||
|
Output Pressure |
0.3Mpa |
0.35Mpa |
0.35Mpa |
|
Separating Temperature |
30-40℃ |
||
|
Dimension |
1100*700*1600mm |
1300*1100*1700mm |
1400*1400*1800mm |
|
Weight |
1100kg |
1500kg |
2200kgcomparison of product parameters |
|
Model |
HT-NRSDR5 |
HT-NRSDR5A |
|
Capacity |
500-800L/h |
500-1000L/h |
|
Drum Diameter |
200mm |
200mm |
|
Drum Rotational Speed |
7546rpm |
7546rpm |
|
Motor Power |
0.75kw |
1.5kw |
|
Slag Discharge Method |
Artificial Slag Cleaning |
Artificial Slag Cleaning |
|
Output Pressure |
Open Wide |
0.2Mpa |
|
Separating Temperature |
30-40℃ |
30-40℃ |
|
Dimension |
600*360*600mm |
680*400*680mm |
|
Weight |
90kg |
105kg |
FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: 3.What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: 4.How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: 5.Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: 6.How long is the warranty of the machine?
A: Two years warranty.
Q: 7.How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: 8.What about the package?
A: Usually we will use the standard export wooden case.
Q: 9.Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: 10.Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about Pre-sale service?
A: 11.Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: What about After-sales service?
A: 12.Video technical support; Online support ; Field installation, commissioning and training;
