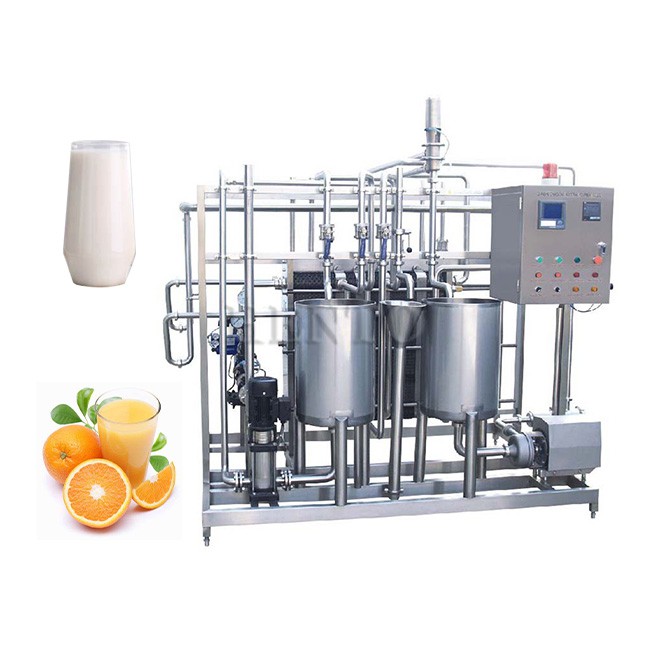

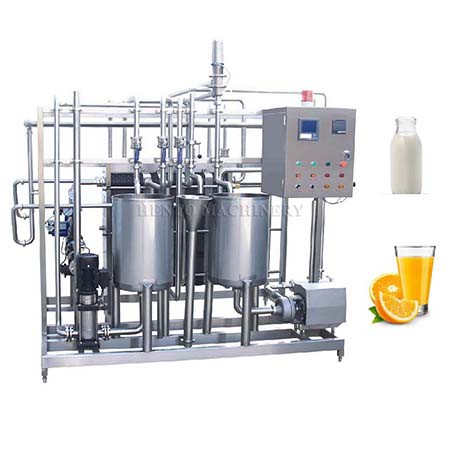

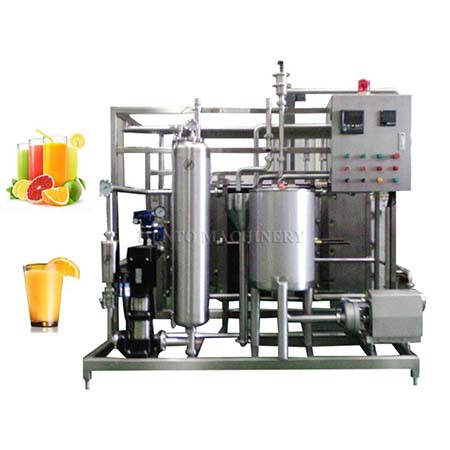

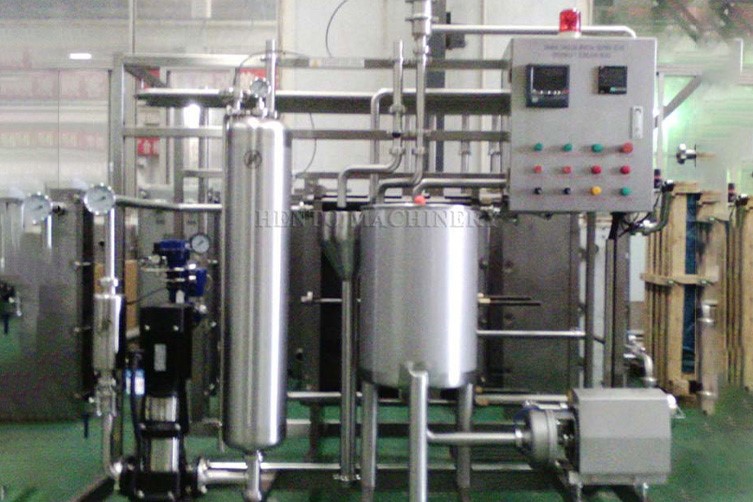

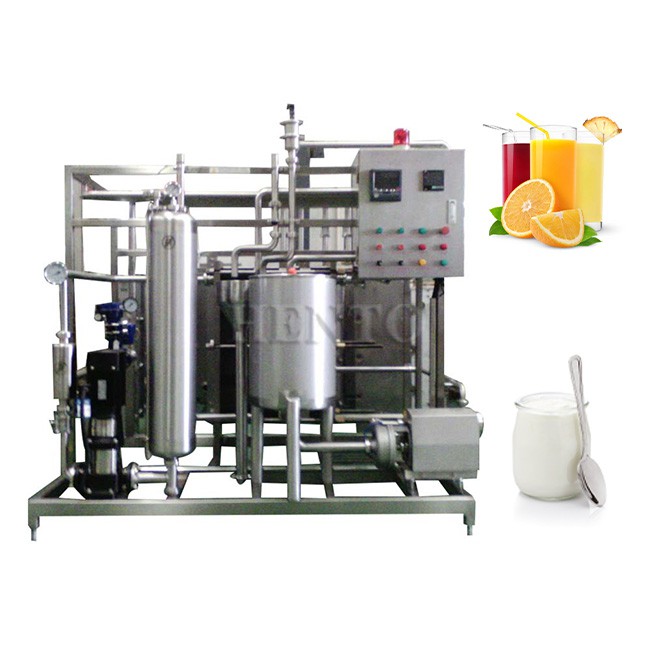

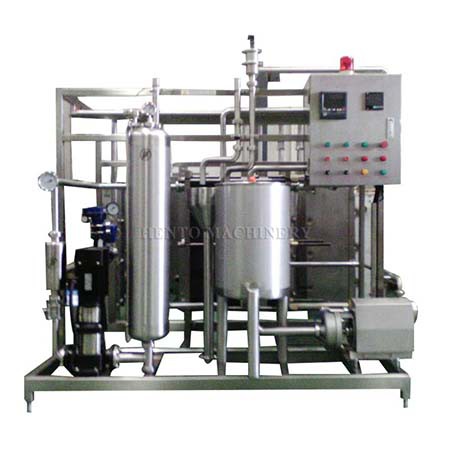

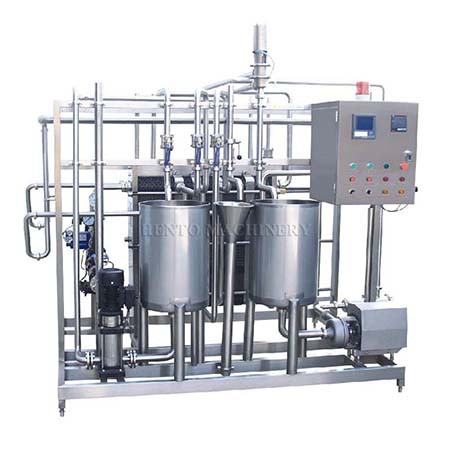

Industrial Pasteurizer
2. The Industrial Pasteurizer use high quality stainless steel tank body with good sealing
3.Complete after-sales guarantee system
Product Introduction
Industrial Pasteurizer (UHT) is fully automatic control. The system fully considers the influence of external factors on sterilization temperature, and high-precision product/water temperature difference control to ensure the equipment operation, process indicators and material quality;
At the same time, according to the filling process requirements of low-acid products, the system is equipped with a closed superheated water pre-sterilization system, which is fully efficient and reliable in sterilization, and effectively uses heat sources to reduce energy consumption to; At the same time, intelligent PLC control does not require complex manual operation and monitoring; The CIP system design before and after production meets the cleaning and sterilization requirements of production equipment.
Parameter Control and Adjustment of Industrial Pasteurizer:
(2) Adjustment and control of discharge temperature: the discharge temperature shall be applicable to the range of 65~92 ℃. The outlet temperature can be set as required. The equipment can be controlled by PLC in full automatic mode according to the set temperature, and the corresponding components can be adjusted automatically to make the outlet temperature stable at the set value and maintain high control accuracy.
(3) Adjustment and control of UHT flow: manually adjust the UHT outlet flow regulating valve to meet the requirements, taking the indicated value of the flowmeter as a reference.
| Model | HT-SJ01 | HT-SJ02 | HT-SJ03 |
| Capacity (t/h) |
1 | 2 | 3 |
| Steam pressure (bar) |
6.0 | 6.0 | 6.0 |
| Steam energy consumption(kg/h) | 40 | 80 | 120 |
| Ice water flow(t/h) | 2 | 4 | 6 |
| Power (kw) |
4 | 6 | 6 |
| Material pipe diameter(mm) | 25 | 38 | 38 |
| Dimension (l×w×h) |
3.3×1.6×1.8 | 3.5×1.8×2.0 | 3.5×1.8×2.0 |
| weight (kg) |
1960 | 2160 | 2420 |
| Model | HT-SJ04 | HT-SJ05 | HT-SJ06 |
| Capacity (t/h) |
4 | 5 | 6 |
| Steam pressure (bar) |
6.0 | 6.0 | 6.0 |
| Steam energy consumption(kg/h) | 160 | 200 | 240 |
| Ice water flow(t/h) | 8 | 10 | 12 |
| Power (kw) |
7.0 | 7.0 | 7.0 |
| Material pipe diameter(mm) | 38 | 38 | 51 |
| Dimension (l×w×h) |
4.5×2.0×2.0 | 4.5×2.0×2.0 | 4.5×2.0×2.2 |
| weight (kg) |
2570 | 2940 | 3300 |
| Model | HT-SJ08 | HT-SJ09 |
| Capacity (t/h) |
8 | 10 |
| Steam pressure (bar) |
6.0 | 6.0 |
| Steam energy consumption(kg/h) | 320 | 400 |
| Ice water flow(t/h) | 16 | 20 |
| Power (kw) |
11.0 | 11.0 |
| Material pipe diameter(mm) | 51 | 51 |
| Dimension (l×w×h) |
4.5×2.0×2.2 | 4.5×2.0×2.2 |
| weight (kg) |
3700 | 4200 |
FAQ
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
