Yogurt Making Equipment
video

Yogurt Making Equipment

1.The Yogurt Making Equipment is made of 304 Stainless Steel
2.Application of high technology to save energy consumption
3.According to the customer's choice, we can provide a variety of milk configuration.
Send Inquiry
Product Introduction

Product Introduction



Yogurt Making Equipment is combined with milk storage tank, milk pre-heating tank, milk homogenizer, milk pasteurizer, milk fermentation tank and yogurt filling machine.2. The whole processing from first step to final yogurt, it takes about 6-8 hours.

Yogurt Making Equipment showed here is our smallest capacity with 200L per batch.

As for the capacity, we also can customize as customer' request. Such as 200L, 300L, 500L, 1000L and more.

This stirred yogurt production machinery is suitable for small farmer, home use, school use or milk bar to make yogurt.



After centrifugation, standardization, homogenization, sterilization and cooling, the milk can be directly filled after pasteurization and homogenization without any additives. Due to low temperature sterilization, the beneficial bacteria in milk can be retained, and the nutritional value is particularly high. Moreover, the cost of the equipment is low and the package is simple.

Pasteurized milk is a kind of "low temperature pasteurized milk". The harmful microorganisms in raw milk have been generally killed, but some other microorganisms will be retained. Therefore, this kind of milk is required to be refrigerated at about 4 ℃ in transportation, sales, storage and other links, so as to prevent the microorganisms in it from "active".

glass bottles, etc.



Technical Parameter



Model:HT-MK200

Machine Name

Capacity

Specification

Refrigeration Tank

200L

Material: SUS304
Power : 2kw
With stirring Speed :36r/min
Insulation layer 5mm
Polyurethane foaming liquid

Preheating Tank

200L

Dimension:1020*870*1530mm
Voltage :380V
Rated Power:6kw
Stirrer Speed:36r/min
Stirring Motor Power (kw):0.55
Material: SUS304
Equipped with power: 0.75 kw
Speed: 36 rpm
12kw heating tube

Homogenizer Machine

500L/h

Materials Inlet and Outlet(mm):40
Rated Milk Flow:500kg/h
Maximum pressure :25P (MPa)
Weight :500kg
Dimension :1010*616*975mm
Power: 4kw

Pasteurization Tank

200L

Dimension :1020*870*1530mm
Heating cycle :25-35 minutes
Sterilization temperature :60-99 adjustable
Material: 304 stainless steel
Equipment Weight: 100kg
Material: SUS 304
Power:0.75 kw
Rotating Speed: 36r/min
12kw electric heating tube
Warm water circulation at room temperature

Disc paper cup filling machine

800 cups/hour

Quantitative:50-1000ml
Dimension :1200*1200*1400(mm)

Fermenter Tank

200L

Dimension :1020*870*1530
Capacity:0-200kg/times
Heating cycle: 25-35 minutes
Sterilization temperature: 0-60 adjustable
Material: 304 stainless steel
Equipment weight: 100kg

Milk pump

3t/h

Material: 304 stainless steel
Size: 400*180*240mm
Material: SUS304
Carbide mechanical seal
Equipped with power: 1.5kw
Import and export Φ38

Single filter

Single

Material: SUS304



Product Pictures

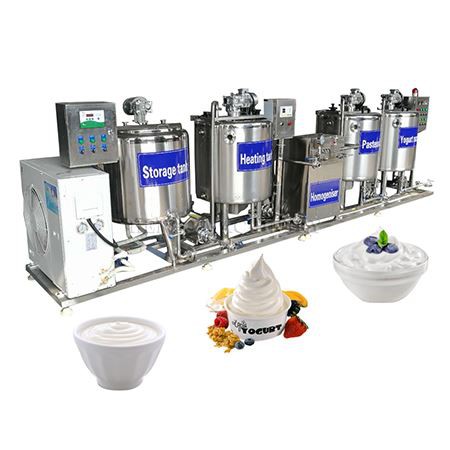

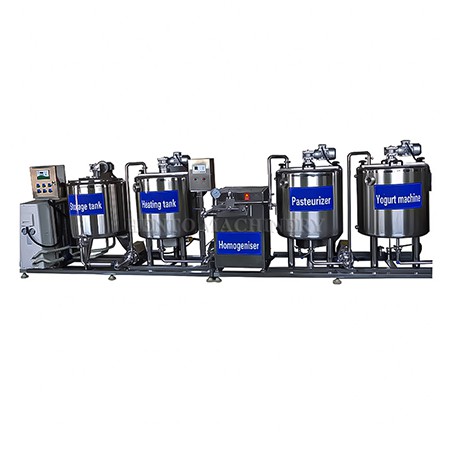

yogurt making machine(003)

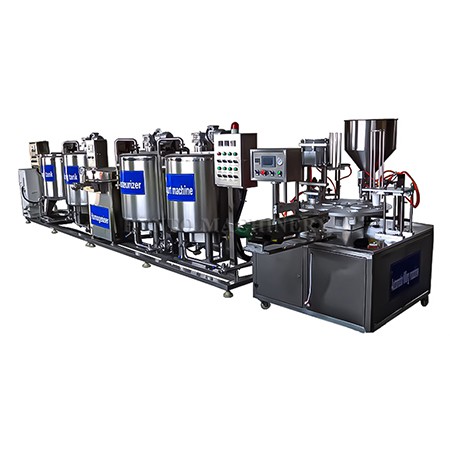

yogurt production line(003)
