UV Sanitization Conveyor

1. UV Sanitization Conveyor uses ultraviolet light source and effective radiation lamp length is 600mm
2. Use 16 * 20w UV tubes to install in all directions from top to bottom, left and right, and sterilize in 360 degrees.
3. The sterilization time is short, which can ensure that the nutrition of the material is not damaged;
4. The sterilizer has good heat transfer effect, high heat recovery rate and low energy consumption;
5. Main control elements, valves and supporting parts are imported parts with long service life;
Send Inquiry
Product Introduction

Product Introduction



1.UV Sanitization Conveyor is mainly used to sterilize cooked food and water. It is widely used in hospitals, food and herbal medicine, food and beverage processing and packaging equipment, health care products factories, food factories, dairy factories, breweries, beverage factories, bakeries and packaging products factories.

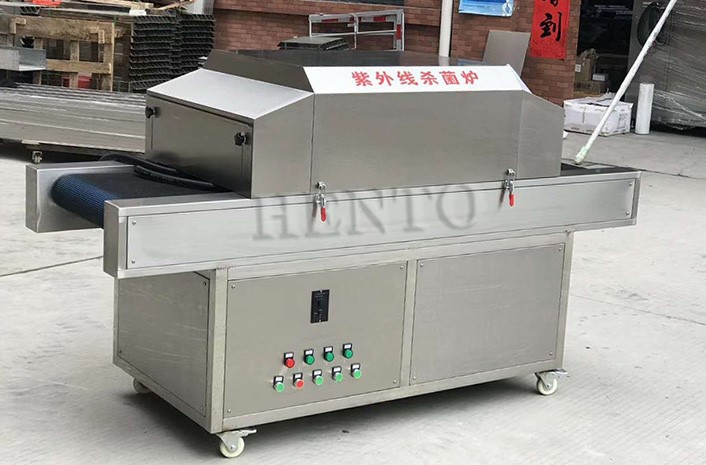

UV Sanitization Conveyor

UV Sanitization Machine



2.The working principle of UV Sanitization Conveyor is that the ultraviolet sterilization band is mainly between 200 and 300 nm, and the sterilization ability of 253.7 nm wavelength is the strongest. When various bacteria and viruses in water or air pass through the ultraviolet (253.7 m wavelength) irradiation area, ultraviolet rays penetrate the cell membrane and nucleus of microorganisms to destroy the molecular bonds of nucleic acid (DNA or RNA), make them lose the ability to replicate or lose their activity and die, and kill all bacteria and viruses without using chemical drugs.



Ultraviolet sterilizers use ultraviolet light to destroy bacteria, viruses, and other microorganisms. The ultraviolet light destroys the DNA and RNA of the microorganisms, rendering them unable to reproduce. Ultraviolet light is a type of electromagnetic radiation that is emitted from the sun. It has a wavelength of between 100 and 400 nanometers. Ultraviolet light is classified into three categories: UVA, UVB, and UVC. UVA has a wavelength of between 315 and 400 nanometers, UVB has a wavelength of between 280 and 315 nanometers, and UVC has a wavelength of between 100 and 280 nanometers. UVC is the most effective at destroying microorganisms, as its wavelength is the shortest.

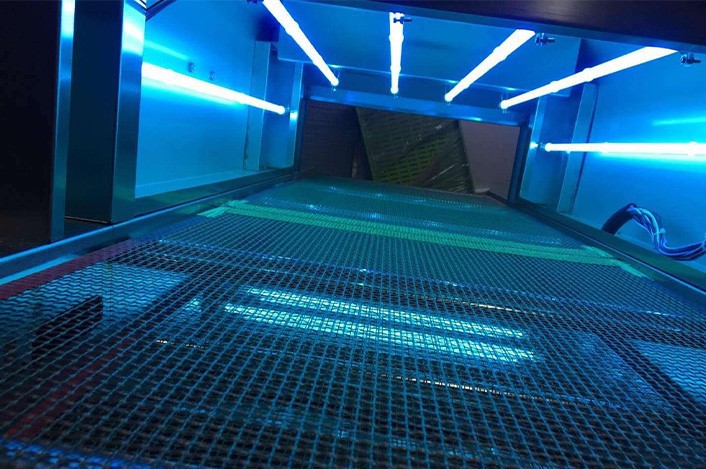

UV Light Sterilizer





3.UV Sanitization Conveyor is equipped with 16 * 20w ultraviolet lamp tubes in all directions from top to bottom, left to right, and 360 degrees of sterilization. Materials and heating media are heated in their respective sealing systems through non-contact heat exchange to ensure the health and safety of materials



comparison of product parameters

Model

HT-ZWP2000

HT-ZWP4000

Capacity

2000mm

4000mm

Power

1.5kw

3kw

Voltage

220V,50hz

220V,50hz

Dimension

1700*400*200mm

1900*300*1200mm

Weight

230kg

350kg

FAQ

Q: What's the MOQ?

A: 1 set

Q: Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: How long is the warranty of the machine?

A: Two years warranty.

Q: How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: What about the package?

A: Usually we will use the standard export wooden case.

Q: Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: What about Pre-sale service:

A: Support voltage changing service as your demand;  Support logo customizing ;  Provide good solution for your project ;  Testing and debugging before delivery ;

Q: What about After-sales service?

A: Video technical support;  Online support ;  Field installation, commissioning and training;
