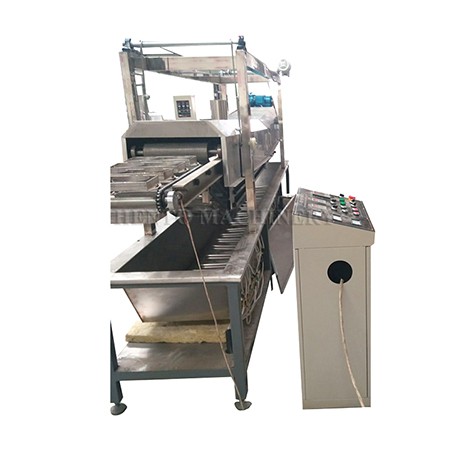

instant noodle production line
noodles ramen instant making machine

Instant Noodle Making Machine Production Line

1.Instant Noodle Making Machine Production Line,which is shape like noodle cake
2.Design and provide different productivity equipment

Send Inquiry

Product Introduction

Instant Noodle Making Machine Production Line is the production of new generation which developed by our company based on similar productions from overseas and domestic market. It has high technology, compact structure, original design and stable performance. It is highly automatic, convenient (operation), low energy consumption and less space occupation, invest on this line is only 10% of cost on large processing line, all these features assures this line is very suitable to small-sized or self-owned enterprises.

The corrugated instant noodle produced by this line is strength, smooth and transparent. It is very easy to be saturated by water. We also arrange technicians to install equipments and training local worker, until the product satisfied by client; the basic formula and flavorings will be provided by us.

Equipment Composition:

Dough maker → Shape former → Boiling machine → Cutting machine → Electric fryer/Steam fryer → Cooler
1. The size of instant noodles can be adjusted easily.

2. Pressing & shaping machine, cutting machine and frying machine are all frequency control.

3. Rolling pressing design make the noodles more springy.

4. Adopt good quality and food-grade stainless steel, which is longer service life and neatness.

5. Longer frying length to ensure good cooking and better taste of instant noodles.

6. Cooling conveyor is special designed with oil filtering function.

7. High automation and accurate control system to save labor cost and improve the quality of final products.

Technical Parameter

No.

Name

technical parameter

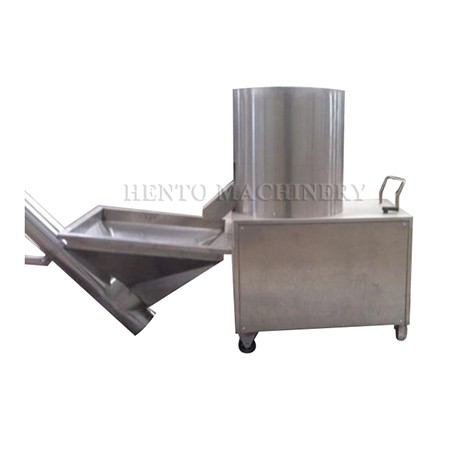

Flour Mixer

1set

Model：HT-HMJ20

Power：3kw

Dimension：0.8x0.5x0.6m

Production capacity:15-20kg/time

Weight：50kg

Mixing time：3-10min

Power consumption:3kw

Material：(Hopper) stainless steel (frame) carbon steel

Motor: The domestic dough mixer is a machine that mixes flour and water or other ingredients into dough. It is widely used to make various pastries, biscuits, bread, steamed bread and other doughs.

Elevator

Installed Capacity：0.75kw

Real Power：0.5KW

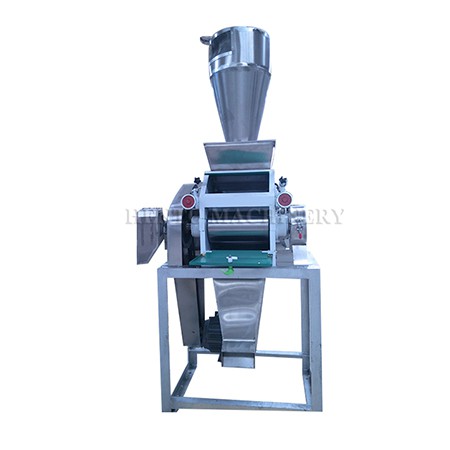

Forming Macine

1set

Model：HT-CXJ240

Power：4kw

Dimension：2.8x0.6x1.1m

Weight：300kg

Material:

(Shell, food contact part) stainless steel

(Transmission part) carbon steel

Power consumption: 4kw

Put the mixed dough into this machine for noodle forming

Steam box (including front and rear links)

1set

Material:

(Shell) stainless steel

Stainless steel mesh belt

Power consumption: 40kw

Heater

Multi-zone intelligent temperature control

Use electric heating, control by temperature zones, the temperature of each temperature zone can be set, the temperature in the temperature zone is uniform, the use of high-quality insulation materials, good insulation performance, high thermal efficiency, temperature control system, automatic temperature control and constant temperature, flexible operation, high safety performance

Control cabinet

2 sets

Model:HT-KZGDL

Dimension：1100*400*1400mm

Weight：50kg

Intelligent temperature control meter

The electric control cabinet is used to control temperature and speed.

Organizer Table

1set

Model：HT-DLI

Dimension：0.6x0.6x0.8m

Weight：30kg

Material:

(Shell) stainless steel

Used for noodle finishing

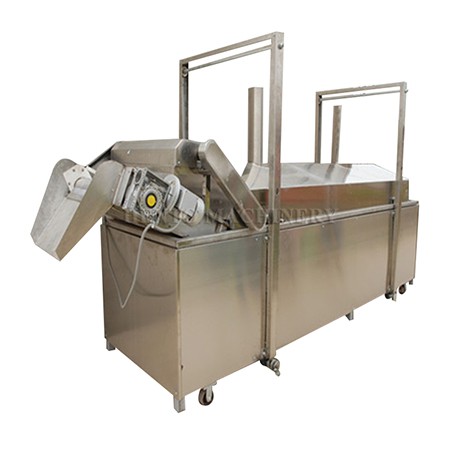

Frying Machine

1set

Model:HT-YZG100

Transmission power：1.5kw

Dimension：5.2x0.5x1.0m

Weight：500kg

Power consumption: 40kw

Production Capacity：80-100kg/h

Material:

(Shell) stainless steel

Stainless steel mesh belt

Heater

Multi-zone intelligent temperature control

Use electric heating, control by temperature zones, preset temperature in each temperature zone, uniform temperature in the temperature zone, use high-quality insulation materials, good thermal insulation performance, high thermal efficiency, temperature control system, automatic temperature control and constant temperature, used for the oil of the noodle block fry

Cooling Machine

1 set

Model：HT-LQJ100

Power：0.55kw

Dimension：4x0.4x0.8m

Weight：100kg

Production capacity：80-100kg/h

Material:

(Shell) stainless steel

Stainless steel mesh belt

Used for cooling the next block after frying

Packing Machine
