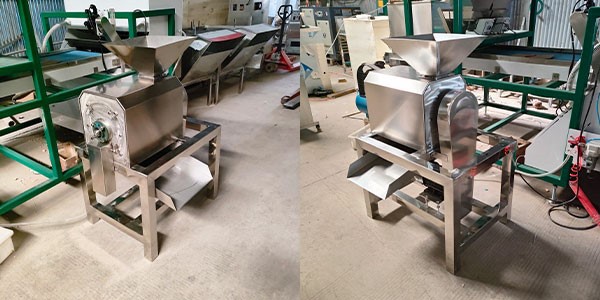

Fruit Pitting and Pulping Machine
1.Fully automatic completion of berries, nuts and vegetables fruit and vegetable juicing, slagging process.
2.The part in contact with materials is made of national standard 304 stainless steel.
3.The frame material can choose national standard 304 stainless steel, depending on customer requirements.
The Fruit Pitting And Pulping Machine electric motor is driven by a belt to rotate the scraper installed on the spline at high speed. When the crushed fruit enters the machine through the feeding port, the receiving tray evenly discharges the material to the scraper and screen. Due to the rotary action of the scraper and the existence of the lead angle, the material moves along the cylinder towards the outlet end, with a spiral trajectory.
The material is crushed by centrifugal force during the movement between the scraper and the sieve cylinder, and the juice and meat (already in pulp form) pass through the sieve hole and are sent to the next process. (The double and three way pulp beating machines are linked to repeat the above process) The skin and seeds are discharged from the slag hopper, Thus achieving automatic separation of slurry and slag.
Fruit Pitting And Pulping Machine includes a bracket, a first simplified body, and a second simplified body. The first simplified body and the second simplified body are both connected to the bracket, the first simplified body is located above the second simplified body, and the first cavity is connected to the second cavity through a first connecting pipe: the first filter screen is connected to the lower end of the first cavity, and the second filter screen is connected to the second cavity;
The lower end of the second cavity; The collection box has a collection chamber, which is connected to the first cavity; The collection mechanism includes a collection slider, which is sliding on the upper surface of the first filter screen to push the residue on the surface of the first filter screen to move into the collection chamber.
How to operate Fruit Pitting And Pulping Machine
Before using the machine, check for any damage or abnormal conditions.
Thoroughly clean the machine before use.
Turn on the machine power and adjust the speed according to the fruit being processed.
Put the fruit into the feeding hopper, taking care not to overload the machine.
Let the machine process the fruit until the flesh separates from the seeds and skin.
Collect the pulp in a separate container, discard the seeds, and remove the skin.
Clean the machine after use.
Fruit Pitting And Pulping Machine is suitable for the dehulling and pulping separation of walnuts (mangoes, peaches, apricots, dates), berries (kiwifruit, strawberries), and pre cooked and softened kernels (apples, pears, pumpkins).
product parameters
|
Model |
HT-DJ500 |
|
Dimension(mm) |
800*700*1100mm |
|
Capacity |
500KG/H |
|
Voltage |
380V 50HZ |
|
Power |
1.5K |
