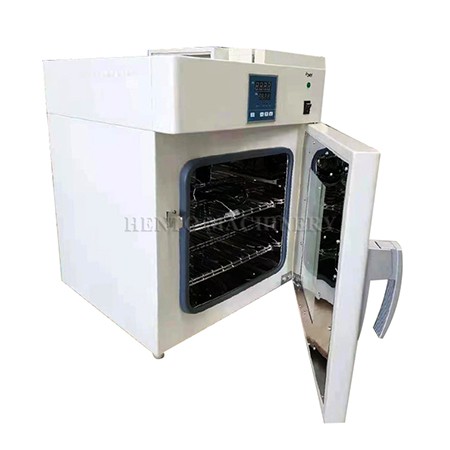

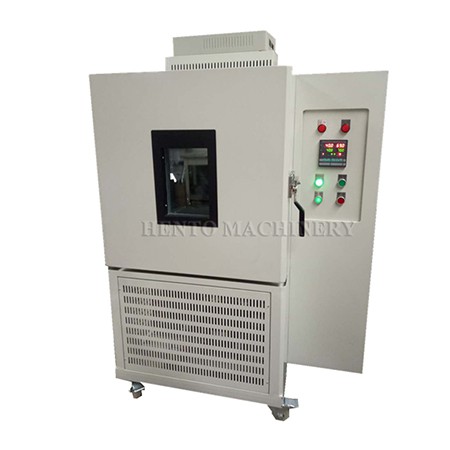

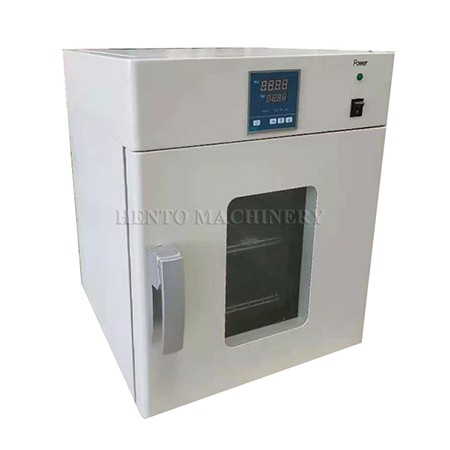

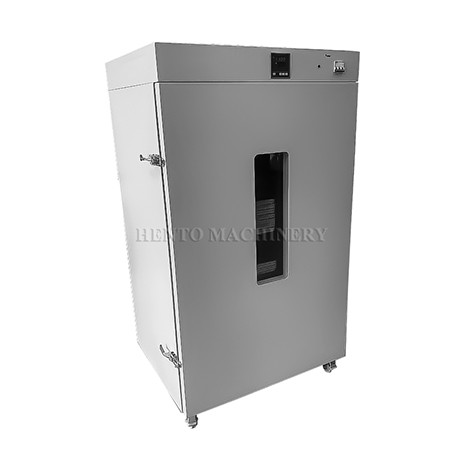

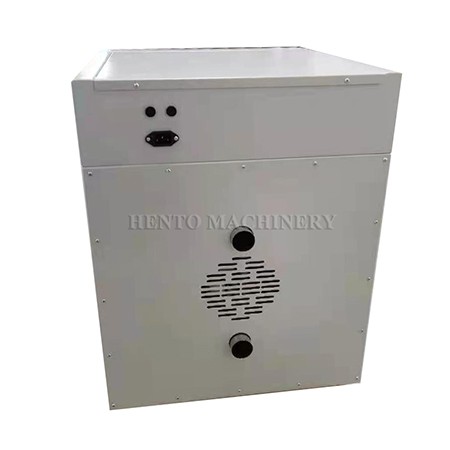

Industrial Black Garlic Machine
2,The Industrial Black Garlic Machine is with the function of drying and fermenting
3,energy saving, can save 50% energy than other machines
Purpose of Industrial Black Garlic Machine
The black garlic fermentation equipment adopts the enzymatic reaction fermentation black garlic processing method, and performs enzymatic fermentation in a sealed container in sections and continuously.
The black garlic fermentation equipment has an automatic constant temperature function, which improves the flavor and quality of black garlic, and effectively shortens the processing time (15 days), which can be customized; continuous automatic enzymatic fermentation, the processing process is relatively simple; the product retains the original effective ingredients to the maximum extent.
Performance and characteristics of Industrial Black Garlic Machine
High performance
The horizontal air duct is used to ensure uniform product temperature, high consistency, and small temperature deviation.
High reliability
The microcomputer intelligent temperature control controller controls the temperature, and the main electrical configuration is mainly electrical actuators of well-known domestic and foreign brands.
Simple operation
The control operation menu bar is displayed, and the operation is convenient.
Convenient maintenance
There are almost no wearing parts, and the control system has a self-diagnosis function. When there is a fault such as overtemperature, the control system will automatically alarm.
Circulatory system
1. Heating system: It adopts heat dissipation tubular stainless steel electric heater, with small surface load, sensitive temperature control and small temperature lag.
Heater control mode: PID+PWM+ SSR, solid-state relay drives the heater to work with contactless zero-crossing trigger, no contact sparks and noise, and long service life. ;
2. Circulation system: special moisture-proof and heat dissipation design, stainless steel extended axis circulation motor, equipped with high-resistant,
multi-wing fan blades;

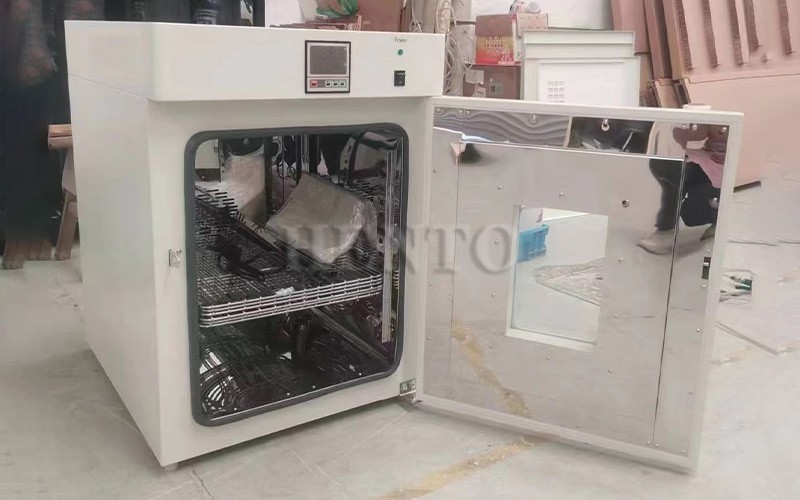

The structure and design of Black garlic fermentation box
Inner box material
201/304 stainless steel
Outer box material
high-quality cold-rolled plate
Structural design
Uniform air supply through the fan to meet the requirements of temperature uniformity
Insulation layer
Insulation insulation layer (flame-retardant rigid foam + glass wool, 100MM thick);
Box door
double-channel insulation airtight, effectively isolating the heat exchange inside and outside the box
Observation window
high-temperature resistant glass, easy to observe the product.
Technical Parameter
|
Model |
HT-HS010 |
HT-HS030A |
|
inner size |
400×350×350mm |
450×550×550mm |
|
Capacity |
10kg/15days |
30kg/15days |
|
The shelf number |
4 |
6 |
|
Temperature control range |
RT+10-100℃ |
RT+10-100℃ |
|
Temperature fluctuation |
±0.5℃ |
±0.5℃ |
|
Humidity |
/ |
/ |
|
Voltage |
220V,50Hz |
240V/50HZ |
|
Power |
500w |
1000W |
|
Model |
HT-HS050A |
HT-HS100A |
HT-HS200A |
HT-HS500A |
|
Capacity |
50kg/15days |
100kg/15days |
200kg/15days |
500kg/15days |
|
Inner size |
600*500*750mm |
800*600*1300mm |
1000*1000*1200 |
1000*1500*2000 |
|
Tray |
7 |
15 |
48 |
120 |
|
Temperature control range |
RT+10-100℃ |
RT+10-100℃ |
RT+10-100℃ |
RT+10-100℃ |
|
Temperature fluctuation |
±0.5℃ |
±0.5℃ |
±0.5℃ |
±0.5℃ |
|
Humidity |
/ |
/ |
/ |
/ |
|
Voltage |
220V/50-60Hz |
220V/50-60HZ |
380v/50-60HZ |
380V/50-60Hz/ |
|
Dimension |
670*620*820 |
945*790*1670 |
13050*1450*1780 |
13050*2255*2280 |
|
Power |
3KW |
3.5kw |
4.5KW |
5.5KW |
|
Model |
HT-HS50H |
Ht-HS10H |
|
Capacity |
50kg |
10kg |
|
Inner size |
0.6*0.52*0.8m |
0.4*0.37*35m |
|
Tray number |
7 |
4 |
|
Temperature control range |
RT+10-120℃ |
RT+10-120℃ |
|
Temperature fluctuation |
±0.5℃ |
±0.5℃ |
|
Humidity |
60%-80% |
60%-80% |
|
Voltage |
220V/50HZ |
220V/50HZ |
|
Dimension |
0.8*0.7*1 |
0.5*0.6*0.75 |
|
Power |
3..5kW |
1kw |
|
Model |
HT-HS030H |
HT-HS100H |
HT-HS200H |
|
Capacity |
30kg |
100kg |
200kg |
|
Inner size |
0.5*0.5*0.6m |
0.5*0.6*1.5 |
1*1*1 |
|
Tray number |
6 |
18 |
48 |
|
Temperature control range |
RT+10℃-120℃ |
RT+10℃-120℃ |
RT+10-120℃ |
|
Temperature fluctuation |
RT+10-100℃ |
±0.5℃ |
±0.5℃ |
|
Humidity |
±0.5℃ |
60-98% |
60-98% |
|
Voltage |
220V/50HZ |
380V/50-60HZ |
380V/50-60HZ |
|
Dimension |
240V/50HZ |
0.95*1.06*2.1 |
1.45*1.55*1.75 |
|
Power |
3kw |
4.5kw |
8kw |
