Ginger Processing Production Line
video

Ginger Processing Production Line

1. The Ginger Processing Production Line is made of 304 stainless steel
2. Simple operation and easy cleaning
3.Safety and quality standards meet the latest food industry requirements
Send Inquiry
Product Introduction
Product Introduction:


Ginger Processing Production Line uses ginger as raw materials, processing ginger into ginger powder through processing techniques such as cleaning, peeling, slicing, drying and grinding. Meet the culinary needs of different households, restaurants and food processing plants.


Ginger Processing Production Line into ginger powder can increase the added value of ginger in the ginger planting industry, and reduce the ginger loss and storage and transportation costs caused by ginger price fluctuations. This is the best choice for the ginger powder business!


Features of Ginger Processing Production Line


Ginger processing production line is a modern and automated system that helps in the efficient processing of ginger. The following are the distinct Features of this production line:

1. High Efficiency: The ginger processing production line is highly efficient and offers fast and consistent processing of ginger. With the use of modern automated machines, the production line works at high speeds and ensures that the output is of optimal quality.

2. Automated System: The modern automated machines used in the ginger processing production line reduce the need for manual labor, which improves hygiene, reduces production costs, and ensures that the entire process is faster and more efficient.

3. User-Friendly System: The ginger processing production line is easy to use and requires less training. The machines are designed to ensure that the human-machine interface is optimized, making it easier for operators to carry out various tasks.

4.Versatile: This production line can process a wide variety of ginger products such as ginger juice, ginger powder, and ginger slices, among others. This versatility helps to maximize the utilization of ginger and increase profitability.


Working Principle of Ginger Processing Production Line


The working principle of the ginger processing production line is based on modern automated machines that work in a synchronized manner. The process involves the following steps:

1. Cleaning: The first step in the ginger processing production line is to clean the ginger. Modern machines for cleaning ginger are designed to remove dirt, sand, and other debris from the ginger.

2. Crushing: Once the ginger has been cleaned, it is crushed using a modern ginger crusher. The machine is designed to crush the ginger into small pieces, which are easy to further process.

3. Extraction: The crushed ginger is then extracted using a modern extraction machine. This machine is designed to extract the juice from the ginger pulp.

4. Filtration: The extracted ginger juice is then filtered to remove any solid particles and impurities.

5. Concentration/Pulverization: Once the ginger juice has been filtered, it is then concentrated or pulverized depending on the specific product required.

6. Drying: The final step in the ginger processing production line is to dry the ginger. Modern drying machines are designed to dry the ginger to the desired moisture levels.


Technical Parameter


No

Name

Technical parameter

1

Ginger Peeling and cleaning machine

Model: HT-MQT800
Voltage:380V, 1.1kw
Size: 1600x730x840mm
Weight:220kg
Capacity: 800kg/h

2.

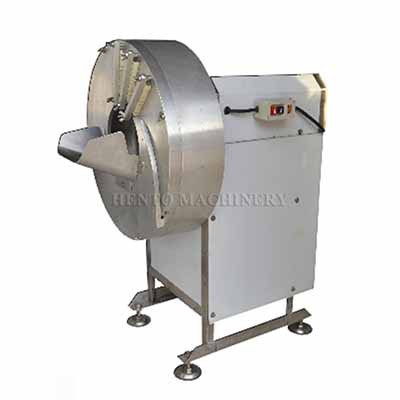

Ginger slicing machine

HT-GS300
1.1kw/380v/50hz
690x560x880
300KG/H

3.

Blanching Machine

HT-PT500
2500*1300*1400mm
500KG/H

4.

Ginger De-watring Machine


Type: HT-FG3000
Power (KW): 6.5
Capacity(T/H): 1
Voltage: 380V
Size:3000*950*1600
Fans:4fans

5.

Hot Air Dryer

Model: HT-C-I
Production capacity: 120kg/batch(48Tray)
Power: 15+0.45kw
Heating type:electric
Temperature difference of upper-lower:±2℃
Dimension:2.3*1.2*2m
Drying car: 2

6.

Ginger Grinding Machine

Model: HT-250A
Voltage: 380V
Power: 5.5kw
Spindle speed(r/min):4200
Capacity: 60-200kg/h
Crushing fineness: 10-120
Inlet width: 95mm
Dimension:900*600*1150mm
Weight:180kg

7.

Packing Machine

Model:HT-PF500
Capacity:10-500g
Width:38cm
Packing speed:10-15bags


Product Pictures


electric ginger powder machine(001)
small ginger powder packing and sealing machine(001)
