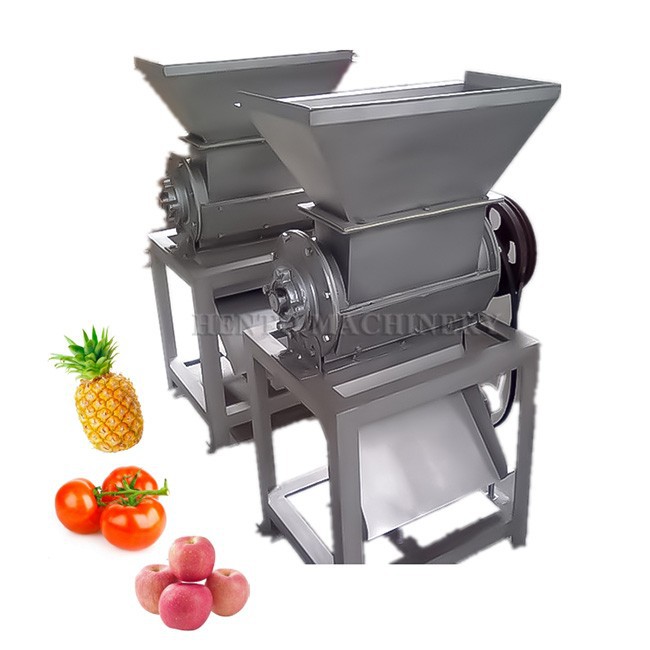

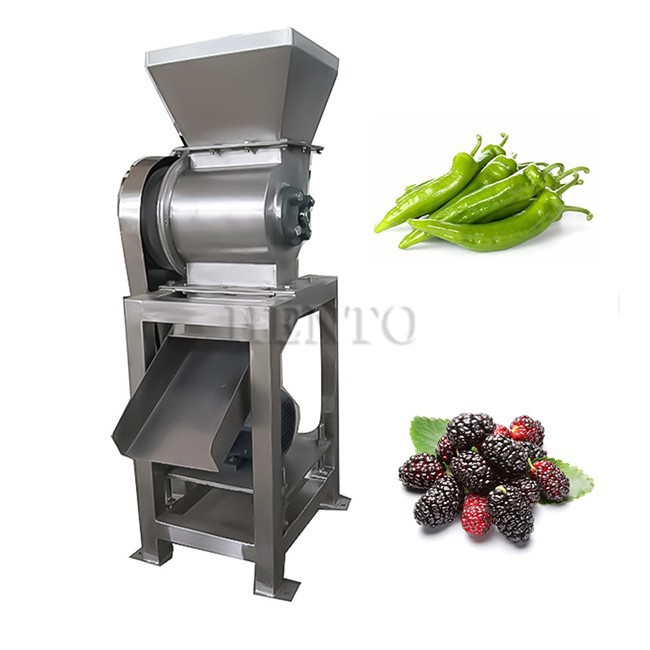

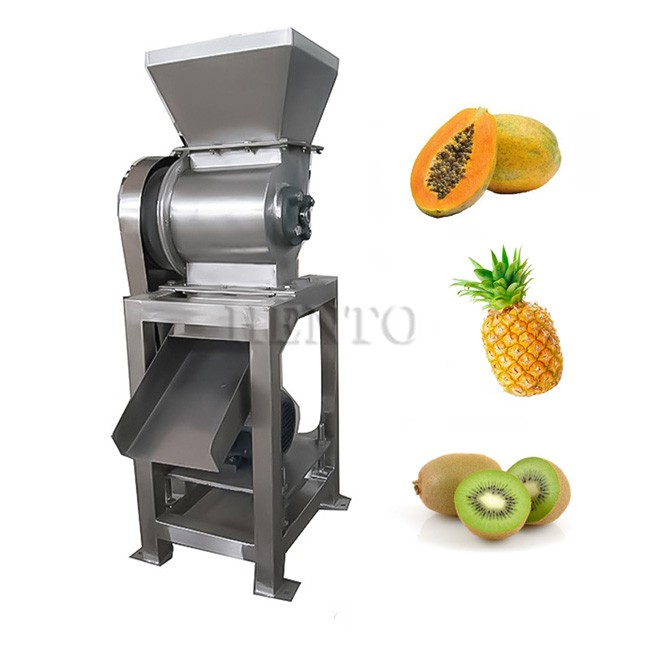

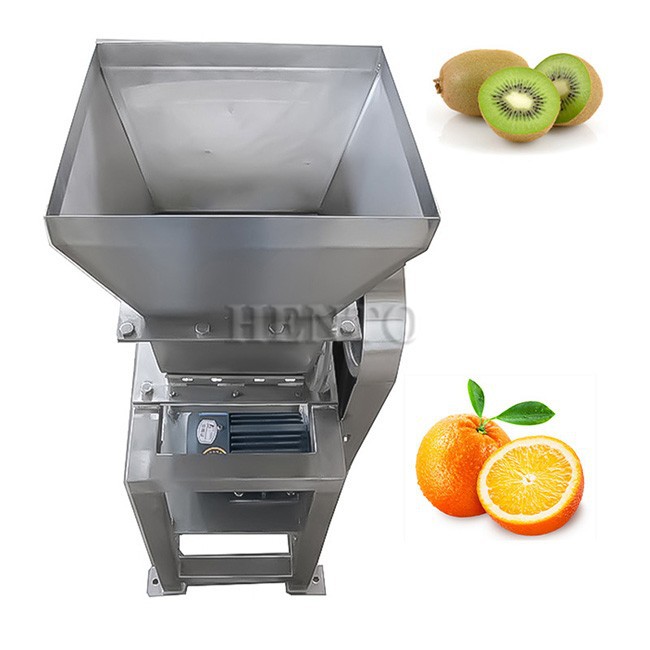

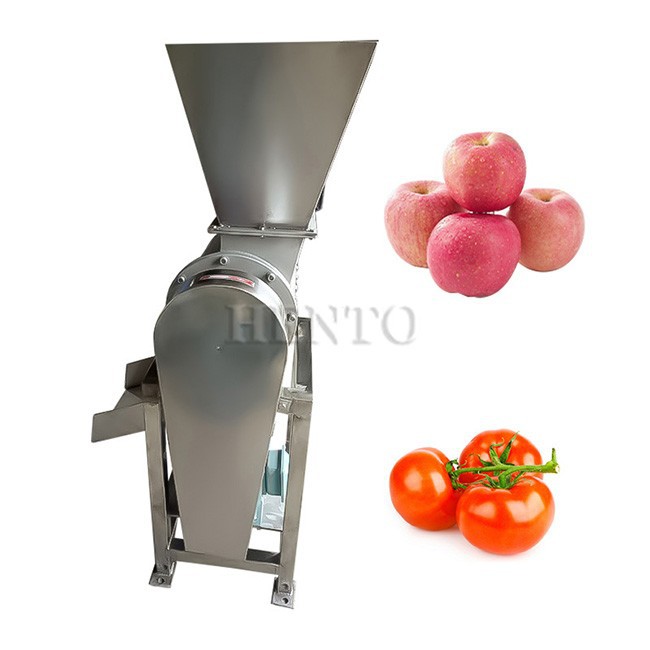

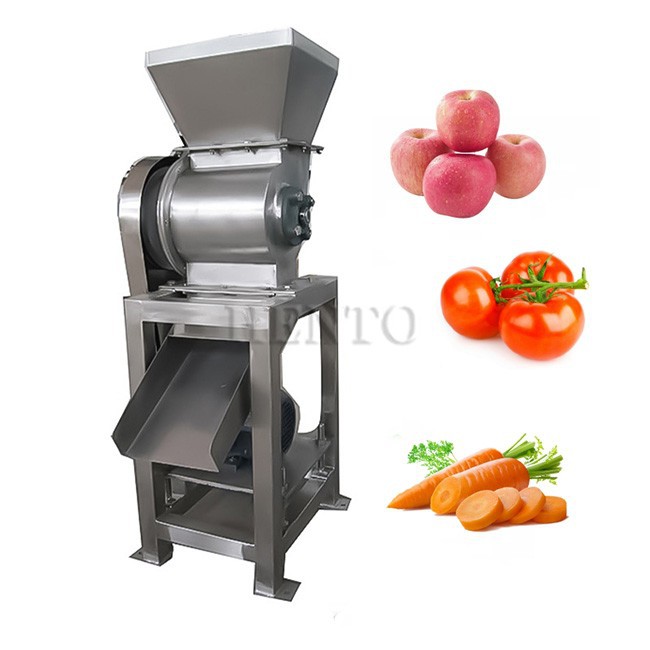

Pineapple Crusher
Product Description
Scope of application of Pineapple Crusher:
for example: crushing berries:tomato, kiwi fruit, carrot, mulberry, strawberry, papaya, etc. Benevolence fruits: apples, pears, pineapple and so on.

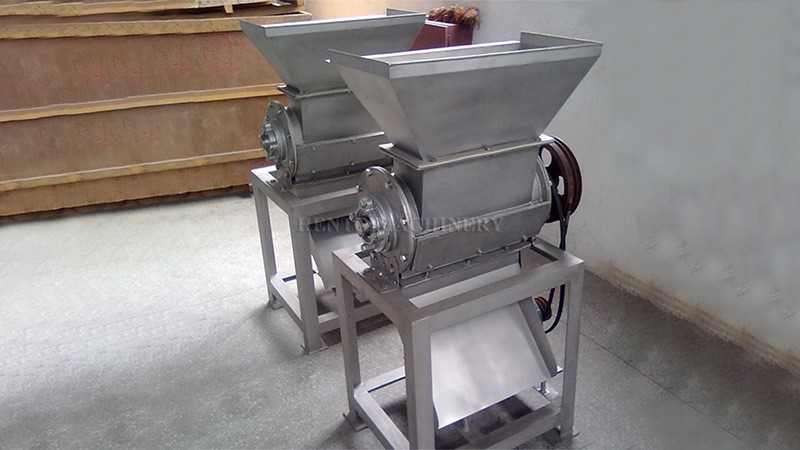

This machine is mainly composed of feed hopper, broken parts, bracket, a hopper, transmission parts and other groups, including contact parts are made by stainless steel material.Crushing grain size is 5-8mm.

Working principle

During operation, the motor is directly connected to the coupling, and the flying knife rotates at high speed around its own axis in the stationary slot at the bottom under the drive of the motor. The material is fed into the hopper by the elevator (or screw pump, etc.) and cut by the high-speed rotating flying knife. Due to the centrifugal force, the material falls into another storage tank through the waist shaped hole screen, and is then output to the next process by the conveying pump. According to the different types of fruits and vegetables, the hopper has one bucket and one tube. By adding buffering network devices, finer grained materials can be obtained.
Different types of fruit crushers have completely different working principles. Taking fruit and vegetable crushers as an example, they mainly rely on impact energy to complete the crushing of materials. The motor drives the rotor to rotate at high speed, and the material uniformly enters the crusher chamber. The high-speed rotating hammer head impacts, shears, and tears the material, causing it to be crushed.

Machine Advantage
Compared with other similar mechanical equipment, the pineappe crusher have the following significant characteristics in crushing.
High Precision
This equipment can perform precise homogenization of raw materials, greatly improving the taste and quality of fruit pulp.
Fast Speed
Due to the high-speed rotation of the crusher and the rapid discharge of slag by the slag remover, the processing speed is very fast, greatly improving production efficiency.
Easy to Operate
Reduce the cost of manual operation, just input the raw materials after the equipment is turned on, and wait for the equipment to discharge the homogenized fruit pulp.
comparison of product parameters
|
Model |
HT-PS0.5 |
HT-PS1 |
HT-PS1.5 |
|
Capacity |
0.1-0.5T/h |
0.5-1.0T/h |
1-1.5T/h |
|
Power |
0.55KW |
0.75KW |
1KW |
|
Rotating Speed of Cutter |
310r/min |
310r/min |
310r/min |
|
Dimension |
350*515*600mm |
450*550*900mm |
500*550*950mm |
|
Voltage |
220V |
220V |
220V |
|
Weight |
75kg |
85kg |
96kg |
|
Model |
HT-PS3 |
HT-PS5 |
|
Capacity |
1.5-3.0T/h |
3-5T/h |
|
Power |
2.2KW |
3KW |
|
Rotating Speed of Cutter |
310r/min |
310r/min |
|
Dimension |
600*550*1000mm |
640*550*1175mm |
|
Voltage |
220V |
220V |
|
Weight |
100kg |
120kg |
FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
Q: What's the payment term?
Q: 4.How to ship?
Q: 5.Which port do you send the goods from?
Q: 6.How long is the warranty of the machine?
Q: 7.How to buy this machine?
Q: 8.What about the package?
Q: 9.Do you need a supplier to provide transportation?
Q: 10.Are there any requirements for power supply?
Q: 11.What about Pre-sale service?
Q: 12.What about After-sales service?
