Chili Sauce Production Line
2. The capacity of the line can be customized according to the customer's needs.
3.The configuration of this production line can be matched according to the materials selected by the customer.
Machine Introduction
The Chili Sauce Production Line is suitable for filling viscous sauces such as mushroom sauce, chili sauce, Douban sauce, peanut sauce, sesame sauce, jam, butter hotpot base, and red oil hotpot base with particles and high concentration in seasonings.
The Chili Sauce Production Line uses our company's chili sauce production equipment developed and produced throughout the entire process from chili cleaning to sterilization. The processes of raw material processing, frying, filling, and high-temperature sterilization are basically fully automated, and personnel only need to assist machines. The production line greatly improves production efficiency while reducing energy consumption and ensuring consistent product taste.

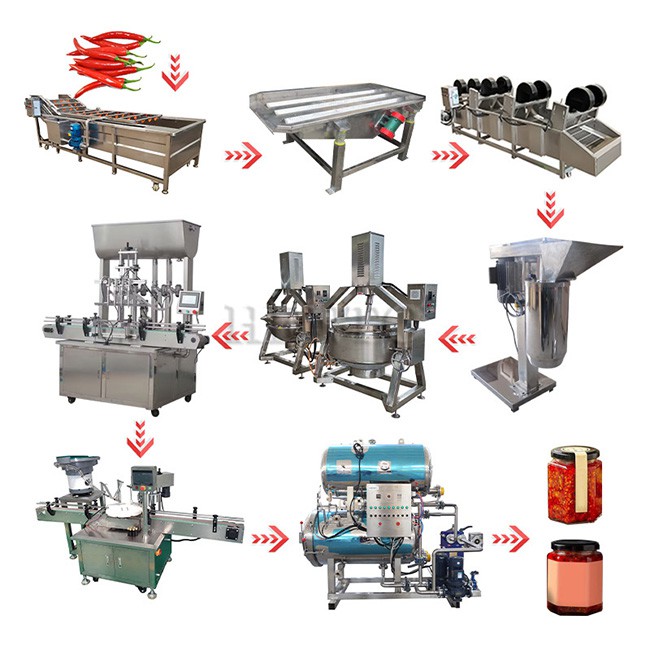

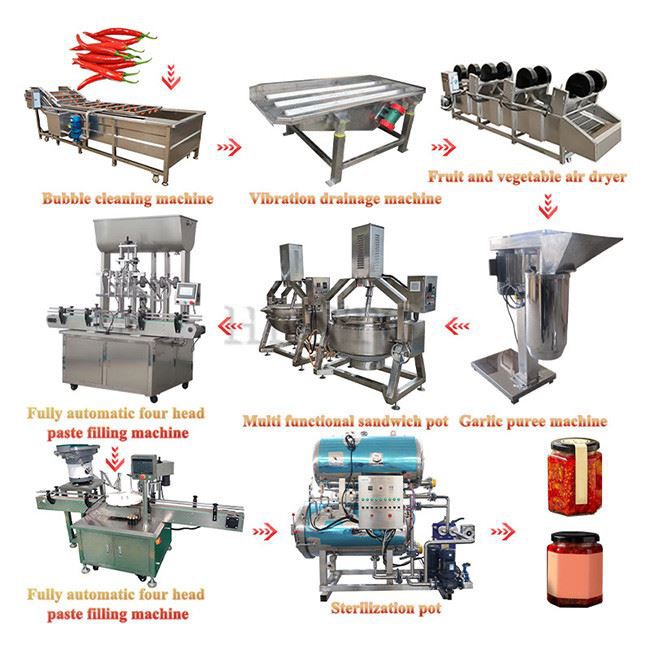

Chili Sauce Production Line operation process

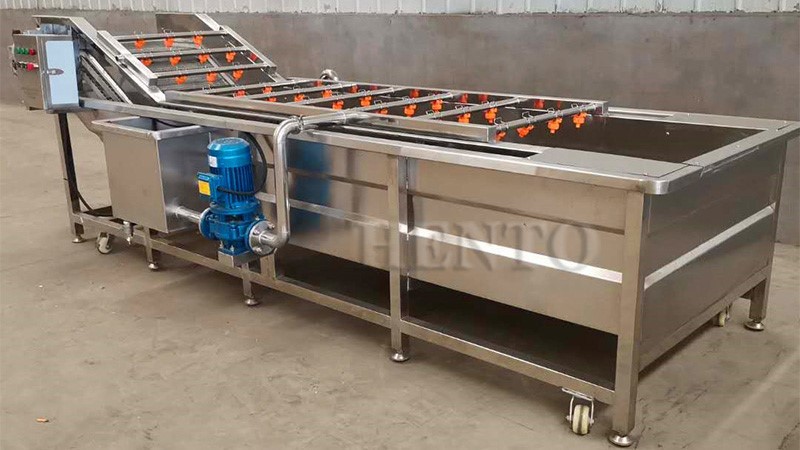

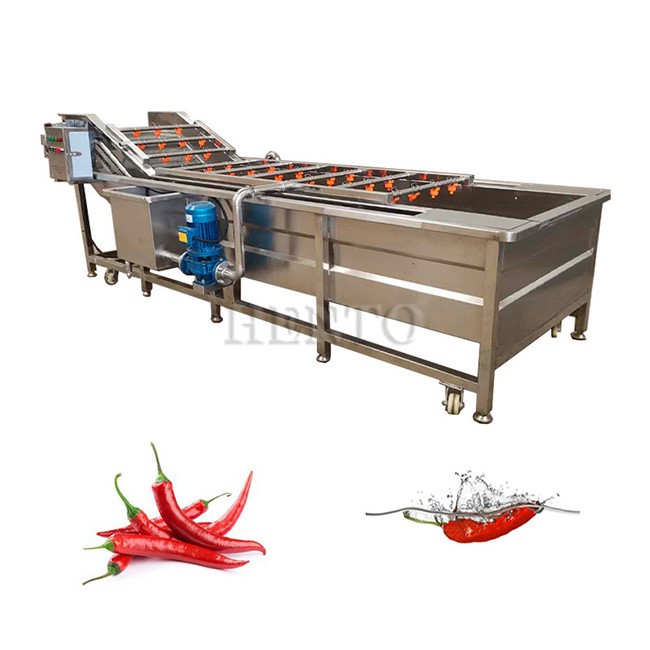

Bubble washing machine 1.
Firstly, use a bubble washer to clean the surface of the chili peppers, in order to thoroughly clean them
2. Fruits Drying Machine

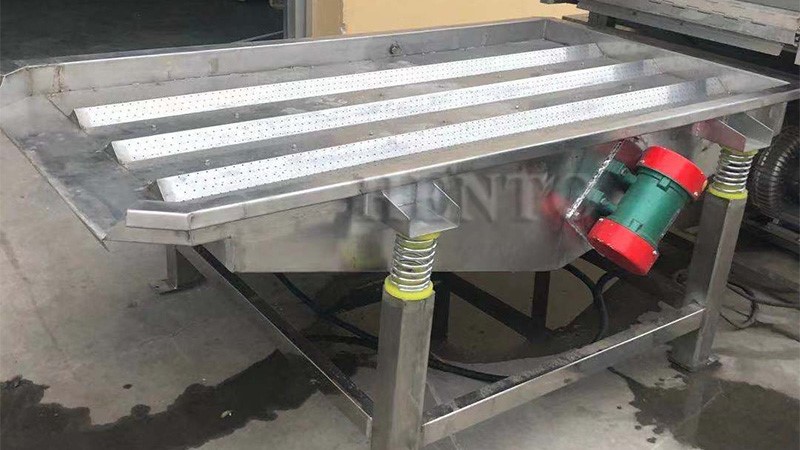

Next, use a vibration drain machine to evenly distribute the product onto the conveying equipment through high-frequency vibration, which helps to evenly convey the product and drain the moisture on the surface of the chili during the conveying process.
Vibration drainage machine 3.

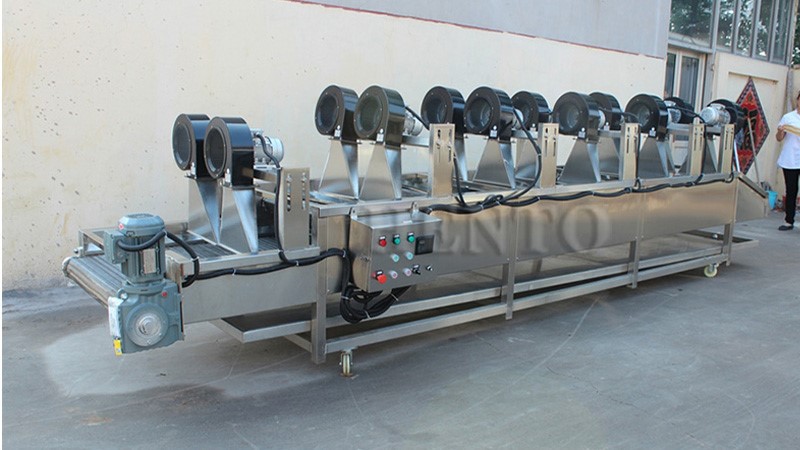

Then use a strong flow air dryer to dehydrate the chili peppers, remove surface scale and stains, and dry them with high air volume and low noise without using steam. The air drying effect is more obvious, and the machine is relatively stable during transportation.

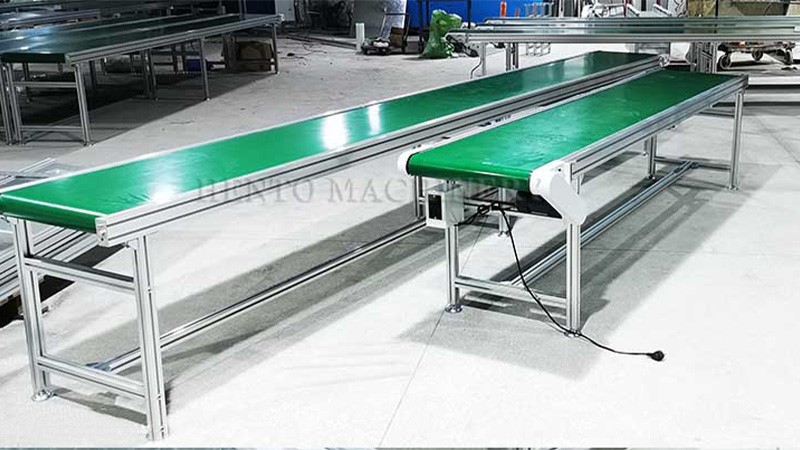

4. Stainless steel conveyor belt
Use stainless steel conveyor belts to transport chili peppers with moisture without rusting during use.

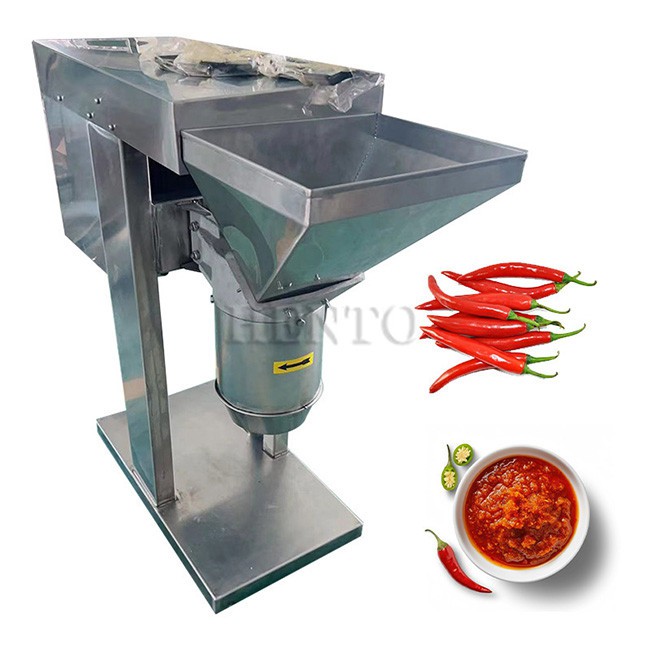

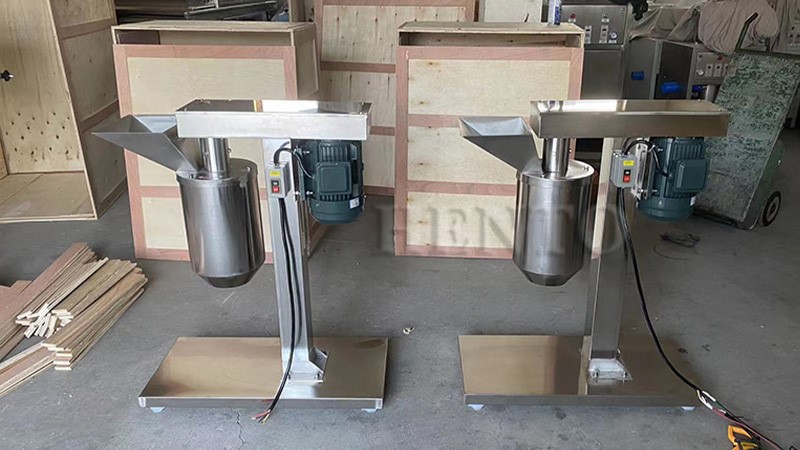

Pepper Paste Making Machine 5.
The next step is to use a chili crusher to make minced foreign chili, mashed potatoes, minced garlic (garlic paste), vegetable paste, etc. The machine can be used for multiple purposes.

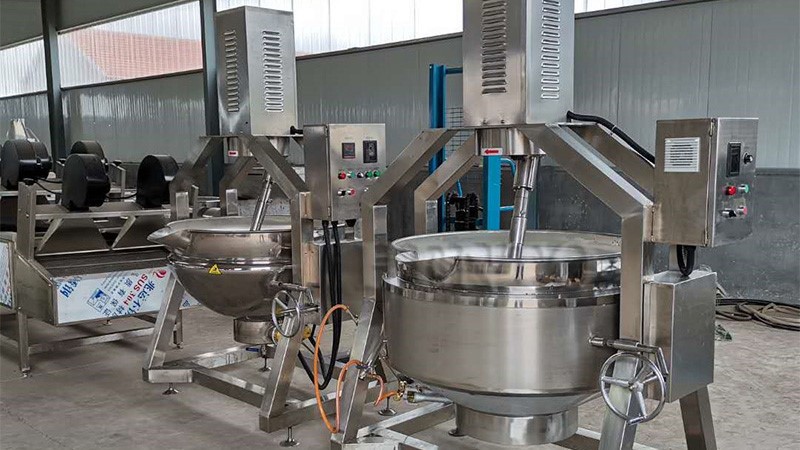

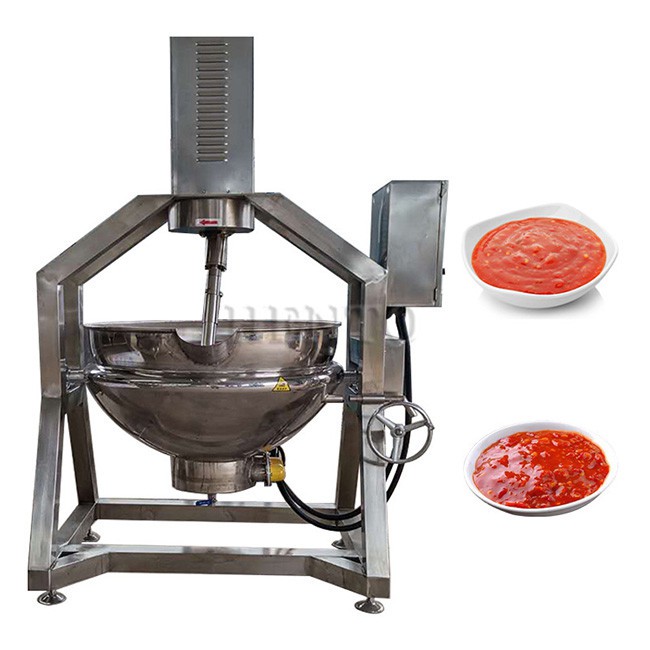

6. Jacketed Pan
Then use a planetary stir fry pan to stir fry the chili peppers. The machine can stir 360 degrees without any dead corners, and even sticky materials like chili paste will not stick to the pan. This machine can also make various sauces with meat, such as mushroom sauce, garlic paste, beef sauce, etc.

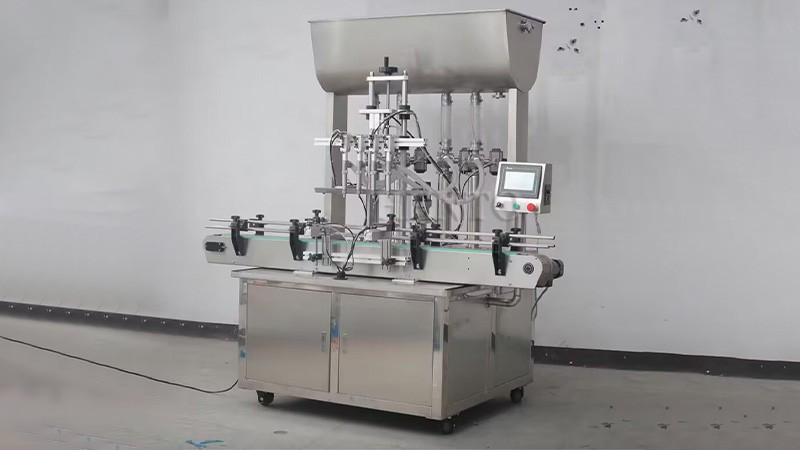

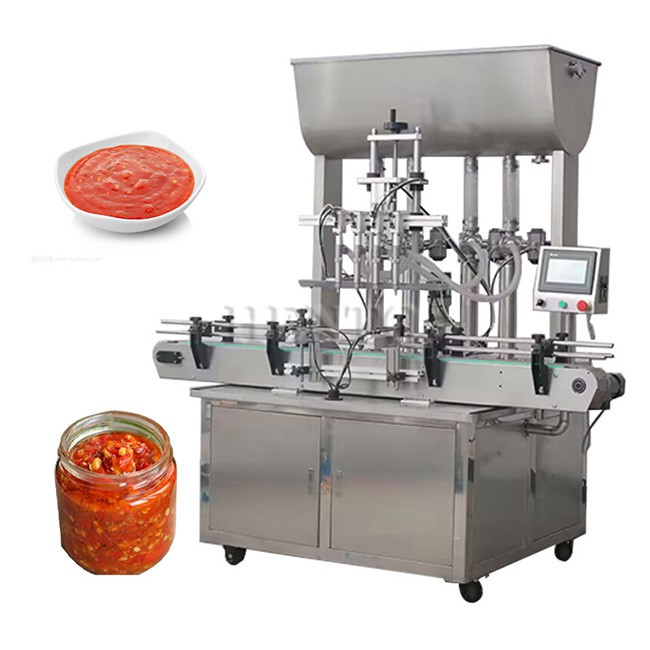

automatic paste filling machine 7.
Then use a paste filling machine to automatically fill the prepared chili sauce through the machine. You can choose a multi head filling machine, which will increase production efficiency.

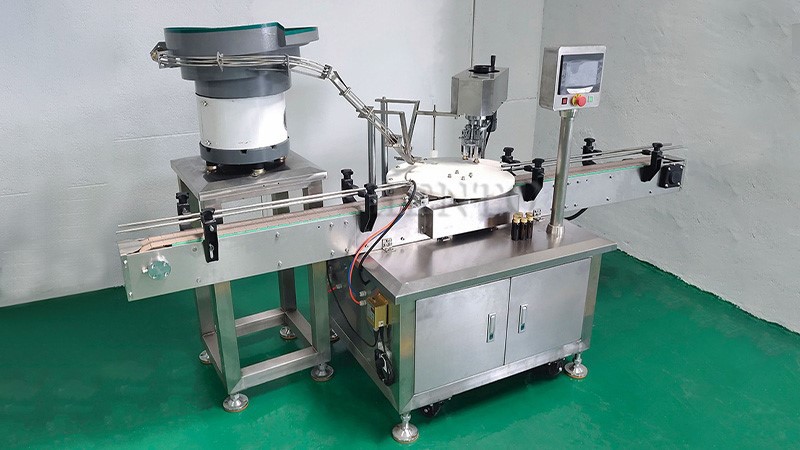

8. automatic capping and sealing machine
Then use a capping and sealing machine to cap the filled chili sauce with air vents, so that a complete bottle of chili sauce is made.

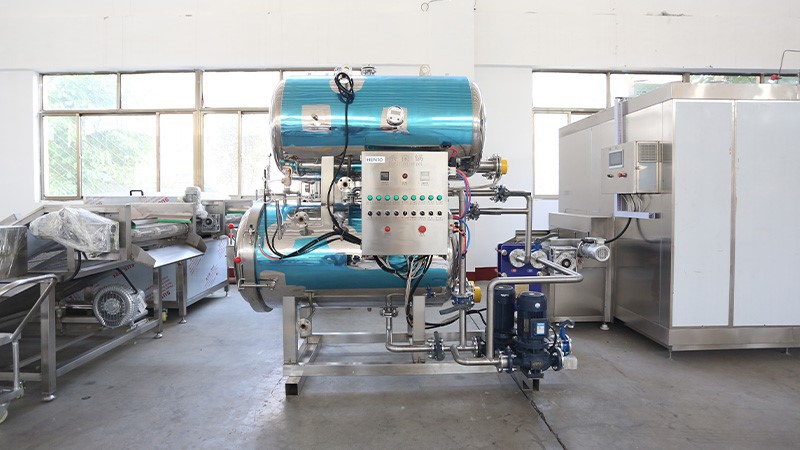

sterilization pot 9.
The final step is to use a sterilization pot to sterilize and disinfect the sealed chili sauce bottle, so that the produced chili sauce can be used with confidence without any food safety issues.
Contact now
product parameters
|
Product Name |
Machine parameters |
|
Bubble Cleaner |
Equipment model: HT-QX4000 Equipment specifications: 4200 * 1500 * 1350mm (length, width, height) Mesh belt: 304 stainless steel spiral mesh belt (width 800mm) Tank material: SUS304 stainless steel/2mm Inner panel material: SUS304 stainless steel/1.5mm sealing material: silicone Operating speed: manual speed regulation Spray nozzle: φ 3 self-aligning ball type speed range: 30s-6min Conveyor motor: 0.75kw Pump power: 1.5kw Bubbling fan: 1.5kw Equipment voltage: 380V/50Hz Main material: SUS304 stainless steel |
|
Vibration drainage machine |
Equipment model: HT-LS1800 Equipment specifications: 1800 * 1250 * 800mm (length, width, height) Vibration plate: 304 stainless steel (width 1000mm) Plate thickness: SUS304 stainless steel/3mm Vibration motor: 0.25kw * 2 units Equipment voltage: 380V/50Hz Main material: SUS304 stainless steel |
|
Fruits Drying Machine |
Equipment model: HT-FGJ6000 Equipment specifications: 6000 * 1280 * 1450mm (length, width, height) Mesh belt: 304 stainless steel spiral mesh belt (width 800mm) Tank material: SUS304 stainless steel/2mm Sealing material: Silicone Operating speed: manual speed regulation Spray nozzle: φ 3 self-aligning ball type speed range: 30s-6min Conveyor motor: 1.5kw Fan power: 0.75kw * 10 units Equipment voltage: 380V/50Hz Main material: SUS304 stainless steel |
|
Stainless steel conveyor belt |
Equipment model: HT-SS3000 Equipment specifications: 3000 * 800 * 600mm (length, width, height) Conveyor belt: Food grade PU conveyor belt (width 600mm) Operating speed: manual speed regulation Range: 30s to 6min Conveyor motor: 0.55kw Equipment voltage: 380V/50Hz Main material: SUS304 stainless steel |
|
Pepper Paste Making Machine |
Equipment model: HT-SC500 Specification: 900 * 380 * 1000mm Power: 1.5KW Voltage: 380V Production: 500KG/H Weight: 58kg |
|
Jacketed Pan |
Equipment model:HT-JCG500 Capacity: 500L Mixing power: 2.2kw Mixing speed: 0-65r/min (variable frequency speed regulation) Inner pot diameter: 1200mm Outer bile diameter: 1300mm Pot liner thickness: 5mm inside and 3mm outside Pot liner material: 304 stainless steel Dimensions: 1600 * 1500 * 2100mm |
The advantages of Chili Sauce Production Line
1. The chili sauce filling production line adopts a closed structure, ensuring safe and reliable operation, and maintaining cleanliness and hygiene throughout the entire process.
2. High precision piston engines are used for metrological calibration of mechanical equipment, using AC servo motor controllers for metrological calibration, with accurate quantitative analysis, safety and reliability;
3. The fully automated chili sauce production line uses high-quality sealed electronic components and has added scientific, standardized, and effective anti leakage measures to ensure that there are no leakage issues during on-site investigations of the filling line;
4. The mechanical equipment includes a storage box, independent cleaning pipes for easy cleaning and material replacement;
5. The head of the chili sauce filling production line is equipped with a photoelectric technology operating system, which can accurately identify the specific positioning of the filling bottles and complete bottle filling, no bottle, few bottles, and no filling;
6. The mixing speed of the material box in the fully automatic chili sauce production line equipment can be adjusted, making it convenient to use different mixing speeds;
