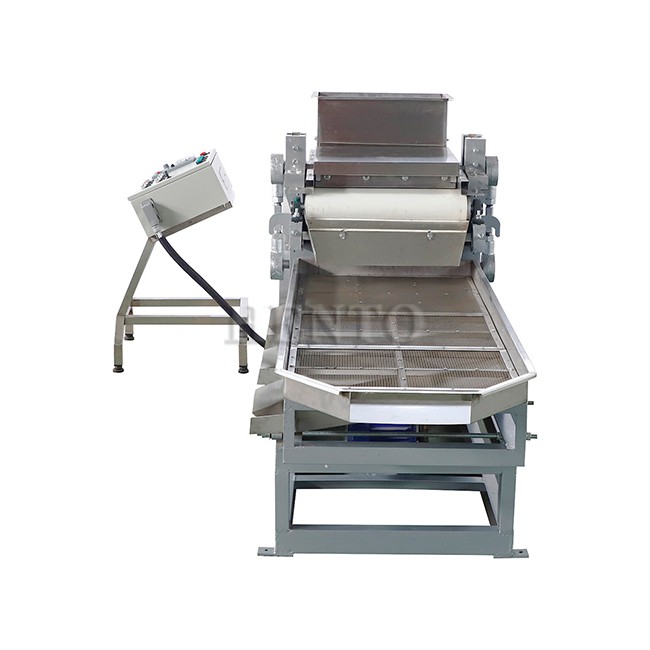

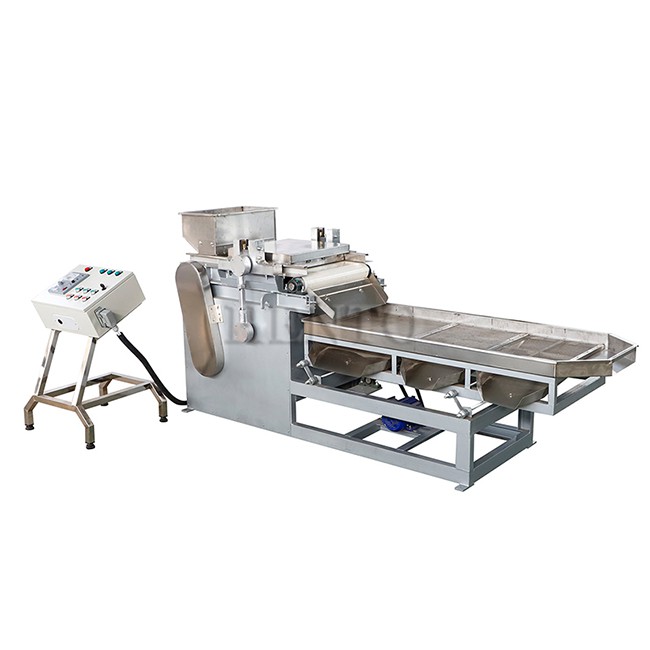

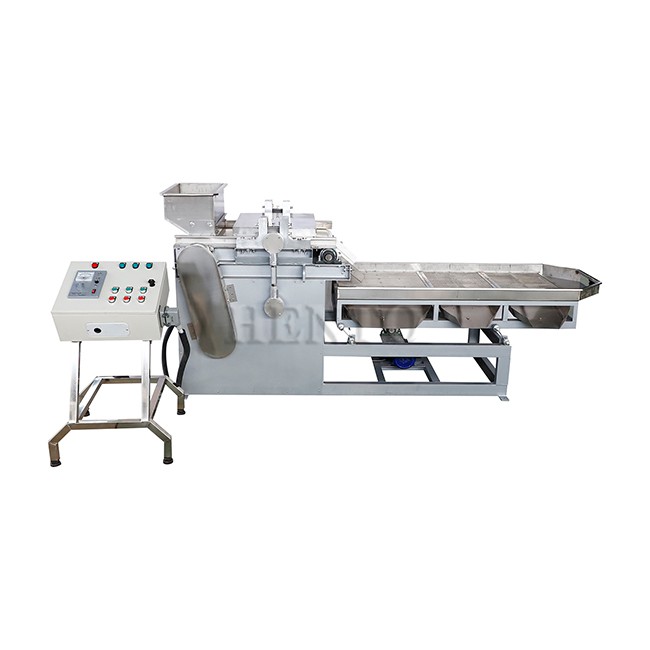

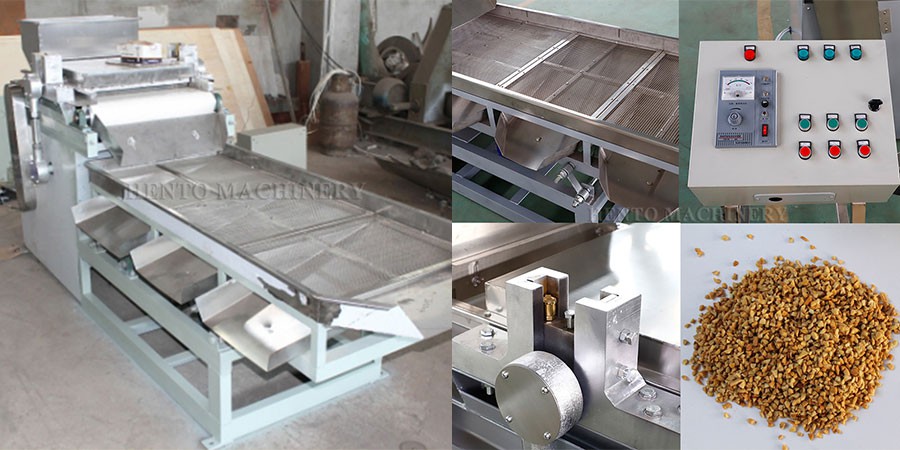

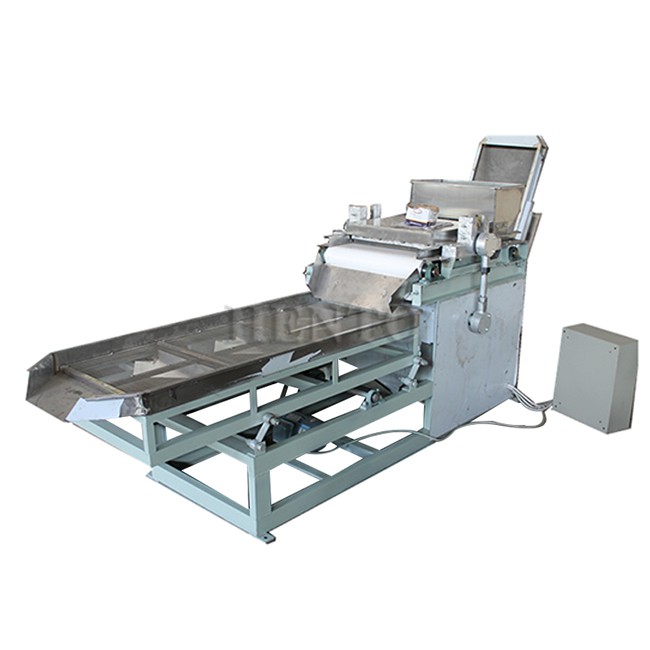

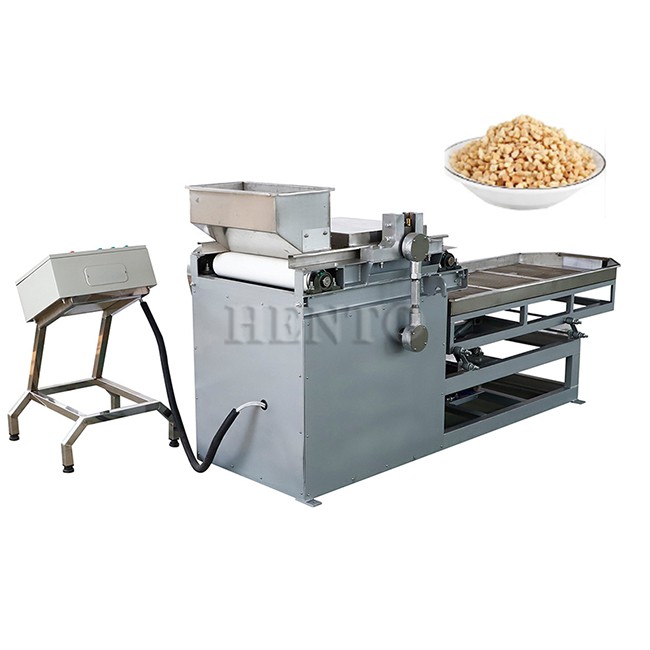

Peanut Cutter Machine
Work Principle
Absorbing the advantages of similar products, Peanut Cutter Machine has the advantages of reasonable structure, high efficiency, energy saving, and convenient use. The cut products have uniform particle size, beautiful appearance, less material consumption, and no greasy phenomenon. Ideal for food processors.
The material of Peanut Cutter Machine is discharged evenly through the hopper, and the cut material is sent to the shredding mechanism by the conveyor belt for chopping. The cut material is vibrated and classified to obtain the required specifications of particles. The reciprocating speed of the cutter is constant. By changing the speed of the conveyor belt, the number of times the material is sheared is increased, so as to achieve the purpose of adjusting the particle size.
Before starting the machine, check whether the circuit is normal and whether the rotating parts are loose or abnormal.
Before loading peanuts, use supporting equipment (peeling machine or half-grain machine) to remove the red skin and use milky white rice as cutting material.
The ram of the upper hopper is controlled to a suitable height, so that the feeding control is uniform and synchronous, so as to ensure the normal operation of the shredder.
By adjusting the connecting rods at both ends of the cutter frame, the cutter of Peanut Cutter Machine is parallel to the bottom plate of the belt, and the gap is adjusted so that the belt cannot be cut.
The size of the cut particles is controlled by the speed adjustment of the conveyor belt according to the user's requirements. The faster the belt speed, the larger the particles, and the slower the belt speed, the smaller the particles.
After being chopped, it enters the vibrating grading sieve, and the qualified crushed particles fall into the storage hopper under the screen, and the large particles are subjected to secondary crushing.
comparison of product parameters
|
Model |
HT-QSJ200 |
HT-DAP200 |
|
Capacity |
200-700kg/hour |
200kg/h |
|
Power |
2.25kw |
1.1 |
|
Voltage |
220v |
220v |
|
Machine dimension |
2700*1000*1350mm |
500*500*1000mm |
FAQ
Q: What's the MOQ?
A: 1 set
Q: Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: How long is the warranty of the machine?
A: Two years warranty.
Q: How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: What about the package?
A: Usually we will use the standard export wooden case.
Q: Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about Pre-sale service:
A: 11.Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: What about After-sales service?
A: 12.Q:Video technical support; Online support ; Field installation, commissioning and training;
