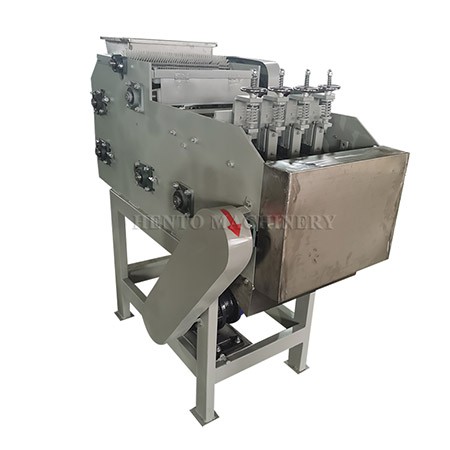

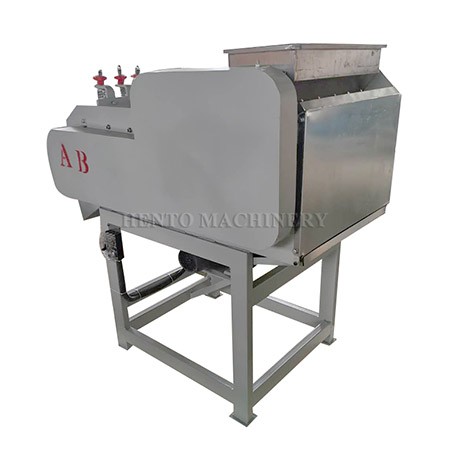

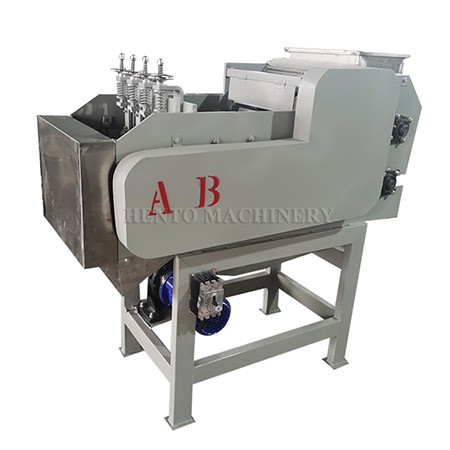

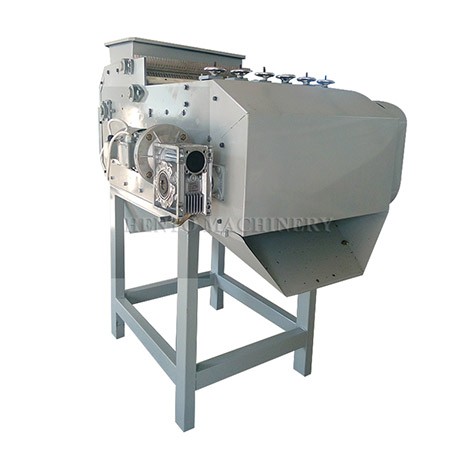

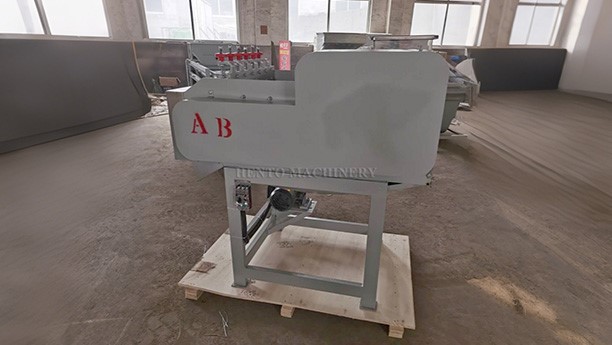

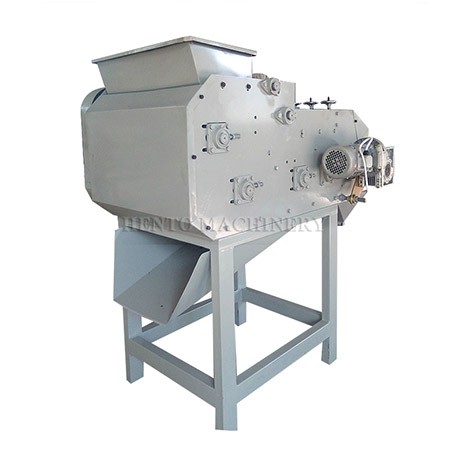

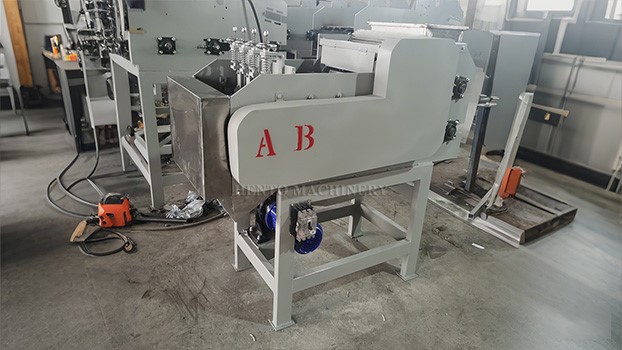

Automatic Cashew Shelling Machine
The feeding action is automatically completed.
High Shelling Rate
The Automatic Cashew Shelling Machine has the advantages of large processing range, high yield, and good safety. Grading cashews to remove shells can achieve a shelling and whole kernel rate of up to 95%.
The Machine divides the material into various guide grooves through the material distribution device on the hopper, and the motor drives the attachment plate on the chain to move it towards the cutter body, achieving cutting.
Multifunctional
It is an ideal equipment for cashew processing due to its simple operation. Also suitable for peanut/peanut shelling machines, which completely separate peanuts into seeds and shells. It is also suitable for peeling cotton seeds and tea seeds, completely separating the fruit kernels.
Working Principle
The working principle of the Automatic Cashew Shelling Machine is that after startup, the spindle drives the parallel rod to click under the screen, rubs and peels off the peanut shells, then extrudes the peanuts and peanut shells from the sieve holes below, and finally uses a fan to sort out the peanut shells and kernels.
The advantages of this machine is that the conveyor section is efficient and economical. It has the characteristics of compact structure, beautiful appearance, reliable operation, and convenient maintenance.
Contact now
Features
Seeds can be used as raw materials for food or oil plants; Cannons can be used as fuel to make balls. It can be used to shell most types of nuts.
Automatic Cashew Shelling Machine is used for cashew fruit shells, with low material damage rate and high shell efficiency. The equipment distributes materials to various guide grooves through a hopper separator, and the connecting plate on the motor drive chain moves towards the cutter body to achieve cutting.
This machine solves the problems of low shelling rate, high loss rate, poor kernel integrity, poor adaptability, high operating costs, and low safety performance of current manual machines.
parameters
|
Model |
HT-DX4 | HT-DX3 |
HT-DX2 |
HT-DX1 |
|
Capacity |
200kg/h | 100kg/h |
65-75kg/h |
30-40kg/h |
|
Voltage |
380v | 380v |
380v |
380v |
|
Power |
3KW | 0.75KW |
2KW |
0.75KW |
|
Weight |
380kg | 360kg |
375kg |
300kg |
|
Dimension |
1.5*1.6*1.65m | 1.5*1.15*1.6m |
1.3*0.9*1.2m |
1.2*0.55*0.8m |
|
Model |
HT-YG20 |
HT-YG40 |
HT-YG80 |
|
Capacity |
30-40kg/h |
40 kg/h |
80 kg/h |
|
Voltage |
380v |
380/220v |
380/220v |
|
Power |
/ |
0.75KW |
1.1kw |
|
Weight |
320kg |
160kg |
260kg |
|
Dimension |
1.2*0.5*0.8m |
1.56*0.75*1.15m |
1.56*1.1*1.5m |
FAQ
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: What about the package?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
Q: What about Pre-sale service:
Q: What about After-sales service?
