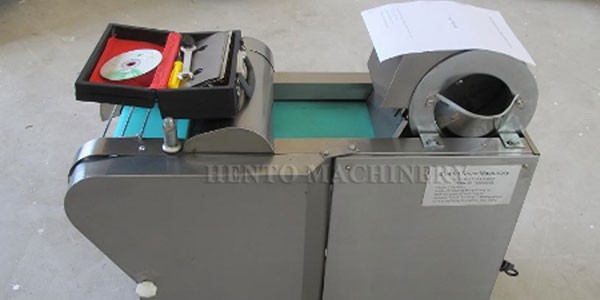

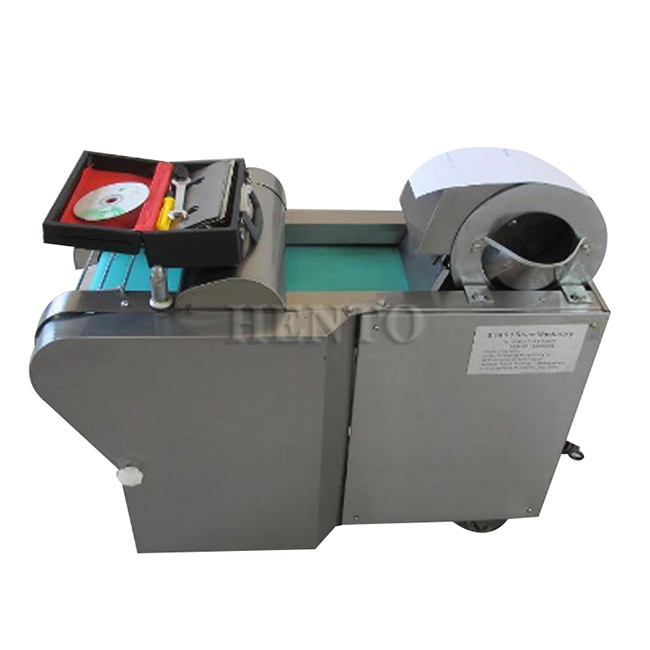

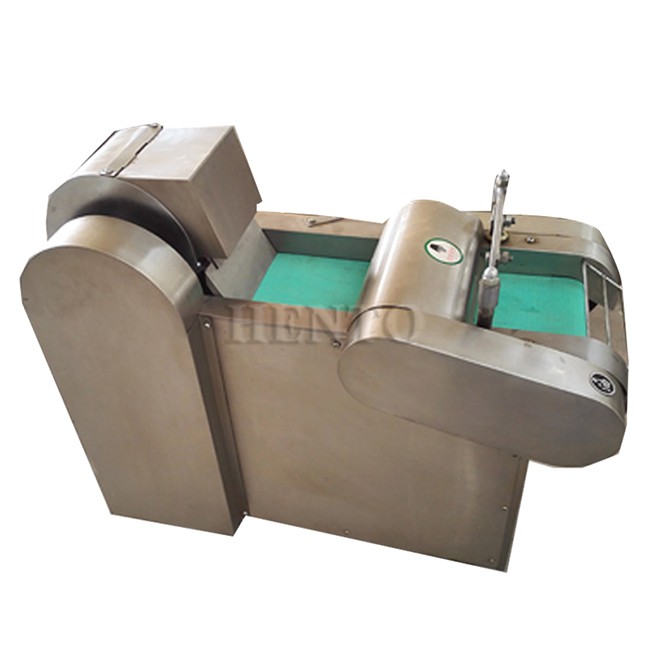

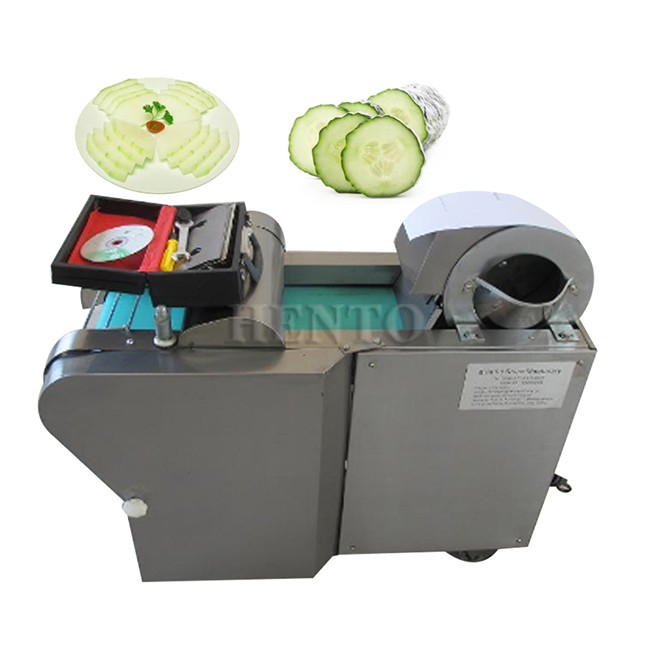

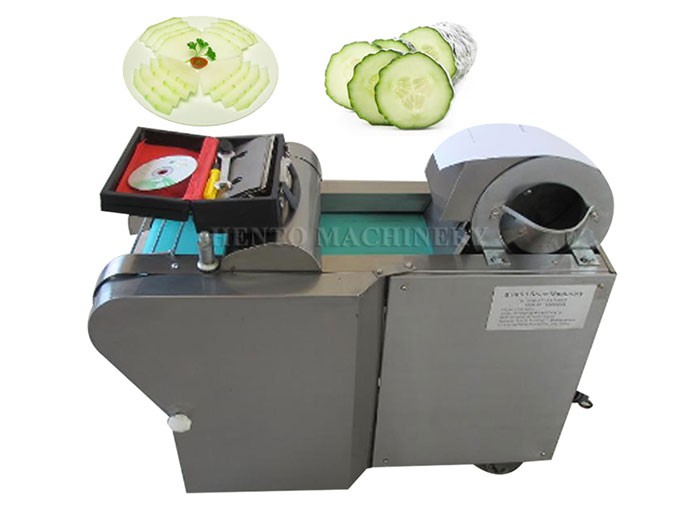

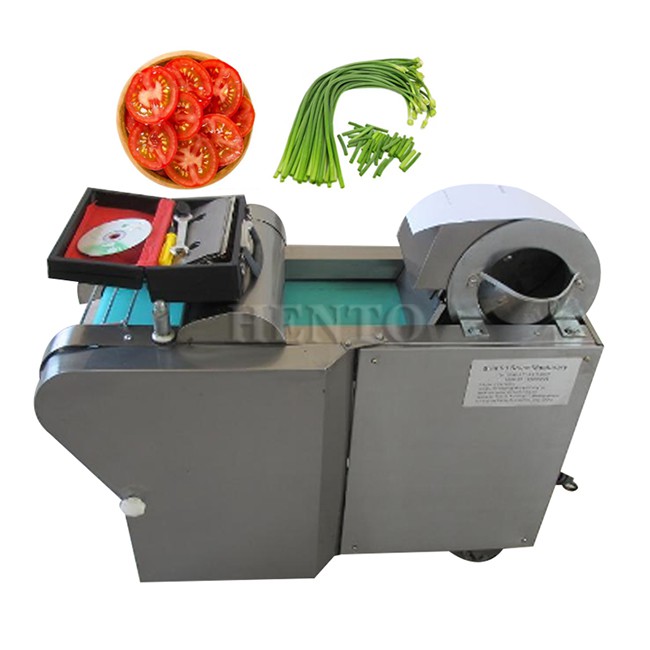

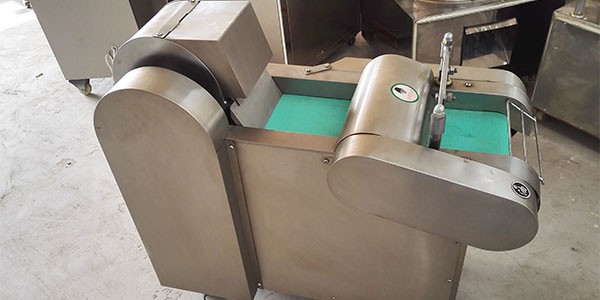

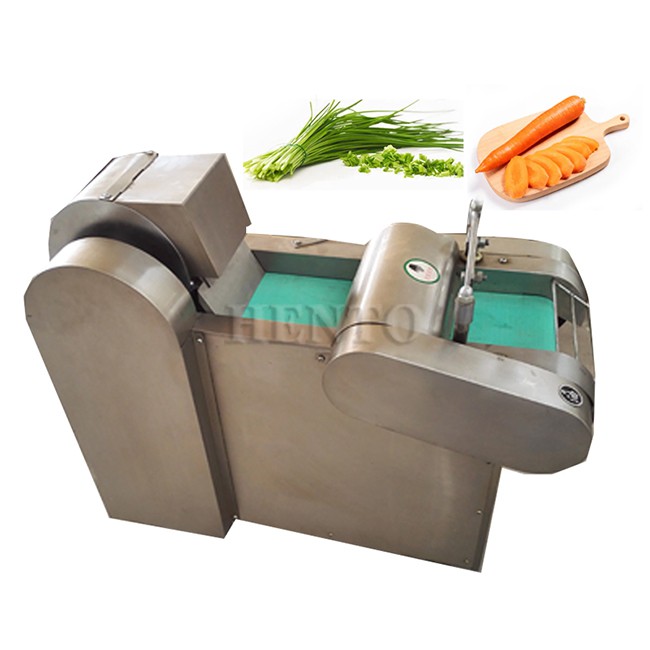

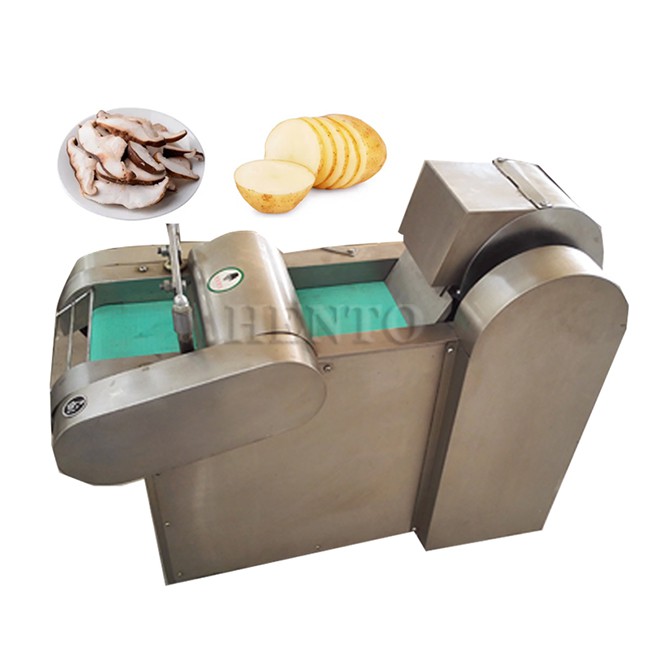

Multifunctional Vegetable Cutting Machine
Uniformly cutting vegetables, Uniform size, double operations, efficiency double.
2. The length and thickness can be adjusted, and the cut surface is flat.
3. 304 Material rejects fuel, not rust, healthy and rest assured.
4. Fast speed, easy to save artificially. It is thin and uniform, with a variety of effects, and is loved by chefs.
Installation steps
01
Place the machine at a horizontal workplace to ensure that the machine is placed smoothly and reliable.
02
Check the various parts before use. Whether the fascination is loose during transportation, whether the switch and power cord are damaged due to transportation, and corresponding measures are taken in time.
03
Check whether there are foreign objects in the rotating cylinder or on the conveyor belt. If there is a foreign body, you must clean it to avoid damage to the knife.
04
Determine the power supply voltage and rated voltage of the machine. Find a professional electrician to connect the machine power cord to the power source, press the "on" button, and check if the steering wheel is turning correctly. Otherwise, please cut off the power and adjust the wiring.
Usage steps
1). Try cutting before work to observe whether the specifications of the cut vegetables are consistent with the requirements. Otherwise, the thickness or cutting length of the slicing should be adjusted to do normal work after meeting the requirements.
2). Install a vertical knife cutting machine to install a vertical knife: first rotate the adjustable eccentric wheel, so that the knife rack will be carried to the lower point, and then the knife rack is lifted up 1/2 mm to make the vertical knife contact the conveyor belt. The tight nut has tightened the vertical knife on the blade. Note: The elevated height can be mastered according to the cut vegetables. If the elevated high height is raised, the vegetables may be connected to the knife. If the elevated height is too large, it may be cut off the conveyor belt.
Features:
By adjusting
the adjustable bolt on eccenter, the slicing size can be controlled from 1mm to 30mm.
Decrease the cutting size
Move the adjustable eccenter to make the split upward, then loosen the screw to move the bolt toward the center of adjustable eccenter.
Increase the cutting size
Move the adjustable eccenter to make the split downward, then loosen the screw to move the bolt far away from the center of adjustable Eccenter.
parameters
|
Model |
HT-YQC660 |
HT-YQC1000 |
|
Capacity |
130-660kg/h |
200-1000kg/h |
|
Slices thickness |
1-10mm |
1-15mm |
|
Segment size |
1-23mm |
1-30mm |
|
Motor power |
0.75kw 220/110/415V |
1.5kw 110/220/380/415V |
|
External Size |
880*430*780mm |
1300*610*1060mm |
|
Machine weight |
120kg |
220kg |
|
Slicing speed of upright knife |
151/281/531per/min |
151/281per/min |
|
Rotate speed of driving plate |
445r/min |
445r/min |
FAQ
Q: What is Foreign Trade-Express?
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: What about the package?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
Q: What about Pre-sale service:
