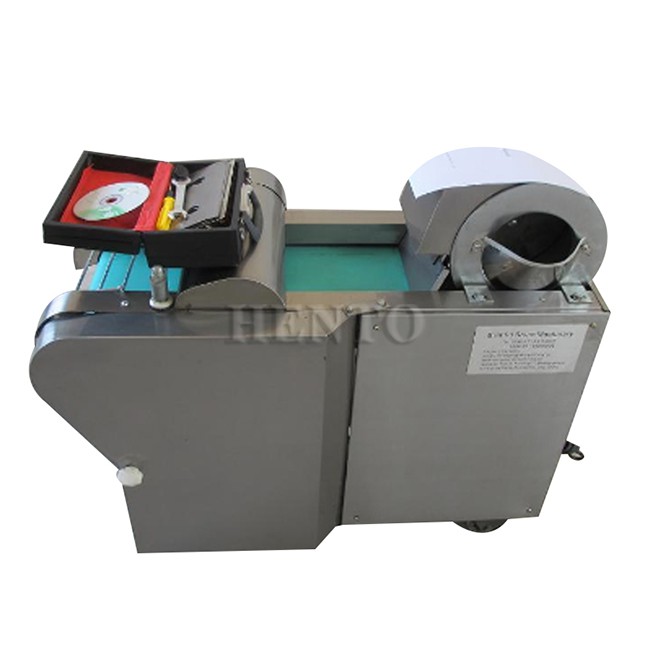

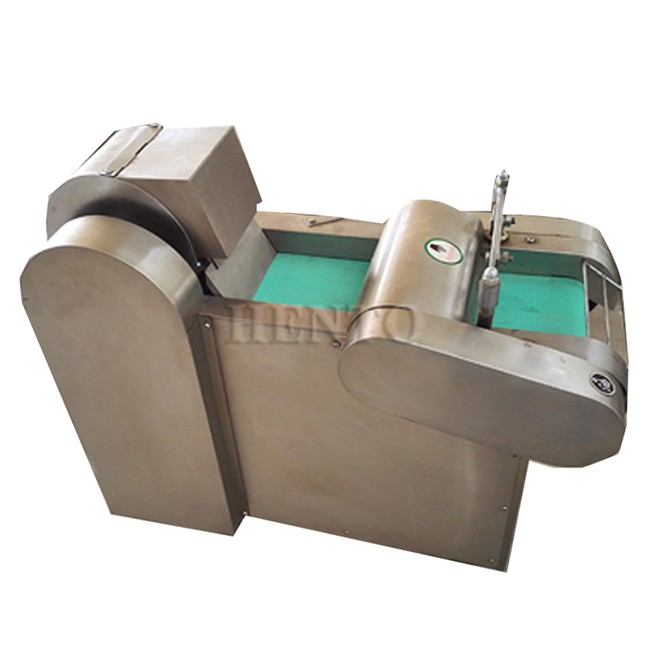

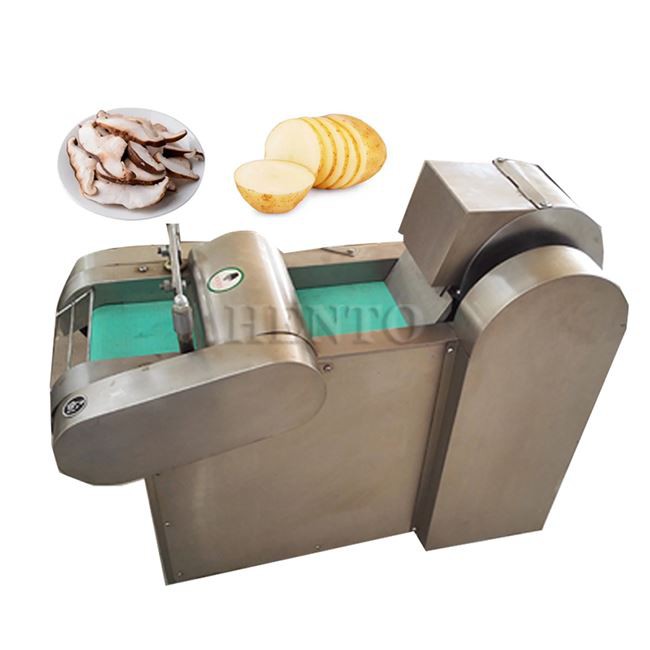

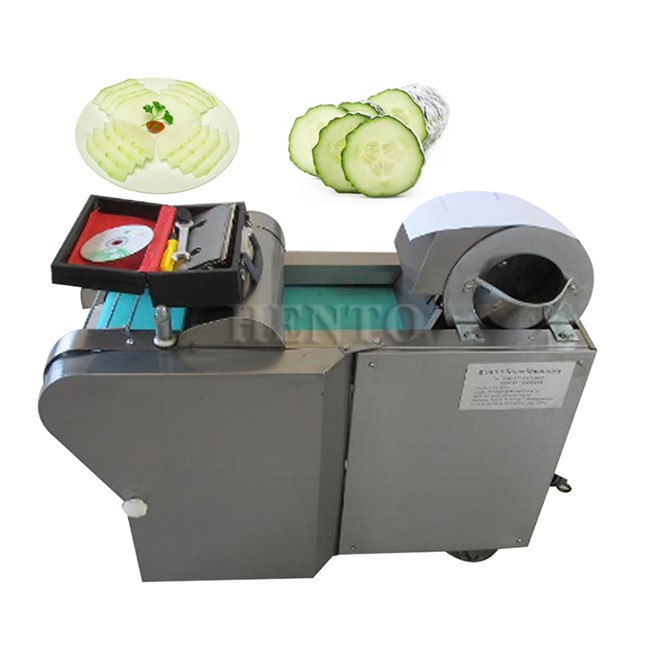

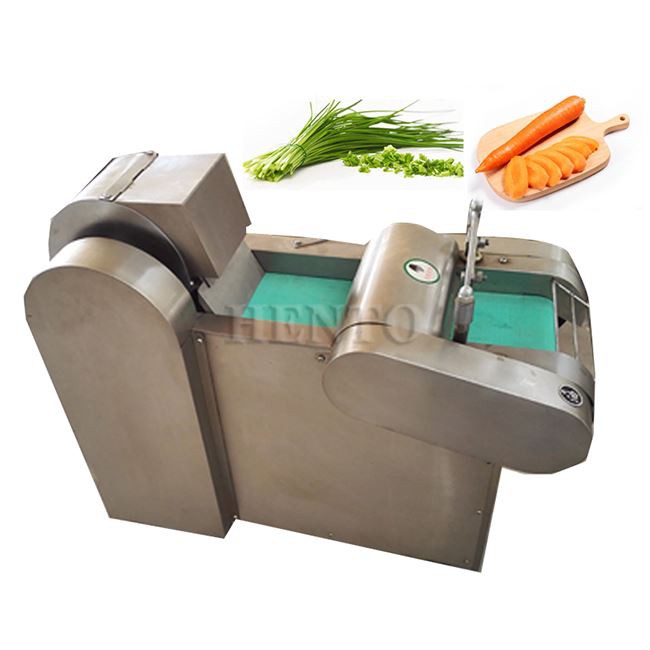

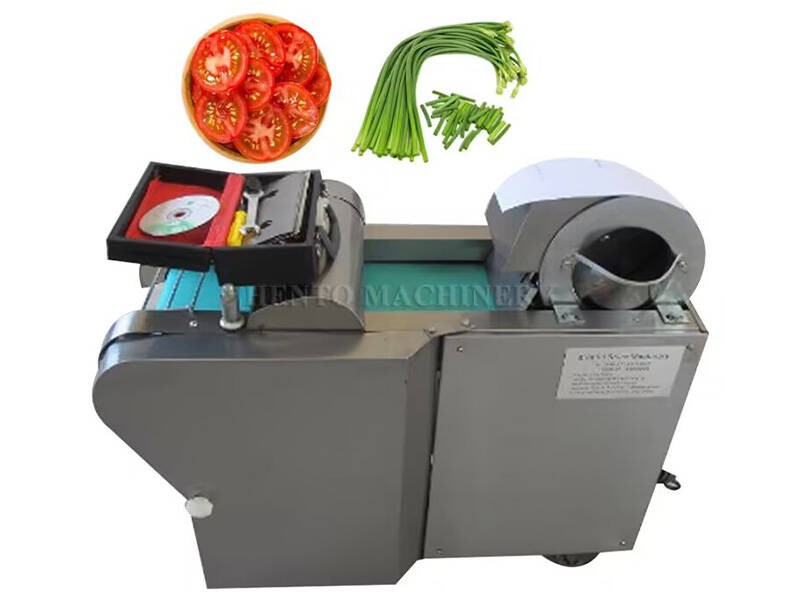

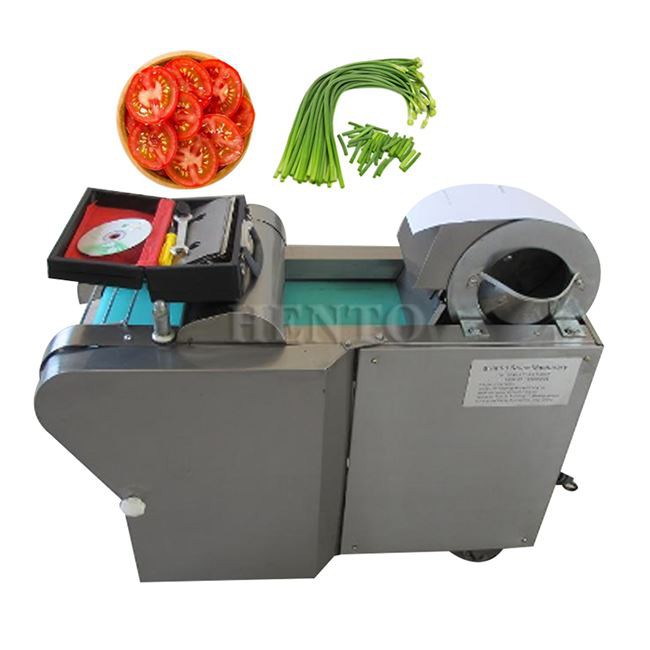

Industrial Vegetable Cutting Machine
2.Industrial Vegetable Cutting Machine is also fit for segmenting the stem vegetables (leek,celery, beanstalk,etc.) and shredding various leafy vegetables (kelp,cabbage,etc).
Product Introduction
This YQC Industrial Vegetable Cutting Machine is a compound and multifunctional cutter which simulates the principle of hand cutting and adopts the advanced technique of "infinitely variable speeds" and "centrifugal slicing structure"..
Industrial Vegetable Cutting Machine is widely used for cut various root vegetables, stem vegetables and leafy vegetables.
It is also an ideal equipment for vegetable processing industry.
Industrial Vegetable Cutting Machine is the principle of simulation hand-cut vegetables
It uses two-level traffic to adapt to 1-25mm shredded. The "centrifugal slicing mechanism" completes various hard dishes slices and automatically transports to the light knife to shred or cut into pieces. It is widely used in the processing of various roots, stems, leafy vegetables and kelp, which can be cut into production, block, silk, diced, diamond, curved various patterns
Main structure and working principle of Industrial Vegetable Cutting Machine
The main rack. The conveyor belt. Pressure belt. Slip mechanism. The speed adjustment box or tower wheel speed regulating mechanism.
The centrifugal slicing mechanism is used for slices of melon and potato hard vegetables. After the slices, it can be automatically adjusted within a certain range. The vertical knife can be processed with leaf soft dishes or cut slices into different specifications, Ding, diamond -shaped, etc. The length of the various shapes of the dishes is passed. Because the vertical knife simulates the principle of hand -cut vegetables, the processing surface is smooth and smooth, and the forming rules are well organized by the cut vegetables and kept fresh.
Adjust the length of the dishes:
Observe whether the length value displayed on the control panel is consistent with the requirements of the requirements. Press the growth button when the length is increased, and the reduction button is reduced when the length is reduced.Adjustment of other vegetable cutting machine: rotate the adjustable bias wheel, release the connecting rod fastener screw, cut the fiber to move the fulcrum, from the outside to the inside; when cutting the thick silk, you can move the fulcrum, from the inside to the outside. Screw.
Slip thickness adjustment
Professional quality inspectors will conduct a quality inspection on each batch of products. Authoritative test reports are also available.
comparison of product parameters
|
Model |
HT-YQC660 |
HT-YQC1000 |
|
Capacity |
130-660kg/h |
200-1000kg/h |
|
Slices thickness |
1-10mm |
1-15mm |
|
Segment size |
1-23mm |
1-30mm |
|
Motor power |
0.75kw 220/110/415V |
1.5kw 110/220/380/415V |
|
External Size |
880*430*780mm |
1300*610*1060mm |
|
Machine weight |
120kg |
220kg |
|
Slicing speed of upright knife |
151/281/531per/min |
151/281per/min |
|
Rotate speed of driving plate |
445r/min |
445r/min |
FAQ
Q: What is Foreign Trade-Express?
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: What about the package?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
Q: What about Pre-sale service:
