Avocado Oil Processing Line

Avocado oil has become increasingly popular as a culinary and cosmetic oil in recent years due to its numerous health benefits. As a result, there is a growing demand for high-quality avocado oil. The avocado oil press line is a machine used to extract avocado oil from the fruit.
Send Inquiry
Product Introduction

Avocado oil has become increasingly popular as a culinary and cosmetic oil in recent years due to its numerous health benefits. As a result, there is a growing demand for high-quality avocado oil. The Avocado Oil Processing Line is a machine used to extract avocado oil from the fruit.



Application of Avocado Oil Processing Line



The Avocado Oil Processing Line can be used by individuals, small businesses, or large-scale processing plants. Small businesses can use the machine to produce high-quality avocado oil for commercial purposes, while large-scale processing facilities can produce large quantities of oil for export.



The machine is also suitable for processing other oil-bearing crops such as sunflower seeds, peanuts, and soybeans. It can also be used to produce oil from other fruits such as olives and corn.



Advantages of Avocado Oil Processing Line



1. High oil yield: The machine has a high oil extraction rate, which means that a higher percentage of oil is extracted from the avocado fruit.

2. Good quality oil: The oil produced by the Avocado Oil Processing Line is of high quality and has a rich flavor and aroma.

3. Durable: The machine is made of durable materials, which makes it a good investment for small businesses or large-scale processing facilities.

4. Easy to operate: The Avocado Oil Processing Line is easy to operate, and the user manual provided makes it easy to set up and operate.

5. Low maintenance: The machine requires little maintenance, which reduces operational costs for businesses.



Working Principle of Avocado Oil Processing Line



The Avocado Oil Processing Line is a machine that uses hydraulic pressure to extract oil from the avocado fruit. The machine has a hydraulic chamber that contains a piston. When the hydraulic pump is activated, it pushes the piston, which presses the fruit against the perforated screen. The oil is then forced out of the fruit and collected in a container.



The machine uses a cold-press method to extract oil from the fruit. The temperature of the hydraulic chamber is controlled to ensure that the oil extracted is of high quality and retains its flavor, aroma, and nutrients.



How to Operate Avocado Oil Processing Line



Step 1: Preheat the machine

The machine should be preheated to the desired temperature before starting. The temperature varies depending on the type of fruit being processed.



Step 2: Prepare the fruit

The avocado fruit should be cleaned and cut into small pieces to fit into the hydraulic chamber.



Step 3: Load the chamber

Load the fruit into the chamber and close the lid.



Step 4: Start the hydraulic pump

Turn on the hydraulic pump to activate the piston, which will press the fruit against the perforated screen.



Step 5: Collect the oil

The oil will be forced out of the fruit and collected in a container. The oil should be filtered to remove any impurities.



Step 6: Clean the machine

The machine should be thoroughly cleaned after use to ensure that it is ready for the next use.



Conclusion



The Avocado Oil Processing Line is an essential machine for individuals, small businesses, and large-scale processing facilities looking to produce high-quality avocado oil. The machine has numerous advantages, including high oil yield, good quality oil, durability, ease of operation, and low maintenance costs. By following the operating instructions, it is easy to extract avocado oil using the machine.

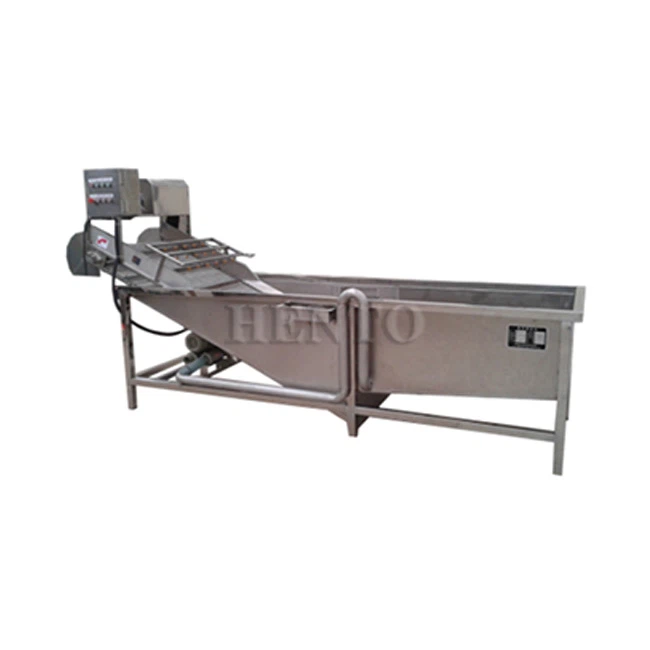

1. Avocado Bubble Washing Machine

Model

HT-QX200

Power

2.5kw

Voltage

220V 60HZ

Capacity

300kg/h

Dimension

2000*1000*1500mm

Weight

210kg



2. Avocado Pitting and Peeling Machine

Type

Name

Capacity

Power

(Kw)

Size

HT-MDJ2-4.0

Double channels denucleation beater

1.8T/h mango

4 T/h tomatoes or orange

7.5

1535*1420*1680

HT-MDJ2-5.0

Double channels denucleation beater

3T/h mango

5 T/h tomatoes or orange

15.0

1935*1650*1900



3. Avocado Oil Pressing Machine

Model

HT-YZ180

HT-YZ230

HT-YZ320

Dimension(mm)

800x650x1100

900x850x1550

1100x1000x1650

Weight

600kg

880 kg

1600 kg

Pressure

1600KN

2200KN

3000KN

Working pressure

60Mpa

60Mpa

60Mpa

Heater bands power

1KW

1KW

2KW

Heater bands temperature

70-100℃

70-100℃

70-100℃

Motor power

1.5KW

1.5KW

2.2KW

Voltage

220V/380V

220V/380V

220V/380V



4. Avocado Oil Concentrator

Model and specification

HT-NSJ200

HT-NSJ300

HT-NSJ500

Model and specification

Extraction tank

Volume(L)

250

375

550

Working pressure in the jacket(Mpa)

0.15

0.15

0.15

Working pressure in the container(Mpa)

≤0.09

Concentration tank

volume(L)

250

375

550

Vacuum degree in the tank(Mpa)

-0.08

Working pressure in the heater(Mpa)

0.09

Working reflux of heat reflux(L/H)

80

120

180

Vacuum pump

Electric voltage(V)

380

380

380



Motor(KW)

2.2

3

3

Water pump

Motor(KW)

0.75

0.75

0.75



Product Pictures



Avocado Cooking Oil Extractor
