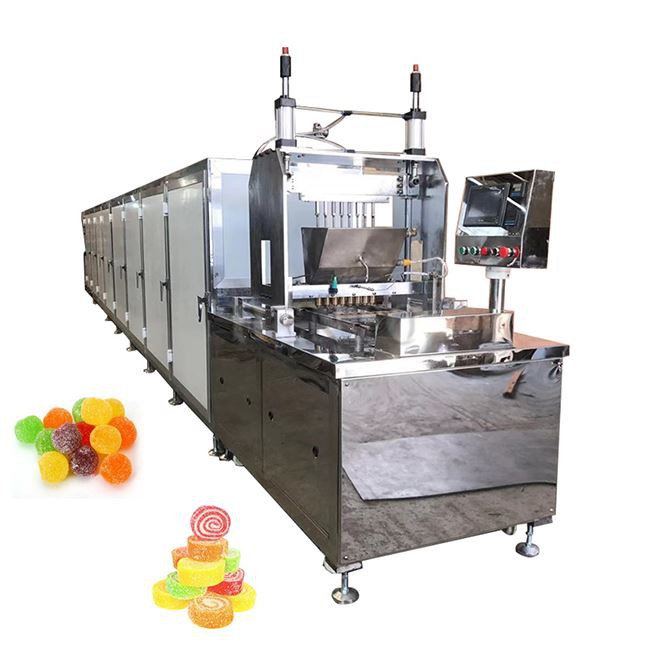

Automatic Jelly Candy Production Line
2. Program to automatically control the vacuum sugar boiling temperature, time, insulation temperature, and pouring speed.
Product features of Automatic Jelly Candy Production Line:
1. Automatic Jelly Candy Production Line Adopting a branded PLC, the performance is more stable, and programming automatically controls the vacuum sugar boiling temperature, time, insulation temperature, and pouring speed;
2. The 10.7-inch large touch screen displays the process flow diagram, working status of each part, setting and displaying parameters such as temperature and pouring speed, making it easier for users to operate and master;
3. The production capacity of the series of products can range from 150 kilograms to 600 kilograms per hour;
4. Variable frequency speed regulation controls the accurate flow rate of sugar solution, ensuring stable quality of sugar paste;
5. The dynamic mixer completes the quantitative filling and mixing of essence, pigment and acid liquid online;
6. The conveyor belt, cooling system, and dual demolding mechanism ensure demolding;
7. Various shapes of candies can be produced according to different molds;
8. The optional chocolate quantitative filling system can produce chocolate sandwich candies;
9. Adding some boiling equipment and molds, this production line can produce hard candy, spherical lollipops, flat lollipops, etc.
Product specifications
|
Name |
Specifications of Automatic Jelly Candy Production Line |
|

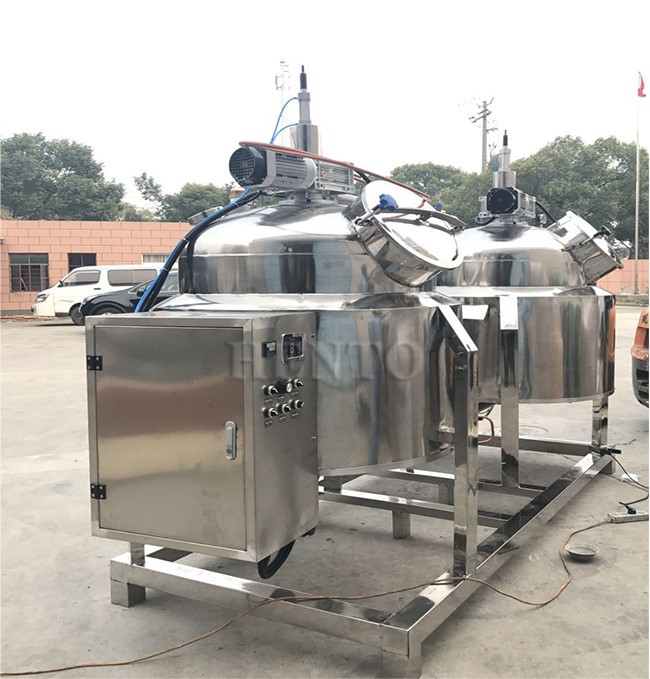

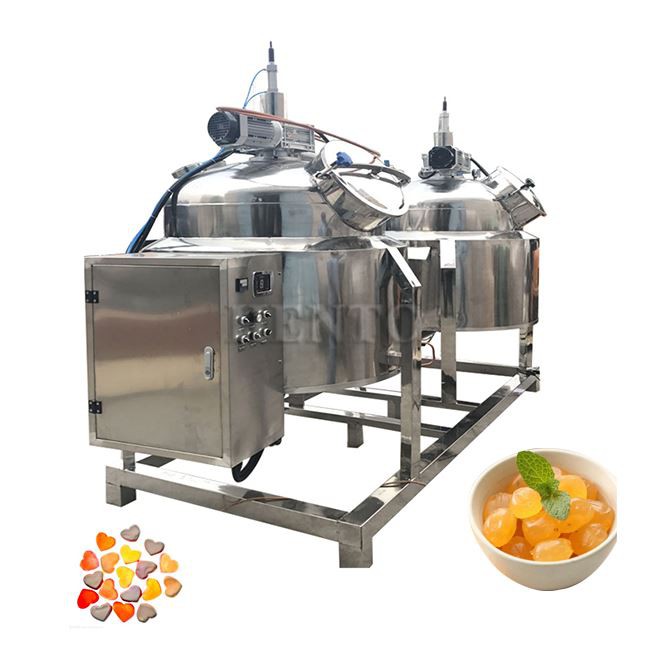

1.Electric heating cooking pot |
Model: HT-ATG200L Capacity: 200L Power: 36kw Stirring power: 0.75kw Voltage: 380v50hz three-phase Material: 304 stainless steel Equipment size: 700*750*1400mm Weight: 260kg Material: stainless steel for the food contact part Uses: used for boiling syrup, generally cooked to the required degree number Remarks: With stirring and scraper, the scraper is made of PTFE plate |
|
2.Syrup delivery rotor pump |
Including: slurry pump body 304, motor, Parameters: Model: HT-SSZ20 Standard diameter: 40 mm Displacement: 0.32L/r Standard flow rate: 3m³/h Power: 2.2kw Voltage: 380v50hz three-phase Dimensions: 980x350x400 Function: For syrup pipeline transportation |
|
3.Cooling Tank |
Include: Sandwich cooling tank, stirrer, reducer and motor, temperature Display instrument, Parameters: Model: LQG200 Capacity: 200L Diameter: 700mm, Height; 1550mm Stirring power: 0.75kw Function: The boiled syrup is cooled to 80 degrees and mixed with gelatin Stir Remarks: With stirring and scraper, the scraper is made of PTFE plate |
|
4.Syrup delivery rotor pump |
Including: slurry pump body 304, motor, parameters: Model: HT-SSZ20 Standard caliber: 40 mm Displacement: 0.32L/r Standard flow: 3m³/h Power: 2.2kw Voltage: 380v50hz Three-phase Dimensions: 980x350x400 Function: For syrup pipeline transportation |
|

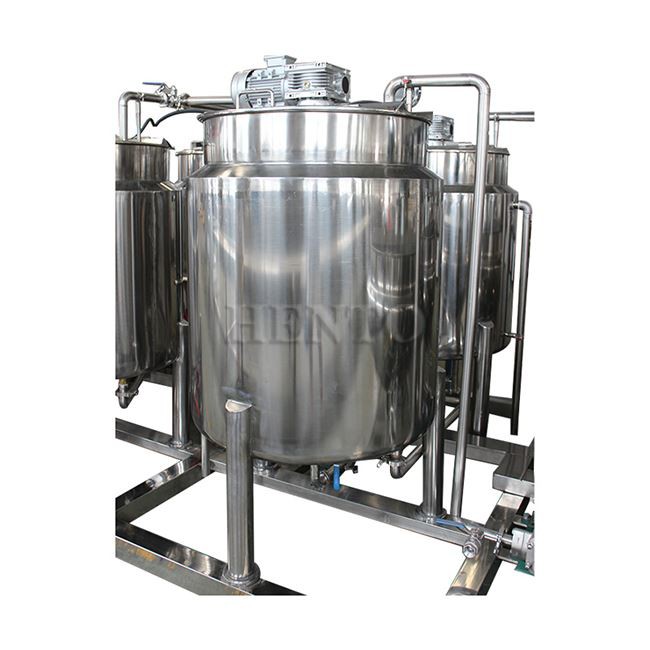

5.Storage tank |
include: Sandwich insulation tank, reducer, motor, agitator, parameters: Model: HT-CCG200 Volume: 200L Stirring power: 1.5kw Heating power: 18kw Voltage: 380v50hz three-phase Dimensions: diameter 700*1600 Material: 304 stainless steel for food contact parts Function: It is used to store the dissolved sugar solution and play a role in keeping the syrup warm. Remarks: With stirring and scraper, the scraper is made of PTFE plate |
|
6.Syrup delivery rotor pump |
Including: slurry pump body 304, motor, parameters: Model: HT-SSZ20 Standard caliber: 40 mm Displacement: 0.32L/r Standard flow: 3m³/h Power: 2.2kw Voltage: 380v50hz Three-phase Dimensions: 980x350x400 Function: For syrup pipeline transportation |
|

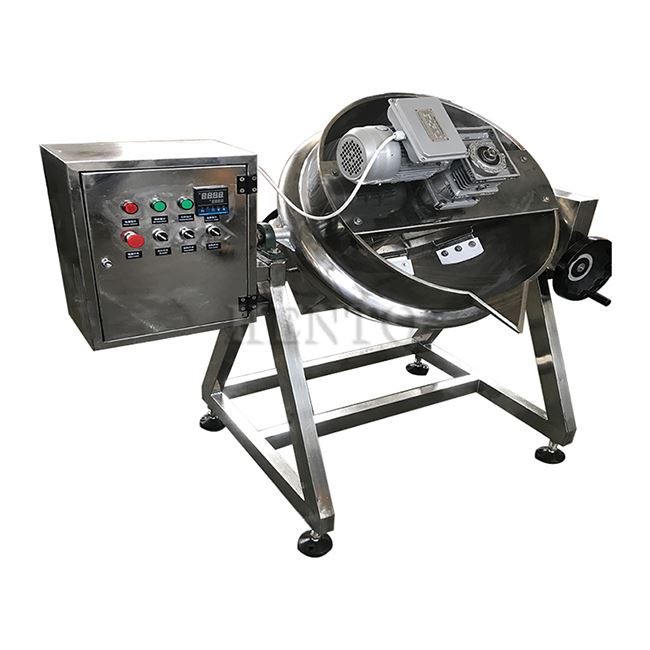

7.Tilting colloid pot (Special for dissolving gelatin) |
Including: tilting electric heating glue pot, stirrer, temperature table. parameter: Model: HT-KQX100 Capacity: 100L Diameter: 700mm Height; 1350mm Stirring motor power: 0.75kw Electric heating power: 24kw Function: For gelatin Remarks: With stirring and scraper, the scraper is made of PTFE plate |
|

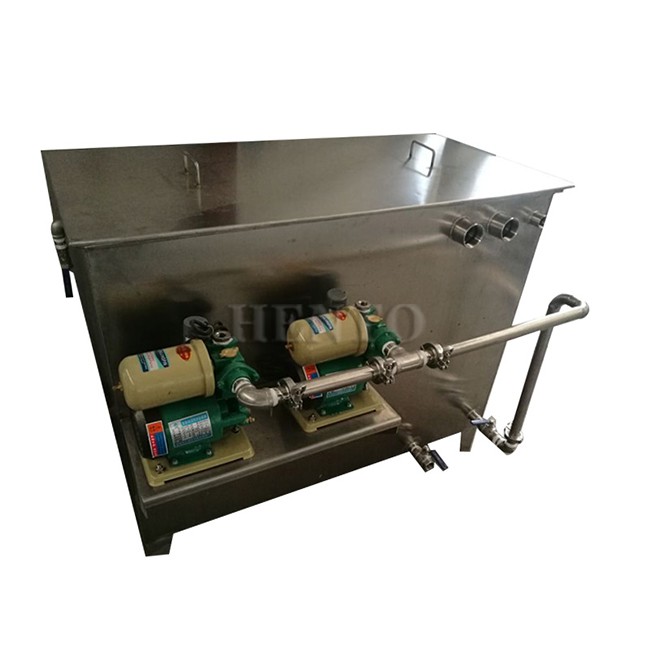

Piping and heater (steam)
|
Parameter HT-GD10B Material; food contact part 304 stainless steel power: 12kw Evaporation capacity: 16kg/h steam pressure: 0.2mpa Voltage: 380 V 50Hz Three-phase size: 600*500*1000 Weight: 180kg Purpose: heat preservation and transportation of the entire pipeline Material: 304 stainless steel is used for the food contact part |
|

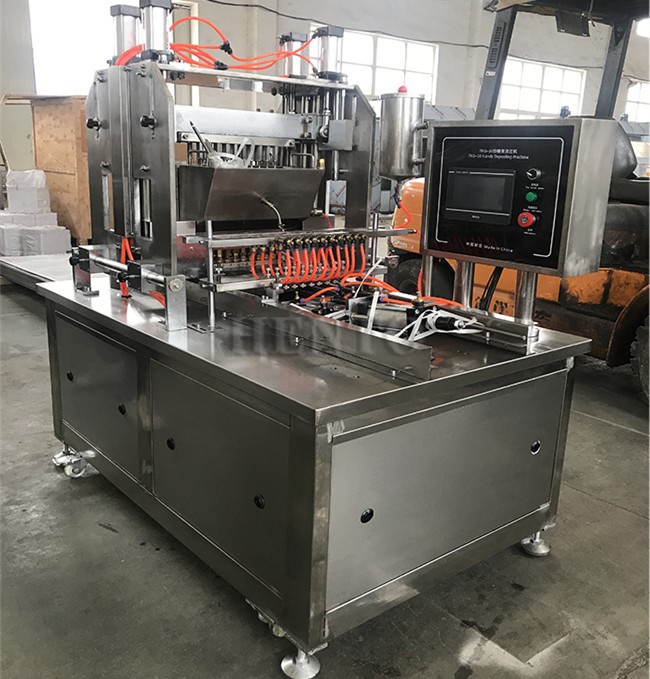

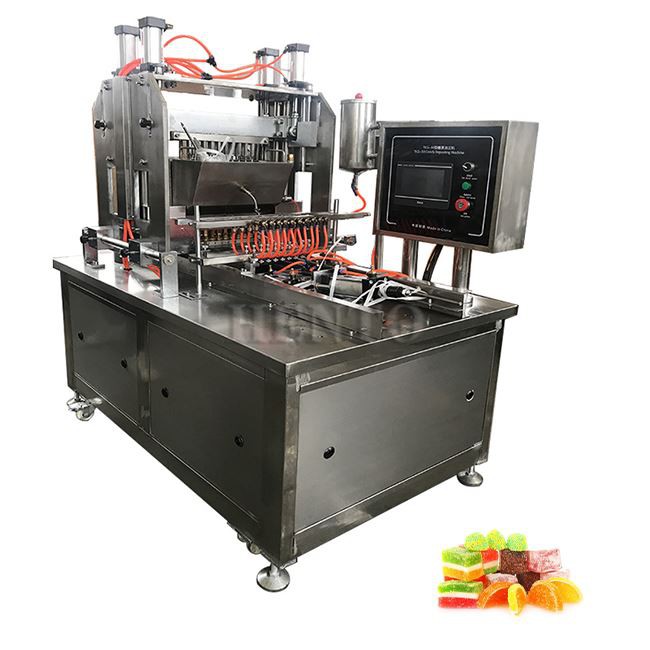

9.150 Servo Pouring Machine |
include: 1 set of single-row servo control pouring machine, PLC control system, display screen 1 set of 20-hole double pouring hopper, Sandwich distribution board 1 set 1 set of two-color distribution board, 3 sets of servo controller for massecuite tailing and beating device parameters: Model: HT-JZJ150 Main drive motor: 3kw, total power of servo motor: 4.5kw Dimensions: 1500*1000*1800 Weight: 1800kg Material: The surface and food contact parts are made of stainless steel. Uses: continuous quantitative pouring, mold conveying. |
|
10.150 cooling tunnel |
include: 1 set of freezer, 1 chiller, 1 set of cooling conveyor, 1 tank chain stripping machine. parameter; Model: HT-LQS150 1 set of 8 HP refrigeration unit, power: 6kw 1 set of cooling conveyor belt, Power: 0.75 kw, Voltage: 380v50hz Three-phase output: 80-150kg Cooling dimensions: 8000*1000*2580 Stripping machine dimensions 1800*1000*1200 Material: The frame is made of stainless steel, the freezer door is made of aluminum alloy plate, and the middle insulation layer. Function: The product is cooled after pouring and forming, conveying and automatic demoulding are completed |
|
Soft candy mould
|
parameter: Aluminum alloy pressing, Teflon appearance. Dimensions: 320*75mm Weight: 1kg/piece Function: Make a model of the shape of a soft candy |
|
12.Pneumatic fuel injector |
Including: Pneumatic spraying machine, template surface spraying, electromagnetic reversing air valve, PLC program control. Injector width: 300mm Maximum output pressure: 0.3mpa Compressed air consumption: 0.1m³/min Nozzle diameter: 3mm Function: The surface of the soft candy mold is coated with oil to facilitate the mold release of the soft candy. |
|
13.PLC display control box |
parameter Size: 800*450*1750mm Material: Stainless steel Weight: 220kg Voltage: 380v50hz three-phase Function: Control the candy pouring size, speed, cooling temperature, total power supply panel |
Product Pictures
