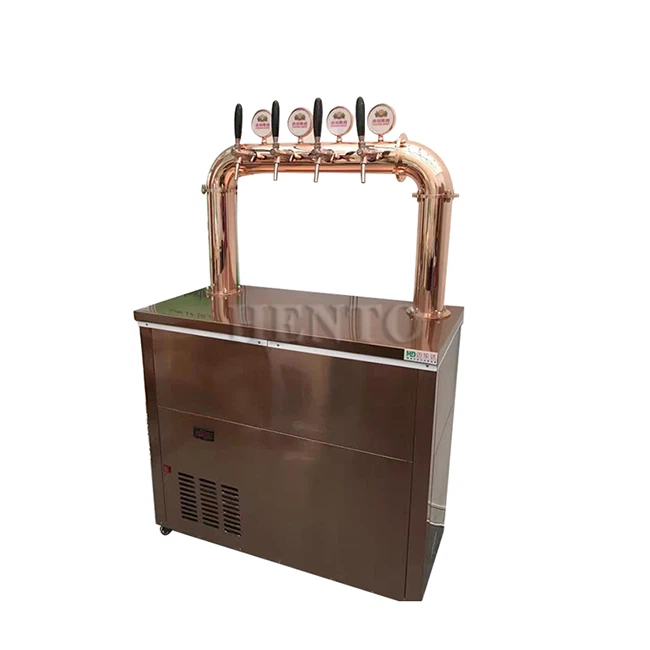

Beer Chiller Dispenser
2.Water cooled type refers to the circulation of draft beer through a wine tube in a beer machine filled with water. The draft beer will decrease with the decrease of water temperature, thereby achieving a refrigeration effect;
Refrigeration principle of Beer Chiller Dispenser
The refrigerant inside the compressor passes through a pipeline (which is a compressed gas with a high temperature) under pressure to cool the condenser tube. Then, the drying filter is filtered and dried, and the pure gas is pressurized by a small capillary tube, which instantly releases cold air in the refrigeration tube. The circuit pipe recovers the gas into the compressor for further circulation.
Cooling principle of Beer Chiller Dispenser
Beer (beverage) enters the refrigeration pipe from one end of the pipe connected to the barrel, flows inside the swirling pipe, rapidly cools, and then flows out from the pipe connected to the column to achieve the cooling effect.
The pipelines between equipment are connected using sanitary grade quick connect connections, which are convenient for disassembly, assembly, movement, and transformation
More Information of Beer Chiller Dispenser
The beer machines produced by our factory are easy to maintain, easy to operate, advanced in design, and well manufactured. All plates, pipes, fittings, valves, etc. that come into contact with wort and beer meet food grade standards. The parts that come into contact with beer are made of stainless steel 304, and rubber parts such as O-rings are certified by NSF. The lubricating oil is imported from Germany using Krupp lubricating oil.
01
High Quality
The draft beer machine uses high-quality stainless steel water tank and pipeline system to ensure pure water quality, clear and easy maintenance.
02
Built-in Safety Protection
The beer machine is equipped with built-in safety protection, low noise, power saving, and durability.
03
Finely Processed
The Beer Chiller Dispenser is finely processed, and the welding (connection) accuracy meets hygiene standards; The exterior is polished with a mirror finish
04
Comprehensive CIP Cleaning
Equipped with a comprehensive CIP cleaning and sterilization system, equipment cleaning is convenient and thorough.
comparison of product parameters
| Model | HT-PJJ150 |
| Voltage | 220V/50HZ |
| Power | 300w/each tank |
| output capacity | 350L/hour |
| Tank capacity | 260L |
| Temperature of beer | 3-7℃ |
| Dimension | 1000*50*90mm |
| Weight | 100KG |
FAQ
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
Q: What about Pre-sale service:
