Through repeated trials and tests on various materials, the machine has good grinding and crushing performance. Its fineness index is beyond the reach of other domestic micro-processing equipment.
The machine has a wide range of applications, and is suitable for the processing of emblem particles in the food industry, paints, plastics, color pastes, various coatings, dyes and other difficult-to-process materials, especially for peanut butter, rapeseed, sunflower seeds, mustard, cocoa beans, almonds.
Processing of materials with higher oil content. Its characteristics are high output, fine particle size, and small temperature rise. Since its launch, it has been welcomed by more and more users.

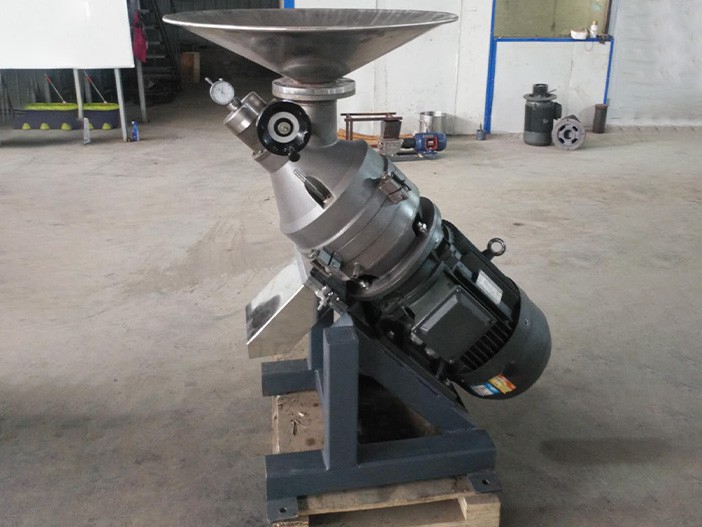

Working principle of Superfine Peanut Butter Machine
Through the relative movement of the special-shaped moving and fixed grinding discs under high-speed rotation, the machined material is subjected to powerful eddy currents, shearing, and grinding through the variable grinding disc gap under the action of the feeding propeller. To achieve the purpose of material refinement.
Structural features
The machine has a wide range of uses, with compact structure, beautiful appearance, convenient operation, maintenance and cleaning.
Structural features of Superfine Peanut Butter Machine
The dynamic and static grinding discs are made of special abrasive particles and adhesives, and have undergone rigorous performance tests.
In order to prevent the corrosive substances in the materials from corroding the main parts of the equipment and the need for food hygiene, high-quality stainless steel is selected for the main parts in the manufacturing.
They have high strength, corrosion resistance, and can be replaced with different types of grinding discs according to the processed materials, which can fully meet the needs of users.
The machine is equipped with a fine adjustment system for the grinding disc clearance. The working clearance and wear value of the grinding disc are intuitively reflected, and the operation is convenient and reliable.
The feeding system of the machine and the main body of the grinding head adopt interlocking control to ensure work safety.
The machine is equipped with a circulating water cooling system, which can effectively control the temperature of the material.
product parameters
|
Model |
HT-CWM250 |
|
Processing fineness |
2~40um |
|
Capacity |
300-500kg/h |
|
Motor Power |
22kw |
|
Motor speed |
2940r.p.m |
|
Size |
159*56*162mm |
|
Weight |
580kg |
FAQ
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: What about the package?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
Q: What about Pre-sale service:
Q: What about After-sales service?
