This model is divided into hand cranked, electric, and rechargeable models. The electric and charging models also have the function of hand cranking, and the stretching effect is the same.
The three models have the same external dimensions. Applicable bamboo skewers: diameter 4-5mm, length 30-40cm

Send Inquiry

Product Introduction

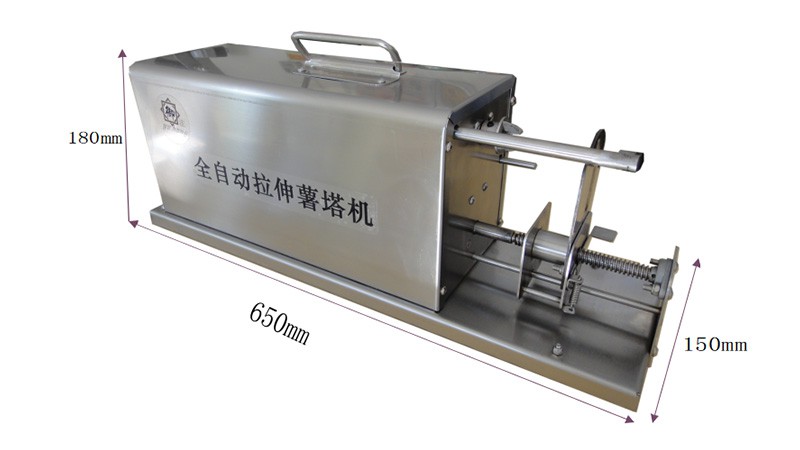

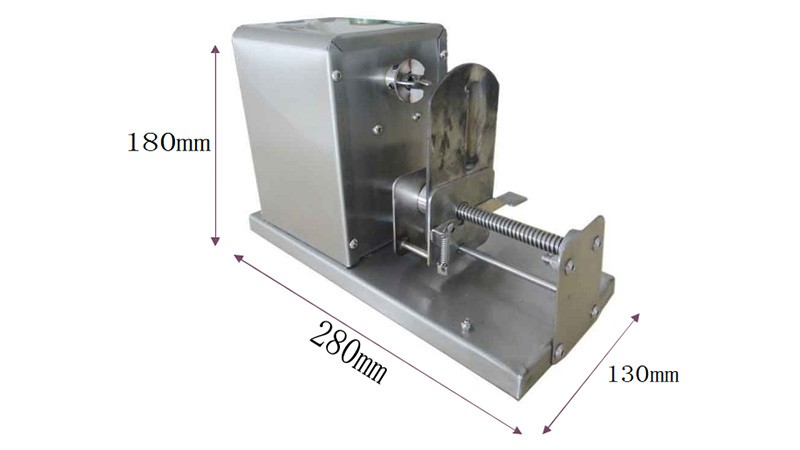

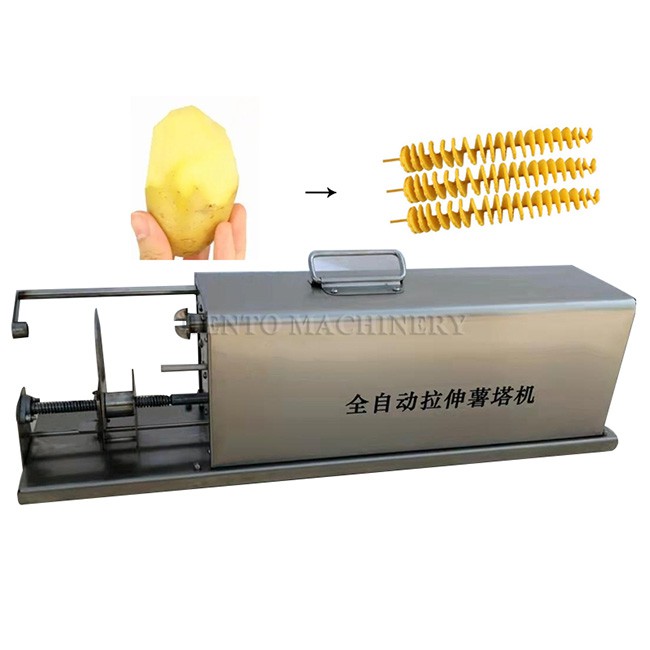

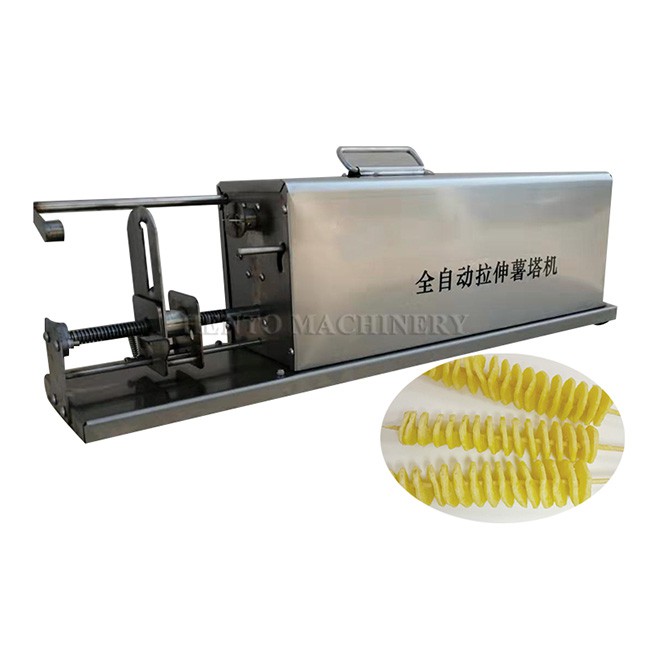

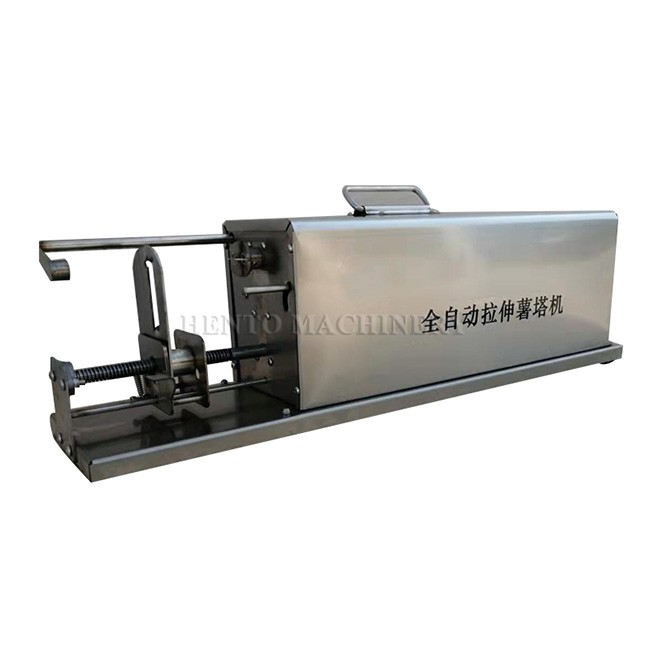

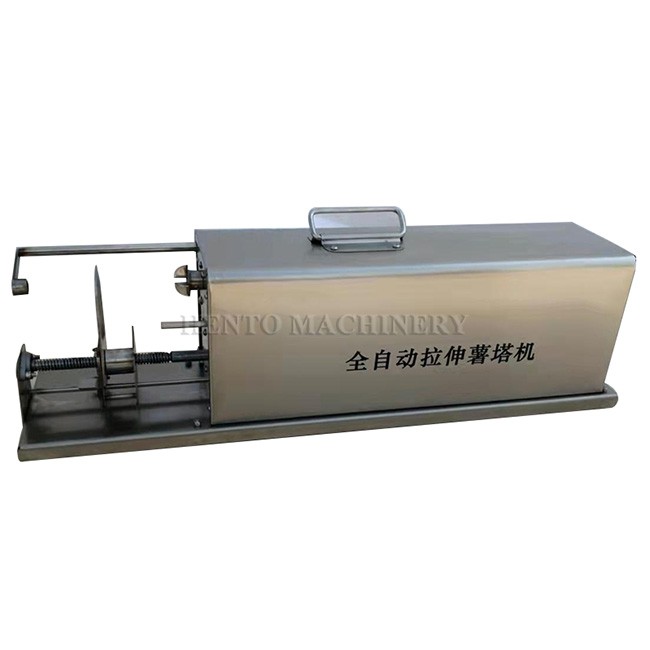

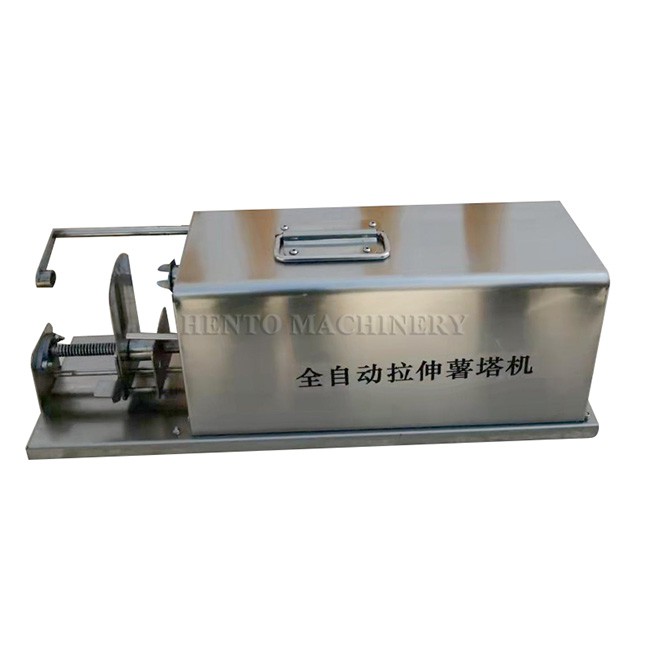

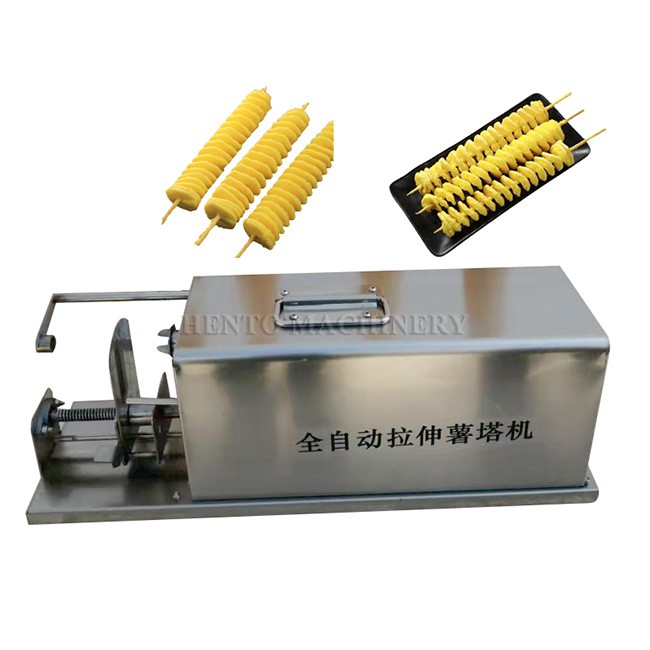

Spiral Potato Cutter

This model is divided into hand cranked, electric, and rechargeable models.

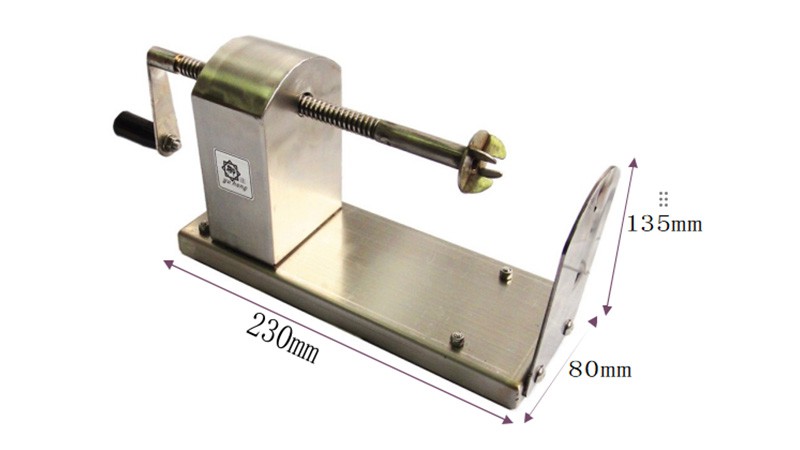

Hand cranked type

Hand cranked fully automatic stretching potato tower machine, made of all stainless steel, does not require electricity, suitable for mobile stalls, can be operated anywhere.

Flashlight all-in-one model

Hand electric fully automatic stretching potato tower, made of stainless steel, can be electric or hand cranked, with the same hand cranking effect as electric, and uniform thickness

Rechargeable flashlight all-in-one

The fully automatic stretching potato tower machine with a rechargeable flashlight is equipped with a 9.8HA polymer battery pack on the basis of the electric potato tower machine, which has a large capacity and long service life. It can work continuously for more than 10 hours on a single charge, and can be manually operated when the battery is low.

product parameters

Model	HT-STJ40	HT-STJ50	HT-STJ60
Function	Automatically stretch potato chips by hand (manual type), in addition to the uniform thickness, it will also automatically pull the potato chips evenly apart
Braking method	Manual
Rotating speed	120 rpm	120 rpm
Suitable for bamboo sticks	Diameter≦5MM, length≦40CM	Diameter≦5MM, length≦50CM	Diameter≦6MM, length≦60CM
Dimension	530150180	650150180	780150180
Weight	5kg	6kg	7kg

Model	HT-STJ40S	HT-STJ50S	HT-STJ60S
Function	A flashlight is integrated and automatically stretches the potato tower. In addition to electric, it can also be operated by hand. The effect of manual operation is the same as that of electric. The thickness is uniform, and the potato chips will be evenly pulled apart automatically.
Braking method	Manual /Electric
Voltage	AC100-240V/DC24V
Rotating speed	120 rpm	120 rpm
Suitable for bamboo sticks	Diameter≦5MM, length≦40CM	Diameter≦5MM, length≦50CM	Diameter≦6MM, length≦60CM
Dimension	530150180	650150180	780150180
Weight	6kg	7kg	8kg

Model	HT-STJ40C	HT-STJ50C	HT-STJ60C
Function	Fully automatic stretch potato tower machine with rechargeable flashlight, equipped with a 9.8HA polymer battery pack, with large capacity and long service life. It can work continuously for more than 10 hours after a single charge. It can also be operated by hand when the battery is insufficient.
Braking method	Manual /Electric 80W
Voltage	Charging voltage AC110-240v
Rotating speed	120 rpm	120 rpm
Suitable for bamboo sticks	Diameter≦5MM, length≦40CM	Diameter≦5MM, length≦50CM	Diameter≦6MM, length≦60CM
Dimension	530150180	650150180	780150180
Weight	7kg	8kg	9kg

Advantage Of Spiral Potato Cutter

Multiple usage scenarios: suitable for public places such as barbecues, schools, restaurants, Western restaurants, factories, gardens, etc.

Usage scenarios

The potato tower crane adopts an efficient power system and production process, which can minimize energy consumption to the greatest extent possible

Energy conservation

The structure of the potato tower crane is simple and easy to maintain and upkeep on a daily basis. Adopting modular design makes it very convenient to replace parts, greatly reducing the cost and difficulty of equipment maintenance and repair.

Easy to maintain

Compared to traditional processing equipment, the potato tower machine has a smaller external size and can complete work within a limited production site. Meanwhile, it is small in size, lightweight, and easy to move

Save space

How To Operate The Machine

01.Step 1

Wash the potatoes thoroughly and peel them, then use a hole extractor to remove the center hole and insert the bamboo skewers. Use a hole extractor with a diameter of 5mm, and a bamboo stick with a diameter of 4.5mm.

02.Step 2

Turn the stretching switch upwards and install the potato with the bamboo skewer on the fixed claw head (the potato needs to be inserted into the claw head, do not face the bamboo skewer tip inside the machine). Move the knife holder to tightly press the blade against the potato (press the spring lock on the knife holder to move parallel).

03.Step 3

Hook the support rod onto the end of the bamboo stick, pull the switch downwards, turn on the power switch, and turn the handle in the direction of the arrow when shaking it by hand. Turn on the power switch to ensure that the first potato has been cut before putting down the stretching switch.

04.Step 4

Turn off the power and remove the potato tower when the potato is fully peeled.

FAQ

Q: 1.What's the MOQ:

A: 1 set

Q: 2. Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: 3.What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: 4.How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: 5.Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: 6.How long is the warranty of the machine?

A: Two years warranty.

Q: 7.How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: 8.What about the package?

A: Usually we will use the standard export wooden case.

Q: 9.Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: 10.Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: 11.What about Pre-sale service:

A: Support voltage changing service as your demand;
Support logo customizing ;
Provide good solution for your project ;
Testing and debugging before delivery ;

Q: 12.What about After-sales service?

A: Video technical support;
Online support ;
Field installation, commissioning and training;
