Sausage Smoking Machine
Product Description
Sausage Smoking Machine not only produces a fruity aroma in the product, and can also smoke the product into a light to dark golden color. The split type sugar stove smoking system can smoke traditional Chinese products, producing a smoky flavor, and the color can be controlled, with darker ones becoming a jujube red color. This device can process foods such as pork head, dried tofu, ham, sausages, sausages, chickens, ducks, geese, fish, oysters, etc. that require steaming, drying, smoking, and coloring.
The simultaneous use of two smoking systems can produce smoky aroma and color. The wooden particle smoke emitting system on the door adopts an internal circulation smoke emitting process, which emits smoke in a low oxygen state, shortens the length of the flue, reduces energy consumption, and reduces equipment footprint. The smoking equipment mainly consists of three parts: furnace body, control box, and smoke chamber. The furnace body is a place for smoking, coloring, steaming, and drying. The upper part is equipped with a fan and copper coil tube. The function of the fan is to spread the hot air and smoke sucked up by the motor, achieving a uniform effect.
Characteristics of Sausage Smoking Machine
1
The sausage smoking machine adopts external steam heating or electric heating methods.
2
Heating system: steam heating, optimized heat exchanger structure, and all stainless steel steam control valve.
3
Box system: Standard thickness insulation wall panel, reliable heat resistance. Modular structure, food grade sealing strip.
4
Cleaning system: Efficient automatic cleaning system, the cleaning program can be set in the control system.
comparison of product parameters
|
Model |
HT-YX30 |
HT-YX50 |
HT-YX100 |
|
Capacity |
30kg/batch |
50kg/batch |
100kg/batch |
|
Heating Type |
Electricity |
Electricity |
Electricity |
|
Heating power |
6.62kw |
7.62kw |
11.62kw |
|
Workspace |
810*740 *920mm |
910*840 *1080mm |
1050*1200 *1200mm |
|
Dimension |
1000*1650 *1600mm |
1100*1750 *1760mm |
1200*2030 *1900 |
|
Model |
HT-YX150 |
HT-YX200 |
HT-YX250 |
|
Capacity |
150kg/batch |
200kg/batch |
250kg/batch |
|
Heating Type |
Electricity |
Electricity |
Electricity |
|
Heating power |
11.62kw |
14.87kw |
14.87 |
|
Workspace |
1050*1200*1500 |
1050*1350*1800 |
1050*1350*2000 |
|
Dimension |
1200*2030*2200 |
1370*2310*2500 |
1370*2310*2500 |

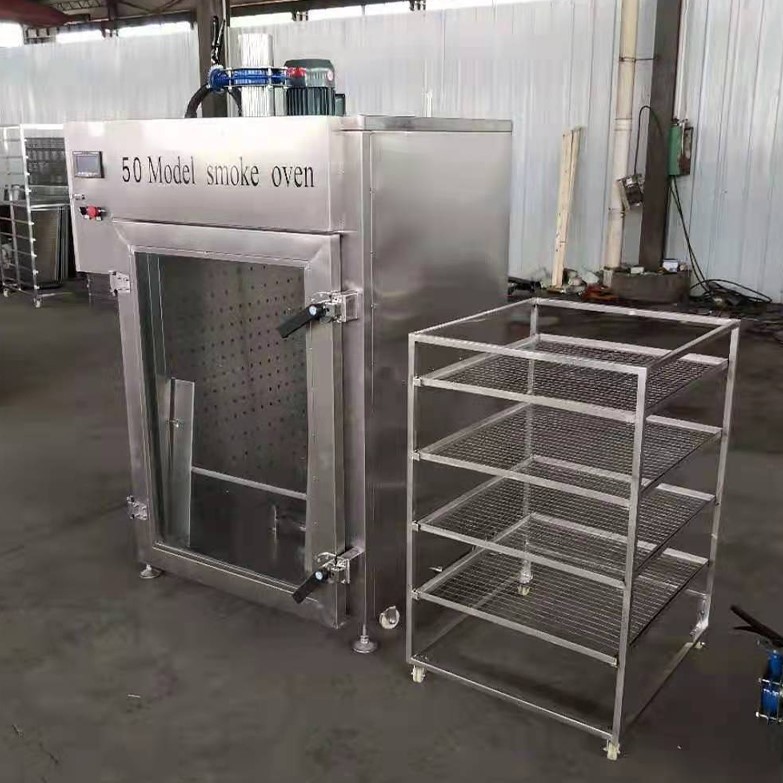

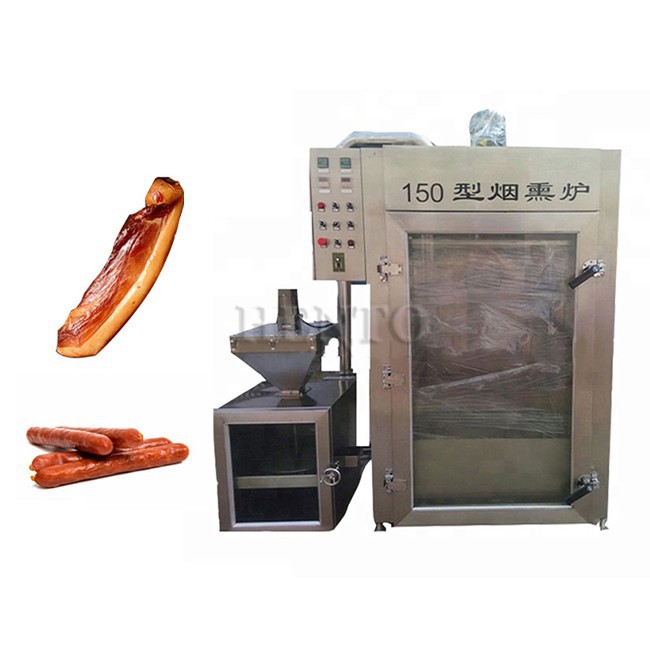

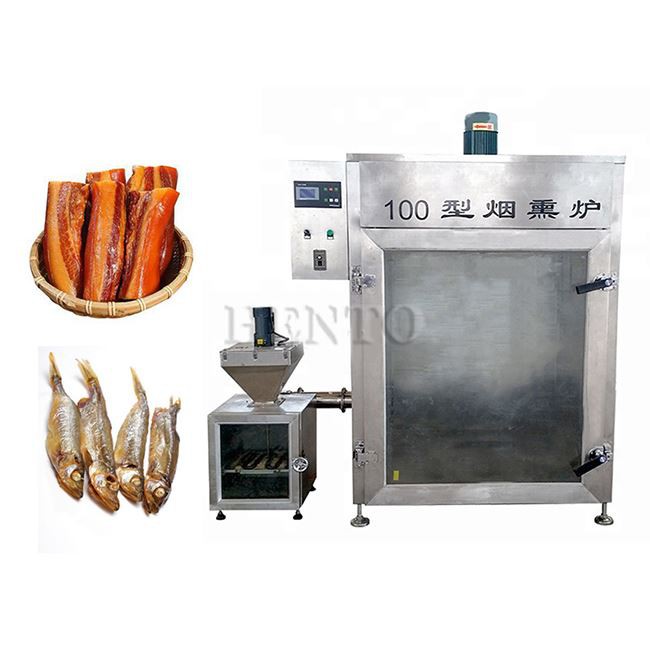

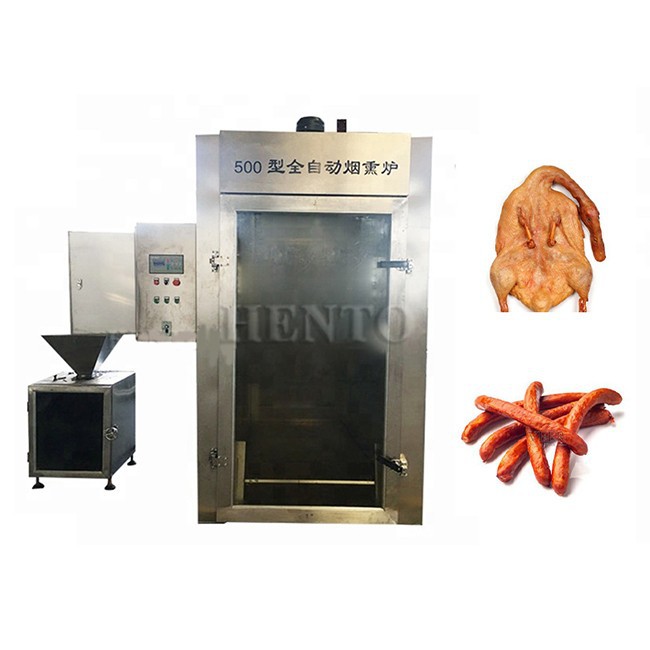

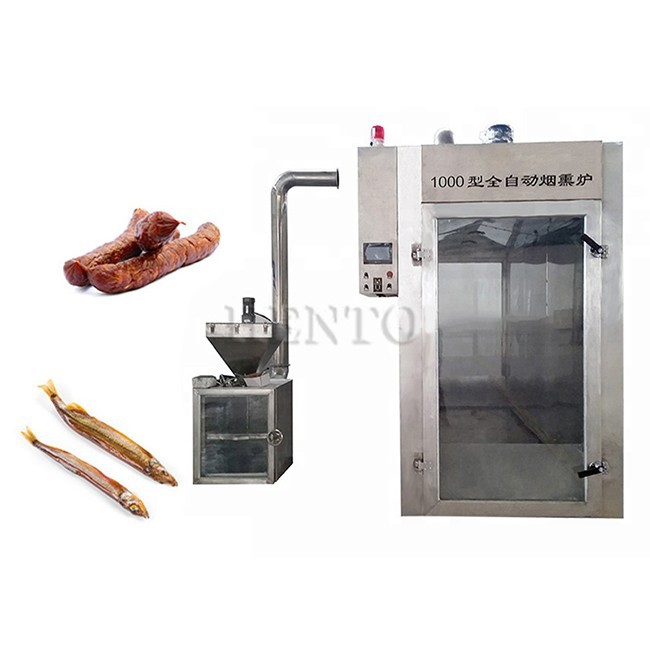

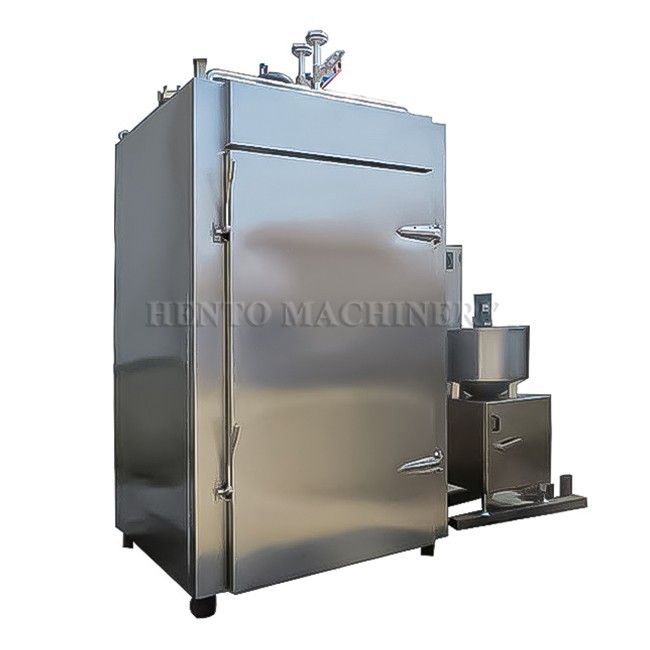

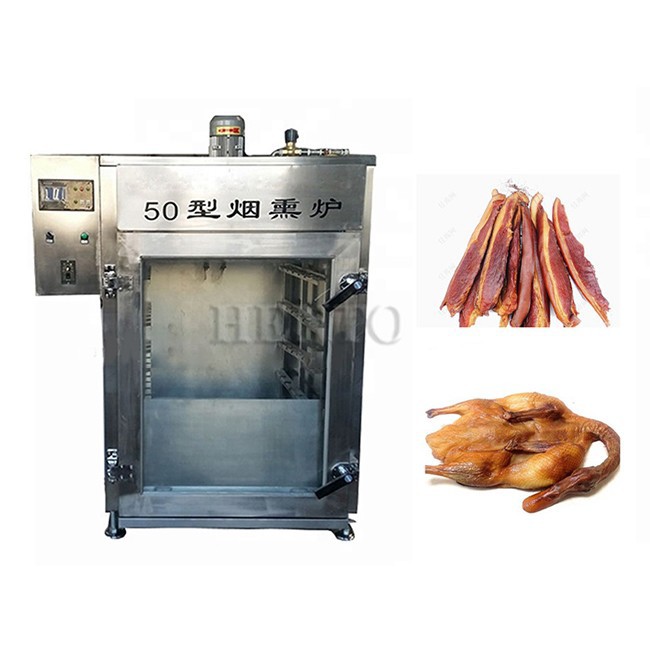

Product Pictures


FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
Q: What's the payment term?
Q: 4.How to ship?
Q: 5.Which port do you send the goods from?
Q: 6.How long is the warranty of the machine?
Q: 7.How to buy this machine?
Q: 8.What about the package?
Q: 9.Do you need a supplier to provide transportation?
Q: 10.Are there any requirements for power supply?
Q: 11.What about Pre-sale service?
Q: 12.What about After-sales service?
