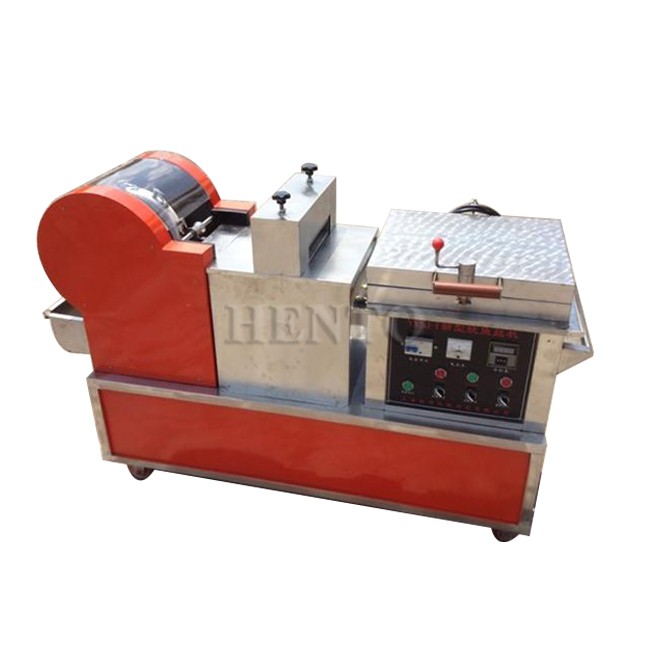

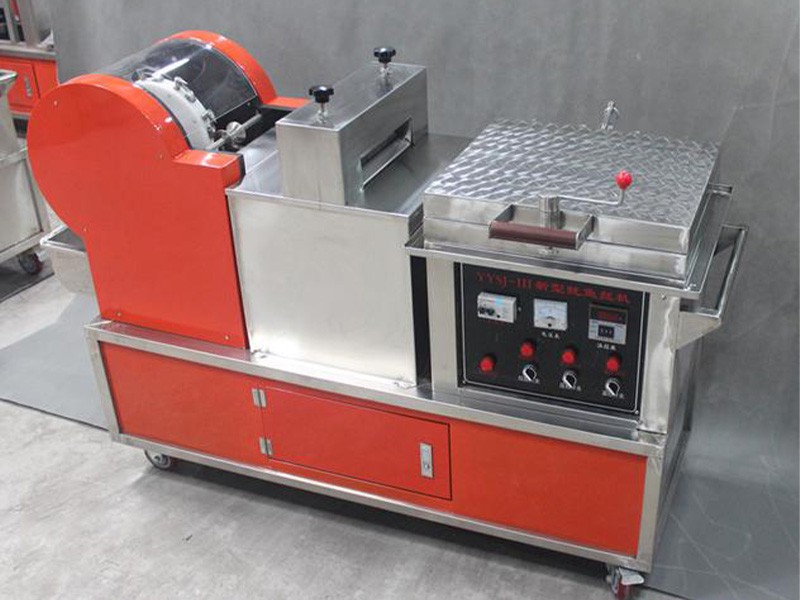

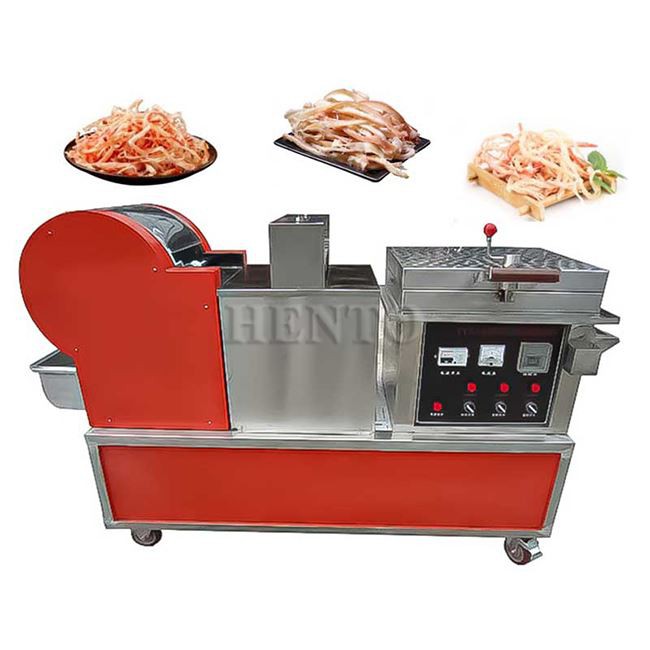

Grilled Squid Machine
1, Baking, crimping, drawing integration.
2, The whole process of operation a work plane. Bake and sell at a glance.
3, Automatic temperature control, flattening, drawing, each process can be adjusted.
dshow machinery co.,ltd
1.Baking, flattening and drawing function integration;
2.Automatic temperature control, temperature can be adjuste;
3.Flattening and drawing separately USES the import high quality gear reduction motor, durable.
4.And running noiseless and wire drawing effect is good
5.A working plane, the whole process of operation.Freshly baked now sell at a glance.
6.Suitable for the primary and middle school campus,station,bazaar, busy streets, parks, subway stations and supermarkets, such as the densely populated place, is your good assistant in enrichment.
7.Grilled squid silk, squid pie, sweet fish fillet, Man fish,fish, fish and shrimp, etc., can also be roasted dried beef,pork, dried, seaweed, etc.drawing the thickness can be arbitrary adjustment, function more perfect.
How to use the Grilled Squid Machine:
the configuration of the squid plate seasoned directly into the baking tray baking, baking temperature is set at about 125 degrees, baking time of about 3 minutes (the specific time by the thickness of the squid). After baking immediately into the second step of the process, flattening, the next step of drawing into the product, the whole process requires only one worker to operate, the process is simple both to learn and know.
Features：
1. Wire drawing feeding can be adjusted, using one-way feeding device, solved the original sprocket is easy not to feed the problem. The thickness of wire drawing can be adjusted at will.
2. Increased wire drawing knife and improved wire drawing knife. The drawing effect is obvious.
3. Removed the conveyor belt device, the material out of all the use of 304 stainless steel processing, to solve the problem of bacterial residues.
4. The whole machine uses high quality 3-speed motor, the noise is smaller.
5. Drawing part of the use of two-speed motor, to ensure that the drawing head of the knife does not tangle material.
Technical Parameter
|
Model |
HT-YYSJ |
|
Voltage |
220V±10% 50hz |
|
Power |
3.24kw |
|
Roast power |
3kw |
|
Motor power |
0.24kw |
|
Oven temperature |
0-300°C |
|
Rotary speed |
24r/min |
|
Cutting speed |
70r/min |
|
Machine weight |
225kg |
|
Machine size |
1300*600*850mm |
Hot Tags: grilled squid machine, China grilled squid machine manufacturers, suppliers, factory, Small Fish Killing Machine, Bone Paste Grinder Machine, Frozen Meat Flaker Cutting Machine, Sheep Feet Dehairing Machine, Pneumatic Quantitative Sausage Filling Machine, Pig De hairing Equipment
Previous

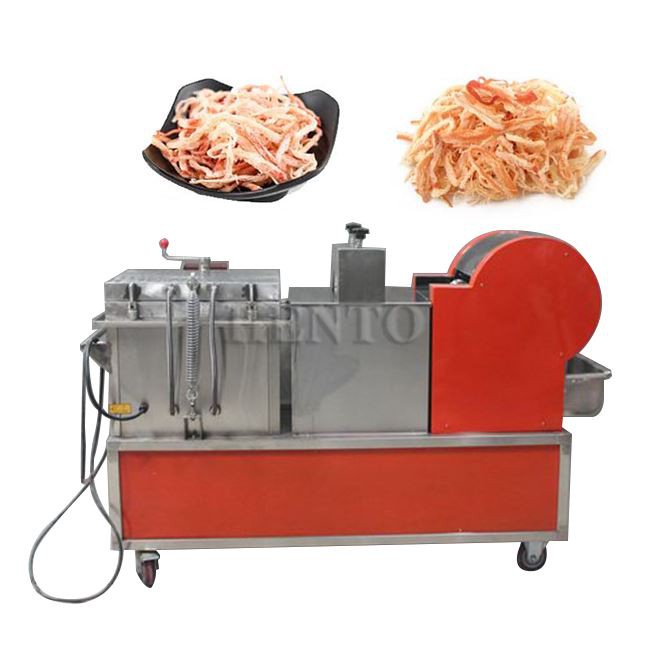

Shredding Machine SquidYou Might Also Like
