Pasteurizer with Cooling Function
video

Pasteurizer with Cooling Function

Pasteurizer with cooling function is a device that can sterilize milk, juice and other liquids, which is beneficial to the health of consumers, and can extend the shelf life or storage period of food.
Send Inquiry
Product Introduction
Product Introduction


This Pasteurizer with cooling function is widely used in liquid milk,juice,egg liquid, Chinese traditional medicine, biological pharmacy, bean products, condiments, such as the material of the original formula to determine screening and update, product taste, color evaluation/emulsifier and stabilizer used, new product research and development and batch pasteurized milk product production. The production-oriented Pasteurizer with cooling function set heating, sterilization, cooling. It is especially useful in preserving the quality of the product. The cooling function helps to reduce the temperature of the liquid quickly, preventing the growth of microorganisms that thrive in higher temperatures.


For example, in the dairy industry, milk pasteurization is an essential process that preserves the freshness of milk and prevents spoilage. Cooling is a crucial part of the pasteurization process for milk, as it helps to maintain the quality of the milk by reducing the temperature quickly. Cooling also prevents the growth of bacteria that can cause spoilage and contamination, making the milk safer for consumption.


Another example is the juice industry, where the juice pasteurizer's cooling function is essential to preserve the quality of the juice. The cooling function rapidly lowers the temperature of the juice after pasteurization, preventing the development of microorganisms that can cause spoilage and deterioration of the quality of the product.


Advantage:



Milk pasteurization is a highly regulated process that ensures the safety and quality of milk. Pasteurized milk has several advantages when compared to raw milk, including:

1. Extended shelf life: Pasteurized milk has a longer shelf life as it eliminates the harmful bacteria that lead to spoilage and contamination.

2. Improved safety: Pasteurization destroys harmful bacteria, viruses, and other microorganisms that can cause foodborne illnesses.

3. Better taste: Pasteurization helps to preserve the natural flavor of the milk, giving it a fresher taste compared to raw milk.

4. Nutritional benefits: Pasteurization does not significantly impact the nutritional value of the milk, making it a safe and healthy choice.


Technical Parameter


Model

HT-LSJ100

HT-LSJ200

HT-LSJ300

Unit name

Copeland

Copeland

Copeland

Unit power

2P

3P

3P

Diameter of the barrel

625mm

630mm

850mm

The height of the milk bucket plus legs

1140mm

1530mm

1600mm

Internal height of milk bucket

605mm

670mm

750mm

Yield

50-100kg/time

100-200kg/time

100-300 kg/time

Overall height

1980mm

1530mm

1600mm

Sterilization temperature

60-90 degrees (adjustable)

60-90 degrees (adjustable)

60-90 degrees (adjustable)

Cooling temperature

Sterilization tank water cooling down to 45℃
The compressor cools down to 2-6℃

Water cooling of the sterilization tank to 45℃
The compressor cools down to 2-6℃

Water cooling of the sterilization tank to 45℃
The compressor cools down to 2-6℃

Heating cycle

30-40 minutes

40-60 minutes

60-90 minutes

Power

380V/13kw

380v 13kw

380V/27kw

Dimensions

1900*800*1580mm

2500*1100*1500mm

2700*1100*1600mm

equipment weight

300kg

About 350kg

500kg

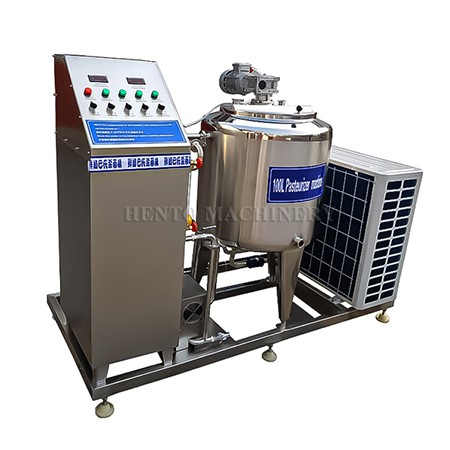

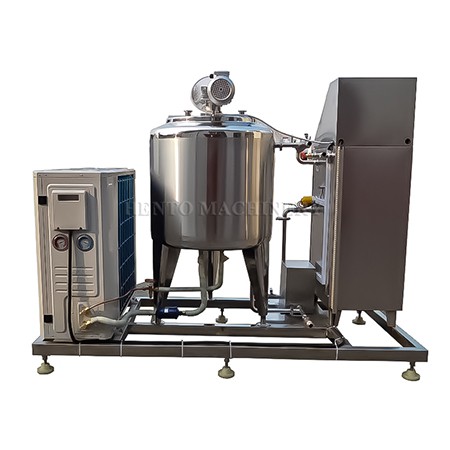

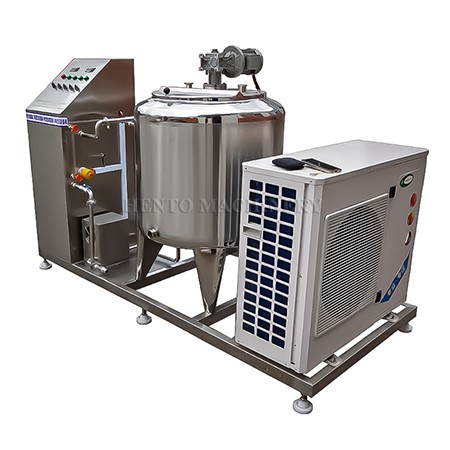

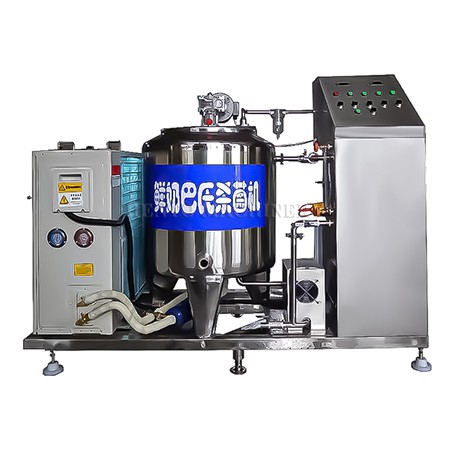

Product Pictures


pasteurizer machine beer
soft ice cream pasteurizer machine
