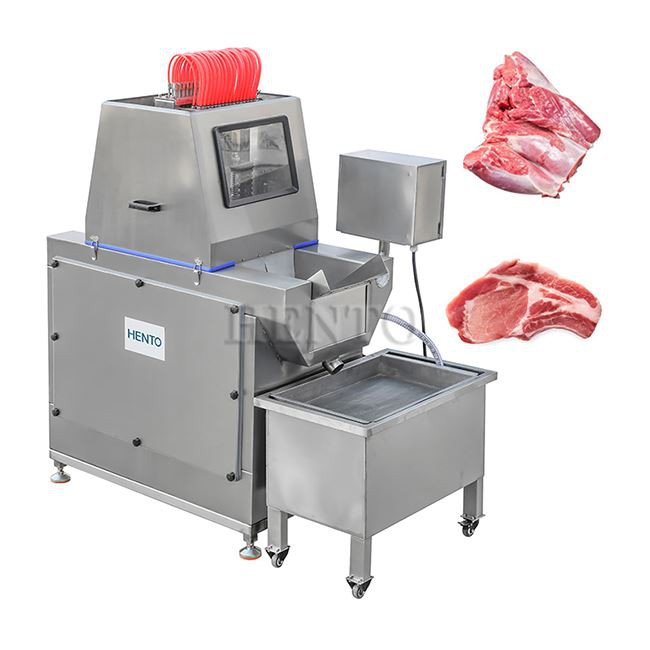

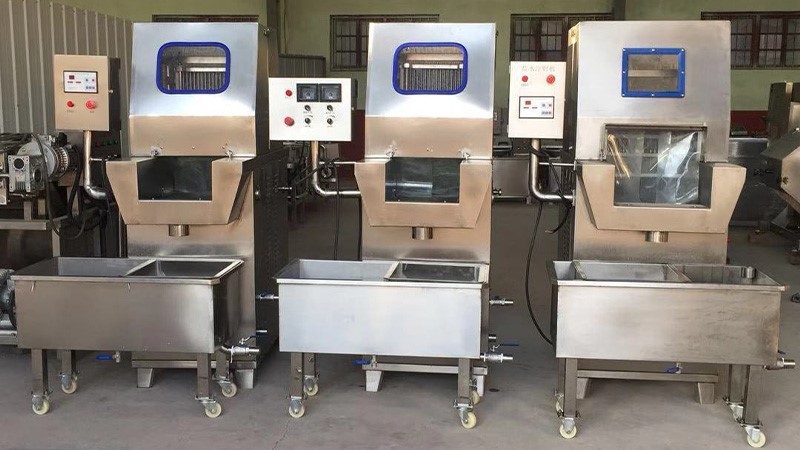

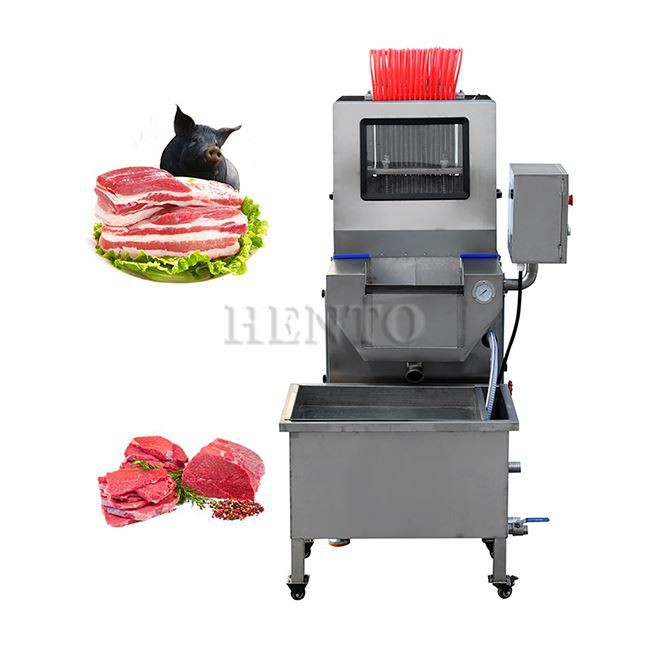

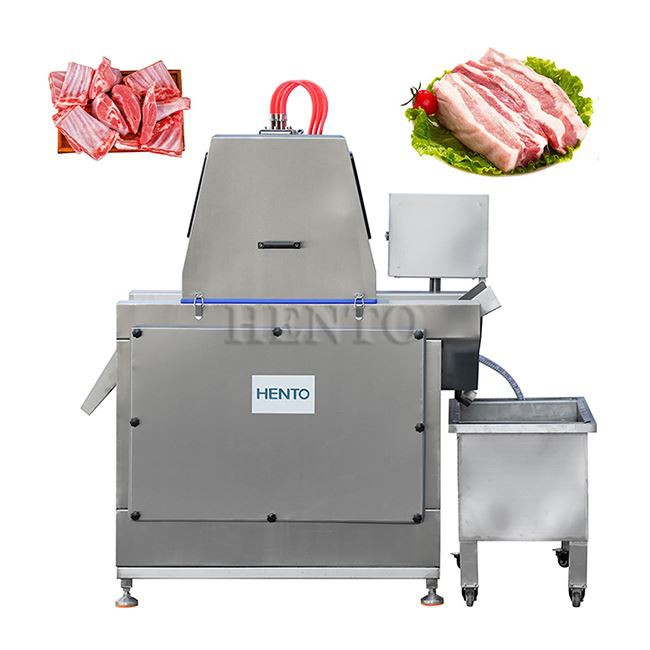

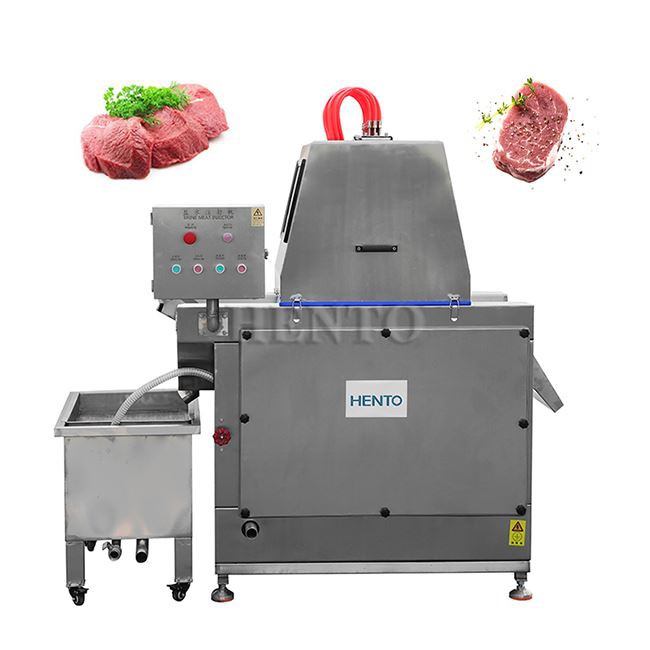

Meat Brine Injector
2.Reasonable design, rigorous structure, convenient operation, convenient cleaning,and with automatic protection device.
Product Introduction
Meat Brine Injector uses tooth -shaped steps, and the steps are accurate. The meat is supported by three sets of detachable bars.

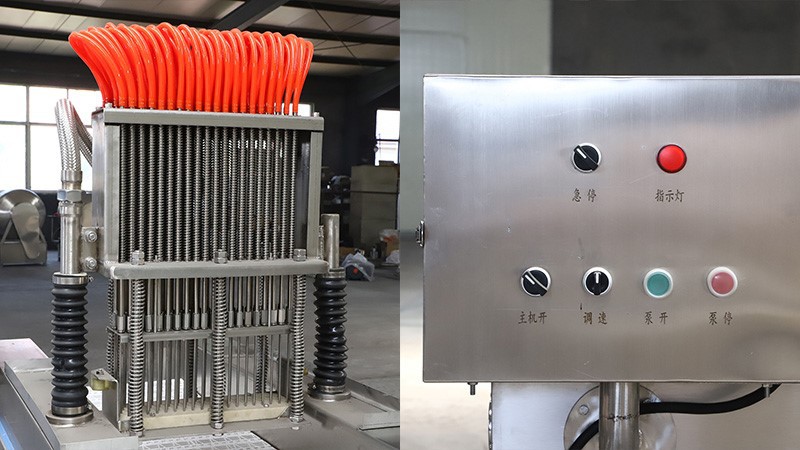

The injection needle of our Meat Brine Injector is controlled by spring, which can truly achieve bone injection. The injection pressure, injection rate, step distance and speed can be adjusted arbitrarily according to the size of the injection material and the tissue structure of the injection material, which can achieve the ideal injection effect.
Meat Brine Injector equip with automatic protection device. When the injection needle encounters hard objects, it will not be damaged. We will be randomly equipped Injection needle, different thicknesses according to different configurations of the injection products.
The main functions of Meat Brine Injector:
Meat Brine Injector is a commonly used equipment in the food processing industry, mainly used to evenly inject pickling solution (salt water, seasoning solution, etc.) into meat chunks to improve the taste, tenderness, and flavor of products.
Uniform injection:
Inject the marinade into the meat through a high-pressure pump and injection needle to ensure even penetration.
Improve efficiency:
Replace traditional soaking and pickling, shorten processing time.
Improve quality:
Make the meat more tender, smooth, juicy, enhance flavor and water retention.
Contact now
The workflow of Meat Brine Injector:
Prepare marinade:
Mix salt water, phosphate, spices, etc.
Injection stage:
Insert the needle into the flesh and inject the liquid under high pressure.
Place the raw materials:
Spread the meat pieces flat on the conveyor belt.
Recycling:
Excess liquid is filtered and refluxed to the storage tank.
comparison of product parameters
|
Model |
HT-ZSJ24 |
HT-ZSJ48 |
HT-ZSJ80 |
HT-ZSJ120 |
HT-ZSJ200 |
|
Needle Number |
24 |
48 |
80 |
120 |
200 |
|
Capacity |
400kg/h |
600kg/h |
800kg/h |
1200kg/h |
1500-2000kg/h |
|
Needle Specification |
Φ2,φ3,φ4 |
Φ2,φ3,φ4 |
Φ2,φ3,φ4 |
Φ2,φ3,φ4 |
Φ2,φ3,φ4 |
|
Injecting Speed |
16times/min |
16times/min |
16times/min |
16times/min |
|
|
Injecting Pressure |
0.1-0.9Mpa |
0.1-0.8Mpa |
0.1-0.8Mpa |
0.1-0.8Mpa |
3-6.2Mpa |
|
Injection Rate |
60-90% |
60-90% |
60-90% |
60-90% |
60-90% |
|
Conveyor Speed |
20-80m/min |
20-80m/min |
20-80m/min |
20-120m/min |
20-120m/min |
|
Power |
3.7kw |
3.7kw |
4.5kw |
4.5kw |
4.5kw |
|
Dimension |
1280*820*1650mm |
1300*900*1500mm |
1520*1020*1800mm |
1720*1420*1900mm |
1760*1300*1700mm |
|
Weight |
330kg |
360kg |
420kg |
680kg |
580kg |
comparison of product parameters
|
Model |
HT-ZSJ140 |
HT-ZSJ180 |
HT-ZSJ240 |
|
Type |
frequency conversion |
frequency conversion |
frequency conversion |
|
Needle Number |
140 |
180 |
240 |
|
Power |
5.2kw |
5.2kw |
5.9kw |
|
Capacity |
1200kg/h |
1500kg/h |
2000kg/h |
|
Injecting Pressure |
0.45-0.9Mpa |
0.45-0.9Mpa |
0.45-0.9Mpa |
|
Voltage |
380v |
380v |
380v |
|
Injecting Speed |
40-70m/min |
40-70m/min |
40-70m/min |
|
Machine Dimension |
1300*1400*1700mm |
1300*1500*1700mm |
2000*1380*1700mm |
|
Skip Car Size |
860*460*700mm |
900*460*700mm |
1220*800*600mm |
|
Weight |
360kg |
400kg |
560kg |
*In case of the machine upgrade, the appearance and size may be a little different, please take the actual machine as the standard.
FAQ
Q: What's the MOQ?
A: 1 set
Q: Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc
Q: How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: How long is the warranty of the machine?
A: Two years warranty.
Q: How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: What about the package?
A: Usually we will use the standard export wooden case.
