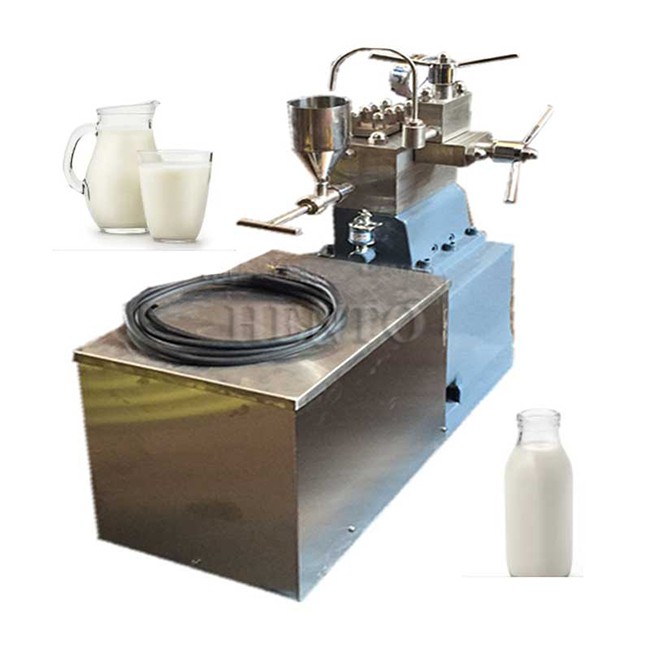

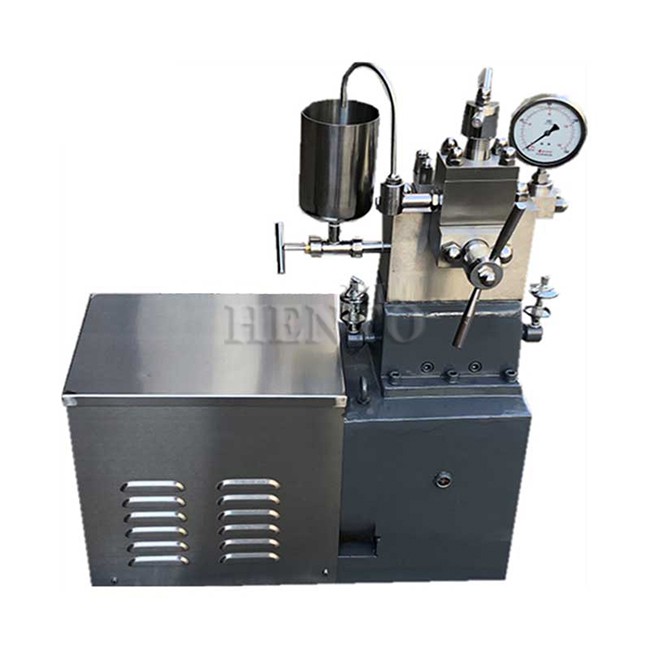

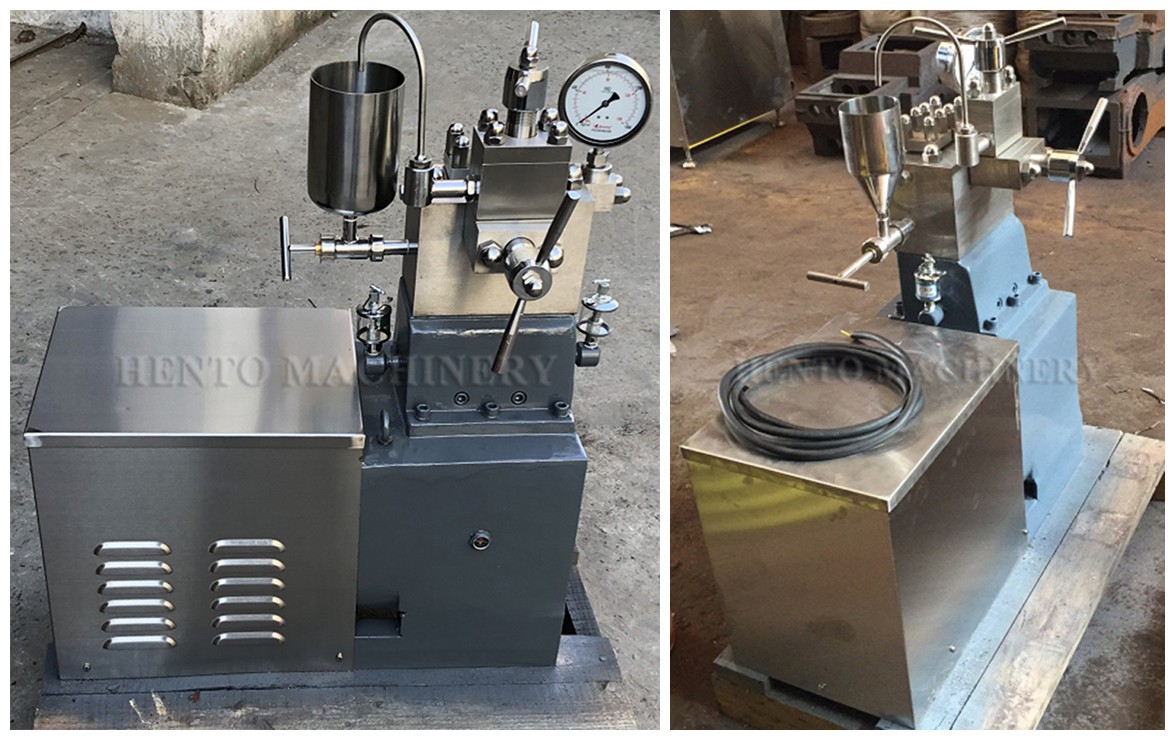

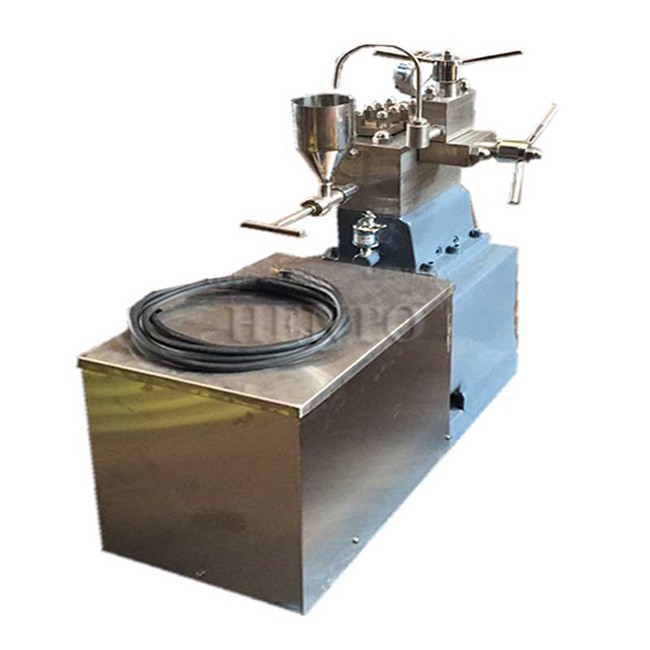

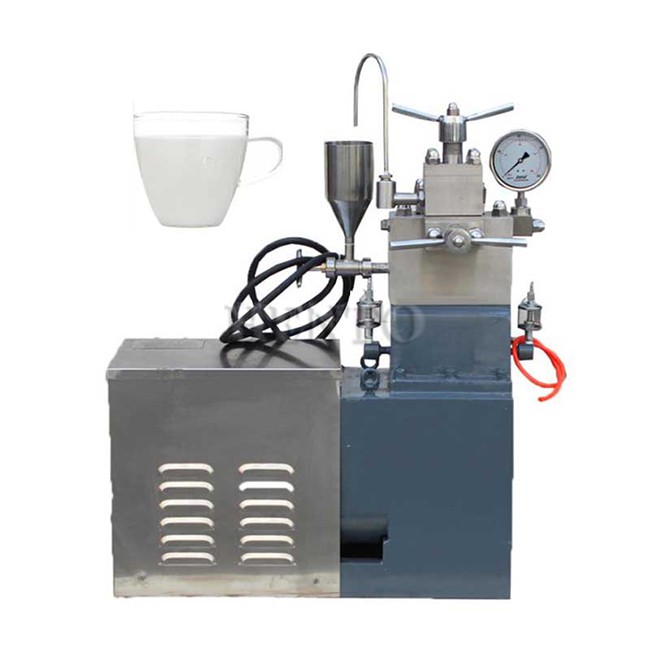

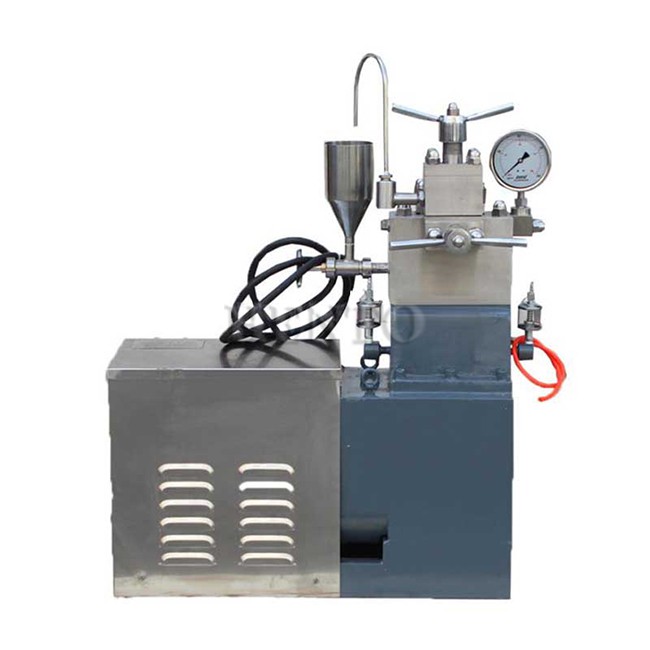

Lab Milk Homogenizer Machine

Lab Milk Homogenizer Machine applys to the liquid materials (liquid - liquid phase or liquid - solid phase) of homogeneous emulsion, the viscosity is lower than 0.2 Pa. S, temperature below 80 ℃.

Working principle of Lab Milk Homogenizer Machine mainly through three plunger reciprocating motion will make the processed materials send to the homogeneous valve in the form of high pressure, make the material flow through tiny gap moment of valve plate and valve seat get the complex force by turbulence, cavitation and the role of the shear and others , and make the original rough processed into emulsion or suspension of extremely small, uniform and stable liquid-liquid mixed emulsifying agent or liquid-solid dispersion;

The average fineness of emulsifying is below 1 um, solid dispersion particle size average below 2 um.After high pressure homogenizer, homogeneous material has many advantages: high stability, can improve the quality of preservation, and speed up the reaction time, save the additive; Application in the field of food, health care products, cosmetics and so on, can improve the quality of the absorption of human body, etc.

1.First remove the pressure plate, then use the orchid dismantler or screwto remove the orchid.

2.Remove the upper valve spring with the upper valve I by hand or tongs,and then remove the upper valve l by the seat disassembler.

3.Remove the orchid with the valve seat remover.

4.Remove the I valve spring with the lower valve with a vise.

5.After the valve is replaced or cleaned, it is assembled from the bottomto the top in this order, lf the valve and seat are removed for cleaningthey should be put in the right place.
