Batch Pasteurizer
video

Batch Pasteurizer

1. Batch Pasteurizer tank body is made of food-grade stainless steel, and the parts in contact with the product are 304 or 316 stainless steel
2. Automatic temperature control and adjustment, simple and convenient operation
3. High-speed mixing and adjustable speed, optional high shear mixing head
4. Three-layer tank with jacket, polyurethane as thermal insulation material
Send Inquiry
Product Introduction

Product Introduction



1. Batch Pasteurizer adopts internationally-advanced technology of the 1900s, used to cool down raw milk from 36 clesius degree to 4 clesius -storage temperature at dairy farm or milk collection station.

2. Batch Pasteurizer capacity is 500- 5,000 Liters. We adopts world famous Europe refrigerating compressor which has very good cooling capacity and can running in high temperature environment. Main features are high performance, energy saving, full seal and protection system that prevents damage due to overload. also fitted are high& low liquid level control system and automatic cycle spray and agitating device.

3. Batch Pasteurizer body is made of Stainless Steel with good appearance and polished of welding line. With agitator at about 36rpm.With insulating material to keep the temperature in cold storage.

4.Pasteurization is a process of heating milk to a specific temperature for a predetermined amount of time to kill any harmful bacteria present. The process was developed by Louis Pasteur in the 1860s, and since then, it has been adopted worldwide as a means of ensuring that the milk people consume is safe and free of harmful pathogens. The two main types of milk pasteurization machines are batch pasteurizers and continuous pasteurizers. Batch pasteurization machines are ideal for small-scale dairy farms and businesses, and they are designed to operate without requiring any additional equipment.

5.Batch pasteurizers are used to process small batches of milk, typically less than 2000 liters at a time. The machines are reliable, efficient, and easy to operate, making them an ideal choice for small-scale dairy farms and businesses that cannot afford to invest in continuous pasteurization equipment. Batch pasteurizers work by heating the milk to a specific temperature for a predetermined amount of time to kill any harmful bacteria present. The milk is then cooled rapidly to prevent recontamination, and it can be stored for later use or sold directly to consumers.



Technical Parameter



Model

HT-SG100

HT-SG150

HT-SG200

HT-SG300

HT-SG500

Can-body diameter

630mm

630mm

630mm

750mm

900mm

Can-body outer diameter

740mm

740mm

740mm

900mm

1000mm

Inner height of milk bucket

400mm

600mm

670mm

750mm

850mm

yield

100kg/time

150kg/time

200kg/time

300kg/time

500kg/time

sterilization temperature

45-90 degrees (adjustable)

45-90 degrees (adjustable)

45-90 degrees (adjustable)

45-90 degrees (adjustable)

45-90 degrees (adjustable)

Power supply

380v9kw

380v9kw

380v9kw

380v 18kw

380v 24kw

Overall dimension

800*750*1230mm

800*750*1430mm

800*750*1530mm

1000*1100*1650mm

1300*1100*1850mm

Equipment weight

100kg

150kg

180kg

220kg

270kg



Product Pictures

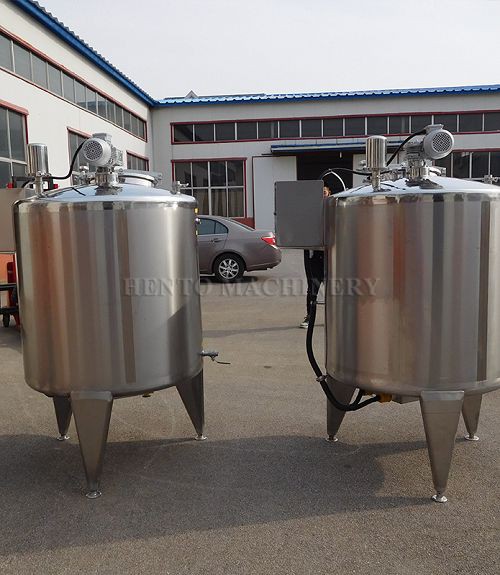

gelato pasteurizer(001)
Juice Pasteurizer(001)

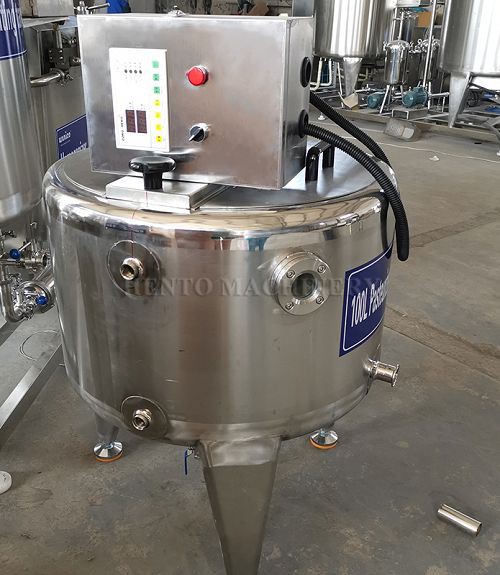

pasteurizer machine for milk(001)
