Industrial Flake Ice Making Machine
video

Industrial Flake Ice Making Machine

The applications of Industrial Flake Ice Making Machine are diverse and endless. They are essential tools in the food, healthcare, and construction industries,etc.
Send Inquiry
Product Introduction

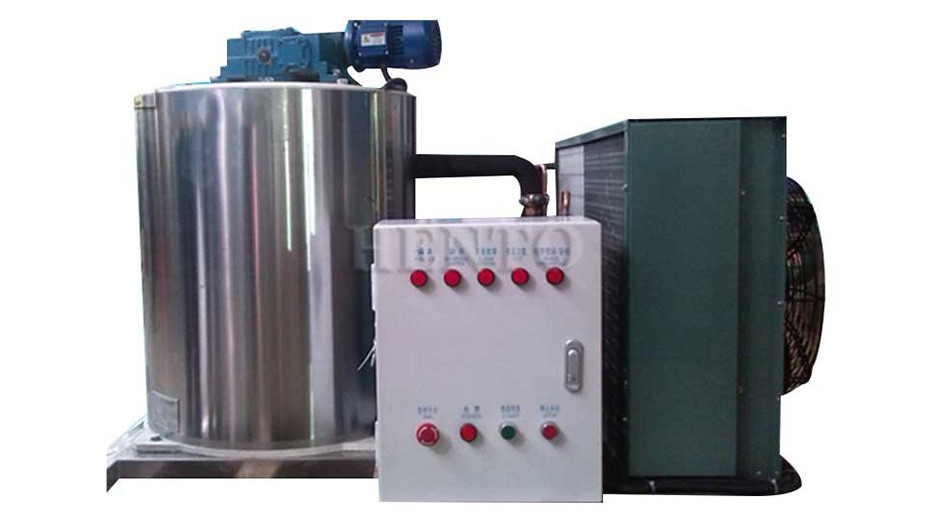

Industrial Flake Ice Making Machine

Introduce of Industrial Flake Ice Making Machine

Industrial Flake Ice Making Machine provide significant advantages over other types: high cooling efficiency, flexible shape, easy to storage, and low power consumption. Ice Flake Making Machines use a complex mechanism to produce ice flakes from water.The Ice Flaker are useful for cooling, preserving, and transporting perishable goods. Thus if the businesses invest in ice flake machines,it can significant reductions in operational costs, increased productivity, and improved overall efficiency.


Working Principle Of Industrial Flake Ice Making Machine



Ice flake machines use a complex mechanism to produce ice flakes.

Industrial Flake Ice Making Machine, also known as ice flakers, are used in various equire large quantities of ice industries and businesses. This machine produce small and thin flakes of ice, the ice suit for cooling perishable goods, and enhancing the texture of food.


Flake Ice Machine

01



Firstly,When the water enters the machine's evaporator, it comes into contact with a refrigerant, then freezes the water into thin sheets of ice.

02




Secondly,the sheets of ice are shattered by a pressurized rotor, then churn the ice into small pieces under high speed turning.

03




Finally,the product is fresh ice flakes that can be easily packed, stored, and transported to locations where they are needed.










comparison of product parameters

Model

HT-PBJ200

HT-FM500

HT-FM1000

Capacity

200kg/day

500kg/day

1000kg/day

Power

1.8kw

4.57kw

4.57kw

Voltage

380v

380v

380v

Dimension

760*730*650mm

1500*780*1200mm

1320*900*900mm

Weight

150kg

450kg

780kg





The purpose of Industrial Flake Ice Making Machine

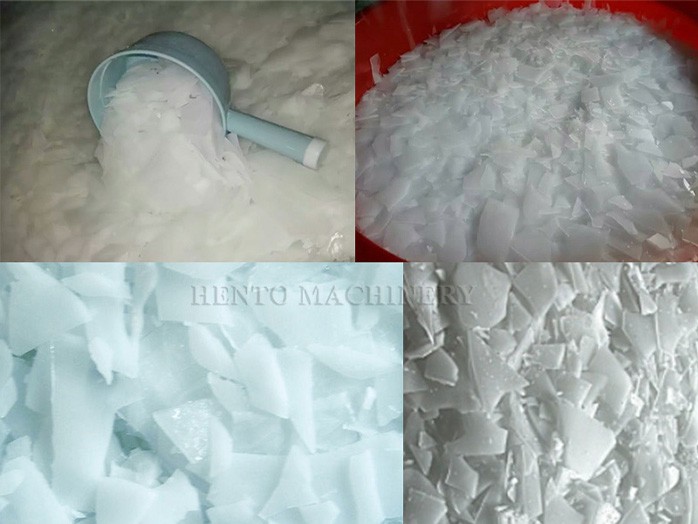

Industrial Flake Ice Making Machine is a kind of ice making machine. According to the water source, it can be divided into freshwater flake ice machine and seawater flake ice machine. Generally, it is an industrial ice making machine. Flake ice is a thin, dry and loose white ice with a thickness ranging from 1.0 mm to 2.5 mm. The shape of the flakes is irregular and the diameter is about 12 to 45 mm. Flake ice has no sharp edges and will not pierce the frozen objects. It can enter the gap between the cooled objects, reduce heat exchange, maintain the temperature of the ice, and has a good moisturizing effect. Flake ice has excellent refrigeration effect, large cooling capacity and rapidity. Therefore, it is mainly used in various large-scale refrigeration facilities, food quick freezing, concrete cooling, etc.





Contact now







FAQ

Q: What is Foreign Trade-Express?

A: Foreign Trade Express is a one-stop intelligent foreign trade network marketing SaaS system platform.

Q: What's the MOQ?

A: 1 set

Q: Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: How long is the warranty of the machine?

A: Two years warranty.

Q: How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: What about the package?

A: Usually we will use the standard export wooden case.

Q: Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: What about Pre-sale service:

A: Support voltage changing service as your demand;  Support logo customizing ;  Provide good solution for your project ;  Testing and debugging before delivery ;
