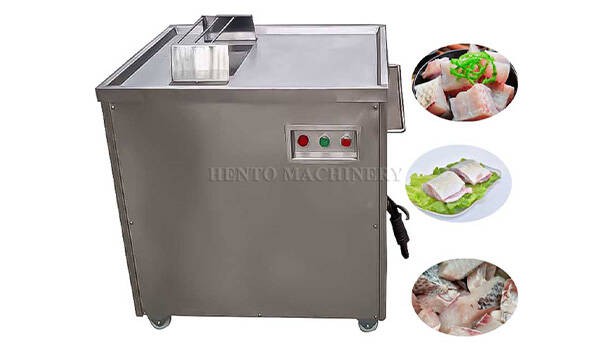

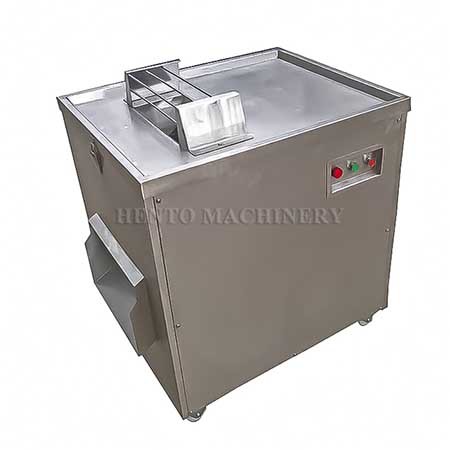

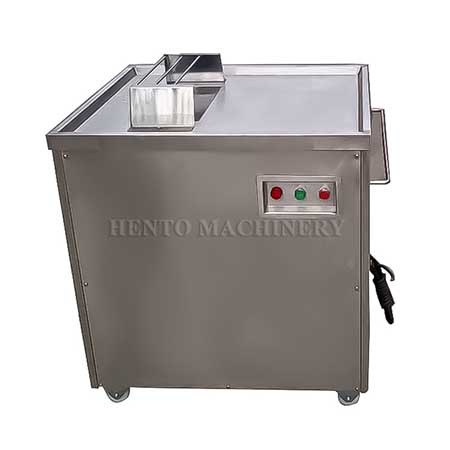

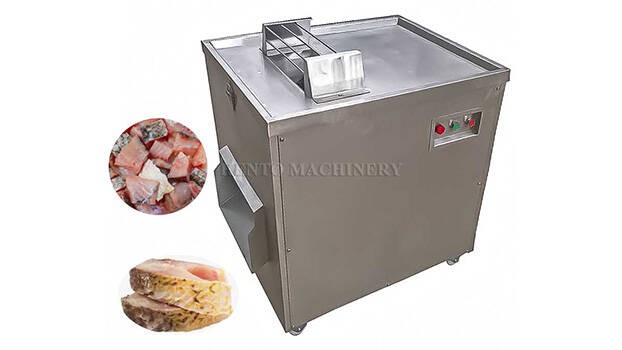

Fresh Fish Fillet Cutting Machine
Product Introduction
The Fresh Fish Fillet Cutting Machine is suitable for slicing and dicing all kinds of fresh fish, slightly frozen fish, dried fish, etc. The size can be customized according to user requirements. It has high precision, uniform thickness of fish fillets, no continuous knife, no breakage, and good shape. It solves the problems of time-consuming, labor-intensive, low-efficiency, and unsafe manual operation of fish filleting.
working principle
The machine is composed of two rows of knives, one row of flat knives and the other row of serrated knives. The serrations on the knives can firmly hook the whole fish, so that the fish will not move when slicing, thus the thickness of the fish slices is consistent. The two rows of knives are installed on two shafts respectively, and there are two sprockets at both ends of the shaft. The transmission method of the machine is V-belt transmission. The V-belt drives the sprocket and the motor wheel to rotate to complete the work of cutting fish slices.
Advantage Of Fresh Fish Fillet Cutting Machine
The machine is an essential machine for aquatic processing and aquaculture. It can cut fish fillets, fish segments, fish strips, and fish blocks. The size can be customized.
The machine is made of food grade stainless steel, it is durable and suitable for humid environments, it won't rust.
The machine is suitable for fresh fish, slightly frozen fish, dried fish or dried fish fillets.
The machine has high working efficiency, it is equivalent to 8-12 workers cutting fish fillets at the same time. It is truly low-investment, high-efficiency, saving money and labor.
The blade of the fish cutter is made of imported materials and has undergone a special heat treatment process. It is sharp and durable, has a good cutting effect, and meets food hygiene standards.
The fish cutter has a wide range and is suitable for aquaculture, farmers' markets, food factories, meat processing; meat and aquatic distributors, university logistics, group meals, student nutrition meals, breakfasts, catering chains, central kitchens, central factories, corporate canteens, etc.
product parameters
|
Model |
HT-QYJ300 |
HT-QYJ600 |
|
Voltage |
380v |
380v |
|
Power |
1.5kw |
2.2kw |
|
Capacity |
200-400kg/h |
400-600kg/h |
|
Dimension |
520*450*800mm |
600*550*800mm |
FAQ
Q: What's the MOQ?
A: 1 set
Q: Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: Which port do you send the goods from?
A: Which port do you send the goods from?
Q: How long is the warranty of the machine?
A: Two years warranty.
Q: How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: What about the package?
A: Usually we will use the standard export wooden case.
Q: Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about Pre-sale service:
A: Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: What about After-sales service?
A: Video technical support; Online support ; Field installation, commissioning and training;
