Fish Deboning Machine
video

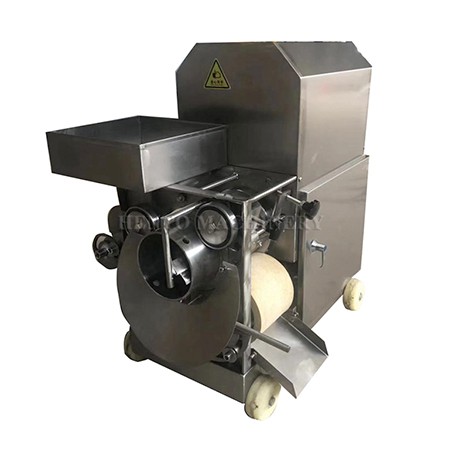

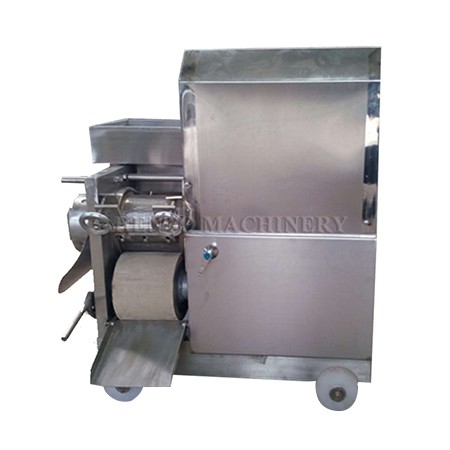

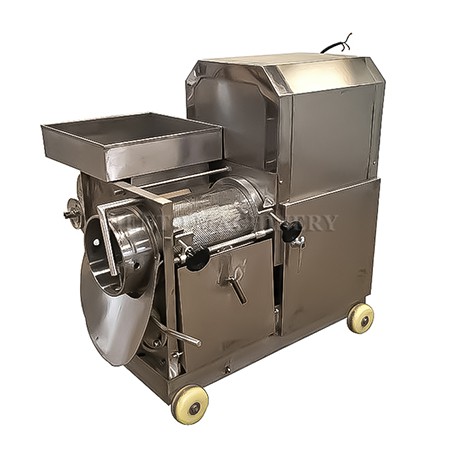

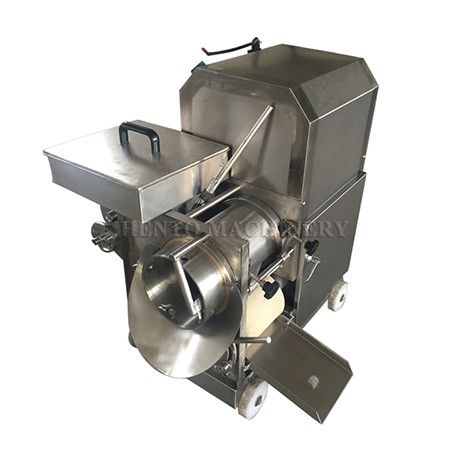

Fish Deboning Machine

1.Fish Deboning Machine can extract minced meat from fish, shrimp and crab, and separate fish bone, shrimp skin and crab shell.
2.It is applicable to fish market, seafood processing factory and restaurant.
3.Made of high-quality stainless steel, safe and durable, easy to clean.
Send Inquiry
Product Introduction



Get to know this machine

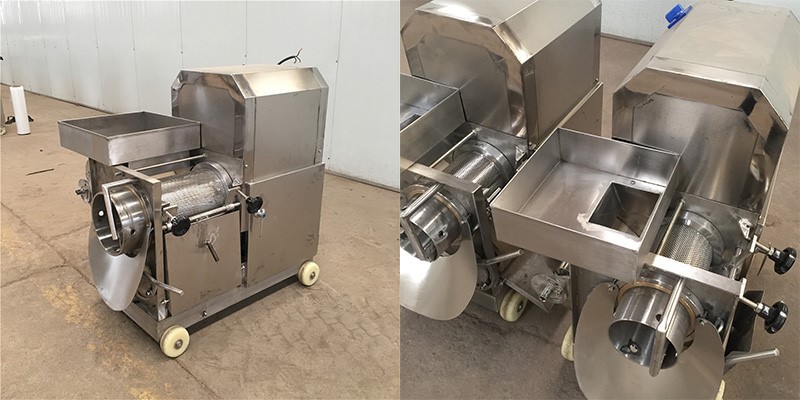

fish deboning machine
01.

Fish Deboning Machine is mainly used for the extraction of a variety of fish skin and bone treatment. It can separate the flesh and bone in the fish body, so as to improve the utilization rate of raw materials and save labor costs. The fish can be separated from the bones, skin and sinews, separate the meat from the shell, and also the head (paste). High processing efficiency, save time and labor, reduce labor costs.

02.

Mined fish can be directly used to produce a variety of surimi products: fish balls, fish noodles, fish glue, fish dumplings and other products. The final product can be made into a variety of delicious hot pot balls, complementary food, feed, meat floss, seasoning and so on. The collected fish goes into the drum, and the remaining waste materials such as fish skin and bones come out of the discharge port, and are collected centrally to produce bone meal.

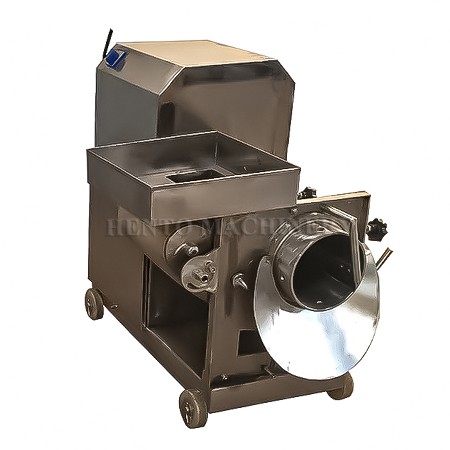

automatic fish meat deboner

Contact now



Automatic fish meat deboner can harvest freshwater fish, but also can harvest sea fish, shrimp, crab, loach, etc., more efficient than manual meat, clean and hygienic, is one of the pre-processing equipment for surimi products. It can usually be used with a surimi fine filter to make the meat more delicate. Fish meat picking machine produced fresh and tender meat, increase the economic value of low-value fish.

High quality stainless steel materials are used for contacting food parts. Comply with the national food hygiene standards. The machine through the stainless steel meat barrel and the transmission rubber belt rolling press each other into the meat barrel, but also tender and smooth meat, skin and bone through the transmission rubber belt sent out.

Fish bone separate machine is equipped with a meat collecting barrel and a rubber belt for pressing meat. The fish is squeezed into the meat collecting barrel by the mutual pressing movement of the rolling fish meat barrel and the rotating rubber belt, while the fish skin and bone are left outside the meat collecting barrel, and the scraper is used to send it out of the machine.



Technical Parameter



Machine Name

Shrimp meat squeezing machine/crab meat extruder machine/Fish Deboning Machine

Model

HT-YR150

HT-YR200

HT-YR300

HT-YR350

Size

900*680*850mm

950*720*950mm

1050*750*970mm

1200*900*1100mm

Material

SUS304

SUS304

SUS304

SUS304

Capacity

180kg/h

280kg/h

500kg/h

1500kg/h

Power

2.2kw

2.2kw

3.0kw

4.0KW

Belt thickness

20mm

20mm

20mm

20mm

Outer belt length

1195mm

1450mm

1450mm

1450mm

Drum diameter

159mm

219mm

219mm

219mm

Drum wall thickness

8mm

8mm

8mm

8mm

Mesh diameter

2.7/3.0/3.2mm etc.

Total Weight

180kg

210kg

320kg

420kg

Wooden box size

960*730*1050mm

1050*820*1100mm

1100*850*1100mm

1300*1000*1280mm

FAQ

Q: What is Foreign Trade-Express?

A: Foreign Trade Express is a one-stop intelligent foreign trade network marketing SaaS system platform.

Q: What's the MOQ?

A: 1 set

Q: Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: Which port do you send the goods from?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: How long is the warranty of the machine?

A: Two years warranty.

Q: How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: What about the package?

A: Usually we will use the standard export wooden case.

Q: Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: What about Pre-sale service:

A: Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;

Q: What about After-sales service?

A: Video technical support; Online support ; Field installation, commissioning and training;
