Automatic Fish Meat Deboner
Automatic Fish Meat Deboner

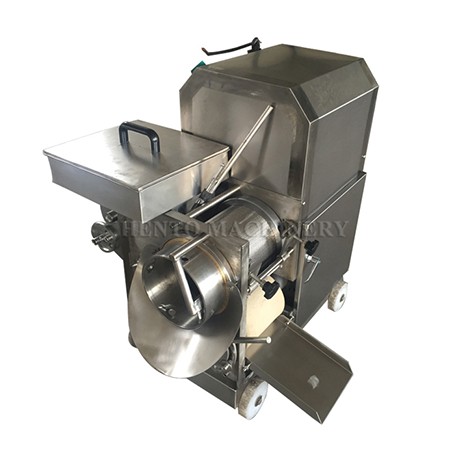

electric fish deboner machine

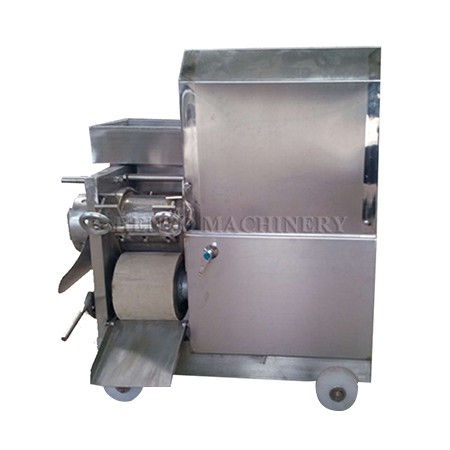

electric fish deboner

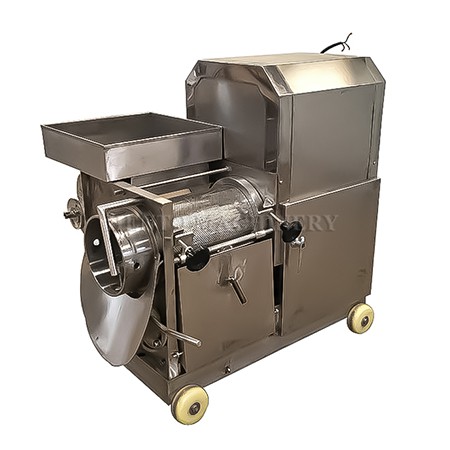

fish deboner machine

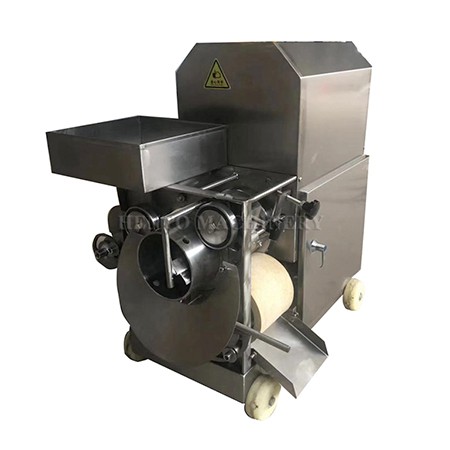

high capacity fish deboning machine

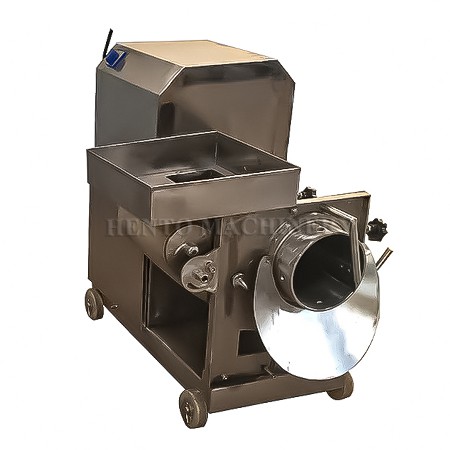

Automatic Fish Meat Deboner

1.The Automatic Fish Meat Deboner uses the principle of mutual extrusion to squeeze the fish into the meat collecting barrel, leaving the fish skin and bones outside the barrel.
2.Match with fish killing machine, meatball machine, rotting machine or other machines to make all kinds of delicious food
3.Multi-purpose, simple operation.

Send Inquiry

Product Introduction

Fish meat picking machine is suitable for Marine fish, freshwater fish and other fish.

The big fish are cut into pieces and the small fish are cut directly.

The fish in the fish body can be separated from the bones, skin and tendons to improve the utilization rate of raw materials and save labor costs.

The extracted fish can be used as fish balls, fish paste, fish paste, Fish patties, fish dumplings and other food materials.

Automatic Fish Meat Deboner is mainly composed of electric motor, scraper, transmission device, conveyor belt, fish bone outlet,operation drum, fresh fish inlet, etc.

The mutual pressing movement of the rolling meat picking bucket and the driving rubber belt is used to squeeze fish into the meat picking bucket and leave the skin and bones outside the meat picking bucket, and the scraper sends it out of the machine.

How to choosing suitable model?

The model of the fish meat machine equipment is divided according to the length of the drum, the length of the drum is related to the width of the fish, if you want to take the fish greater than the length of the drum, it is necessary for you to cut the fish in advance and cut it into a long strip within the length of the roll.

When large fish are collected, they need to remove the fish head and internal organs, and then remember to put the tail first when they are put into the feeding port, so that it is better to collect. The fish meat picking machine is equipped with a meat picking bucket and a rubber belt for pressing meat.

Small or medium-sized fish shall be directly put into operation after being cut open. Large fish shall be put into operation after being head and tail removed and cut into pieces. The fish body shall be squeezed by low-speed and high-density stainless steel sieve cylinder and conveyor belt, take others, extract clean surimi.

Contact now

Technical Parameter

Machine Name	Shrimp meat squeezing machine/crab meat extruder machine/Fish Deboning Machine
Model	HT-YR150	HT-YR200	HT-YR300	HT-YR350
Size	900680850mm	950720950mm	1050750970mm	12009001100mm
Material	SUS304	SUS304	SUS304	SUS304
Capacity	180kg/h	280kg/h	500kg/h	1500kg/h
Power	2.2kw	2.2kw	3.0kw	4.0KW
Belt thickness	20mm	20mm	20mm	20mm
Outer belt length	1195mm	1450mm	1450mm	1450mm
Drum diameter	159mm	219mm	219mm	219mm
Drum wall thickness	8mm	8mm	8mm	8mm
Mesh diameter	2.7/3.0/3.2mm etc.
Total Weight	180kg	210kg	320kg	420kg
Wooden box size	9607301050mm	10508201100mm	11008501100mm	130010001280mm

FAQ

Q: What is Foreign Trade-Express?

A: Foreign Trade Express is a one-stop intelligent foreign trade network marketing SaaS system platform.

Q: What's the MOQ?

A: 1 set

Q: Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: Which port do you send the goods from?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: How long is the warranty of the machine?

A: Two years warranty.

Q: How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: What about the package?

A: Usually we will use the standard export wooden case.

Q: Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: What about Pre-sale service:

A: Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;

Q: What about After-sales service?

A: Video technical support; Online support ; Field installation, commissioning and training;
