Beef Jerky Production Line
1. With reversible bi-directional biaxial mixer,vacuum mixer improves its working speed and effect.
2. Mixing time can be set according to various types of material and the vacuum degree is adjustable.
3. With the modified blades,vacuum mixer produces more uniform product.
4. With the function of automatic ejection,the operation becomes convenient.
Beef Jerky Production Line is made of several machines:

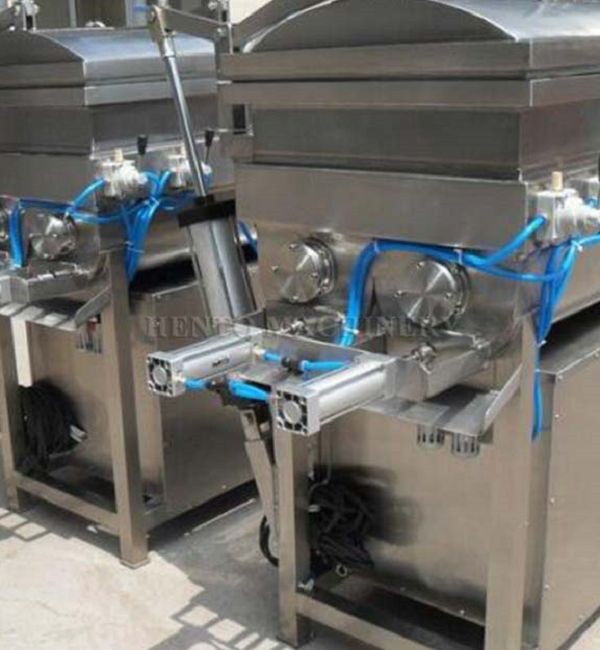

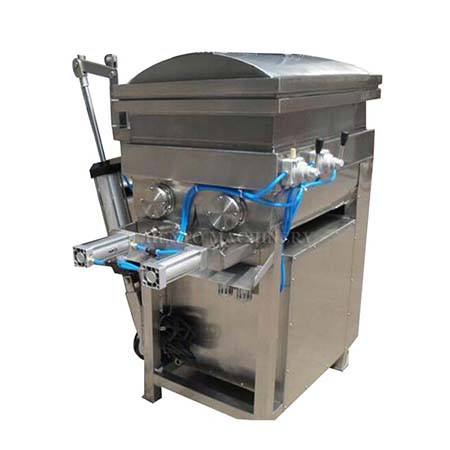

Vacuum Meat Mixer
1. With reversible bi-directional biaxial mixer,vacuum mixer improves its working speed and effect.
2. Mixing time can be set according to various types of material and the vacuum degree is adjustable.
3. With the modified blades,vacuum mixer produces more uniform product.
4. With the function of automatic ejection,the operation becomes convenient.
|
Model |
HT-JB100 |
|
Driving power |
3.5kw |
|
Vacuum pump power |
0.75kw |
|
Capacity |
75kg/time |
|
Vacuum degree |
-0.085Mpa |
|
Mixing speed |
40r/min |
|
Machine weight |
350kg |
|
Machine size |
1250*900*1360mm |

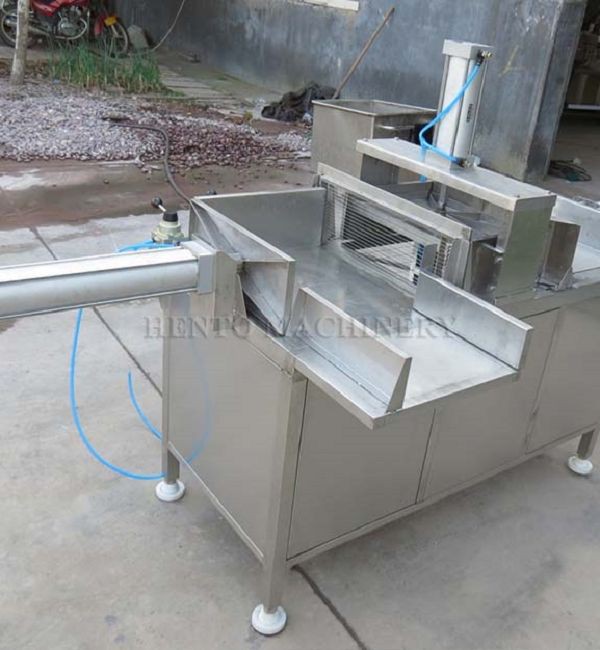

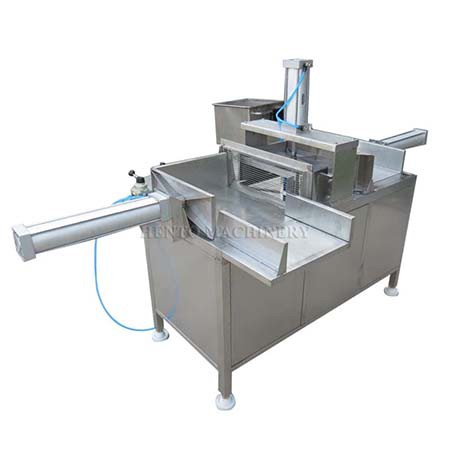

Meat Flattening Machine
1)The part in Beef Jerky Production Line is placed on the infeed part of the lower conveyor and it is guided through the belt system. Between the drive and return shafts there are several pairs of pressure rollers which flatten the product efficiently on the belt.
|
Model |
HT-YS150 |
|
Drive type |
Pneumatic type |
|
Capacity |
150kg/h |
|
Flattening thickness |
2-10mm adjustable |
|
Tray molding size |
300*800mm |
|
Machine weight |
300kg |
|
Machine size |
1120*800*1600mm |

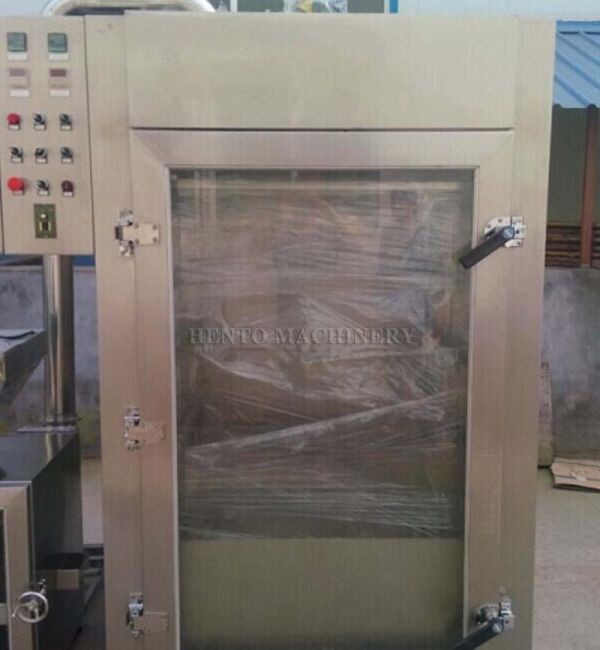

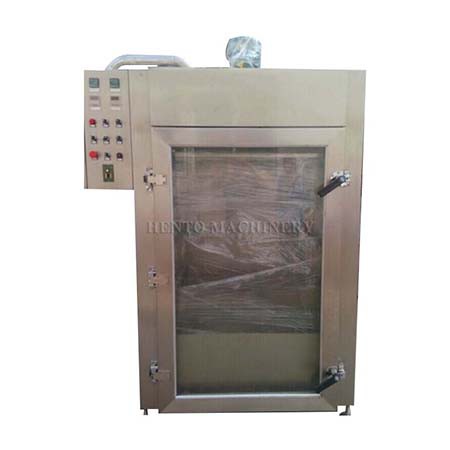

Smoking Machine
1.Smoke for sausage, ham, pork, chicken, fish, duck and poultry, aquatic products and other smoked products. Cooking, drying, coloring by one time.
2.Smoked good color, taste better, quality assurance, excellent technology.
|
Model |
HT-YX100 |
|
Capacity |
100(kg/oven) |
|
Heating mode |
Electric heating |
|
Voltage |
220(v) |
|
Power |
11.62(kw) |
|
High pressure steam pressure |
≤ 0.2 (MPa) |
|
Low pressure steam pressure |
≤ 0.1(MPa) |
|
High pressure Furnace temperature |
95(℃) |
|
Low pressure Furnace temperature |
110(℃) |
|
Trailer dimension |
920*1070*1500(mm) |
|
Working space |
1050*1200*1200(mm) |
|
Machine dimension |
1200*2030*1900(mm) |

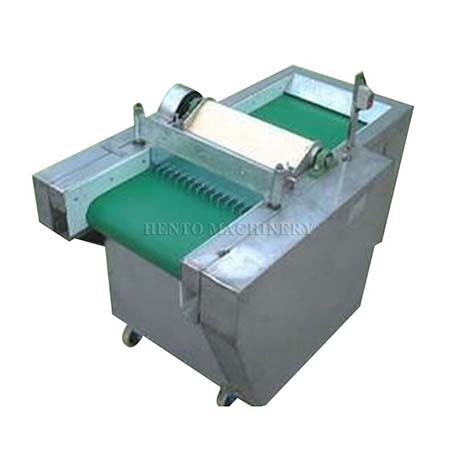

Meat Steak Cutting Machine
In this Beef Jerky Production Line, cutting width can be custom-made according to customers' specific needs, cutting length is adjustable and the cutting size can be set well according to customer's needs before delivery.
|
Model |
HT-FG150 |
|
Material |
Stainless steel |
|
Capacity |
150kg/h |
|
Power |
0.75kw |
|
Cutting size |
30*200mm |
|
Voltage |
220v |
|
Weight |
200kg |
|
Dimension |
1300*900*1100mm |
FAQ
Q: What is Foreign Trade-Express?
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: What about the package?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
Q: What about Pre-sale service:
Q: What about After-sales service?
