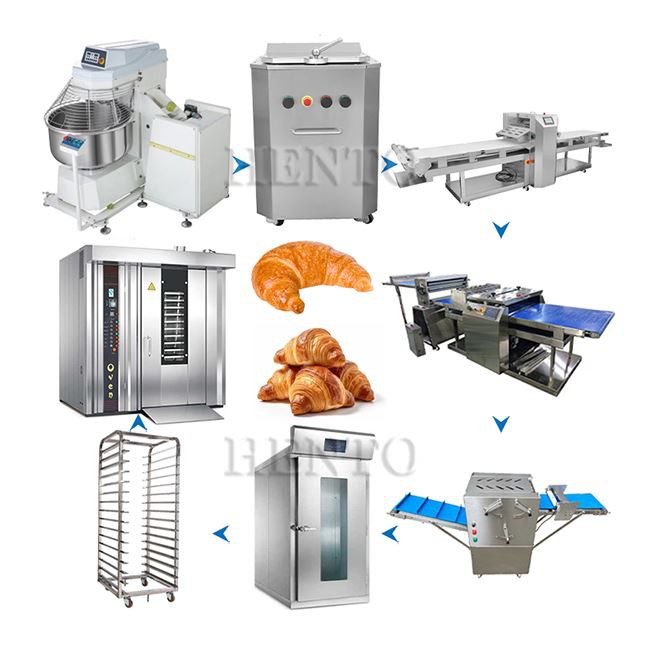

Croissant Production Line

1.The Croissant Production Line combination covers all core processes from dough preparation to baking, making it ideal for use in small and medium-sized bakeries or central kitchens.
2.High flexibility, Producing products with different flavors and shapes.
Send Inquiry
Product Introduction

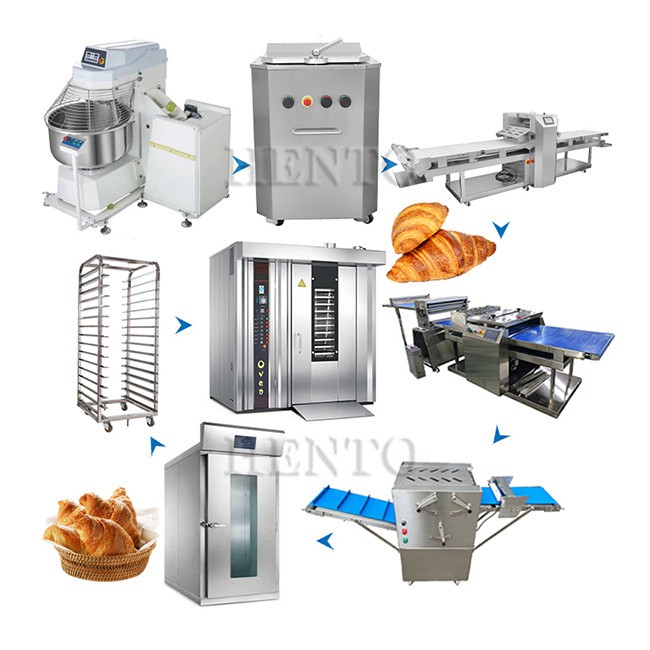

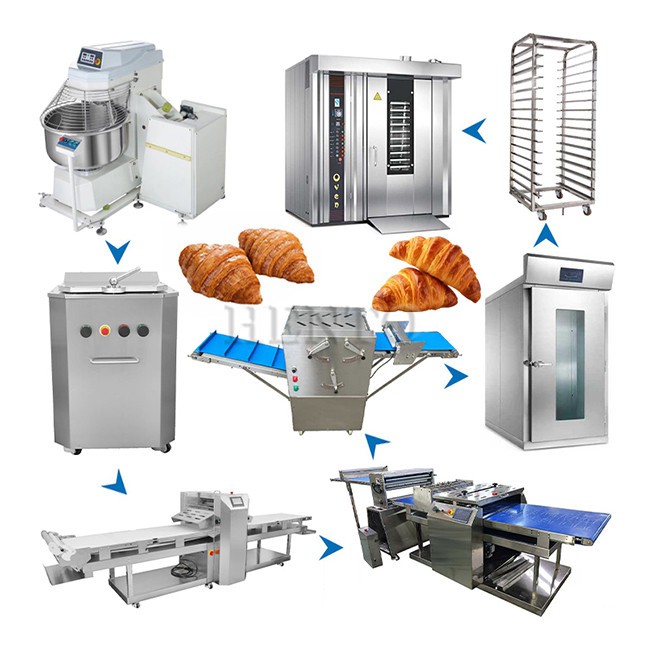

The Croissant Production Line includes the following machines

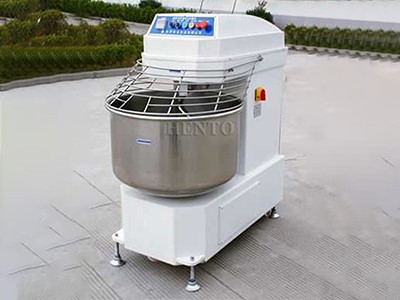

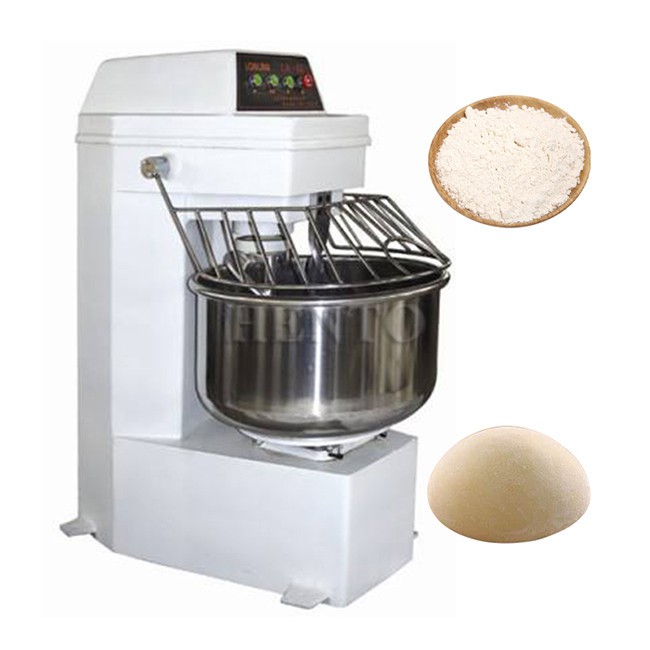

Noodle machine (flip cylinder type)



Function:The base dough for making croissants. Mix flour, water, yeast, sugar, salt, milk powder,a small amount of butter to create a smooth and elastic dough.



Flipping cylinder: This design usually is mixing cylinder,convenient for unloading the well mixed dough, labor-saving and efficient, suitable for processing large production volumes.

Noodle machine

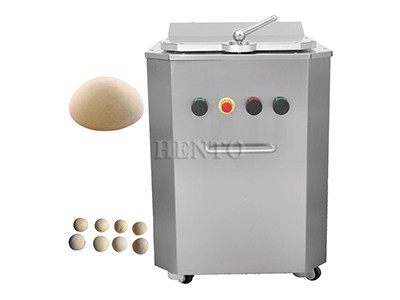

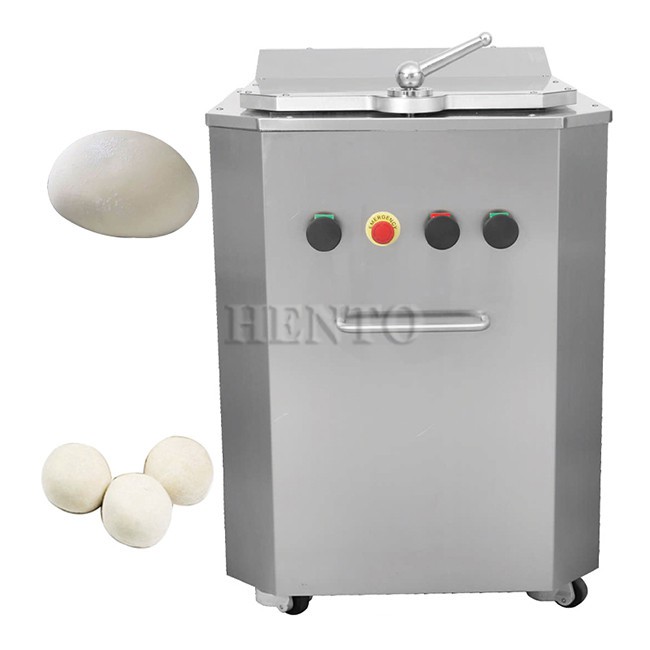

Hydraulic dough slicer



Hydraulic dough slicer

Function: The dough divided small dough blocks of predetermined weight through a hydraulic device.



Function:Each croissant weight is the key first step. The hydraulic system has stable pressure, neat segmentation, and does not damage the gluten.

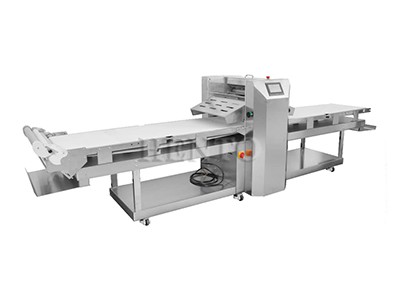

Uniform leather machine



Function: Use one or more pairs of rollers to press the segmented small clumps into uniformly thick and regularly shaped patches.



Function: Prepare for the next step of the pastry making process,the thickness of the base crust before wrapping butter is consistent.

Uniform leather machine

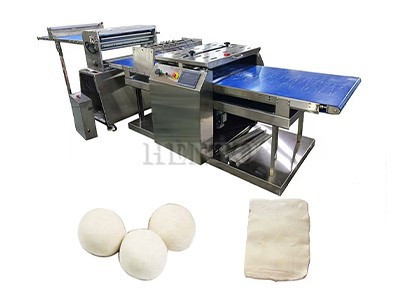

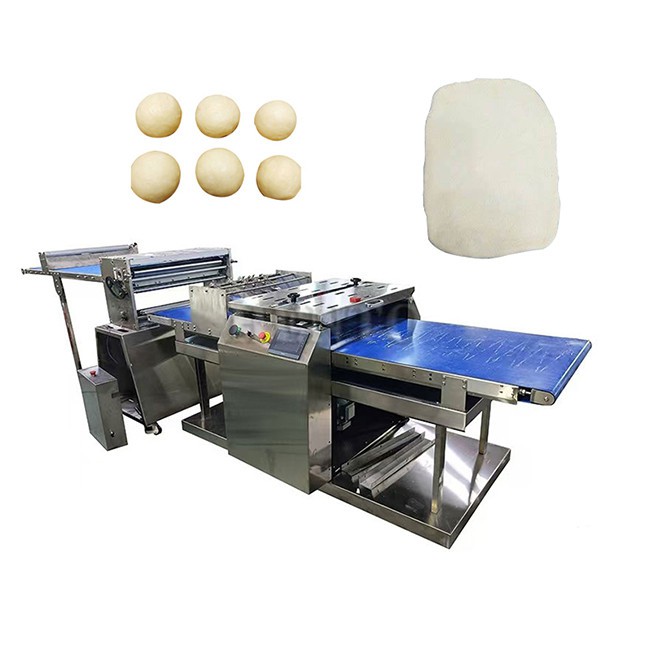

Fully automatic puff pastry machine



Fully automatic puff pastry machine

Function: The folded and crushed multiple times with flat dough and sliced butter (usually requiring prior preparation).



Craftsmanship:A "triple fold" or "quadruple fold" is completed multiple times, creating hundreds of alternating layers of dough and butter in the dough.



Fully automatic:The machine automatically completes rolling and folding, replacing the heavy and technically demanding manual operation,the stability and high efficiency of the pastry effect.

Cutting machine



Function:Cut the perfectly layered large dough pieces pressed by the pastry maker into standard isosceles triangles.



Function:The shape and size of each croissant are completely uniform. The mold can be replaced as needed to produce products of different sizes or shapes (such as chocolate).

Cutting machine

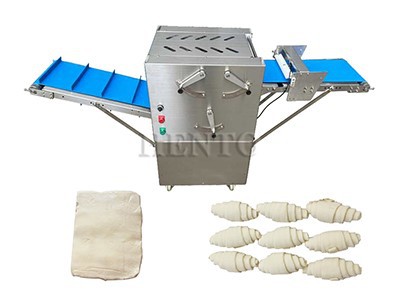

Bullhorn rolling machine



Bullhorn rolling machine

Function: Automatically roll the triangular surface from the bottom edge upwards into the classic horn shape.



Function:Standardization:The number of rolled layers and compactness of each croissant are consistent.



High efficiency: The speed is much faster than manual rolling.



Protection level: Gentle mechanical action can better protect the butter layer in the dough, avoiding melting due to hand temperature.

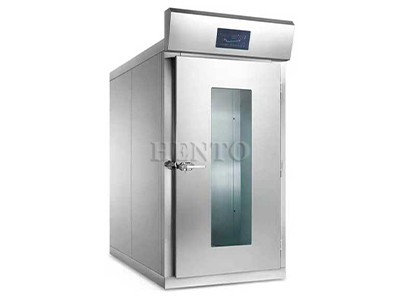

32 Plate fermentation box (cart type)



Function: Provide an ideal fermentation environment for well shaped croissants.



Key parameters: precise control of temperature (usually between 26-28 ° C) and humidity (usually between 75-85%). Appropriate temperature and humidity allow yeast to move, expand dough, and prevent surface cracking.



Cart style design: a very practical design. Place the baking tray for the croissants on the handcart and push the entire cart into the fermentation chamber. This can achieve assembly line operation: one truck is fermenting,the other truck is shaping or preparing for baking, greatly improving production efficiency.

32 Plate fermentation box cart type

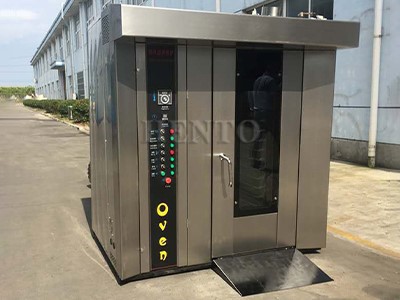

32 hot air rotary oven (electric heating type)



hot air rotary oven

Function: Bake the fermented croissants to maturity, forming a golden crispy outer skin and honeycomb like internal structure.

Hot air rotation ": The furnace is equipped with a fan to force the circulation of hot air, ensuring uniform temperature at all positions inside the furnace,the color and maturity of each plate of croissants are the same.

Rotation: The grill slowly rotates inside the oven, further eliminating the dead corners of temperature differences inside the oven.

Electric heating type:stable heating, precise temperature control, clean environment, no need to deal with gas pipelines.

Capacity of "32 plates": matching the capacity of the fermentation tank,achieve continuous operation of whole fermentation and whole baking.

Contact now




product parameters

Model

HT-NJB100L

Capacity

100kg/h

Machine Name

Specification

Unit

Dough Mixer

Model:HT-H200

Capacity:75kg/batch

Voltage:380V

Power:9KW

Mixing speed:125/250r/min

Bowel capacity:200L Dimensions:1540*1540*1750mm

Weight:890kg

1

Hydraulic Dough Divider

Model:HT-ZY20

Voltage:380V

Power:1.5KW

Dough weight:150-800g

Dimensions:610*810*1110mm

Weight:350kg

1

Full Automatic Dough Sheeter

Model:HT-ZY650ZA

Voltage:380V

Power:1.5KW

Dimensions:4550*1150*1330mm

Weight:550kg

1

Uniform Skin Machine

Model:HT-JP600

Voltage:220V

Power:0.55KW

Dimensions:1250*980*1270mm

Weight:180kg

1

Cutting Machine

Model:HT-ZY600

Voltage:380V

Power:1.2KW

Dimensions:3665*1000*1140mm

Weight:280kg

1

Croissant Rolling Machine

Model:HT-CJ240

Voltage:220V/380V

Dimensions:820*580*1080mm

Weight:120kg

1

32 Trays Fermentation Tank

Model:HT-F32

Voltage:220V

Power:4.5KW

Temperature:room temperature-50℃

Material:stainless steel

Dish Dimension:400*600mm

Grill layers:16 layers*2*2=64tray

Dimensions:890*1180*2050mm

Weight:240kg

1

32 Grill

Model:HT-ZY32

Dimensions:620*830*1700mm

Weight:35kg

1

32 Trays Rotary Convension Oven

Model:HT-ZY100D

Capacity:100kg/h

Voltage:380V

Power:48KW/h

Material:stainless steel

Grill layers:16 layers*2=32tray

Dimensions:2000*1800*2200mm

Dish dimension:400*600mm

Weight:1300kg

1

*In case of the machine upgrade, the appearance and size may be a little different, please take the actual machine as the standard.

The advantages of the Croissant Production Line



Highly automated

From block making, pastry making to rolling, all core processes are completed by machines, reducing reliance on skilled technicians.

High degree of standardization

Ensuring the stability and unity of product weight, shape, hierarchy, and quality.

High production efficiency

The combination of a cart type fermentation box and a rotary oven forms an efficient batch production process.

Excellent product quality

A professional pastry maker and uniform fermentation and baking environment are the key to making high-quality croissants.

summary



The Croissant Production Line is a model of combining modern food industry technology with traditional baking techniques.

From handmade bakeries full of craftsmanship spirit to efficient food factories, different production lines meet different levels of market demand.

Croissant Forming Machine

FAQ

Q: What's the MOQ?

A: 1 set

Q: Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: How long is the warranty of the machine?

A: Two years warranty.
