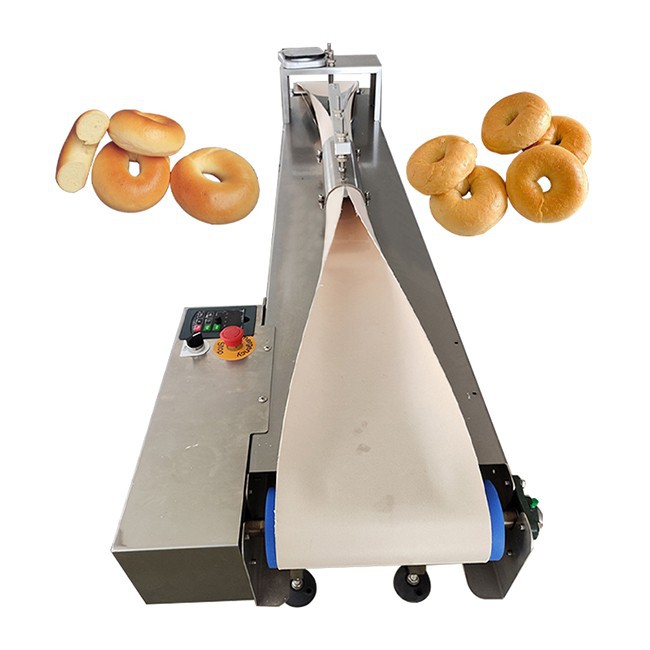

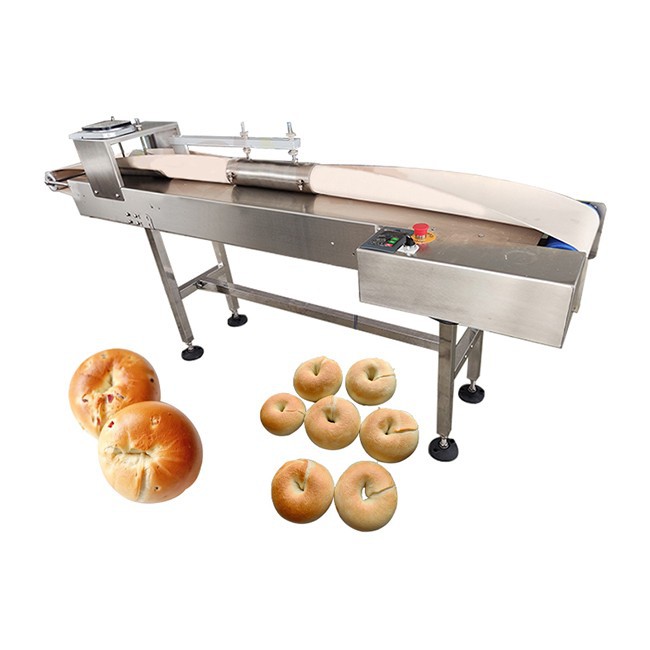

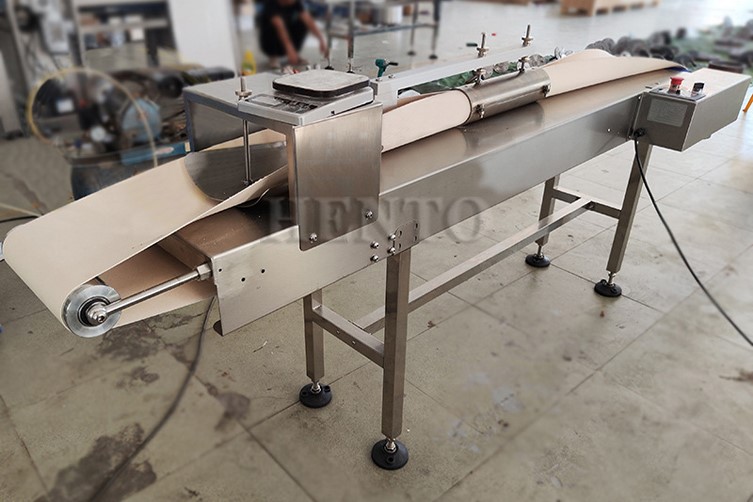

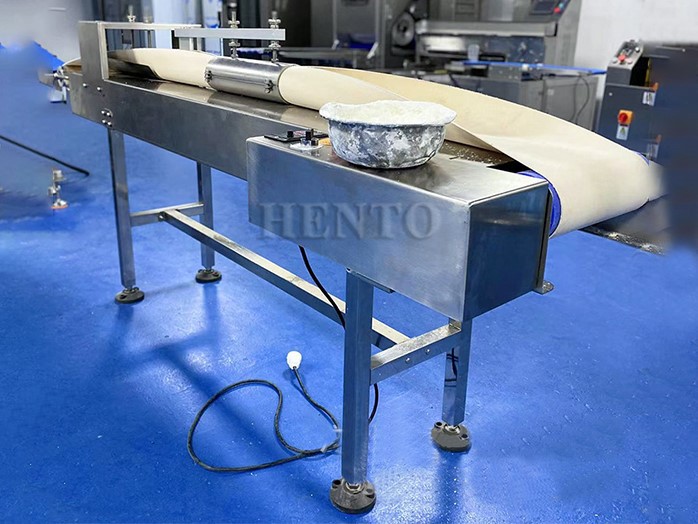

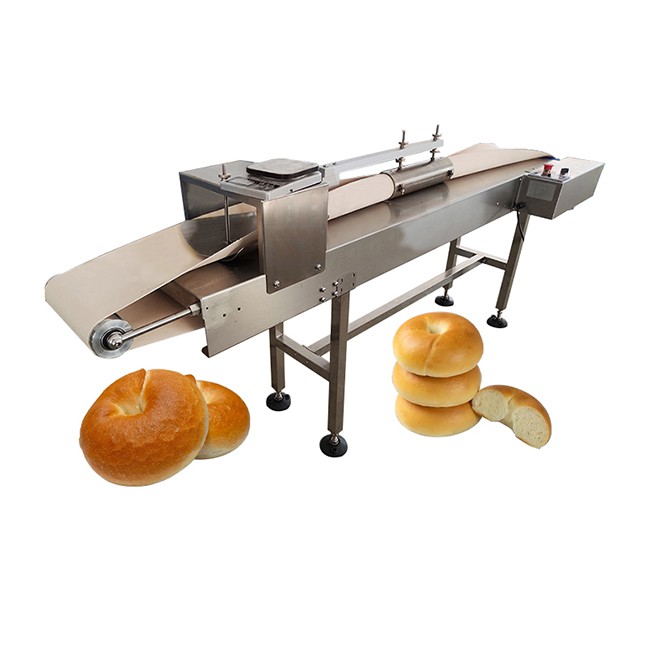

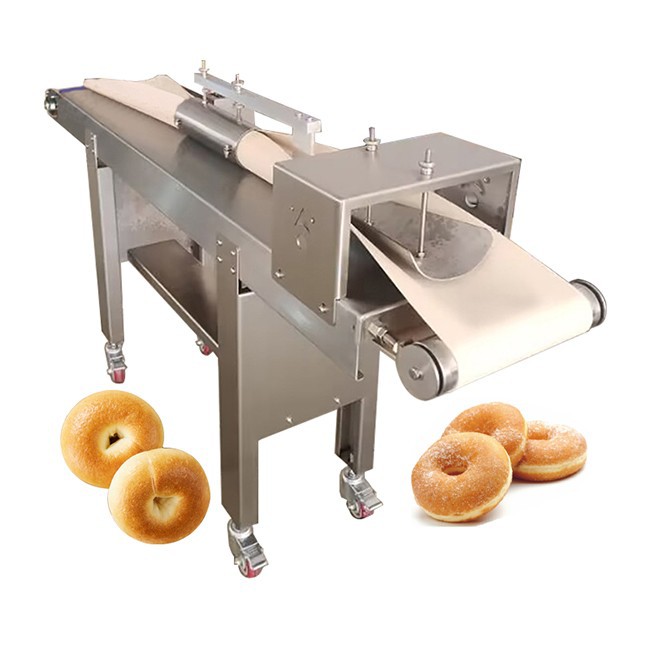

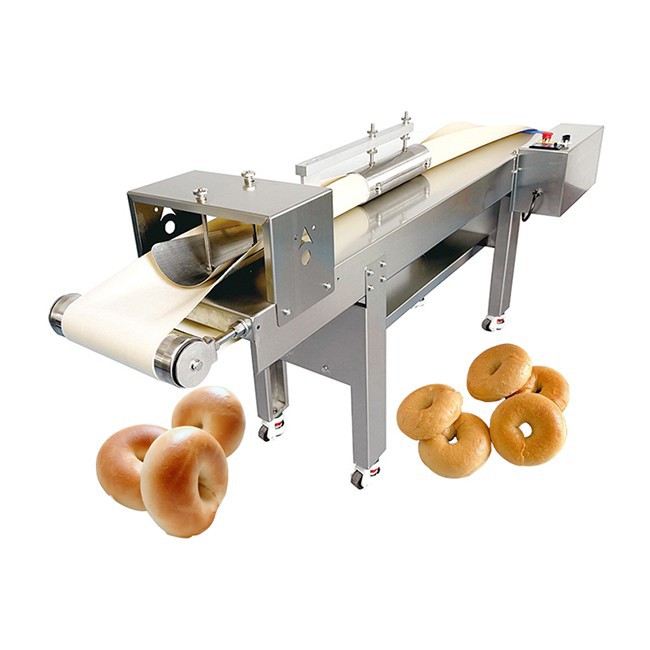

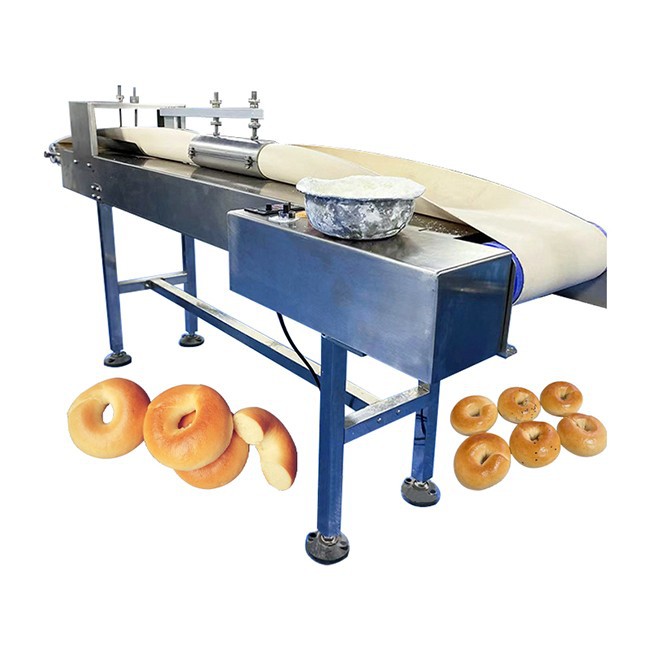

Bagel Forming Machine
Product Description
The bagel forming machine is a specialized equipment. It used for manufacturing bagel bread. It achieves dough shaping through a flexible conveyor belt, twisting the strip-shaped dough into a ring shape and connecting the ends together. It can efficiently and accurately process the dough into standardized beetroon shapes, suitable for commercial baking and industrial production. Through molds and dough pressing components, the size and shape of the beetroons can be ensured to be consistent, with a smooth and attractive surface.
Bagel forming machine is mainly used in commercial baking production lines, it can achieve automated production. Compared with traditional manual production, it can save 3-5 workers. The output can reach 2000 per hour. The weight of each bagel can be adjusted between 30 and 150 grams.
Working Principle
1. Dough transportation: Through the dough transportation device, the dough is transported from the feed port to the forming device.
2. Forming process: The dough is first rolled into a long strip, then passes through a curved metal head. The dough strip will be rolled along this curved surface. Then, relying on the friction force of the flexible conveyor belt, the dough "twists" and rolls in the tunnel, eventually twisting into a ring to achieve the connection between the starting point and the ending point.
Machine Features of Bagel Forming Machine
Automated Operation
Automatically completes processes such as feeding, shaping, and cutting, reducing labor costs.
01
High Efficiency
Compared to traditional manual operation, it increases production capacity by more than three times.
02
Strong Stability
The baguettes are formed uniformly in size, with a consistent shape and a smooth surface.
03
Customized Support
Customizable for different size molds, and mold sizes can be adjusted.
04
Adjustable Speed
The forming speed can be adjusted, the operation is simple, highly efficient, and labor-saving.
05
product parameters
|
Model |
HT-BG350 |
|
Capacity |
2000pcs/h |
|
Weight Range |
30-150g/piece |
|
Voltage |
220v/380v |
|
Power |
0.55kw |
|
Dimension |
2150*600*1150mm |
|
Packing Size |
2180*630*600mm |
|
Net Weight |
125kg |
|
Gross Weight |
150kg |
FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: 3.What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: 4.How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: 5.Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: 6.How long is the warranty of the machine?
A: Two years warranty.
Q: 7.How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: 8.What about the package?
A: Usually we will use the standard export wooden case.
Q: 9.Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: 10.Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about Pre-sale service?
A: 11.Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: What about After-sales service?
A: 12.Video technical support; Online support ; Field installation, commissioning and training;
