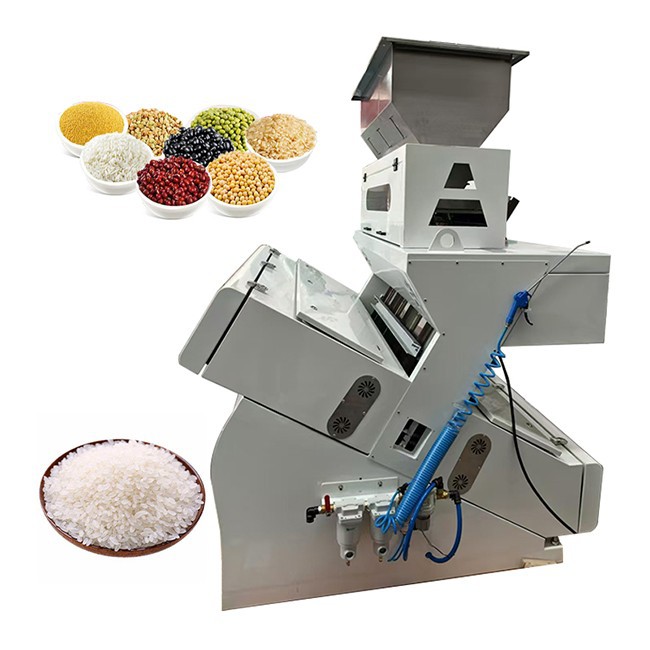

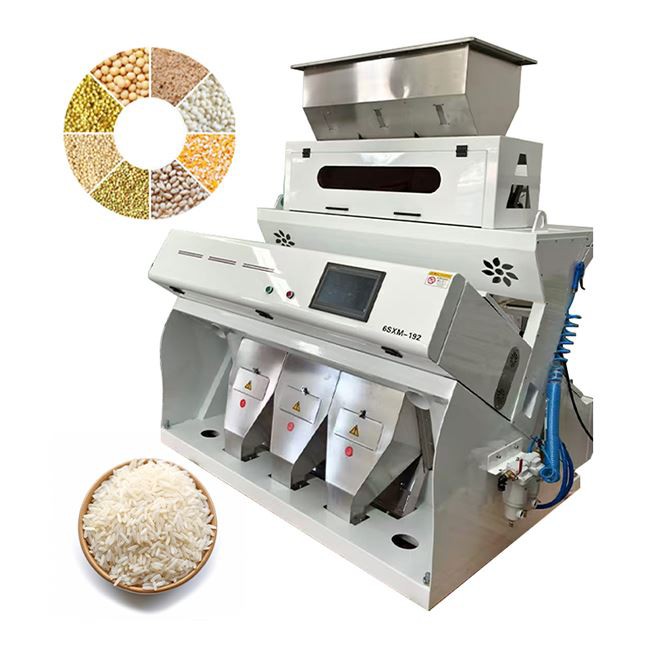

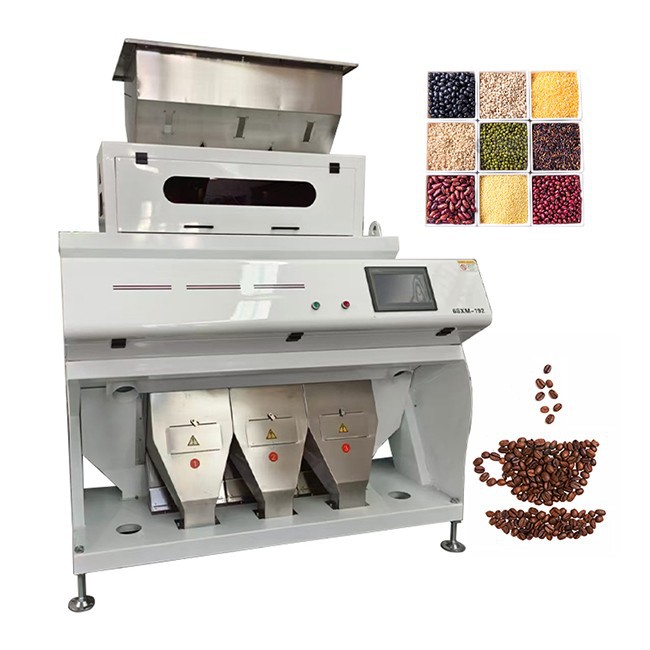

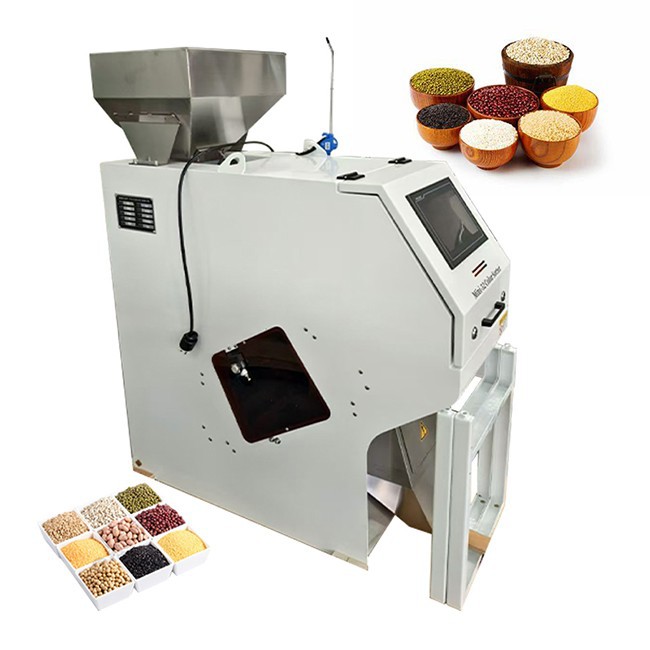

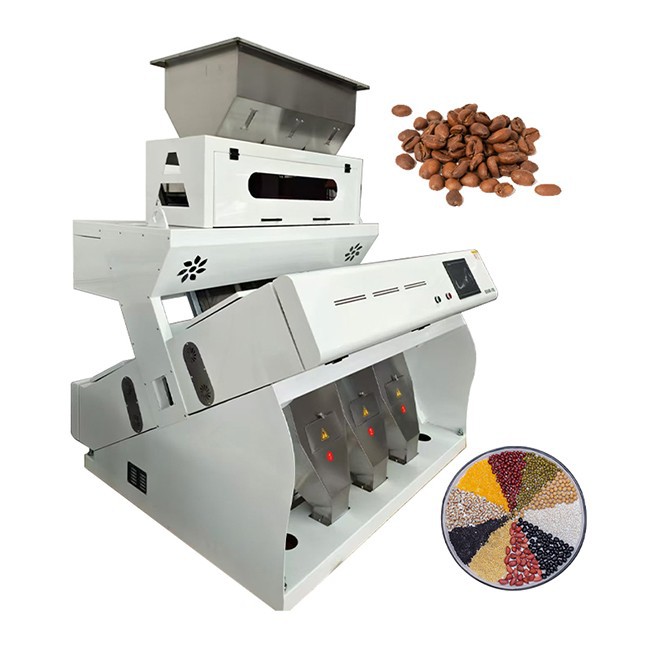

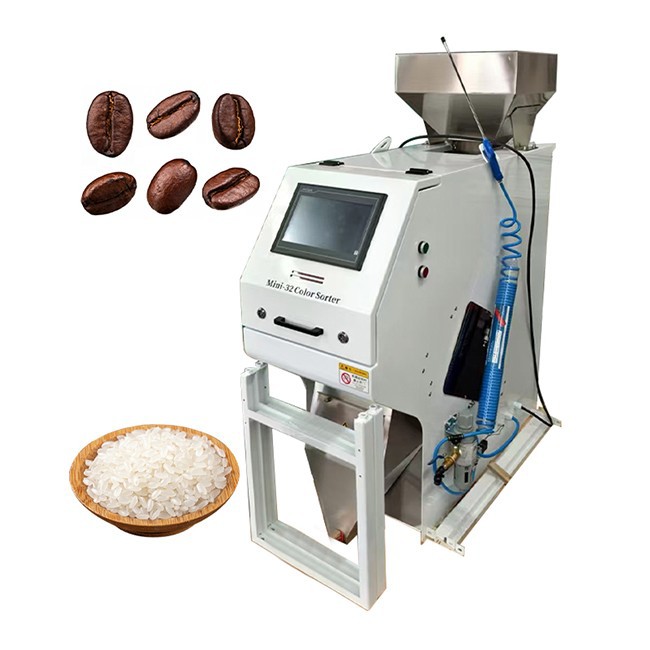

The chute color sorter is suitable for color selection of small particles such as rice, miscellaneous grains, coffee beans, salt and white sugar.

Send Inquiry

Product Introduction

The chute color sorter is an automated equipment, and it uses photoelectric sensors and computer vision technology for color recognition and classification. This device transports objects along a chute, and scan it during operation, separate objects that do not meet specific color requirements. The chute type color sorter is widely used in food processing, agricultural product selection, waste disposal and other fields due to its efficient, accurate and reliable color sorting function.

Application Area of Chute Color Sorter

As long as there is a significant color difference between materials, the chute color sorter can exert its powerful sorting ability.

1.Agricultural and sideline products: color selection and mold removal of rice, beans, coffee beans, and Chinese wolfberry.

2.Industrial materials: plastic pellets, ore primary selection, and sorting of renewable resources.

3.High value-added products: purification and purification of Chinese medicinal herbs, premium tea leaves, and nuts.

4.Seasoning: Remove impurities from salt and sugar.

Working principle of Chute Color Sorter

Feeding system

The material is uniformly fed into the chute (inclined slide) through a vibrating feeder, forming a single-layer or single particle flow.

Optical detection

High speed cameras or photoelectric sensors scan flowing materials to capture features such as color and shape.

Intelligent analysis

The image processing system compares the collected data with preset standards to identify discolored particles or defects.

Sorting execution

When non-conforming products are detected, the high-pressure air valve is triggered to spray airflow, blowing defective products into the waste port, and qualified products continue to slide into the collection tank.

Core structure of Chute Color Sorter

Chute channel

inclined design, utilizing gravity to allow materials to naturally slide down, ensuring uniform distribution.

Optical box

Contains high-resolution CCD camera, LED light source (visible light, infrared or ultraviolet) to ensure stable imaging.

Spray valve system

precision controlled pneumatic nozzle with response speed up to milliseconds.

Electrical control system

PLC or industrial computer control, supporting parameter adjustment and data recording.

FEATURES of Chute Color Sorter

Efficient sorting: The processing capacity can reach several tons per hour (such as rice sorting of about 1-5 tons per hour).

High precision: can identify color differences or defects of 0.02mm ² or more, with sorting accuracy greater than 99%.

Low damage rate: Non contact sorting, suitable for fragile materials such as tea leaves and nuts.

Modular design: expandable multi-channel and multispectral (such as RGB+near-infrared) detection.

Intelligent learning: Some models support AI algorithms to adapt to material changes.

comparison of product parameters

Model	HT-LC0.5	HT-LC1	HT-LC2	HT-LC3	HT-LC4	HT-LC5	HT-LC6
Power	0.5kw	0.8kw	1.3kw	1.9kw	2.4kw	3kw	3.6kw
Voltage	220v	220v	220v	220v	220v	220v	220v
Air Pressure	0.6-0.8mpa
Air Consumption	0.1-0.3m³/min	0.3-0.8m³/min	0.5-1.0m³/min	0.8-1.5m³/min	1.0-2.0m³/min	1.3-2.1m³/min	2.0-3.5m³/min
Dimension	42011001320mm	88015001760mm	131015001760mm	165015001760mm	198015001760mm	232015001760mm	266015001760mm
Weight	100kg	300kg	400kg	500kg	650kg	800kg	1000kg
Capacity	0.2-0.4tons/h	0.8-1.5tons/h	1.2-2.5tons/h	2.5-4tons/h	3-3.5tons/h	4-8tons/h	5-10tons/h

Model	HT-LC7	HT-LC8	HT-LC9	HT-LC10	HT-LC11	HT-LC12
Power	4.1kw	4.7kw	5.2kw	5.7kw	6.2kw	6.7kw
Voltage	220v	220v	220v	220v	220v	220v
Air Pressure	0.6-0.8mpa
Air Consumption	2.5-4.3m³/min	3.0-4.5m³/min	5.0-6.5m³/min	6.0-7.0m³/min	6.5-7.5m³/min	7.0-8.0m³/min
Dimension	300015001760mm	333015001760mm	367015001760mm	400015001760mm	433015001760mm	466015001760mm
Weight	1200kg	1400kg	1800kg	2200kg	2600kg	3000kg
Capacity	6-12tons/h	7-14tons/h	8-15tons/h	9-16tons/h	10-17tons/h	11-18tons/h

FAQ

Q: 1.What's the MOQ?

A: 1 set

Q: 2.Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: 4.How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: 5.Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: 6.How long is the warranty of the machine?

A: Two years warranty.

Q: 7.How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: 8.What about the package?

A: Usually we will use the standard export wooden case.

Q: 9.Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: 10.Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: 11.What about Pre-sale service?

A: Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;

Q: 12.What about After-sales service?

A: Video technical support; Online support ; Field installation, commissioning and training;
