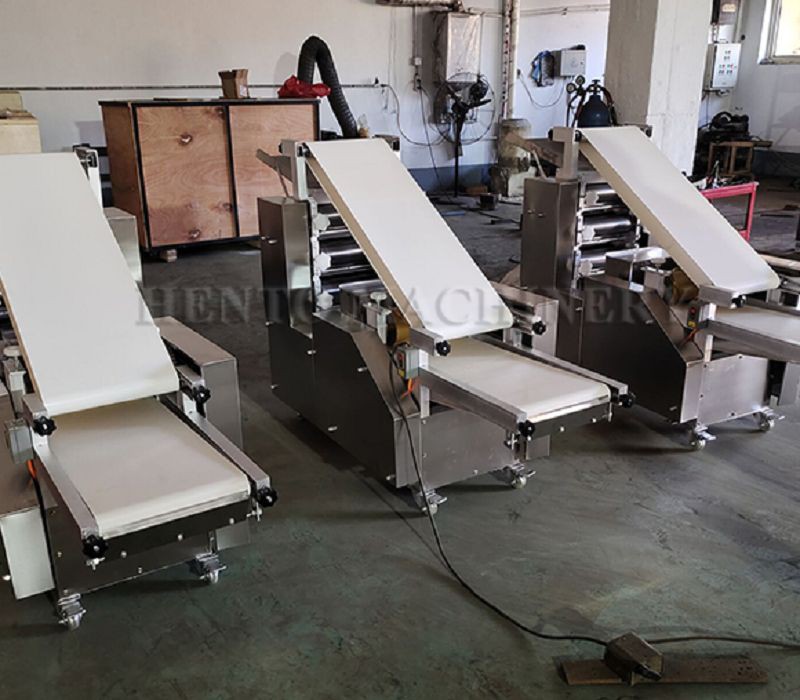

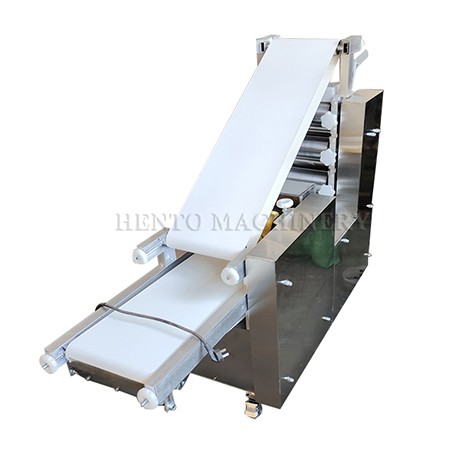

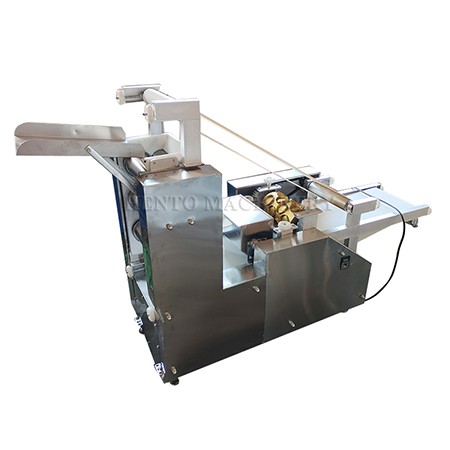

Dumpling Wrapper Making Machine

The advent of this Dumpling wrapper making machine has attracted much attention in the dumpling industry (the selection of dough mixer, dough press, conveyor belt and other supporting equipment can form a dumpling production line).
Press various noodles, dumpling skins, bun skins and wontons of varying thicknesses and make steamed buns, bread, noodles, etc.

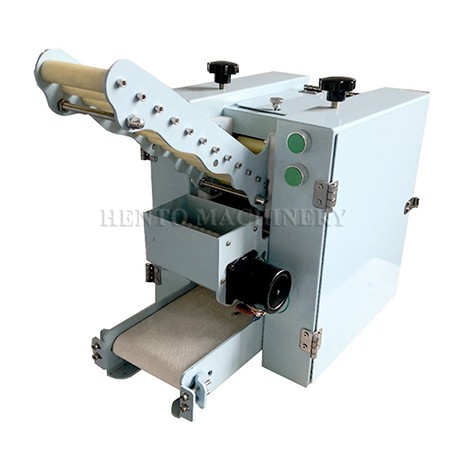

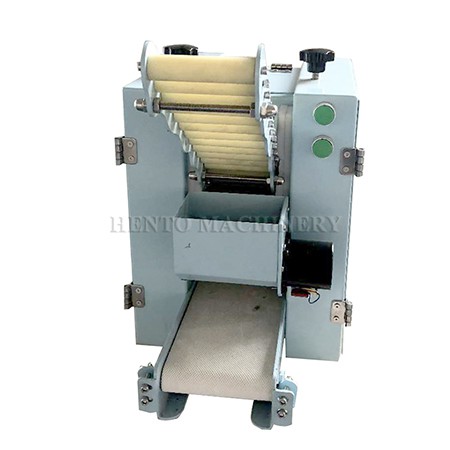

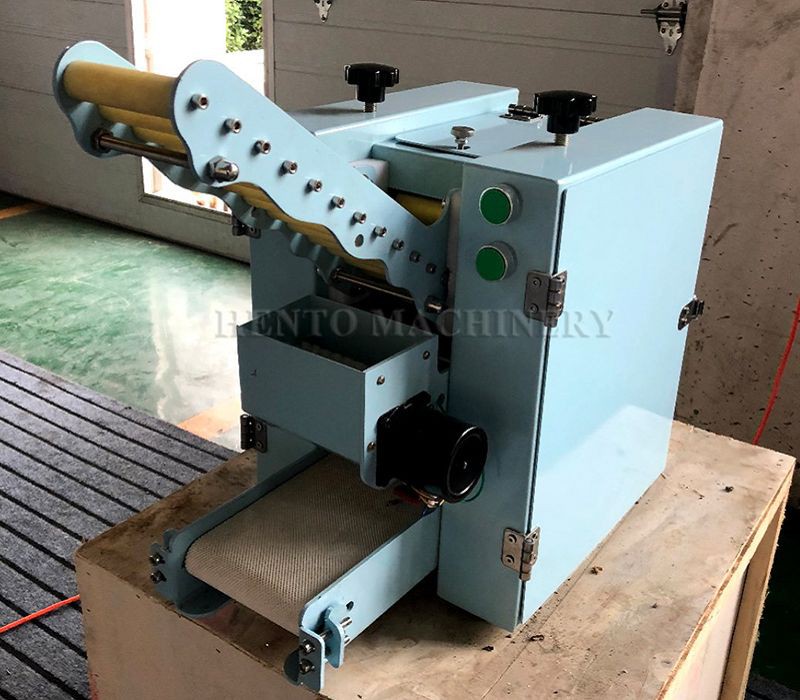

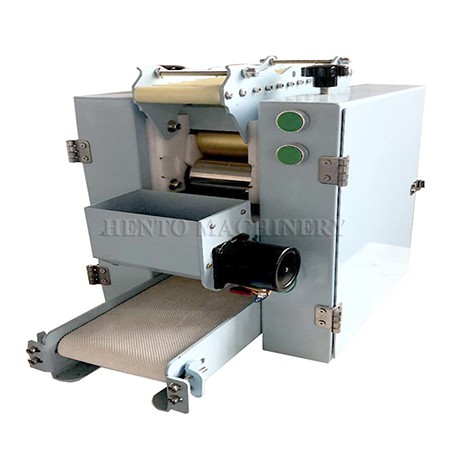

JZP-200 dumpling skin machine
Rated voltage: 220V 50HZ
Input power: 0.75KW
Output: 200 pieces/minute
Dimensions: 1100×600×1000mm

1. Roller arrangement, chain sprocket transmission, easy maintenance.
2. Automatic skin feeding, automatic forming, and automatic skin return.
3. Roller drawing, uniform feeding, neat panels, and labor saving.
Some accessories can be configured according to your needs, such as dumpling skin molds and bun skin molds.
Some equipment can be configured according to your needs, such as dough mixers, mixers, dough presses, etc.
Working Principle of Dumpling wrapper making machine
The working principle is that the coarse pressure roller first presses the noodle billet into noodle sheet, and then sends the noodle sheet to the calendering roller by the conveyor device for thinning and calendering, and then the mold will make the pressed noodle sheet into dumpling skin at one time, and the thickness of the skin can be changed by adjusting the gap of the roller through the hand wheel, which should be adjusted according to the demand, and then it can be used normally.
In addition to the production of dumpling skin, the machine can also be used for processing wonton skin, wet noodles, etc., a multi-purpose machine, no edges, one can operate.
When using the dumpling skin machine, sometimes there will be the case of running out of the skin, it is caused by the lateral clearance of the pair of rollers is not the same, you can adjust the handwheel on both sides of the rollers to solve the problem of running out of the skin.
Adjustment method: the skin to which side of the bias, it is appropriate to loosen which side of the handwheel, or tighten the opposite direction of the handwheel, the gap between the two ends of the rollers are consistent, then there will be no deviation of the situation.
product parameters of Dumpling wrapper making machine
|
Model |
HT-JZP50(single row) |
HT-JZP100(double row) |
HT-JZP100 |
|
Voltage |
220V/50Hz |
220V/50Hz |
220V/50Hz |
|
Power |
1.5kw |
2.2kw |
3kw |
|
Width of the dough |
120 |
220 |
300 |
|
Roller diameter |
96mm |
96mm |
96mm |
|
Weight |
250kg |
300kg |
350kg |
|
Dimension |
1450*500*1150mm |
1450*650*1150mm |
1450*730*1150mm |
|
Capacity |
50pcs/min |
100pcs/min |
150pcs/min |
FAQ
Q: What is Foreign Trade-Express?
Q: Can the machine be customized?
Q:What's the payment term?
Q:How to ship?
A:We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: Which port do you send the goods from?
Q:How long is the warranty of the machine?
