Big Ice Block Making Machine
2. Energy conservation and environmental protection, intelligent temperature control
Products Description
Big Ice Block Making Machine is an ice making device that is a brick shaped ice. This type of equipment is typically used for commercial and industrial purposes, such as in beverage manufacturing, frozen food, and refrigeration systems. The working principle of an ice brick machine is usually to inject water into a container with a refrigeration system, cool it and form ice cubes.
Operation Procedure
1.Turn on the machine and press the power on/off button to start the machine.
Ensure that the power socket is equipped with an effective grounding wire and that the machine's power supply line is equipped with short circuit and leakage protection devices.
2.Prepare enough drinking water and pour it into the container of the ice brick machine.
3.Press the ice making button on the ice brick machine, and the machine will automatically start making ice.
4.Wait for the ice to form and completely freeze, then remove them from the machine.
5.Use a knife to cut the ice into the desired size and shape.
6.Move the ice cubes to the desired position and clean the inside of the machine for future use.
7.When stopping using the machine, press the power on/off button again to turn off the machine.
Please note that this is only the general operating steps of the ice brick machine, and the specific operation should be carried out according to the machine manual and precautions.
Technical Parameter
|
Model |
HT-ZBJ-2 |
|
capacity |
2T/day |
|
Mold weight |
10KG/piece |
|
Mold size |
260 * 70 * 670 mm |
|
Mold material |
stainless steel |
|
Machine size |
2790*1025*1115*290mm |
|
Voltage |
380V,50hz |
|
Power |
8.5KW |
|
Number of moulds |
32 |
|
Ice time/H |
four |
|
Refrigerant |
R22 |
|
Refrigeration mode |
Air cooling |
|
Compressor |
Panasonic 6+3P |
|
weight |
390kg |

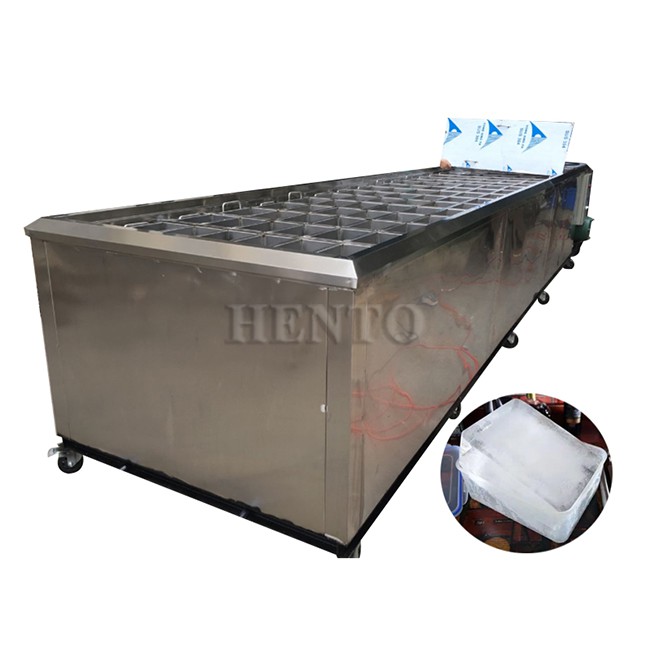

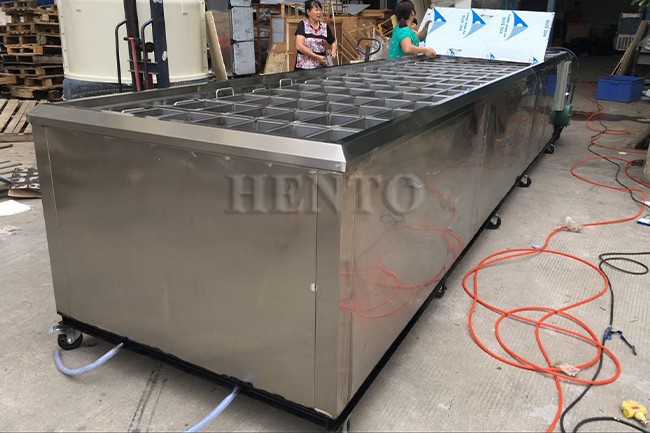

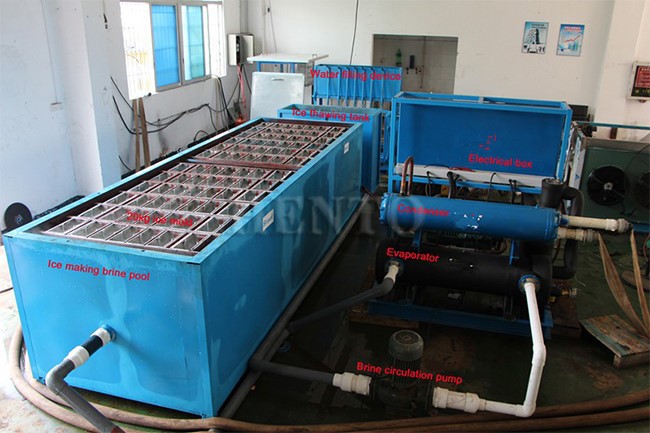

Product Pictures
