Cake Coating Processing Line
video

Cake Coating Processing Line

1. Automated Operation: The Cake Coating Processing Line is designed to be fully automated. This helps in reducing the workload of the bakery staff and also ensures that the cakes are processed uniformly.
2. Easy to Clean: The Cake Coating Processing Line is designed to be easy to clean. It is made of materials that are resistant to corrosion and can be easily washed by hand or by using a dishwasher.
3. Durable: The Cake Coating Processing Line is designed to be durable and can withstand the rigors of daily use in a bakery.
Send Inquiry
Product Introduction
Working Principle of Cake Coating Processing Line:



The Cake Coating Processing Line works by first filling the cakes with the desired filling. The cake is then cut into the desired shape and size. The machine then coats the cake with the desired coating. The equipment is designed to be fully automated and can process a large number of cakes in a short period of time.



Automatic Cake Coating Processing Line including cake filing machine, cake cutting machine, cake coating machine:

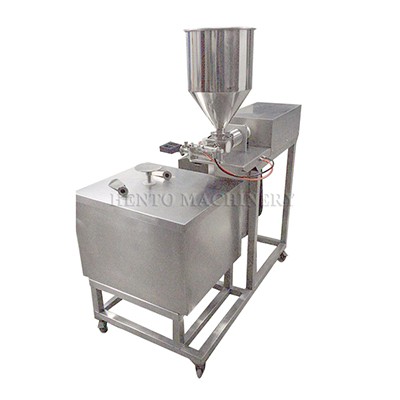

Cake filling machine:



DI-100 automatic quantitative feeding machine is a professional equipment that can improve production efficiency, unify product quality and increase product variety. It is an essential equipment for bakery Dim sum stores. The three control methods include foot (hand grip) control, photoelectric induction control (used in conjunction with conveyor belts), and external signal control to improve the operability of the equipment. Replacing different discharge heads can be applied to a wider range of product production.

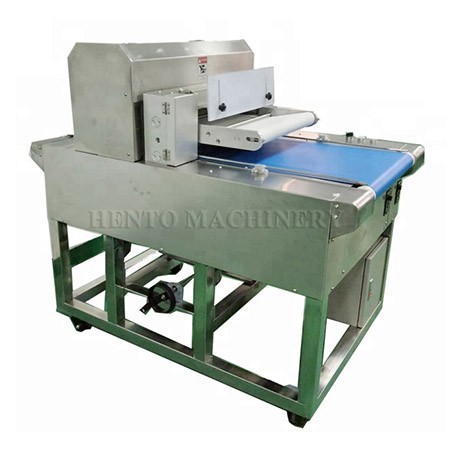

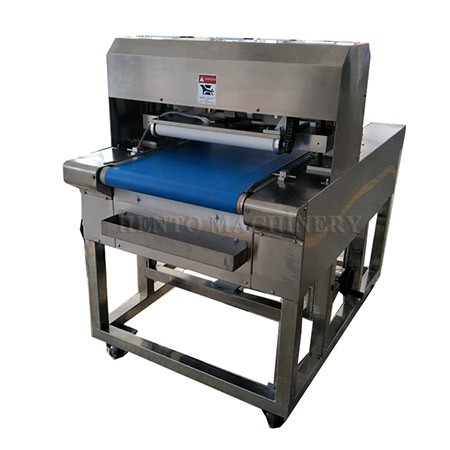

Cake cutting machine:



Cake cutting machines have become one of the essential tools for any cake business because they offer precision and uniformity while cutting cakes of different sizes and shapes.



Features of Cake Cutting Machine:



1. Blade size: Cake cutting machines are available in various blade sizes from 10-20 inches. The size of the blade will depend on the size of the cake you intend to cut.

2. Material of blades: Cutter blades can be made of different materials like stainless steel, carbon steel or Teflon.

3. Blade adjustment: Cake cutting machines have the provision to adjust blade height or blade distance, i.e. the distance between the blade and the cutting board at which the cake is placed.

4. Automatic and Manual Mode: Cake cutting machines come with either automatic or manual operation modes. Some machines offer both settings to the user to choose from.

5. Safety features: Cake cutting machines have different safety features like a safety switch, emergency stop button or guard rails which ensure safe operation.



Easy to clean: Most cake cutting machines are easy to disassemble, clean and reassemble.



Cake Coating Machine:



Product use: this equipment is mainly used for outer round cake cream daub, daub can need according to the customer, after screeding device and stripe device.Touch screen + PLC system for computer control system, can be set in advance good parameters and save the cake, without adjustment parameters.According to customer needs, production of various sizes of cake daub mouth.



Technical Parameter



Caker filler:

Model

HT-DI100

Voltage

110V/220V

Power

0.15kw

Weight

45kg

Dimension

480*425*590mm



Cake cutting machine:

Model

HT-SRC800

Voltage

single phase (220v)

Power

1.0KW

Dimension

1200*1100*1480MM

Weight

400KG

Cutting range

Round shape: 6-12inches

Square shape:66*66cm

Triangle cutting shape:66*40cm



Cake coating Machine:

Model

HT-NYT1

Maximum cake diameter

200mm

Capacity

1pieces/3 Seconds

Power

1.1kw

Maximum application amount

700ml

Tank capacity

10L

Dimension

1400*800*1500mm

Weight

100kg

Production pressure

0.5-0.7MPa

Production volume

≤0.10m³/min



Product Pictures

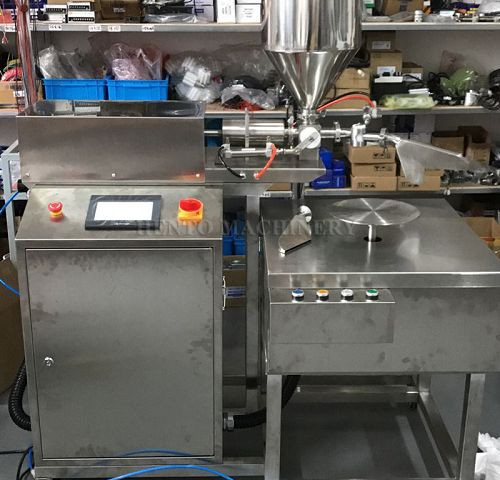

cake cream machine bakery001
Cake Processing Line001
cake production line001
