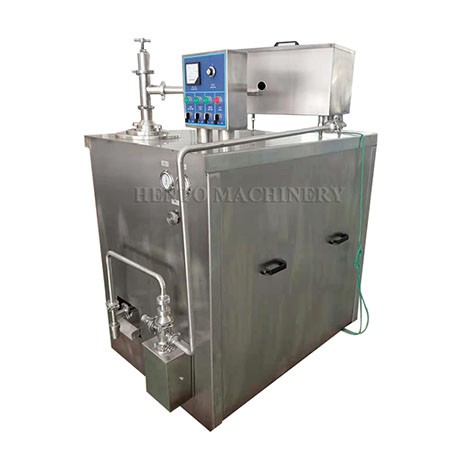

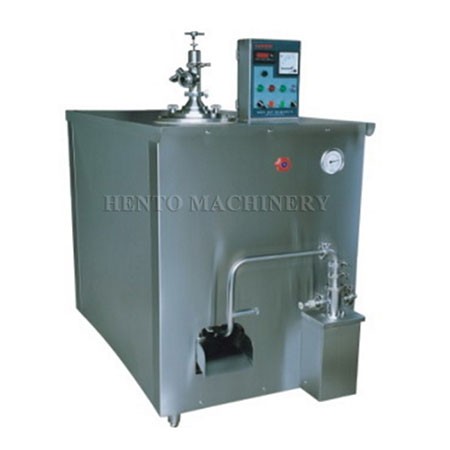

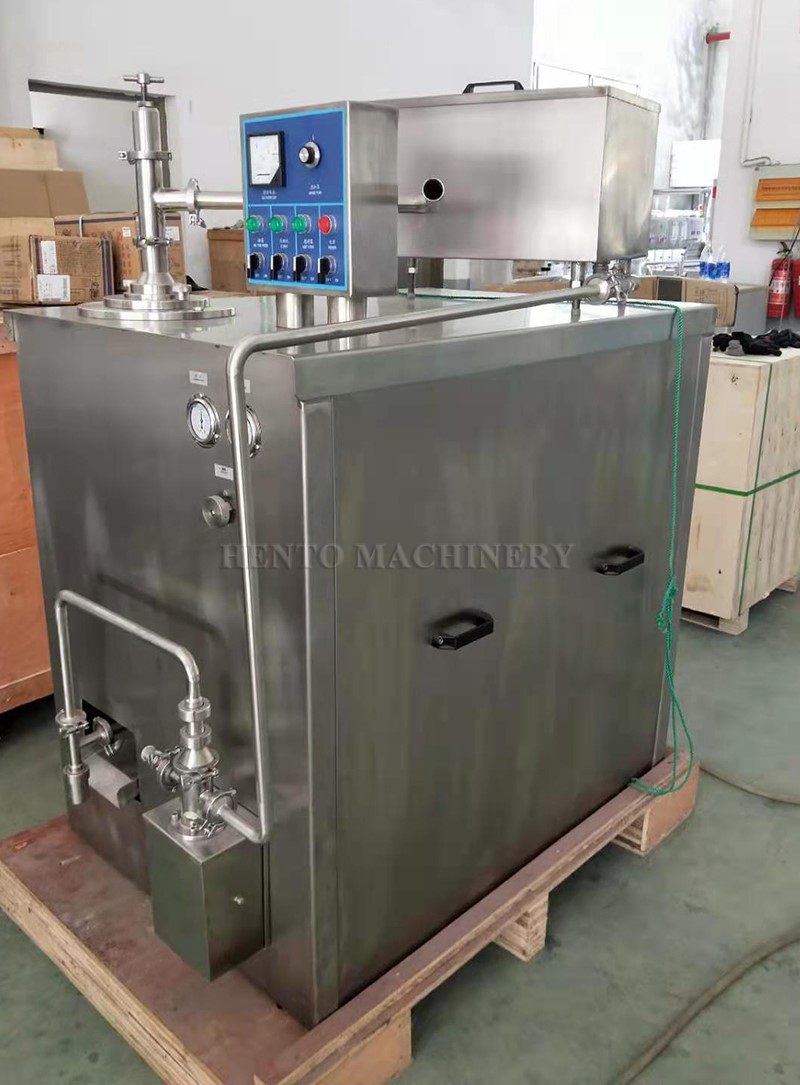

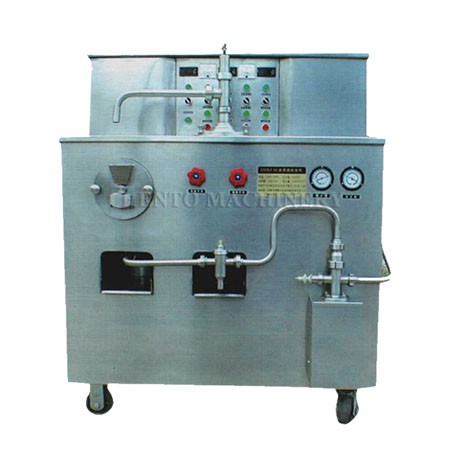

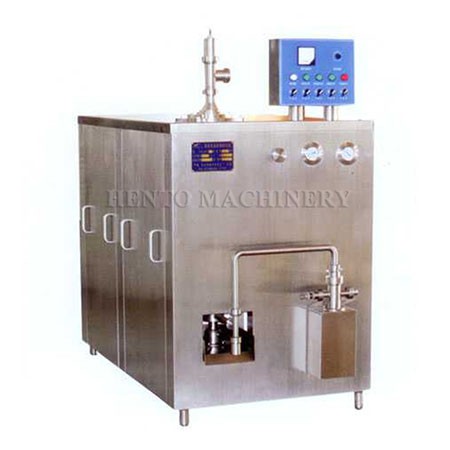

Ice Cream Continuous Freezer Machine



The Ice Cream Continuous Freezer Machine is equipped with an independent cooling system for high cooling efficiency. The mechanical part adopts a vertical mixing and scraping device, which is compact in structure and convenient and durable. The components of the ice cream continuous freezer that come into contact with the material are made of stainless steel or hard chrome plated material, and the material delivery pipeline has no welds. No dead corners, smooth surface, easy to disassemble and clean parts, ensuring the cleanliness and hygiene of food. When operating the device, simply adjust the air volume of the air mixing pump to control the expansion rate of the ice cream, allowing users to continuously produce their own ice cream.

The Ice Cream Continuous Freezer Machine is equipped with an independent, highly stable, and reliable refrigeration system, consisting of semi enclosed refrigeration compressors, valves, and other kits from top international brands. They are easy to clean, mainly maintained, and fully meet the needs of health standards. This machine is easy to install and operate, making it an ideal equipment for industrial production of ice cream. All parts of the machine that come into contact with food and electric vehicles are made of stainless steel.

The working principle of Ice Cream Continuous Freezer Machine is that ice cream raw materials and air enter the freezer through a feed pump, and the Freon compressor begins to cool. The scraper inside the freezer starts to mix the material with air, and the stainless steel blade scrapes the frozen ice cream onto the inner wall. The ice cream is then discharged through a discharge pump.

The Ice Cream Continuous Freezer Machine is an ideal equipment for large-scale and continuous production of soft ice cream. Mixing raw materials with air and freezing to produce ice cream can continuously and automatically produce high-quality ice cream, which will help reduce processing costs. Equipped with an independent refrigeration system, using internationally renowned semi enclosed compressors, valves, and other components. Specially designed evaporator with good cooling effect ensures stable product quality. The pneumatic pump used for material transportation adopts imported frequency converters for speed regulation. The machine is easy to operate and can be easily assembled and disassembled for cleaning.



Model	HT- NDJ50	HT- NDJ150	HT- NDJ300
Capacity	50L/h	150L/H	300L/H
Feeding temperature	2~4℃	2~4℃	2~4℃
Voltage	380v/3/50hz	380v/3/50hz	380v/3/50hz
Refrigerant	R404a	R404a	R404a
Out-feeding temperature	<=-4℃	<=-4℃	<=-4℃
Weight	250KG	450kg	700kg
Dimension	910*600*1500mm	1130*760*1530mm	1400*800*1800mm
