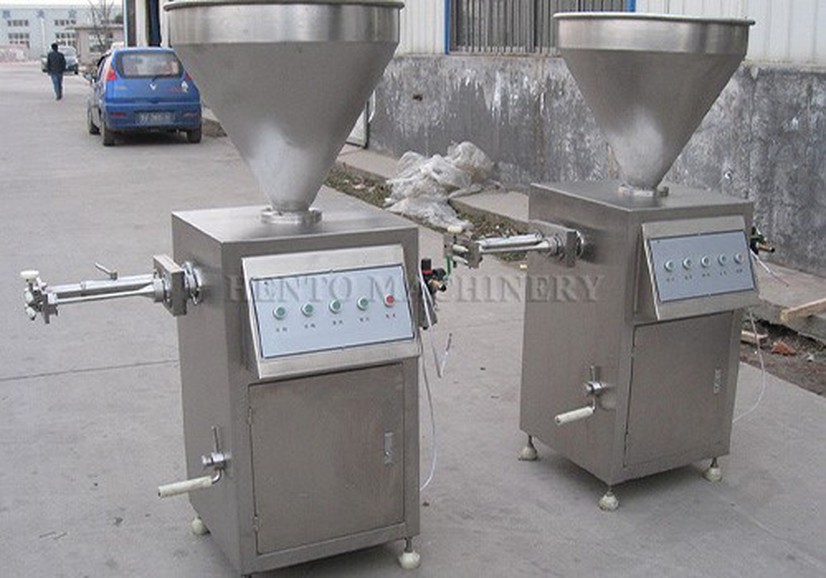

What is Pneumatic Quantitative Sausage Filling Machine?
1.Structure of Pneumatic Quantitative Sausage Filling Machine :
This machine is mainly composed of feeding part, quantitative part, main cylinder, air cylinder, rotary valve cylinder, kink rotation system, kink, discharge part, etc.
The quantitative part is mainly composed of quantitative guide rod, fine-tuning nut, positioning bumper and positioning screw. It is mainly to adjust the quantitative amount, and adjust it as needed.
The feeding part is mainly composed of hopper, quantitative cylinder, piston rod, piston, sealing ring, flange and so on.
The power of feeding is the air source from the main cylinder, and the main cylinder drives the piston rod to control the feeding. The location of the master cylinder is at the lower rear of the machine.
The air source power from the rotary valve cylinder is used to control the rotary arm, the rotary arm drives the rotary valve, and the rotation of the rotary valve controls the discharge.
The kink system mainly uses compressed air as power to convert the linear motion of the cylinder into a rotary motion, which is transmitted to the kink through the sprocket chain, and the kink synchronizer and the casing tube are twisted synchronously through the synchronous coupling.
2.Advantage of Pneumatic Quantitative Sausage Filling Machine:
(1) It is made of SUS304 food-grade stainless steel, which is reliable and durable, easy to clean, and meets food safety requirements.
(2) Using advanced technology and using pneumatic and photoelectric control principles, it can continuously and automatically quantitatively fill kinks, suitable for filling various sausage products, suitable for natural casings, collagen, and smoked casings.
The overall structure of the equipment is reasonable, beautiful in appearance, stable in performance, simple in operation and convenient in maintenance.
Small power, power saving and cost saving
