Features
Arc spraying equipment has the characteristics of good spray coating quality, high density, strong bonding force, high spraying efficiency, energy saving, and easy operation.
It can spray metal wires such as zinc, aluminum, stainless steel, and copper, and is used in various anti-corrosion projects and mechanical maintenance. The equipment has the following characteristics:
High spraying efficiency: This type of Arc spraying machine can spray 25-35kg of zinc per hour, which is 2-4 times the efficiency of traditional wire flame spraing.
Good coating quality: This series of Arc sprayer uses double atomization and closed nozzles. The sprayed atomized particles have high temperature
Fast flight speed, dense and uniform coating, and the physical properties of the coating (such as density and bonding strength) are better than those of traditional wire flame spraying layers.
The workpiece does not deform during spraying: Because high-pressure air is used as the power, the workpiece is heated very lightly during spraying, and the workpiece does not deform during spraying.
Application

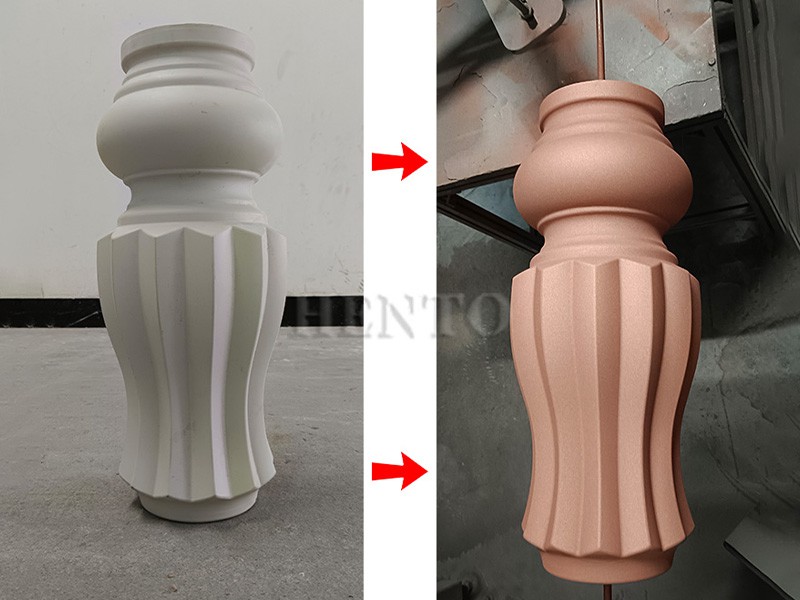

Use non-metallic materials with metal sprayed on the surface to replace metal manufacturing equipment or parts. Metal arc spraying uses AC or DC arc to melt the continuously fed metal wire, and then compressed air is used to atomize it through the nozzle and spray it onto the surface of the workpiece.
Used for protective coatings such as corrosion resistance, high temperature oxidation resistance or wear resistance;
Used to repair the size of parts. For example, if the geometric size of the component is insufficient due to large-scale abrasion or local machining errors, it can be repaired by metal spraying;
The main device of this spraying process is called a metal arc spray gun.

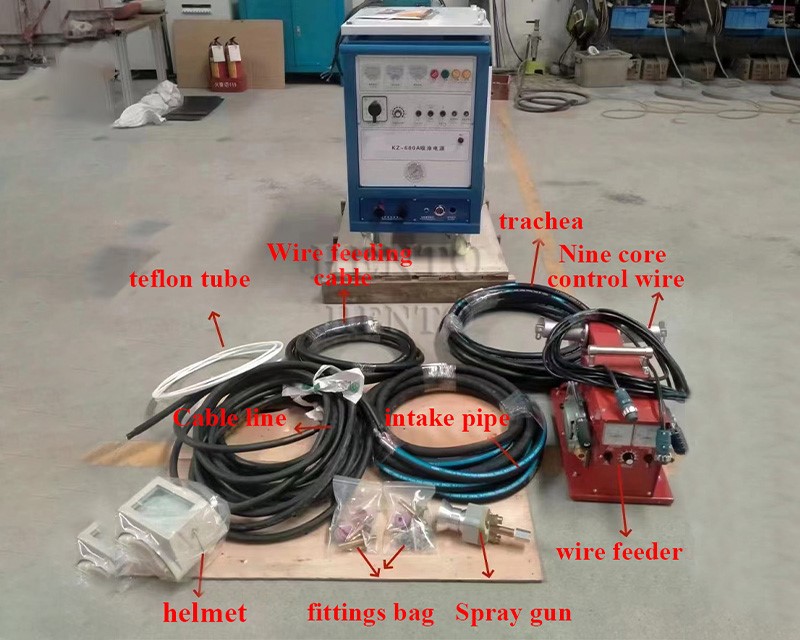

Arc spraying machine
The use of an Arc sprayer has revolutionized the field of coating, making it easier, faster, and more efficient. It has become an essential tool in various industries, such as aerospace, automotive, shipbuilding, and construction, to name a few. As technology continues to evolve, it is expected that the arc spraying machine will continue to develop, making it even more innovative and useful.
