Teabag Packing Machine
Classification of Teabag Packing Machine
The tea bag packaging machine has an automatic metering function. Measuring and packaging are carried out simultaneously, which greatly improves production speed and reduces errors.
Tea bag packaging machine with line
Tea bag packaging machine with line and label
Tea bag packaging machine with inner and outer bags with lines and labels
Product parameters

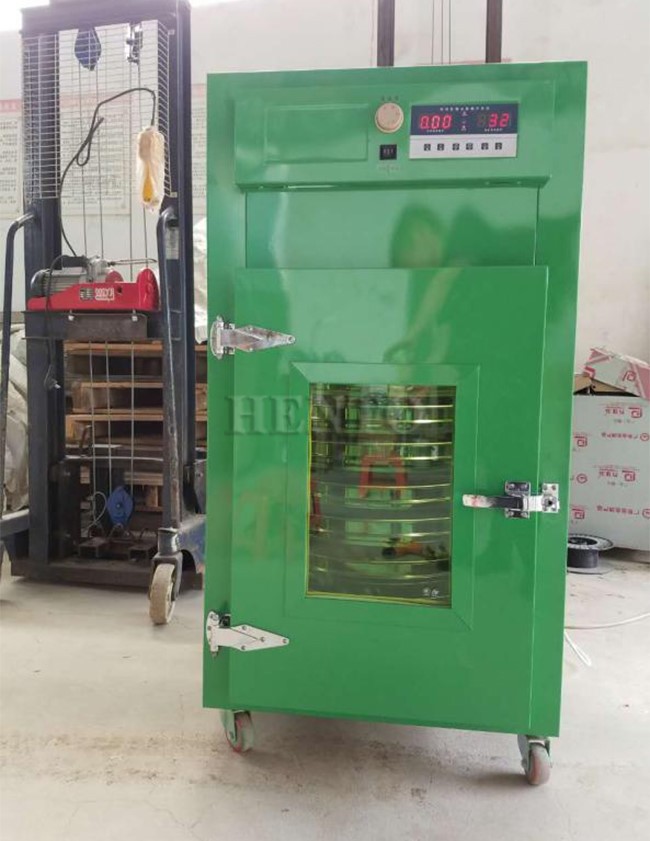

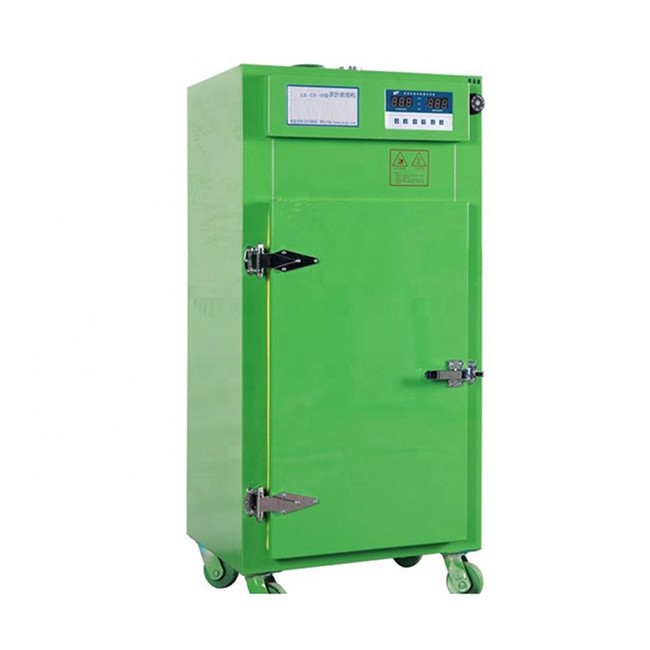

Drying Machine
| Model |
HT-T09 |
HT-T12 |
HT-T16 |
|
Motor power |
0.55KW |
0.55KW |
0.55KW |
|
Heating power |
4KW | 6.55KW | 12KW |
|
Capacity |
40-60kg/batch |
70-90kg/batch |
80-100kg/batch |
|
Dimension |
710*670*1370mm |
960*818*1855mm |
1180*1100*2080mm |
|
Baking tray layers |
9 | 12 | 16 |
|
Chamber Dimension |
560*540*810mm |
760*790*1085mm |
990*960*1350mm |
|
Voltage |
220V |
220V |
380V |
|
Weight |
120kg |
177kg |
320kg |

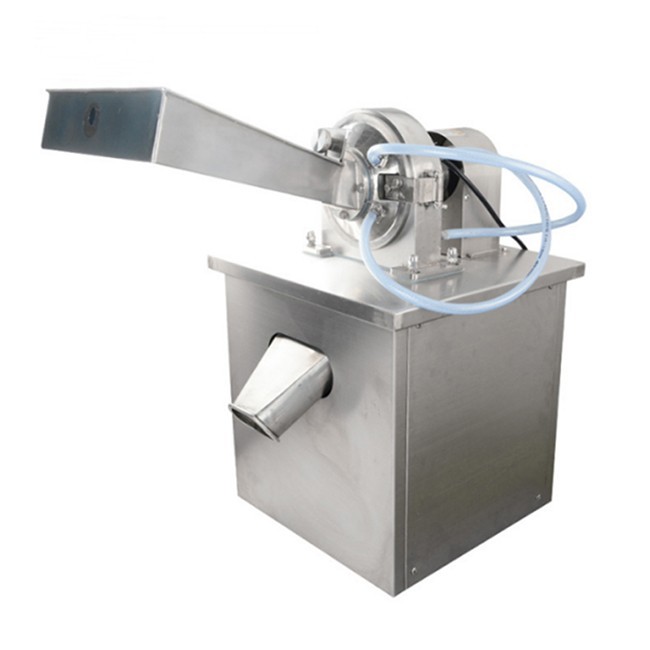

Grinding Machine
|
Model |
HT-MFJ180 |
HT-MFJ250 |
HT-MFJ350 |
|
Capacity |
40-75kg/h |
80-250kg/h |
250-550kg/h |
|
Power |
3kw |
5.5kw |
7.5kw |
|
Voltage |
380V/50HZ |
380V/50HZ |
380V/50HZ |
|
Mesh |
10-120μm |
10-120μm |
10-120μm |
|
Spindle speed |
4500r/min |
3400r/min |
3800r/min |
|
Dimension |
556*450*900mm |
765*575*1180mm |
1167*630*1150mm |
|
Weight |
110kg |
200kg |
280kg |

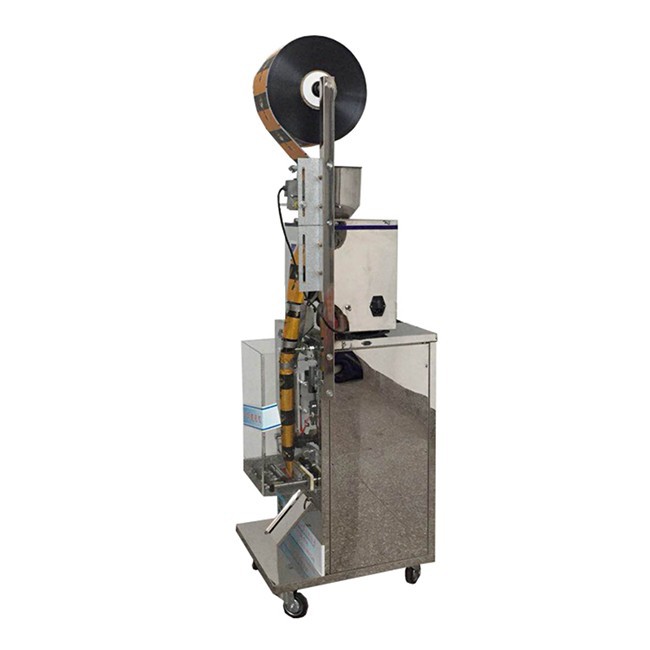

Tea Bag Packing Machine
|
Machine model |
HT-BZC50 |
HT-BZC50 |
|
Function |
weighing, filling, sealing and cutting (can add date coding machine) |
weighing, filling, sealing and cutting (can add date coding machine) |
|
Capacity |
15-30 times/min |
15-30 times/min |
|
Sealing type |
Trilateral seal |
back seal |
|
Packing accuracy |
0.1-0.3g |
0.1-0.3g |
|
Formed Size |
30-100mm |
30-100mm |
|
Film Width |
60-200mm |
60-200mm |
|
Dimension |
430*510*1400mm |
430*510*1400mm |
|
Weight |
57kg |
57kg |
|
Voltage |
220V 50HZ |
220V 50HZ |
|
Power |
450w |
450w |
|
Material |
Stainless steel |
Stainless steel |
Teabag Packing Machine applicable scope

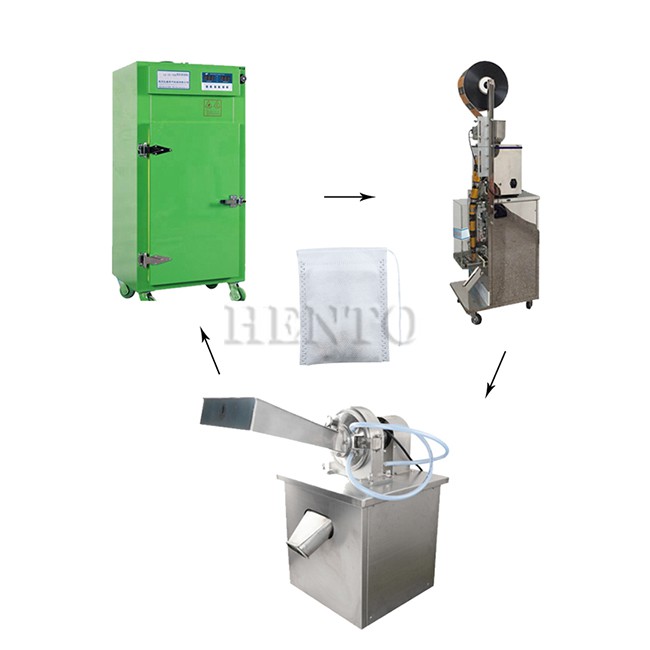

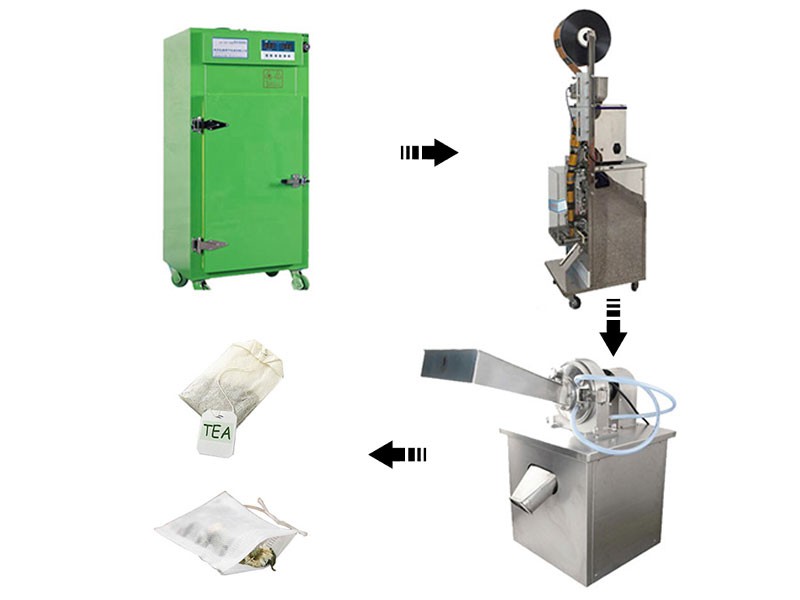

Processing process of tea bag packaging machine:
①First, pack the inner bag. After completion, the machine will automatically put the inner bag into the outer bag, so that the inner bag and outer bag packaging can be completed.
②Then the equipment will automatically make bags, meter and fill, seal and cut, count hot pressing batch numbers and finally output the finished products according to customer settings.
③The material of the inner bag is filter paper, and is equipped with iron wire and labels. The inner bag is packed first, and then the outer bag is packed again, and finally the work of the inner and outer bags is completed at the same time
Features
The packaging accuracy of the tea bag packaging machine is ±0.5. The packaging speed is determined according to different sizes, usually more than 30-50 bags per minute.
Faced with packaging bags of different sizes, customers can set the cutting width and length to achieve cutting and sealing in the packaging process.
The control panel displays the machine speed and packaging quantity, and customers can view the operation process through the panel. The device is also equipped with an optional date printing function, which can automatically print the date.
The device is equipped with an automatic alarm device. If there is an error during operation, the machine will sound an alarm, thereby serving as a warning.
FAQ
What's the MOQ?
1 set.
Q: Can the machine be customized?
As a professional manufacture, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
What's the payment term?
We receive the T/T, Western union or Alibaba Trade Assurance Payment, ect.
How to shipment?
We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Except sea, air, express, sea to the door is no problem.
How to send the goods to customer?
The goods will be sent to you by sea, by air or by train. We can send the goods according to your need.
